◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11314 - FXR/GXR(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#70725) — 19 parça

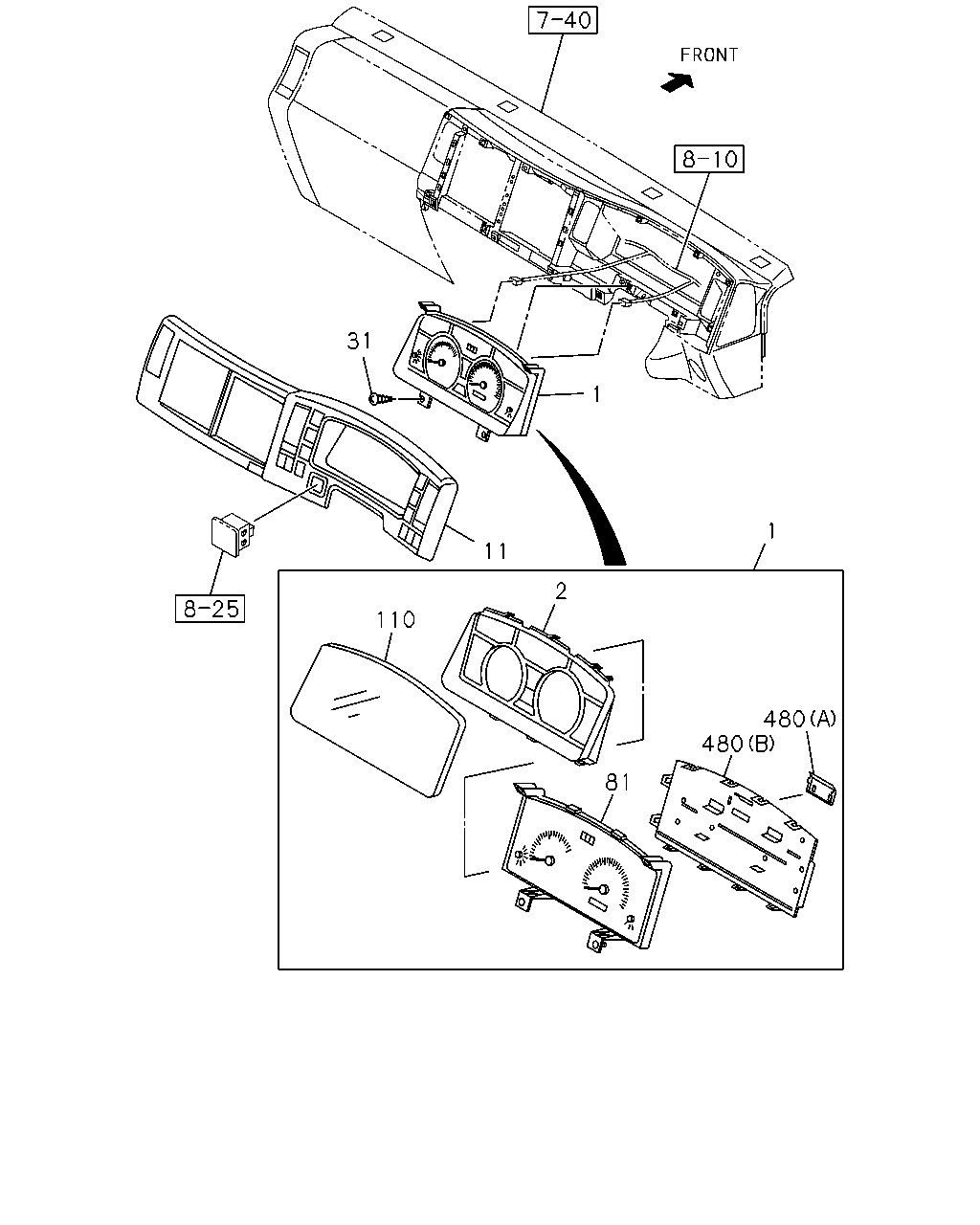

çizim 137849
31 1 1 11 2 110 480 480 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER 8-98117-586-0 01 1 1009-1101 ● ● ●
1 METER COMPL; CLUSTER 8-98179-476-1 01 1 1102-1207 ● ● ●
1 METER COMPL; CLUSTER 8-98195-738-2 01 1 1208-1511 ● ● ●
1 METER COMPL; CLUSTER
ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> 		8-98195-738-2 01 1 1512- ● ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1009-1207 ● ● ●
2 PANEL; CLUSTER 8-98054-638-0 01 1 1208-1511 ● ● ●
2 PANEL; CLUSTER
ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> 		8-98054-638-0 01 1 1512- ● ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1009- ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009- ● ● ●
81 METER SUB ASM 8-98155-163-0 01 1 1009-1101 ● ● ●
81 METER SUB ASM 8-98179-484-0 01 1 1102-1207 ● ● ●
81 METER SUB ASM 8-98195-739-0 01 1 1208-1511 ● ● ●
81 METER SUB ASM
ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> 		8-98195-739-0 01 1 1512- ● ● ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1009-1511 ● ● ●
110 GLASS; CLUSTER METER
ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1512- ● ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1009-1511 ● ● ●
480 COVER; METER
ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> (B) BLACK 		8-98054-433-0 01 1 1512- ● ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1009-1511 ● ● ●
480 COVER; METER
ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1512- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
