◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11314 - FXR/GXR(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#70722) — 217 parça

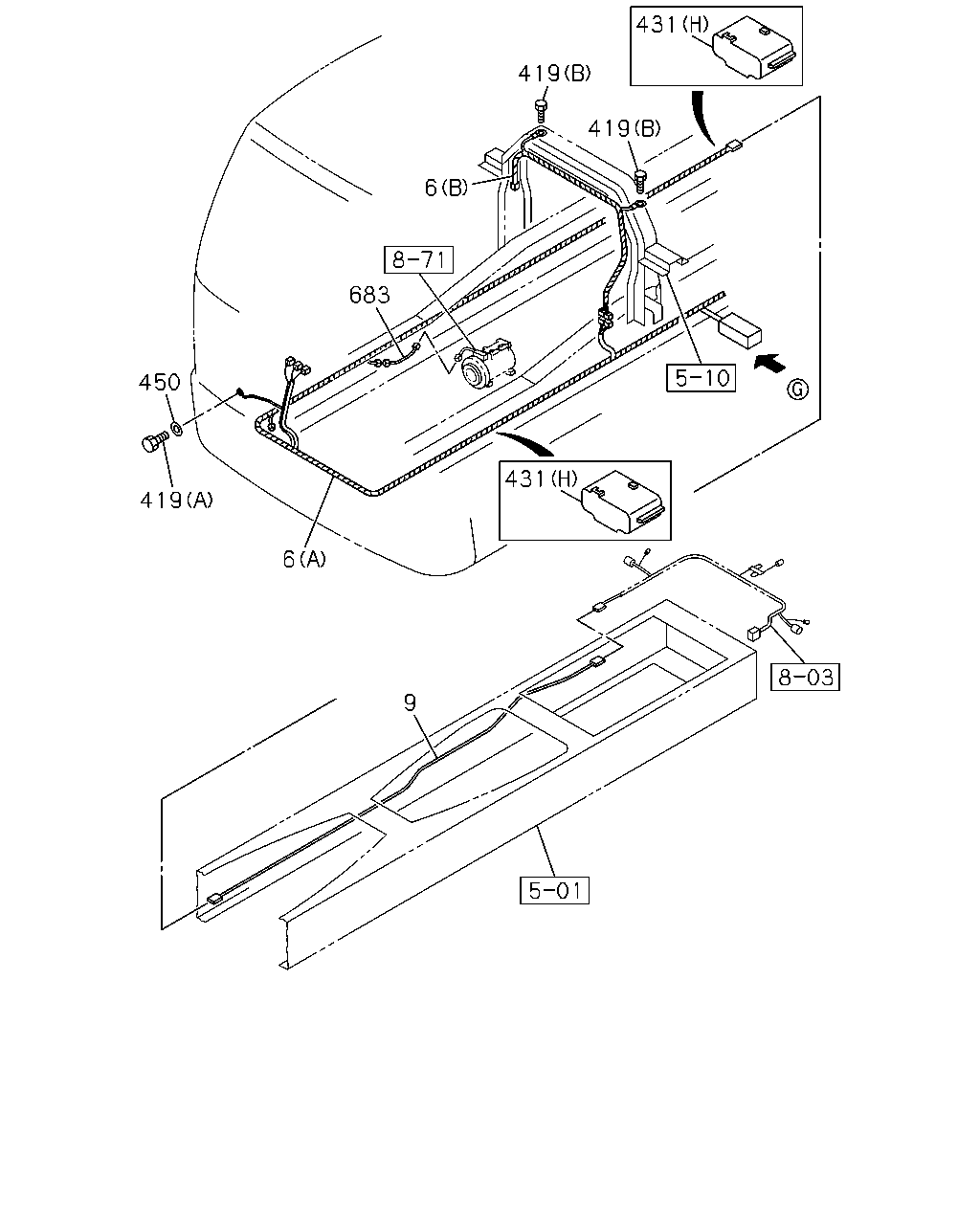

çizim 136062
431 419 419 6 683 450 431 419 6 9
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204- ● ●
6 HARNESS; FRAME
(B) 		8-98156-191-1 01 1 1009- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-170-2 01 1 1009- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-169-2 01 1 1009-1203 ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-419-0 01 1 1204- ●
9 HARNESS; FRAME,RR 8-98131-638-1 01 1 1009- ●
9 HARNESS; FRAME,RR 8-98131-636-1 01 1 1009- ●
9 HARNESS; FRAME,RR 8-98131-645-1 01 1 1009- ●
419 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1009- ● ● ●
419 BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201 ● ● ●
419 BOLT; CAB EARTH
(B) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1204- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1204- ● ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1204- ● ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1204- ● ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009- ● ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 01 1 1009- ● ● ●
683 HARNESS; EXT,COOLER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97609-020-1 01 1 1009- ● ● ●

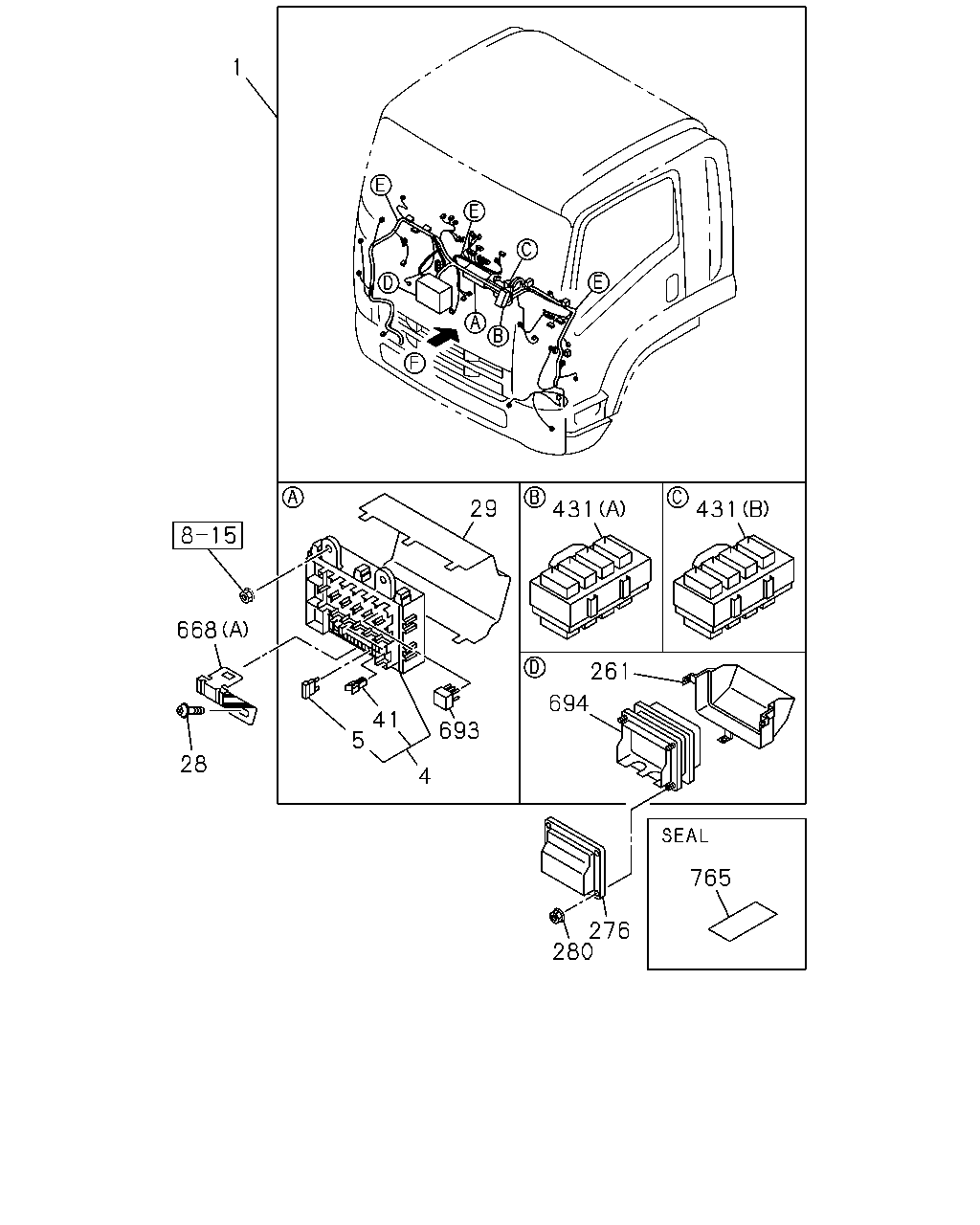

çizim 136418
1 668 28 5 41 4 693 29 431 431 261 694 765 276 280
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98155-300-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98211-955-1 01 1 1204- ● ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-298-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1204- ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98155-303-3 01 1 1009-1203 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98211-958-1 01 1 1204- ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-302-3 01 1 1009-1203 ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-957-1 01 1 1204- ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1009- ● ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1009- ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1009- ● ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1009- ● ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1009- ● ● ●
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1009- ● ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1009- ● ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1009- ● ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1009- ● ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1009- ● ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1009- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1204- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1204- ● ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1204- ● ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1204- ● ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009- ● ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1009- ● ● ●
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1009- ● ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1009- ● ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1009- ● ● ●
765 TAPE
100X40 		1-72498-022-1 01 1 1409- ● ● ●

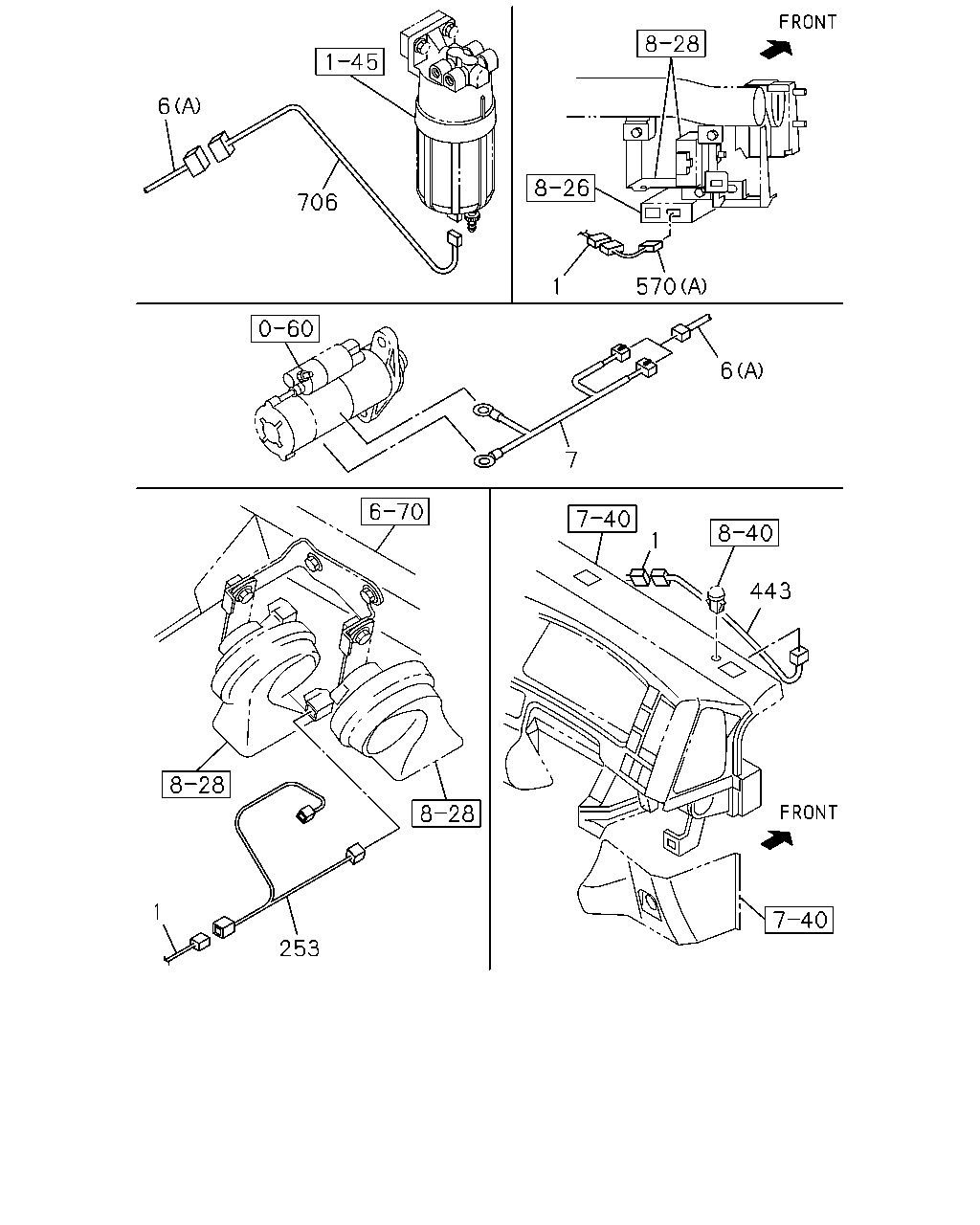

çizim 136639
6 706 570 1 6 7 1 443 1 253
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98155-300-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98211-955-1 01 1 1204- ● ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-298-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1204- ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98155-303-3 01 1 1009-1203 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98211-958-1 01 1 1204- ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-302-3 01 1 1009-1203 ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-957-1 01 1 1204- ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204- ● ●
6 HARNESS; FRAME
(B) 		8-98156-191-1 01 1 1009- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-170-2 01 1 1009- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-169-2 01 1 1009-1203 ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-419-0 01 1 1204- ●
7 LINK ASM; FUSIBLE
GENERATOR 24V90A(K44) 		8-98103-000-0 01 1 1009- ● ● ●
7 LINK ASM; FUSIBLE
EXC. GENERATOR 24V90A(K44) 		8-98088-132-0 01 1 1009- ● ● ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1009- ● ● ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 1009- ● ● ●
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1009- ● ● ●
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1009- ● ● ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98187-173-0 01 1 1103-1203 ● ● ●
706 HARNESS; EXT,SEDIMENTER 8-98187-173-1 01 1 1204- ● ● ●
706 HARNESS; EXT,SEDIMENTER 8-98087-610-1 01 1 1009-1102 ● ● ●
706 HARNESS; EXT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98087-610-1 01 1 1103-1203 ● ● ●

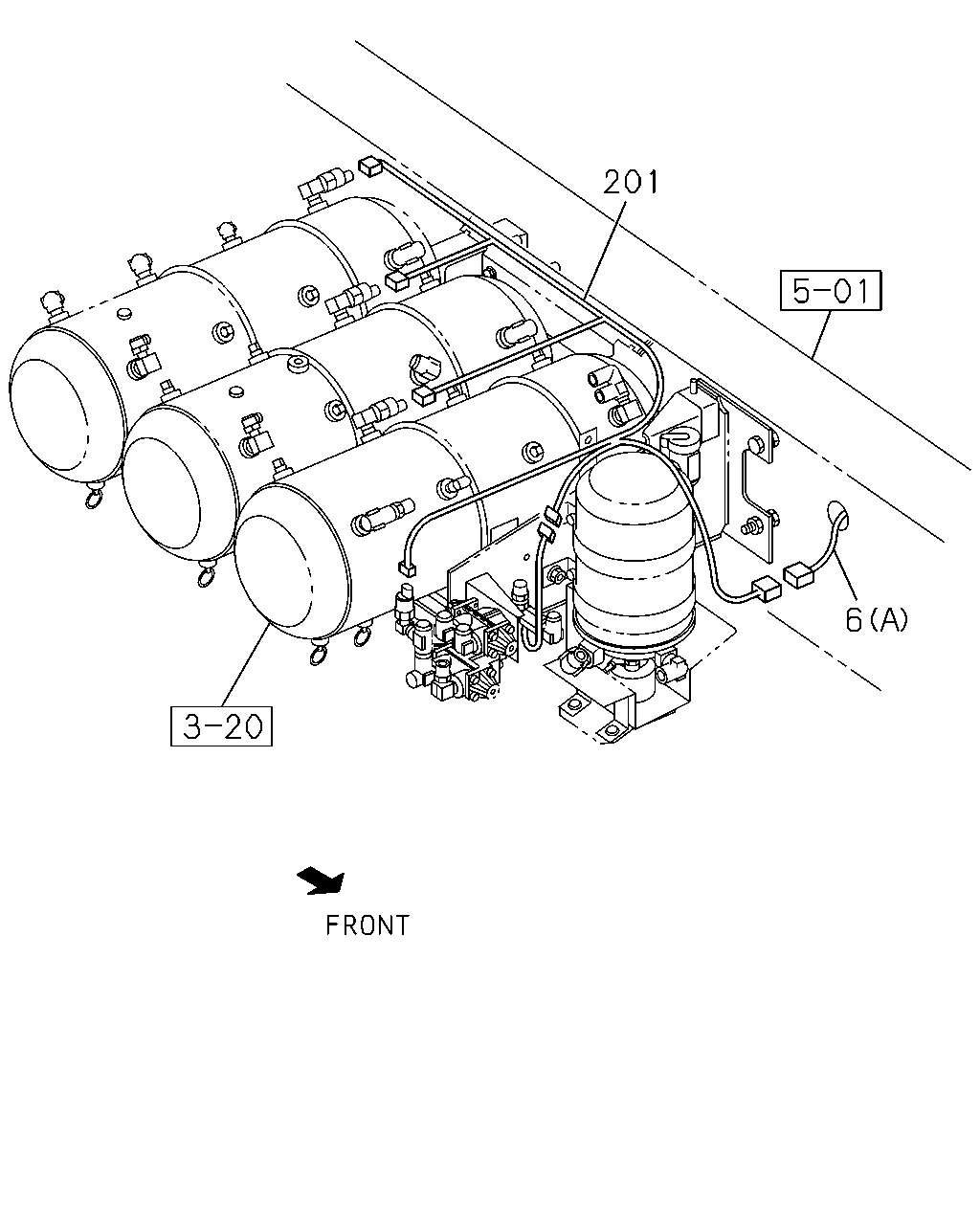

çizim 136779
201 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204- ● ●
6 HARNESS; FRAME
(B) 		8-98156-191-1 01 1 1009- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-170-2 01 1 1009- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-169-2 01 1 1009-1203 ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-419-0 01 1 1204- ●
201 HARNESS; AIR TANK 8-98079-765-5 01 1 1009- ● ● ●

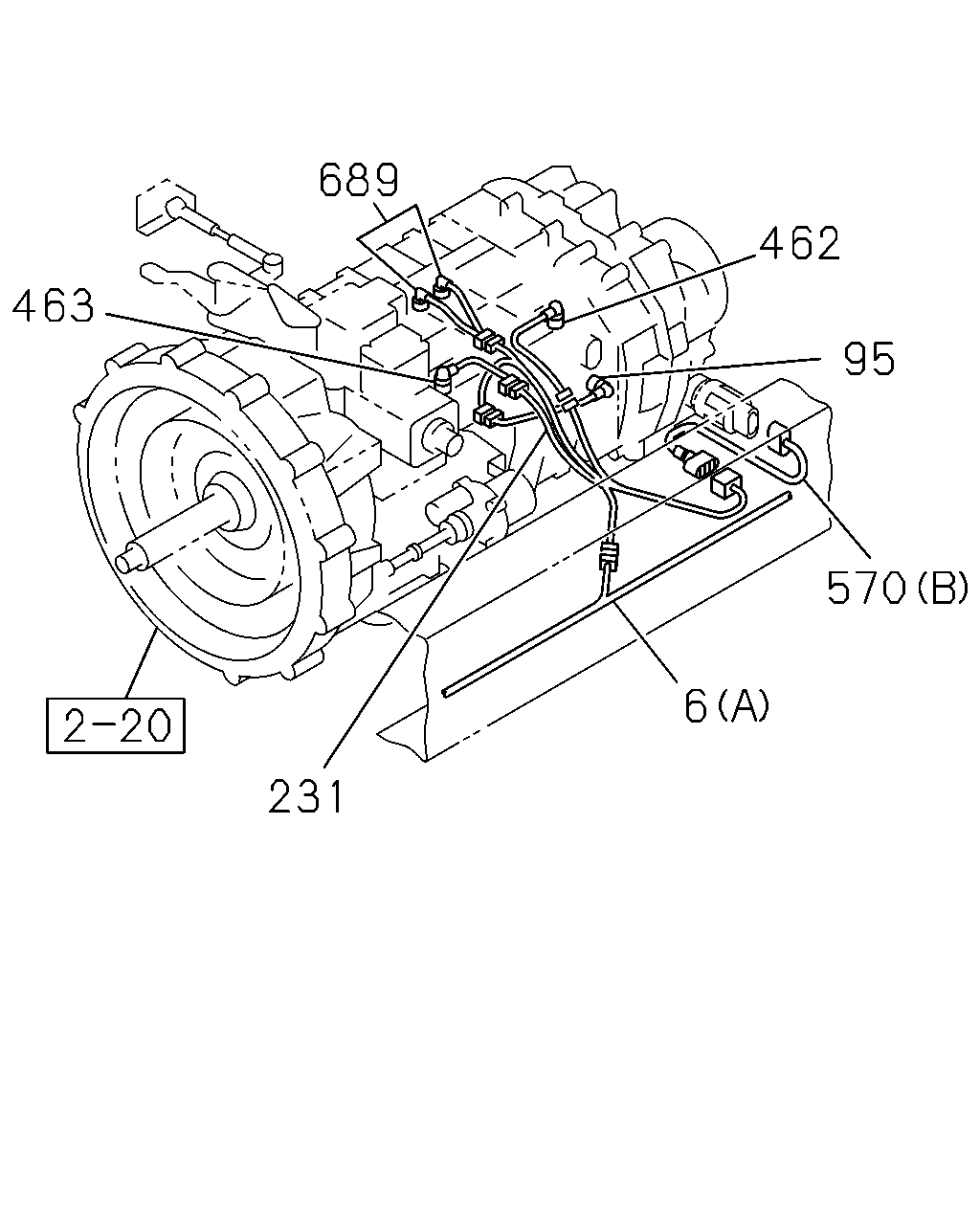

çizim 137086
689 462 463 95 570 6 231
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204- ● ●
6 HARNESS; FRAME
(B) 		8-98156-191-1 01 1 1009- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-170-2 01 1 1009- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-169-2 01 1 1009-1203 ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-419-0 01 1 1204- ●
95 HARNESS; NEUTRAL SW
RED 		8-98145-854-0 01 1 1009- ● ● ●
231 HARNESS; TRANS 8-98163-093-0 01 1 1009- ● ● ●
462 HARNESS; SW,RANGE
BLUE 		8-98145-857-0 01 1 1009- ● ● ●
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 1009- ● ● ●
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1009- ● ● ●
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1009- ● ● ●
689 HARNESS; PRESSURE & ECU SWITCH 1-82659-229-1 01 1 1009-1101 ● ● ●
689 HARNESS; PRESSURE & ECU SWITCH 8-98148-603-0 01 1 1102- ● ● ●

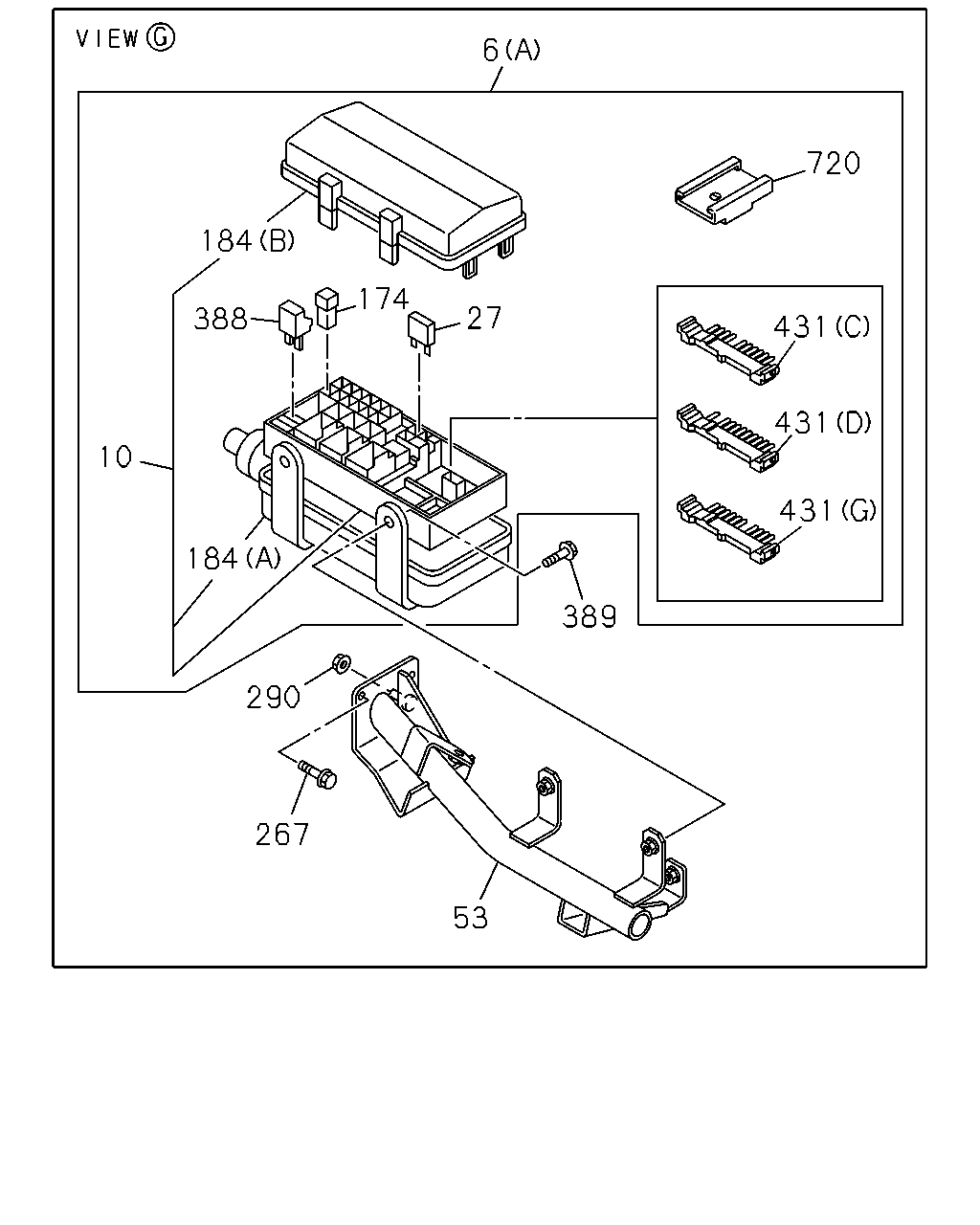

çizim 137163
6 720 184 174 27 388 431 431 10 431 184 389 290 267 53
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204- ● ●
6 HARNESS; FRAME
(B) 		8-98156-191-1 01 1 1009- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-170-2 01 1 1009- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-169-2 01 1 1009-1203 ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-419-0 01 1 1204- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1009- ● ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 03 1 1009- ● ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1009- ● ● ●
53 BRACKET; FUSE BOX 8-98078-800-1 01 1 1009- ● ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107- ● ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1009- ● ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1009- ● ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1009- ● ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1009-1106 ● ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107- ● ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1009- ● ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1009- ● ● ●
267 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1009- ● ● ●
290 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 1009-1208 ● ● ●
290 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1209- ● ● ●
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1009- ● ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1009- ● ● ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1009- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1204- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1204- ● ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1204- ● ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1204- ● ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009- ● ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1009- ● ● ●

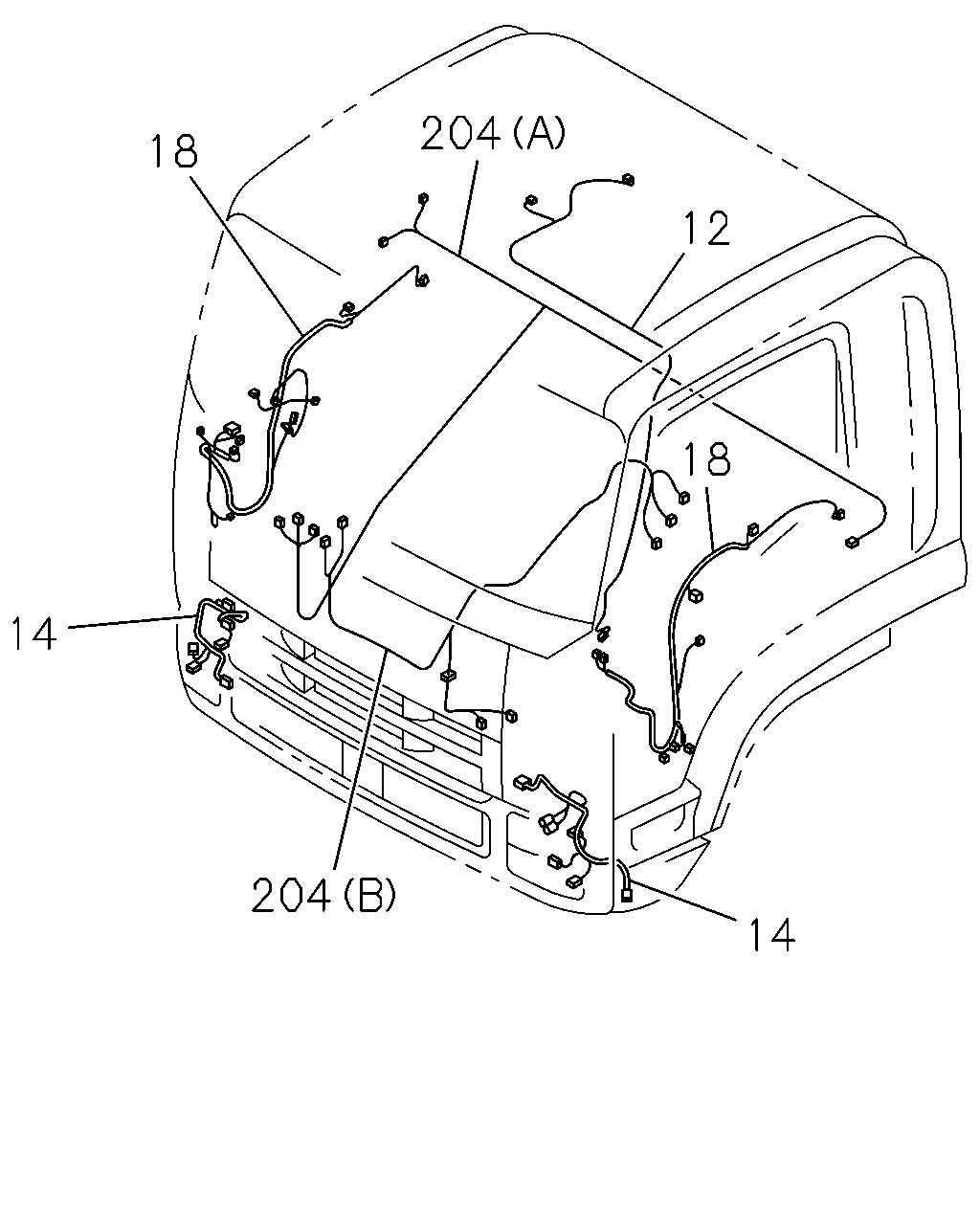

çizim 137251
204 18 12 18 14 204 14
BalonParca AdiParca NoAdetTipApplied Date A B C
12 HARNESS; ROOF 8-98079-072-1 01 1 1009- ● ● ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98103-680-1 02 1 1009- ● ● ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98075-629-3 02 1 1009- ● ● ●
18 HARNESS; DOOR 8-98079-079-5 01 1 1009- ● ● ●
18 HARNESS; DOOR 8-98079-076-5 01 1 1009- ● ● ●
204 HARNESS; CABLE,FLOOR
(A) 		8-98117-544-0 01 1 1009- ● ●
204 HARNESS; CABLE,FLOOR
(B) 		8-98155-317-2 01 1 1009- ● ● ●
204 HARNESS; CABLE,FLOOR
(A) 		8-98117-545-0 01 1 1009- ●

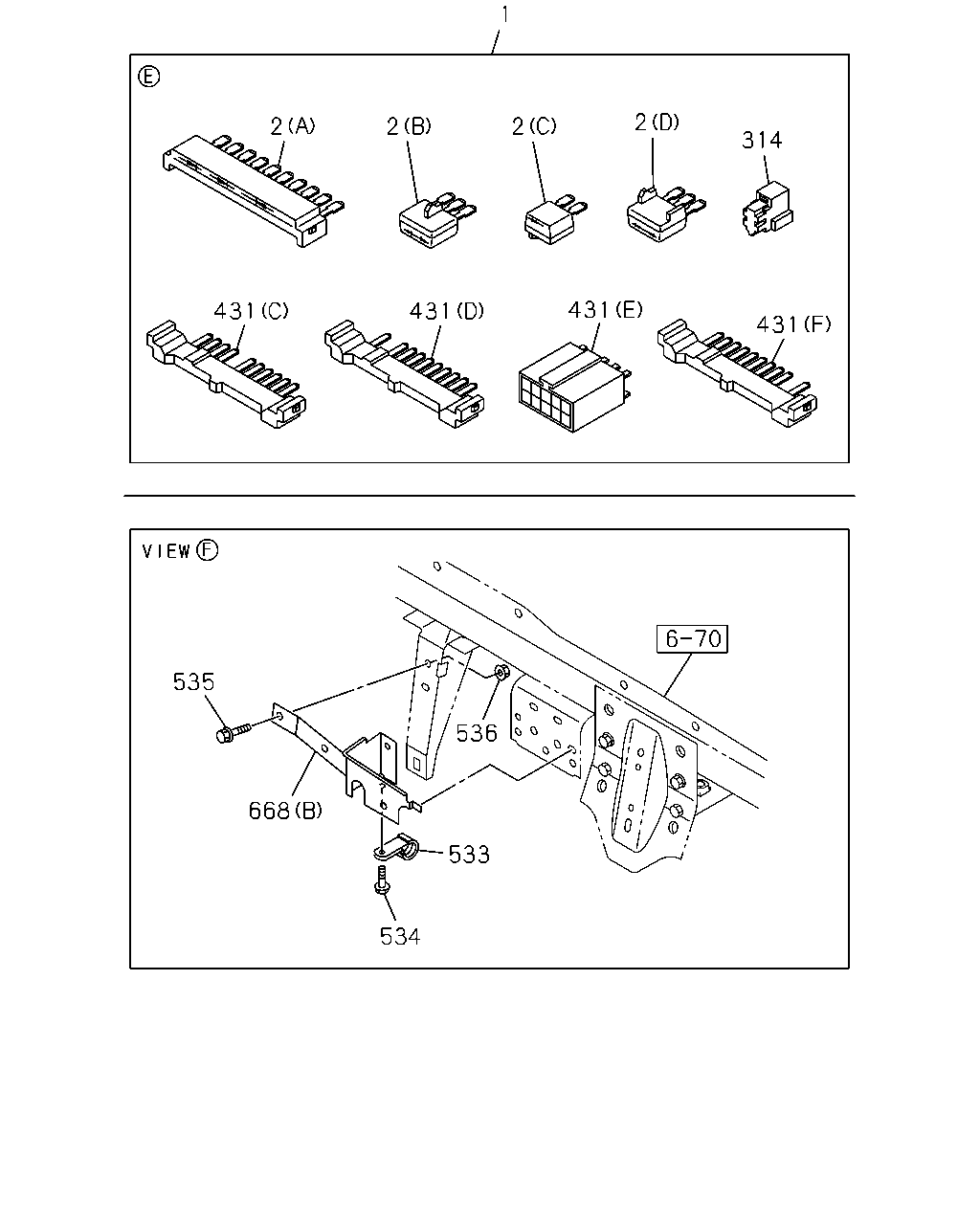

çizim 189663
1 2 2 2 2 314 431 431 431 431 535 536 668 533 534
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98155-300-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98211-955-1 01 1 1204- ● ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-298-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1204- ● ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98155-303-3 01 1 1009-1203 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) 		8-98211-958-1 01 1 1204- ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-302-3 01 1 1009-1203 ●
1 HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-957-1 01 1 1204- ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1009- ● ● ●
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1009- ● ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1203 ● ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 02 1 1204- ● ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1009- ● ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1204- ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1204- ● ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1204- ● ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1203 ● ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1204- ● ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009- ● ● ●
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 1009- ● ● ●
534 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ● ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303 ● ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ● ●
536 NUT; BRKT FIX
M8 		8-98041-929-0 01 1 1009- ● ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1009- ● ● ●
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1009- ● ● ●

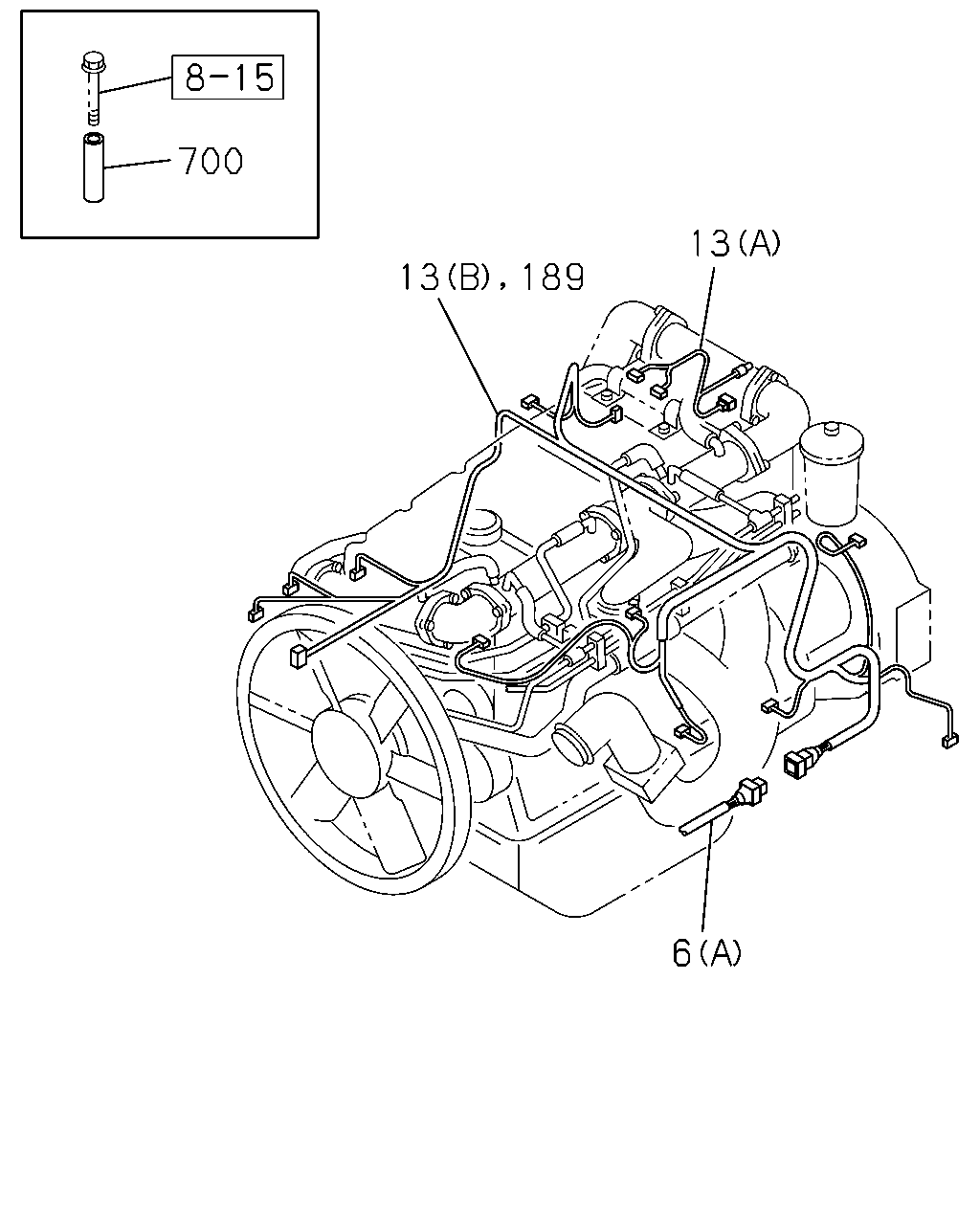

çizim 189664
6 13 189 13 700
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204- ● ●
6 HARNESS; FRAME
(B) 		8-98156-191-1 01 1 1009- ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-170-2 01 1 1009- ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-169-2 01 1 1009-1203 ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-419-0 01 1 1204- ●
13 HARNESS; ENG
(B) 		8-97628-333-4 01 1 1204-1204 ● ● ●
13 HARNESS; ENG
(B) 		8-98210-223-1 01 1 1205- ● ● ●
13 HARNESS; ENG
(A) 		8-98152-373-1 01 1 1009- ● ● ●
189 HARNESS; EXT 8-97628-333-4 01 1 1009-1203 ● ● ●
700 TUBE; DISTANCE
L=51 		1-11369-157-0 02 1 1009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
