◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11314 - FXR/GXR(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#70720) — 57 parça

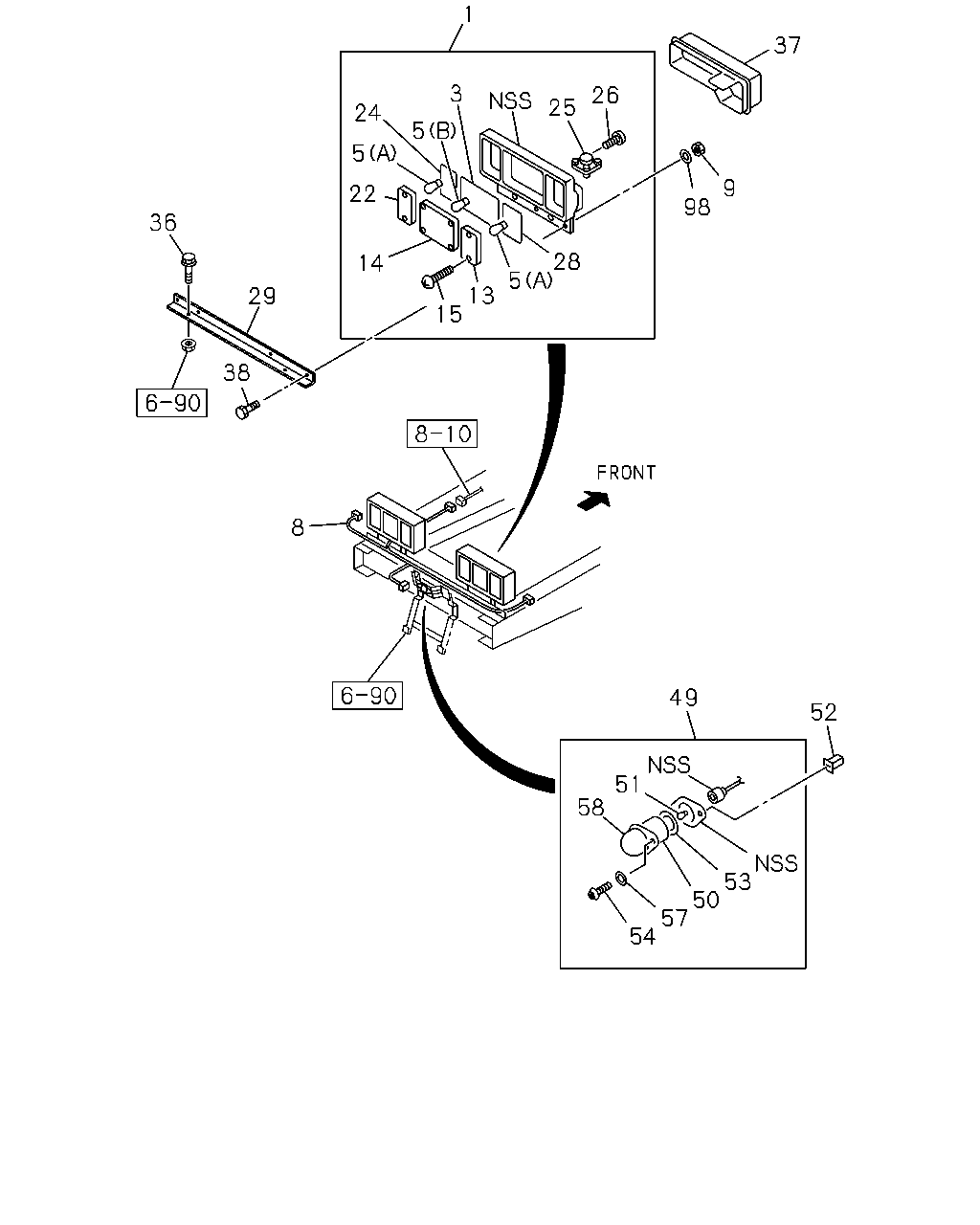

çizim 136558
1 37 3 26 25 24 5 5 9 22 98 36 28 14 5 13 15 29 38 8 49 52 51 58 53 50 57 54
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 1009- ● ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 1009- ● ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		8-98034-324-0 01 1 1009-1203 ● ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1009-1203 ● ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1009-1203 ● ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1204- ● ● ●
3 GASKET; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-505-0 01 1 1204- ● ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 1009-1203 ● ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 1009-1203 ● ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 1204- ● ● ●
5 BULB; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> (A) 24V 21W 		1-82194-108-0 02 1 1204- ● ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 1009-1203 ● ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 1009-1203 ● ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 1204- ● ● ●
5 BULB; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> (B) 24V 21/5W 		1-82194-109-0 01 1 1204- ● ● ●
8 HARNESS; RR COMB LAMP 8-98057-607-0 01 1 1009- ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1009- ● ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1009- ● ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1009-1203 ● ● ●
13 LENS; TURN SIGNAL
REVERSING WARNING BUZZER<YM9> 		8-94174-638-0 01 1 1204- ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1009- ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1009-1203 ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94178-624-0 01 1 1204- ● ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1009-1203 ● ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1009-1203 ● ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1204- ● ● ●
15 SCREW; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1204- ● ● ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 01 1 1009-1203 ● ● ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 01 1 1009-1203 ● ● ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 01 1 1204- ● ● ●
22 LENS; BACKUP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9> CLEAR 		8-94257-512-1 01 1 1204- ● ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1009-1203 ● ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1009-1203 ● ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1204- ● ● ●
24 GASKET; BACK,LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-506-0 01 1 1204- ● ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 1009- ● ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1009- ● ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 1009- ● ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 1009-1203 ● ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1009-1203 ● ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1009-1203 ● ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1204- ● ● ●
28 GASKET; TURN,LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-507-0 01 1 1204- ● ● ●
29 BRACKET; LAMP,RR COMB 1-53178-016-1 01 1 1009- ● ● ●
36 BOLT; BRKT,RR COMB
M10X40 FLANGE 		0-28651-040-0 02 1 1009- ● ● ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 1009- ● ● ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 1009- ● ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1009- ● ● ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 1009- ● ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 1009- ● ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 1009- ● ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1009- ● ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 1009- ● ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 1009- ● ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 1009- ● ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 1009- ● ● ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 1009- ● ● ●
