◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10820 - CXZ LHD CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#7072) — 35 parça

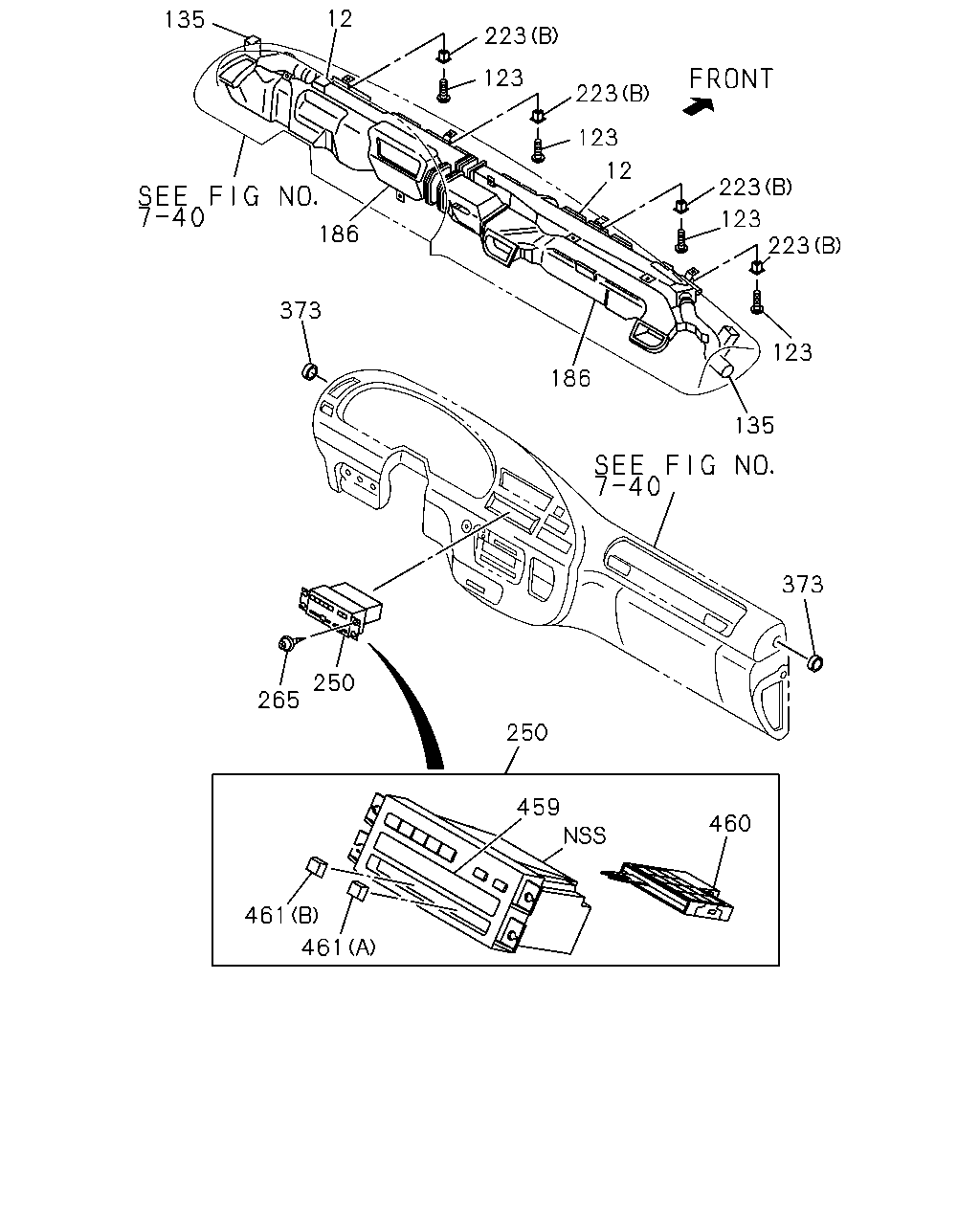

çizim 44009
12 135 223 123 223 123 12 223 123 223 186 373 123 186 135 373 250 265 250 459 460 461 461
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 1-76378-360-2 01 1 9908-
12 NOZZLE; DEFROSTER 1-76377-196-1 01 1 9908-
123 SCREW; DUCT
M5X14 		8-94279-325-0 11 1 9908-
135 HOSE; DEFROSTER 1-76378-364-2 01 1 9908-
135 HOSE; DEFROSTER 1-76378-363-2 01 1 9908-
186 DUCT; VENTILATOR 1-76378-362-4 01 1 9908-
186 DUCT; VENTILATOR 1-76377-197-1 01 1 9908-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9908-
223 GROMMET; SCREW
(B) 		8-94279-084-2 04 1 9908-
250 CONTROL ASM; A/C 1-83543-033-2 01 1 9908-9909
250 CONTROL ASM; A/C 1-83543-050-0 01 1 9910-
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9908-
373 RUBBER; JOINT 1-76378-291-0 02 1 9908-
459 PANEL; CONTROL ASM,A/C 1-83549-013-0 01 1 9908-
460 SWITCH; CONTROL ASM,A/C 1-82489-006-0 01 1 9908-
461 KNOB; CONTROL ASM,A/C
(B) 		1-83549-015-0 01 1 9908-
461 KNOB; CONTROL ASM,A/C
(A) 		1-83549-016-0 01 1 9908-

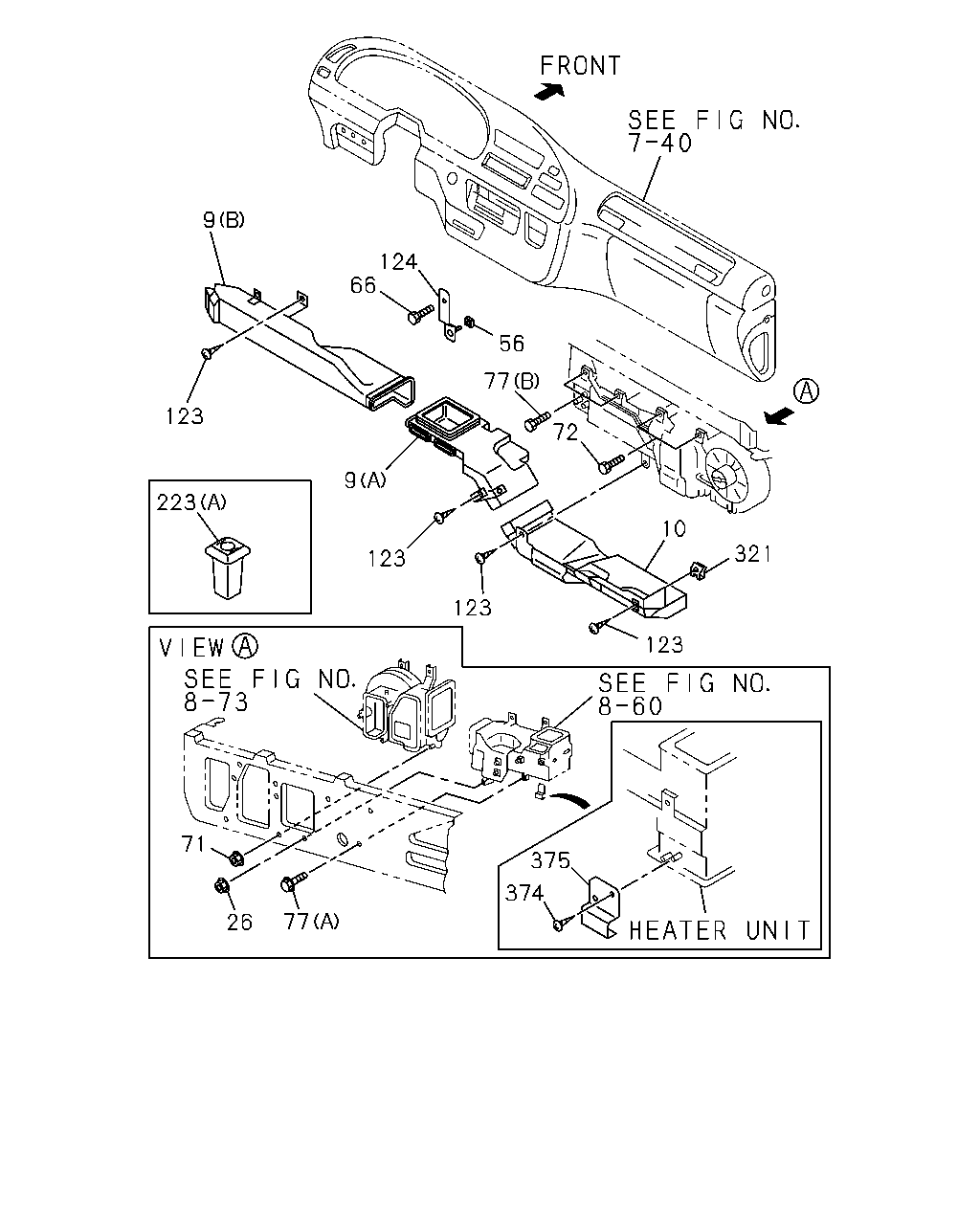

çizim 44608
374 375 77 26 71 123 123 9 223 123 9 66 124 56 77 72 10 321 123
BalonParca AdiParca NoAdetTipApplied Date
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-198-2 01 1 9908-0006
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-228-2 01 1 0007-
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-199-1 01 1 9908-
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-200-1 01 1 9908-
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9908-
56 NUT; INL DUCT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9908-
66 BOLT; DUCT
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9908-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9908-
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9908-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 9908-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9908-
123 SCREW; DUCT
M5X14 		8-94279-325-0 11 1 9908-
124 BRACKET ASM; VENT DUCT 1-79738-186-1 01 1 9908-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9908-
223 GROMMET; SCREW
(B) 		8-94279-084-2 04 1 9908-
321 NUT; DUCT FIX
M5 		1-09984-150-0 01 1 9908-
374 HOLDER; DUCT 1-76398-012-1 01 1 9908-
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 9908-
