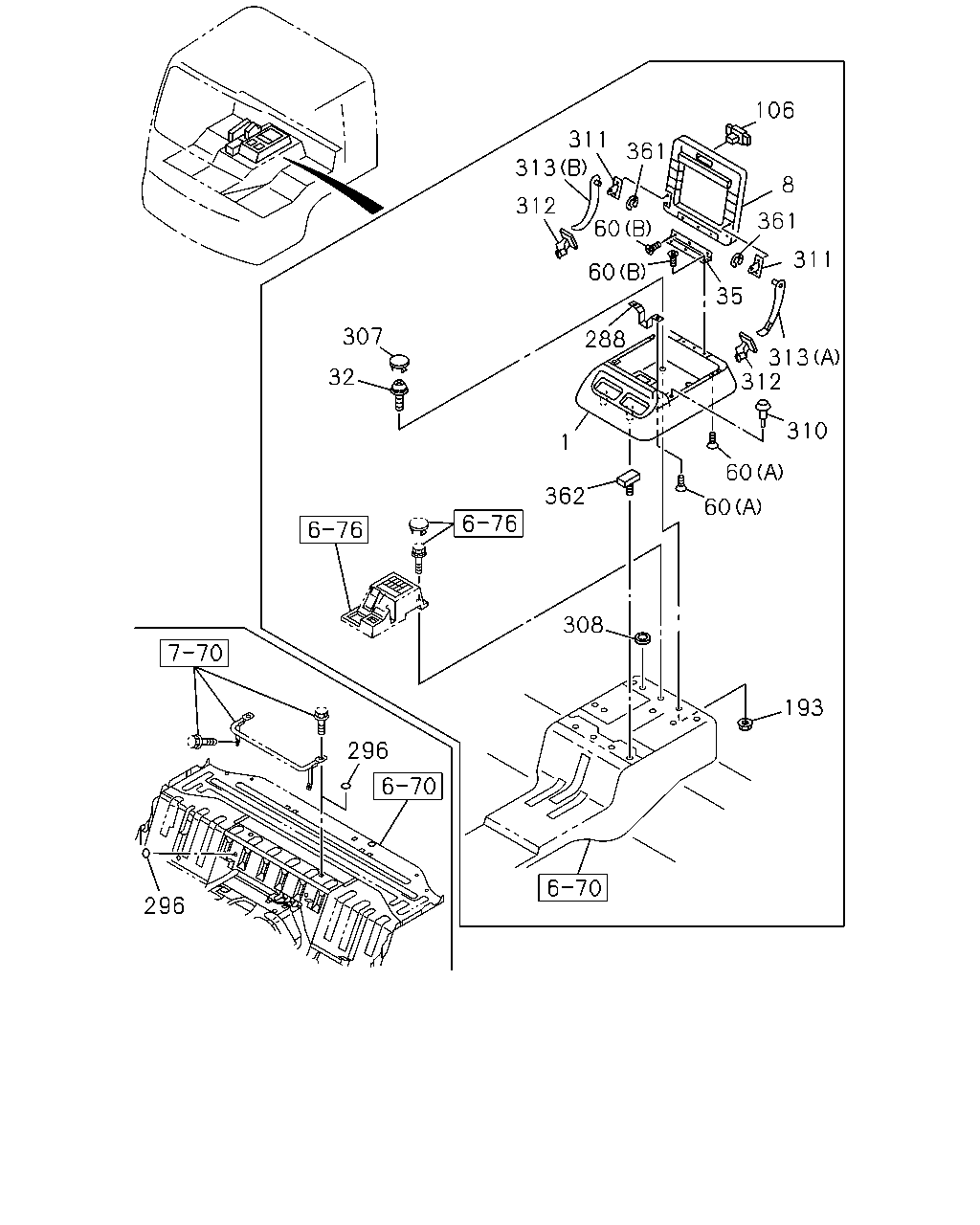

7-45 — CONSOLE BOX (#70715) — 19 parça

106 311 361 313 8 312 361 60 60 311 35 307 288 313 312 32 310 1 60 362 60 308 193 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BOX; PARCEL CENTER SEAT DELETE(SP9) GRAY	8-97408-710-0	01	1	1009-	●	●	●
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9) GRAY	8-97408-712-0	01	1	1009-	●	●	●
32	SCREW; PARCEL BOX CENTER SEAT DELETE(SP9) M6X16	0-38050-616-0	02	1	1009-	●	●	●
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72538-182-1	01	1	1009-	●	●	●
60	SCREW; BOX CENTER SEAT DELETE(SP9) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	06	1	1009-	●	●	●
60	SCREW; BOX CENTER SEAT DELETE(SP9) (B) M5X14	8-94279-325-0	04	1	1009-	●	●	●
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72538-312-0	01	1	1009-	●	●	●
193	NUT; PARCEL BOX CENTER SEAT DELETE(SP9) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●
288	STOPPER; LID,CONSOLE CENTER SEAT DELETE(SP9)	1-72538-190-0	01	1	1009-	●	●	●
296	SEAL EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK	1-76798-019-0	04	1	1009-	●	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) GRAY	8-97407-951-0	02	1	1009-	●	●	●
308	GROMMET OD=35	8-94122-971-0	01	1	1009-	●	●	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9)	1-72538-187-0	02	1	1009-	●	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9)	1-72538-188-2	02	1	1009-	●	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9)	1-72538-186-1	02	1	1009-	●	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72538-184-3	01	1	1009-	●	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-185-3	01	1	1009-	●	●	●
361	RING; SNAP CENTER SEAT DELETE(SP9) ID=5	9-09185-405-0	02	1	1009-	●	●	●
362	STUD; CONSOLE BOX CENTER SEAT DELETE(SP9)	1-72538-308-0	02	1	1009-	●	●	●
