◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10820 - CXZ LHD CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#7070) — 21 parça
çizim 10213
234 328 329
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 9908-0202
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-
328 NUT
(B) 		1-09449-037-1 01 1 9908-
328 NUT
(A) M16 		9-99111-416-0 02 1 9908-
329 WASHER 1-09503-100-0 01 1 9908-
çizim 10214
603 244
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9908-
603 COVER; CONT UNIT,SEAT STAND 1-75558-535-3 01 1 9908-
çizim 10215
1 2 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9908-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9908-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9908-

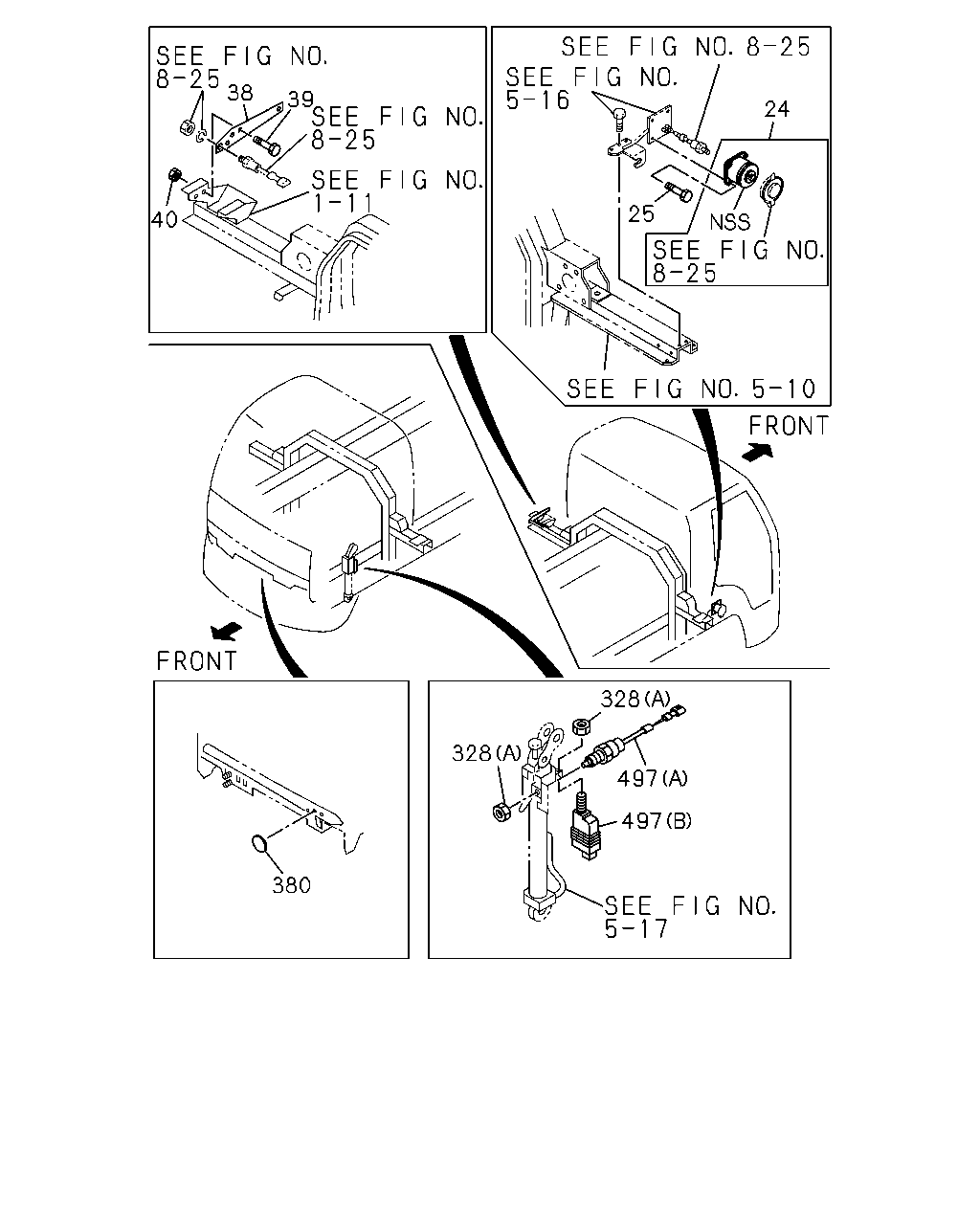

çizim 43931
497 497 328 328 380 25 24 39 38 40
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9908-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9908-
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9908-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9908-
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9908-
328 NUT
(B) 		1-09449-037-1 01 1 9908-
328 NUT
(A) M16 		9-99111-416-0 02 1 9908-
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9908-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9908-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9908-
