0-66 — GENERATOR (#707) — 27 parça

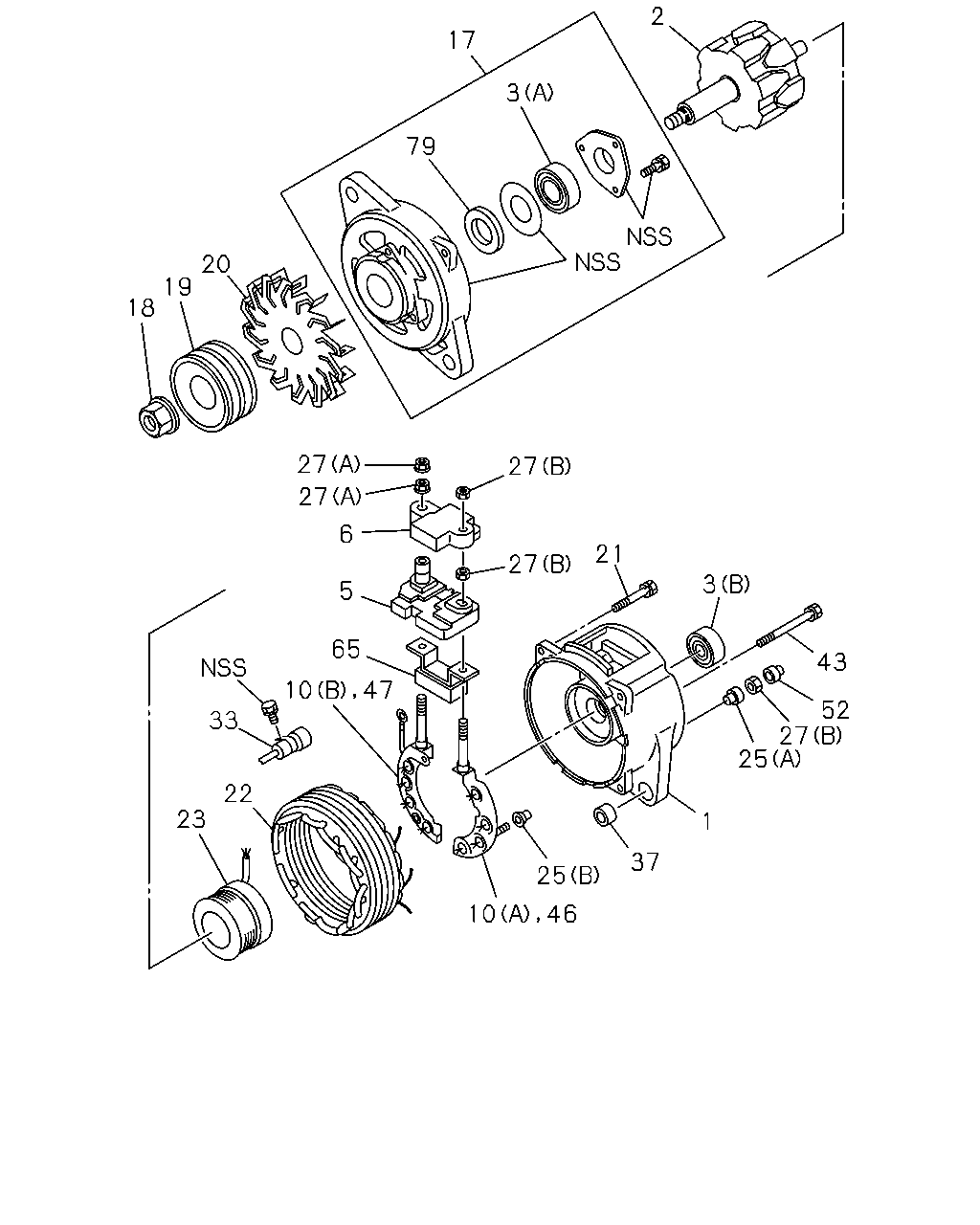

çizim 94900
2 17 3 79 20 19 18 27 27 27 6 21 27 3 5 65 43 52 27 25 33 22 23 1 37 25 10 46 10 47
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-320-4 		1-81214-247-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81221-062-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81229-466-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81229-576-0 01 1 -
5 HOLDER; BRUSH,GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81229-486-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81270-010-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 1-81200-320-4 		1-81219-086-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 1-81200-320-4 		1-81219-087-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81213-057-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		8-94167-948-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81222-030-0 01 1 -
20 FAN; GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		5-81223-006-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		5-81229-106-0 04 1 -
22 STATOR; GEN
ASM PART: B = 1-81200-321-4 		1-81211-276-0 01 1 -
22 STATOR; GEN
ASM PART: A = 1-81200-320-4 		1-81211-277-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 1-81200-320-4 		1-81212-006-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: B = 1-81200-321-4 		1-81212-008-0 01 1 -
25 BUSHING; INSULATION TERMINAL
(A) ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81229-410-0 02 1 -
25 BUSHING; INSULATION TERMINAL
(B) ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81229-411-0 02 1 -
27 NUT; RECTIFIER,GEN
(A) ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		8-94206-186-0 02 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		8-94206-188-0 06 1 -
33 WIRE; LEAD,GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81215-031-0 01 1 -
37 BUSHING; RR COVER,GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		9-82215-879-0 01 1 -
43 SCREW; RR END COVER
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81229-464-0 03 1 -
52 CAP; RUBBER,TERMINAL
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-81229-417-0 02 1 -
65 CONDENSER; GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		1-84132-009-0 01 1 -
79 WASHER; FELT,ROTOR,GEN
ASM PART: A = 1-81200-320-4, B = 1-81200-321-4 		9-82215-707-0 01 1 -
