8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#7069) — 29 parça

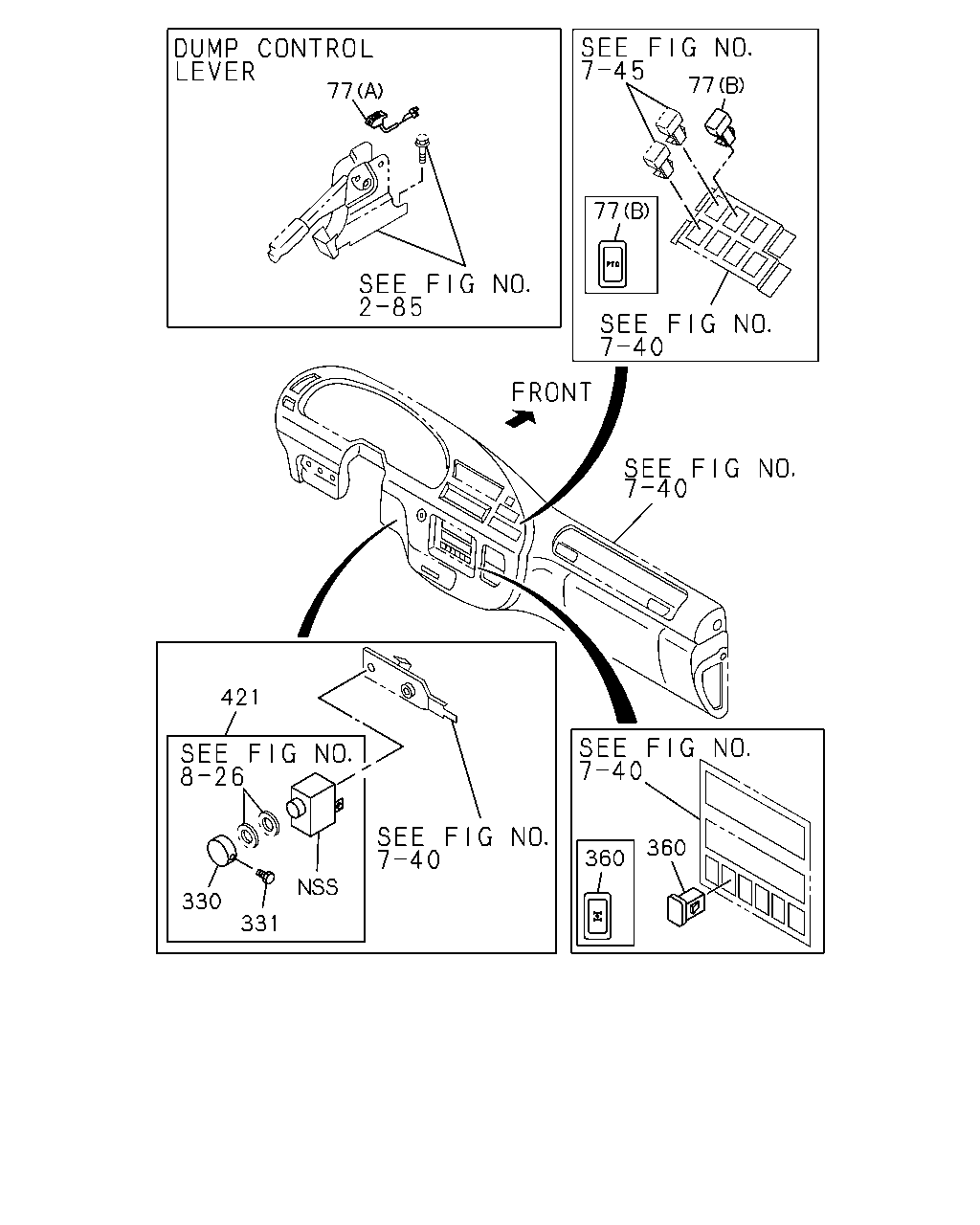

çizim 43883
360 360 331 330 421 77 77 77
BalonParca AdiParca NoAdetTipApplied Date
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 9908-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 9908-
330 KNOB; INT HTR 1-82336-003-1 01 1 9908-
331 SCREW 1-09106-002-0 01 1 9908-
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 9908-
421 SWITCH ASM; INT HTR 1-82330-030-0 01 1 9908-

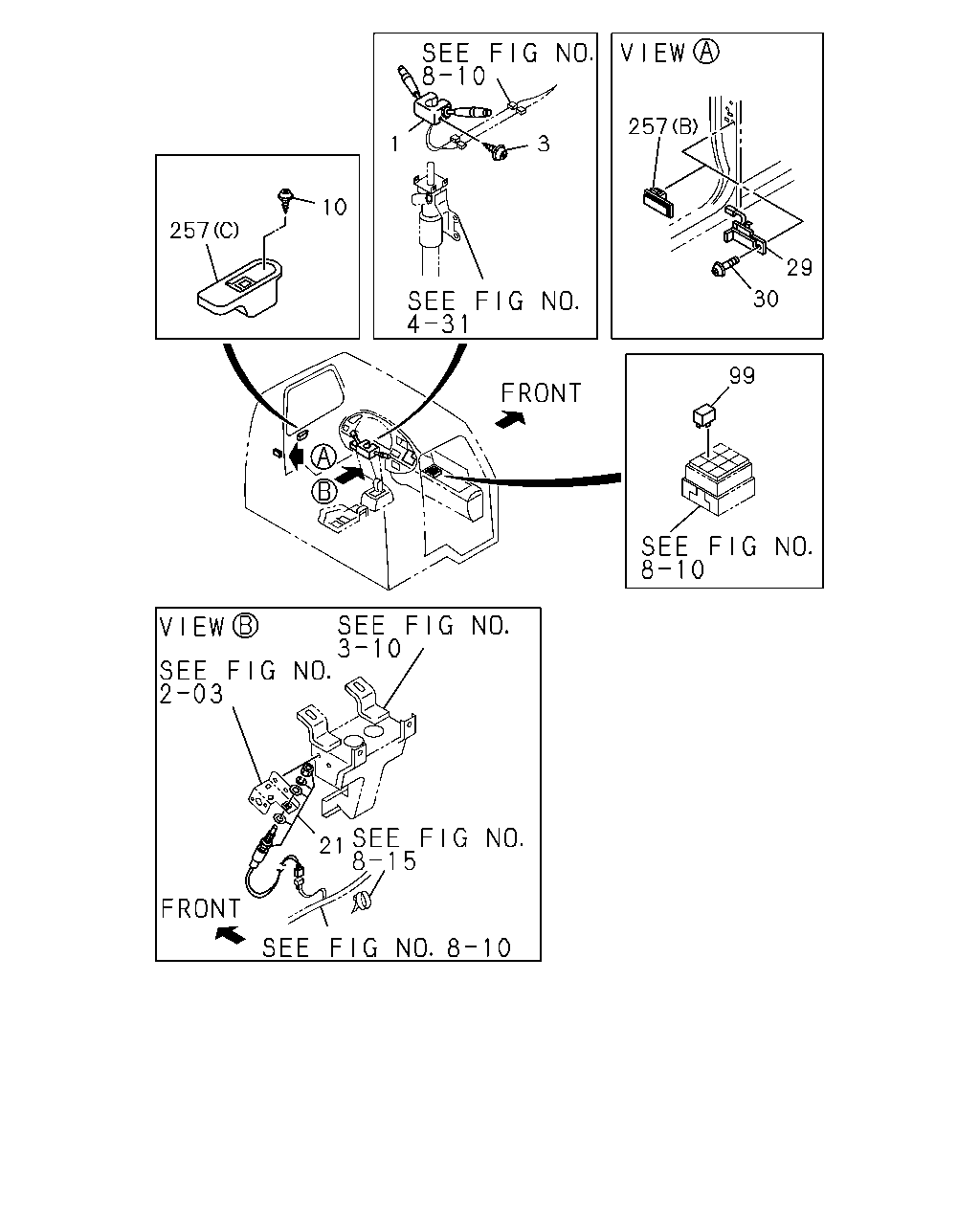

çizim 43943
21 99 30 29 257 3 1 10 257
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-405-4 01 1 9908-0103
1 SWITCH; COMB 1-82360-647-0 01 1 0104-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9908-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9908-
21 SWITCH; CLU 1-82380-114-2 01 1 9908-
29 SWITCH; DOOR 8-97855-032-3 01 1 9908-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9908-
99 RELAY; FOG LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 9908-0111
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9908-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9908-
257 COVER; HOLE,SW
(C) 		1-82389-012-2 01 1 9908-
257 COVER; HOLE,SW
(C) 		1-82389-011-2 01 1 9908-

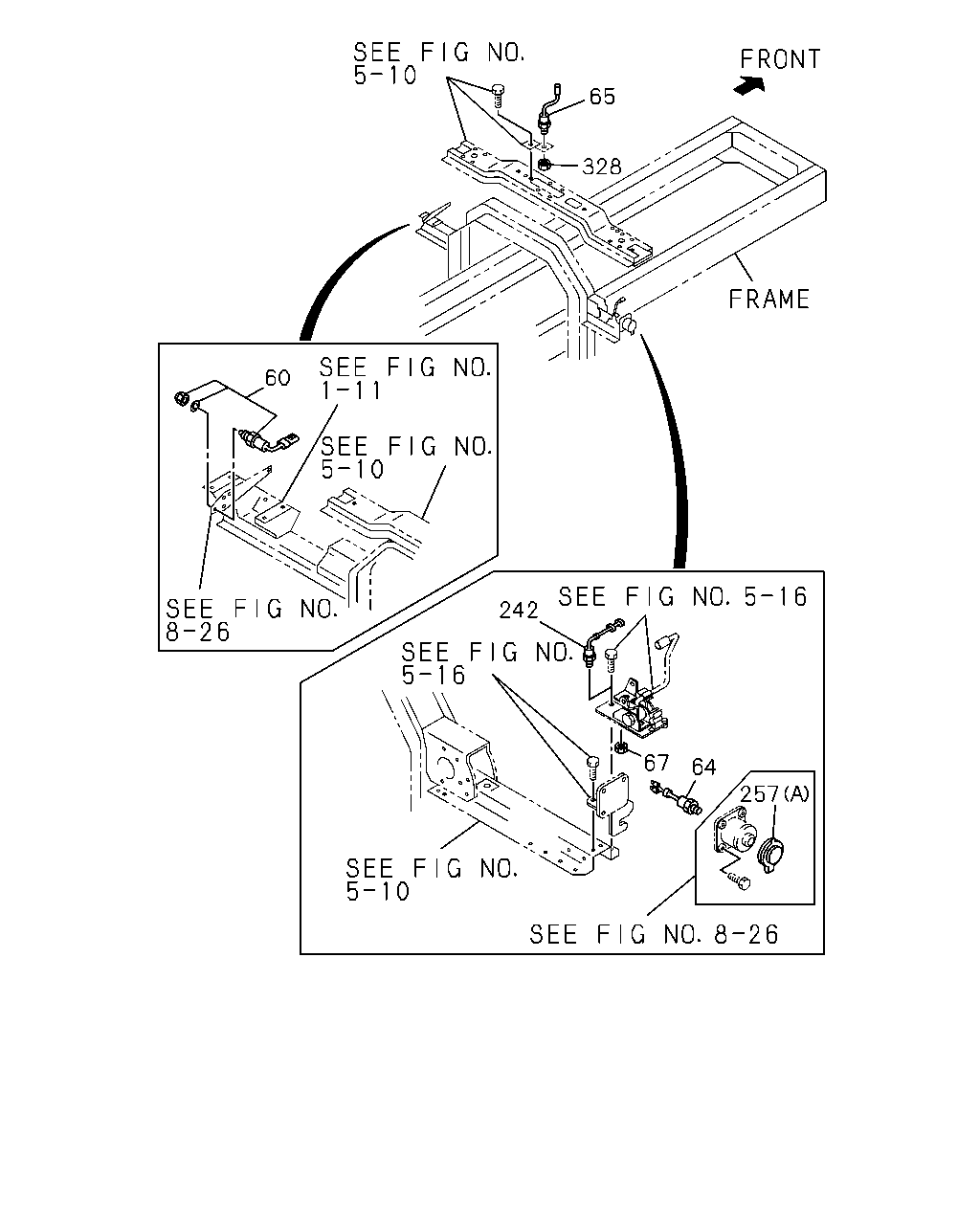

çizim 44014
257 64 67 242 60 65 328
BalonParca AdiParca NoAdetTipApplied Date
60 SWITCH; IGNITION SUB 1-82380-107-1 01 1 9908-
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9908-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 9908-
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 9908-
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 9908-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9908-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9908-
257 COVER; HOLE,SW
(C) 		1-82389-012-2 01 1 9908-
257 COVER; HOLE,SW
(C) 		1-82389-011-2 01 1 9908-
328 NUT; SW
M16 		9-99110-416-0 01 1 9908-
