◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11314 - FXR/GXR(AUST)EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#70684) — 57 parça

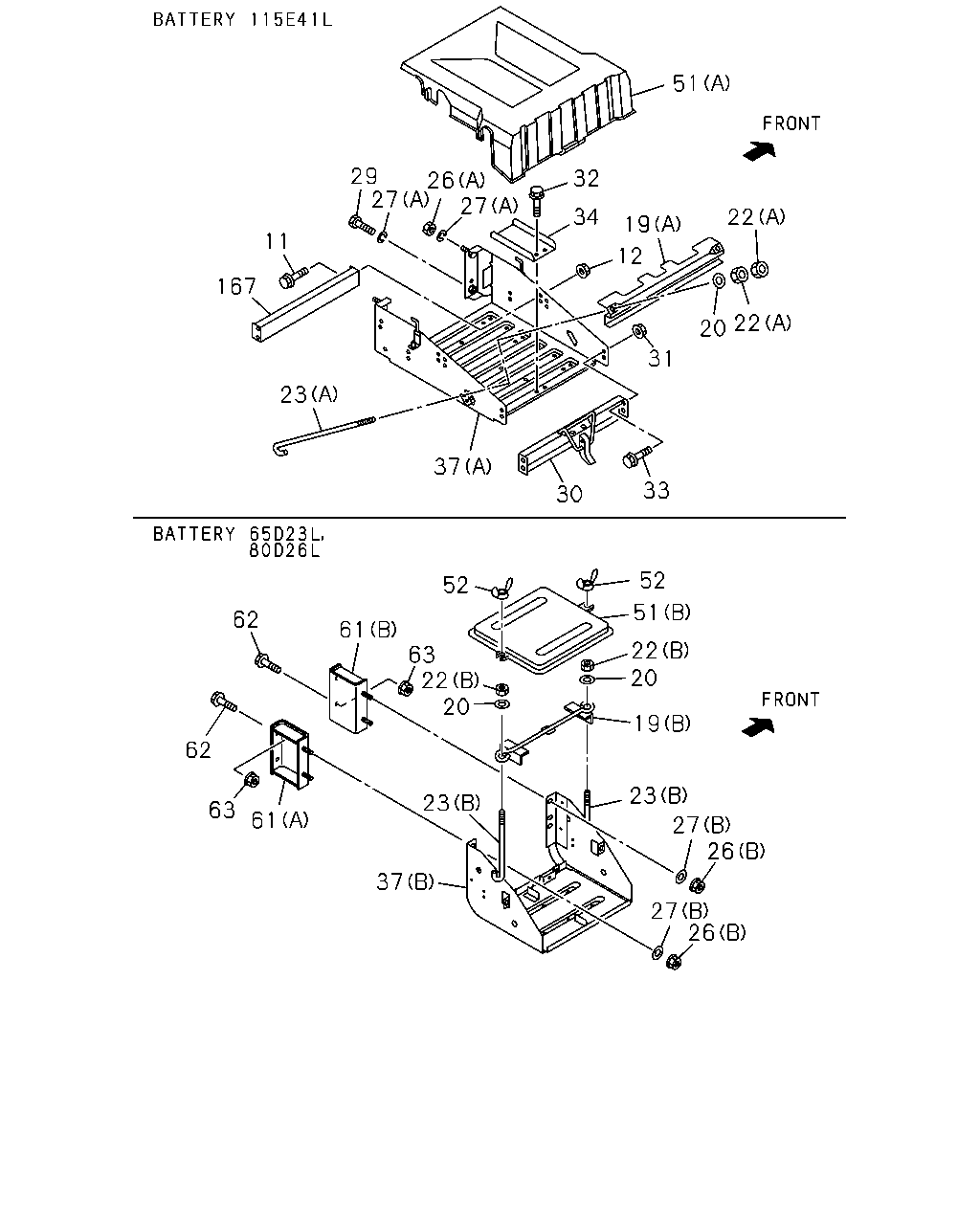

çizim 189642
51 29 27 32 26 27 34 22 19 11 12 167 22 20 31 23 37 33 30 52 52 51 62 61 22 20 63 22 20 19 62 23 23 63 61 27 26 37 27 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BOLT; BRKT FIX
BATTERY 115E41L<8MA> M8X20 FLANGE 		0-28050-820-0 04 1 1009-1203 ● ● ●
11 BOLT; BRKT FIX
BATTERY 115E41L<8MA> M8X20 FLANGE 		0-28050-820-0 04 1 1204- ● ● ●
12 NUT; BRKT FIX
BATTERY 115E41L<8MA> M8 FLANGE 		0-91180-108-0 04 1 1009-1203 ● ● ●
12 NUT; BRKT FIX
BATTERY 115E41L<8MA> M8 FLANGE 		0-91180-108-0 04 1 1204- ● ● ●
19 STAY; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		5-53615-004-1 01 1 1411- ● ● ●
19 STAY; BATTERY
BATTERY 115E41L<8MA> (A) 		8-98056-961-0 01 1 1009-1203 ● ● ●
19 STAY; BATTERY
BATTERY 115E41L<8MA> (A) 		8-98056-961-0 01 1 1204- ● ● ●
19 STAY; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		5-53615-004-1 01 1 1009-1203 ● ● ●
20 WASHER; PL,STAY
ID=8.4 OD=22 		0-91614-708-0 02 1 1009-1409 ● ● ●
20 WASHER; PL,STAY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> ID=8.4 OD=22 		0-91614-708-0 02 1 1410- ● ● ●
22 NUT; STAY
BATTERY 115E41L<8MA> (A) M8 		0-91110-508-0 04 1 1009-1203 ● ● ●
22 NUT; STAY
BATTERY 115E41L<8MA> (A) M8 		0-91110-508-0 04 1 1204- ● ● ●
22 NUT; STAY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) M8 FLANGE 		0-91180-108-0 02 1 1009-1203 ● ● ●
23 BOLT; STAY
BATTERY 115E41L<8MA> (A) L=250 		1-53616-108-0 02 1 1009-1203 ● ● ●
23 BOLT; STAY
BATTERY 115E41L<8MA> (A) L=250 		1-53616-108-0 02 1 1204- ● ● ●
23 BOLT; STAY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120 		9-53616-615-0 02 1 1009-1203 ● ● ●
26 NUT; BRKT
BATTERY 115E41L<8MA> (A) M14 		1-09440-072-0 02 1 1009-1203 ● ● ●
26 NUT; BRKT
BATTERY 115E41L<8MA> (A) M14 		1-09440-072-0 02 1 1204- ● ● ●
26 NUT; BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) M10 FLANGE 		0-91180-210-0 04 1 1009-1203 ● ● ●
27 WASHER; LK,BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=10.5 OD=22 		0-91614-610-0 04 1 1204- ● ● ●
27 WASHER; LK,BRKT
BATTERY 115E41L<8MA> (A) ID=14.2 		0-91510-514-0 04 1 1009-1203 ● ● ●
27 WASHER; LK,BRKT
BATTERY 115E41L<8MA> (A) ID=14.2 		0-91510-514-0 04 1 1204- ● ● ●
27 WASHER; LK,BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=10.5 OD=22 		0-91614-610-0 04 1 1009-1203 ● ● ●
29 BOLT; BRKT TO FRAME
BATTERY 115E41L<8MA> M14X45 		1-09000-764-0 02 1 1009-1203 ● ● ●
29 BOLT; BRKT TO FRAME
BATTERY 115E41L<8MA> M14X45 		1-09000-764-0 02 1 1204- ● ● ●
30 PLATE; BATTERY
BATTERY 115E41L<8MA> 		1-53619-085-0 01 1 1009-1203 ● ● ●
30 PLATE; BATTERY
BATTERY 115E41L<8MA> 		1-53619-085-0 01 1 1204- ● ● ●
31 NUT; PLATE
BATTERY 115E41L<8MA> M8 FLANGE 		0-91180-108-0 04 1 1009-1203 ● ● ●
31 NUT; PLATE
BATTERY 115E41L<8MA> M8 FLANGE 		0-91180-108-0 04 1 1204- ● ● ●
32 BOLT; PLATE TO SPACER
BATTERY 115E41L<8MA> M8X16 FLANGE 		0-28050-816-0 02 1 1009-1203 ● ● ●
32 BOLT; PLATE TO SPACER
BATTERY 115E41L<8MA> M8X16 FLANGE 		0-28050-816-0 02 1 1204- ● ● ●
33 BOLT; PLATE TO BRKT
BATTERY 115E41L<8MA> M8X20 FLANGE 		0-28650-820-0 04 1 1009-1203 ● ● ●
33 BOLT; PLATE TO BRKT
BATTERY 115E41L<8MA> M8X20 FLANGE 		0-28650-820-0 04 1 1204- ● ● ●
34 SPACER; BATTERY BRKT
BATTERY 115E41L<8MA> 		8-98057-728-0 01 1 1009-1203 ● ● ●
34 SPACER; BATTERY BRKT
BATTERY 115E41L<8MA> 		8-98057-728-0 01 1 1204- ● ● ●
37 BRACKET; BATTERY
BATTERY 80D26L<TM1> (B) 		8-97384-067-2 01 1 1204- ● ● ●
37 BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B) 		8-97384-068-2 01 1 1204- ● ● ●
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> (A) 		8-98088-440-3 01 1 1009-1203 ● ● ●
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> (A) 		8-98088-440-3 01 1 1204- ● ● ●
37 BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B) 		8-97384-068-2 01 1 1009-1203 ● ● ●
37 BRACKET; BATTERY
BATTERY 80D26L<TM1> (B) 		8-97384-067-2 01 1 1009-1203 ● ● ●
51 COVER; BATTERY
BATTERY 115E41L<8MA> (A) 		1-53612-068-0 01 1 1009-1203 ● ● ●
51 COVER; BATTERY
BATTERY 115E41L<8MA> (A) 		1-53612-068-0 01 1 1204- ● ● ●
51 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97120-747-0 01 1 1009-1203 ● ● ●
51 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97120-747-0 01 1 1204- ● ● ●
52 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT 		0-91118-408-0 02 1 1204- ● ● ●
52 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT 		0-91118-408-0 02 1 1009-1203 ● ● ●
61 DISTANCE; BRKT,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-98088-828-0 01 1 1009-1203 ● ● ●
61 DISTANCE; BRKT,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-98088-828-0 01 1 1204- ● ● ●
61 DISTANCE; BRKT,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) 		8-98162-291-0 01 1 1009-1203 ● ● ●
61 DISTANCE; BRKT,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) 		8-98162-291-0 01 1 1204- ● ● ●
62 BOLT; DIST TO FRAME,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10X35 FLANGE 		0-28651-035-0 04 1 1204- ● ● ●
62 BOLT; DIST TO FRAME,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10X35 FLANGE 		0-28651-035-0 04 1 1009-1203 ● ● ●
63 NUT; DIST TO FRAME
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10 FLANGE 		0-91180-210-0 04 1 1204- ● ● ●
63 NUT; DIST TO FRAME
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10 FLANGE 		0-91180-210-0 04 1 1009-1203 ● ● ●
167 BRACKET; STOPPER
BATTERY 115E41L<8MA> 		8-98091-941-0 01 1 1009-1203 ● ● ●
167 BRACKET; STOPPER
BATTERY 115E41L<8MA> 		8-98091-941-0 01 1 1204- ● ● ●
