8-21 — METER ASM
(#7068) — 47 parça
◀
[821A] FRAME SIDE (3 parça)

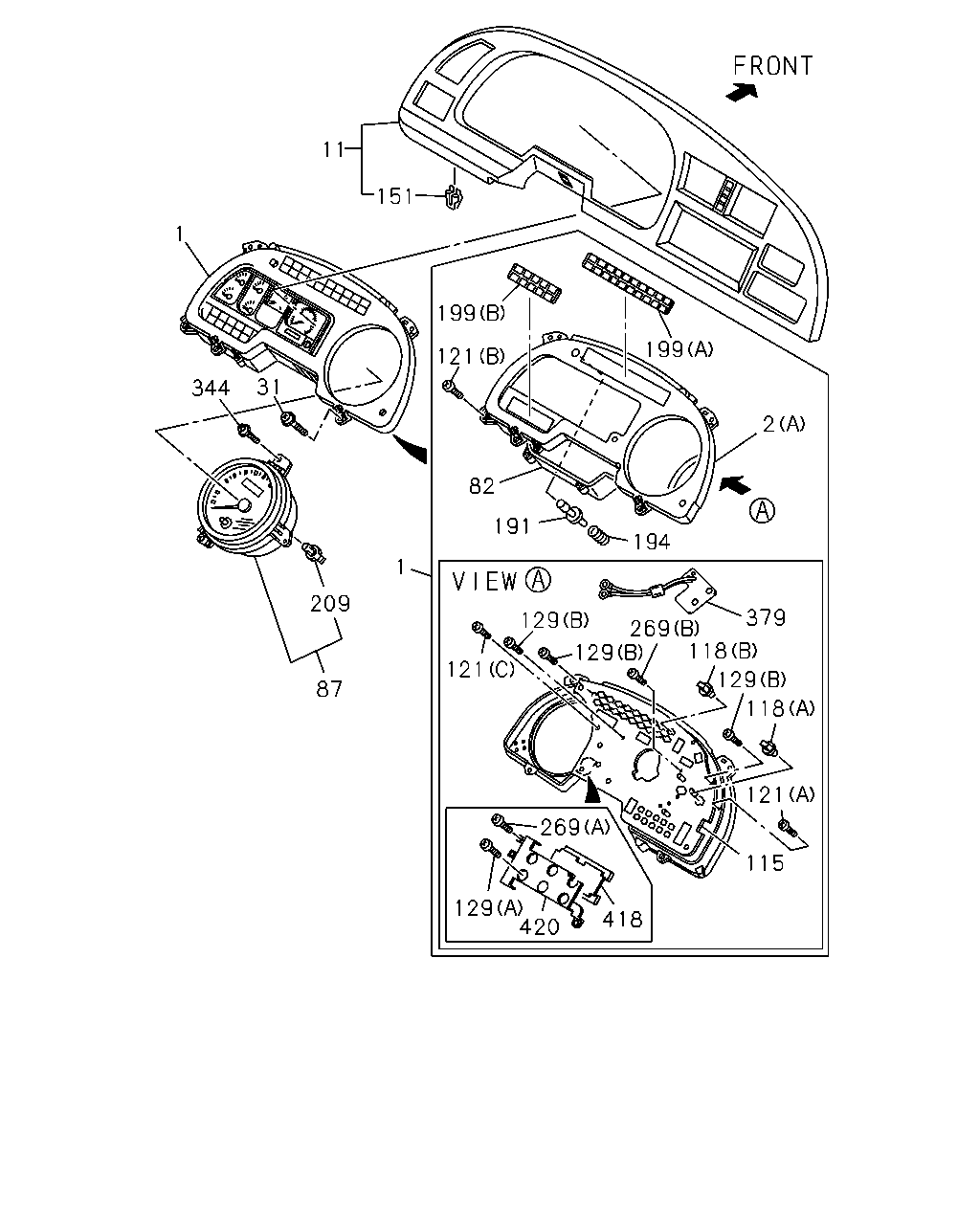

[821A] COMPONENT;NO.1 (29 parça)

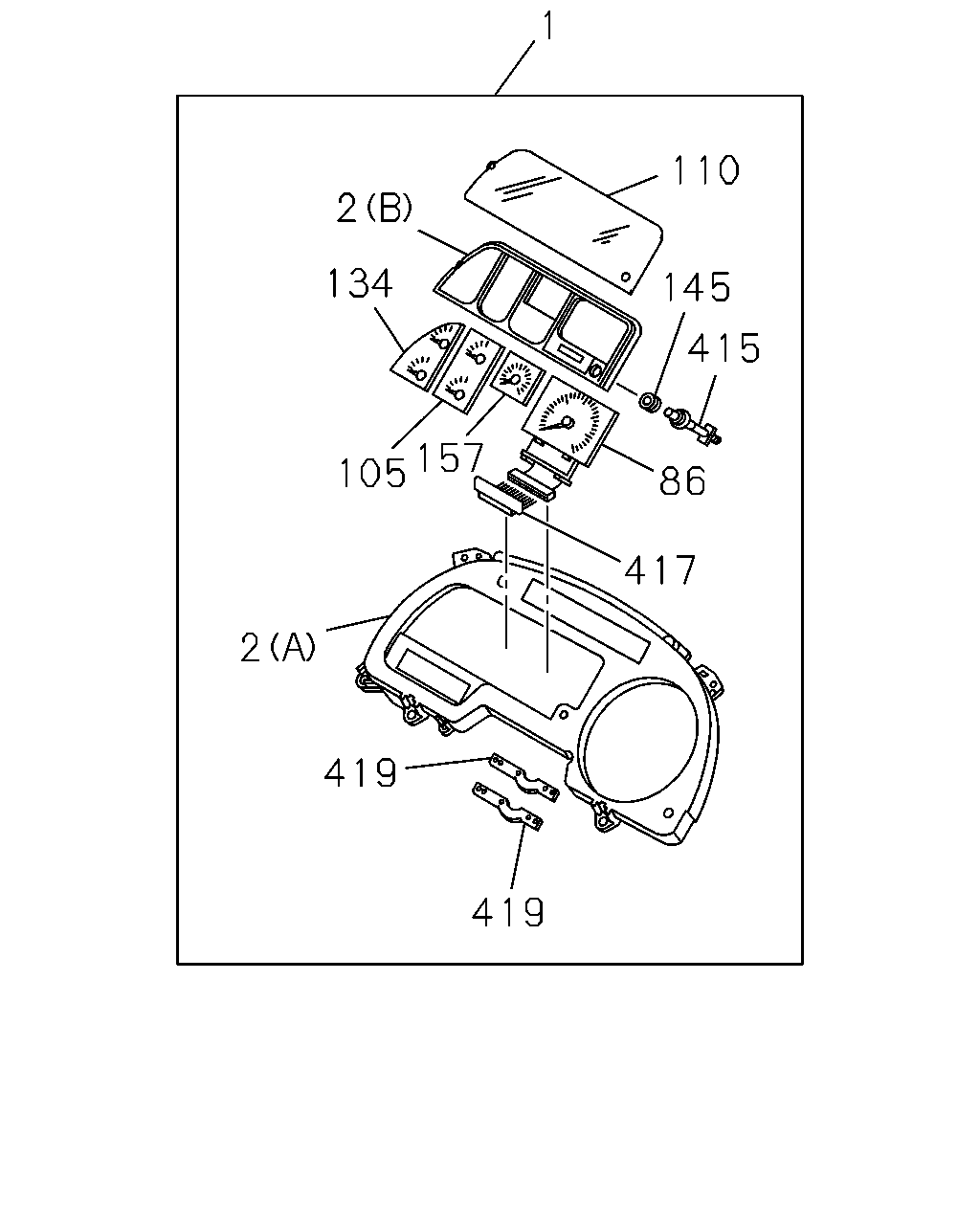

[821A] COMPONENT;NO.2 (15 parça)
▶
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
76
SLEEVE; RUBBER,FLEX SHAFT,METER
ID=6 L=30
5-09360-352-0
02
1
9908-9910
76
SLEEVE; RUBBER,FLEX SHAFT,METER
ID=6 L=30
5-09360-352-0
01
1
9911-
76
SLEEVE; RUBBER,FLEX SHAFT,METER
ID=6 OD=10 L=70
1-09376-512-0
01
1
9911-
115
121
269
418
420
129
87
209
1
121
129
129
269
118
129
118
379
194
191
82
121
199
31
344
1
11
151
199
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
1-83115-174-2
01
1
9908-9910
1
METER COMPL; CLUSTER
1-83115-691-1
01
1
9911-
2
PANEL; CLUSTER
(A)
1-83119-644-0
01
1
9908-
2
PANEL; CLUSTER
(B)
1-83119-652-0
01
1
9908-
11
CLUSTER ASM; METER
1-72418-022-5
01
1
9908-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
9908-
82
CASE ASM; CLUSTER METER
1-83119-653-0
01
1
9908-
87
SPEEDOMETER
1-83120-844-0
01
1
9908-
115
CIRCUIT; PRINTED,CLUSTER METER
1-83189-373-0
01
1
9908-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
9908-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
29
1
9908-
121
SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING
1-83119-084-0
01
1
9908-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING
1-83119-442-0
05
1
9908-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING
1-83119-676-0
02
1
9908-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING
1-83119-657-0
09
1
9908-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING
1-83119-675-0
06
1
9908-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
9908-
191
KNOB; BULB CHECK
1-83119-672-0
01
1
9908-
194
SPRING; BULB CHECK KNOB
1-83119-673-0
01
1
9908-
199
LENS; WARNING LAMP
(A)
1-83119-683-0
01
1
9908-
199
LENS; WARNING LAMP
(B)
1-83119-685-0
01
1
9908-
209
BULB; SPEEDOMETER
24V 3W GREEN SOCKET
1-82194-061-0
01
1
9908-
269
SCREW; METER CLUSTER
(A) M3
1-83119-273-0
02
1
9908-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-677-0
05
1
9908-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
9908-
379
CIRCUIT; DROP
1-83189-369-0
01
1
9908-
418
CIRCUIT; CONTROL,METER
1-83189-377-0
01
1
9908-0109
418
CIRCUIT; CONTROL,METER
1-83189-400-0
01
1
0110-
420
HEAT SINK; METER
1-83119-679-0
01
1
9908-
1
110
2
134
145
415
157
105
86
417
2
419
419
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
1-83115-174-2
01
1
9908-9910
1
METER COMPL; CLUSTER
1-83115-691-1
01
1
9911-
2
PANEL; CLUSTER
(A)
1-83119-644-0
01
1
9908-
2
PANEL; CLUSTER
(B)
1-83119-652-0
01
1
9908-
86
TACHOMETER; CLUSTER METER
1-83120-880-0
01
1
9908-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-281-0
01
1
9908-
110
GLASS; CLUSTER METER
1-83119-646-0
01
1
9908-
134
GAUGE; OIL PRESSURE & VOLTAGE
1-83180-283-0
01
1
9908-
145
GROMMET; GLASS,KNOB HOLE,CLUSTER METER
1-83119-680-0
01
1
9908-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-214-0
01
1
9908-9910
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-235-0
01
1
9911-0109
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-261-0
01
1
0110-
415
KNOB; TRIP,METER
1-83119-674-0
01
1
9908-
417
DISPLAY; ODO & TRIP,METER
1-83119-671-0
01
1
9908-
419
SPACER; CIRCUIT,METER
1-83119-678-0
02
1
9908-
