5-01 — FRAME AND OTHER PARTS (#70679) — 177 parça

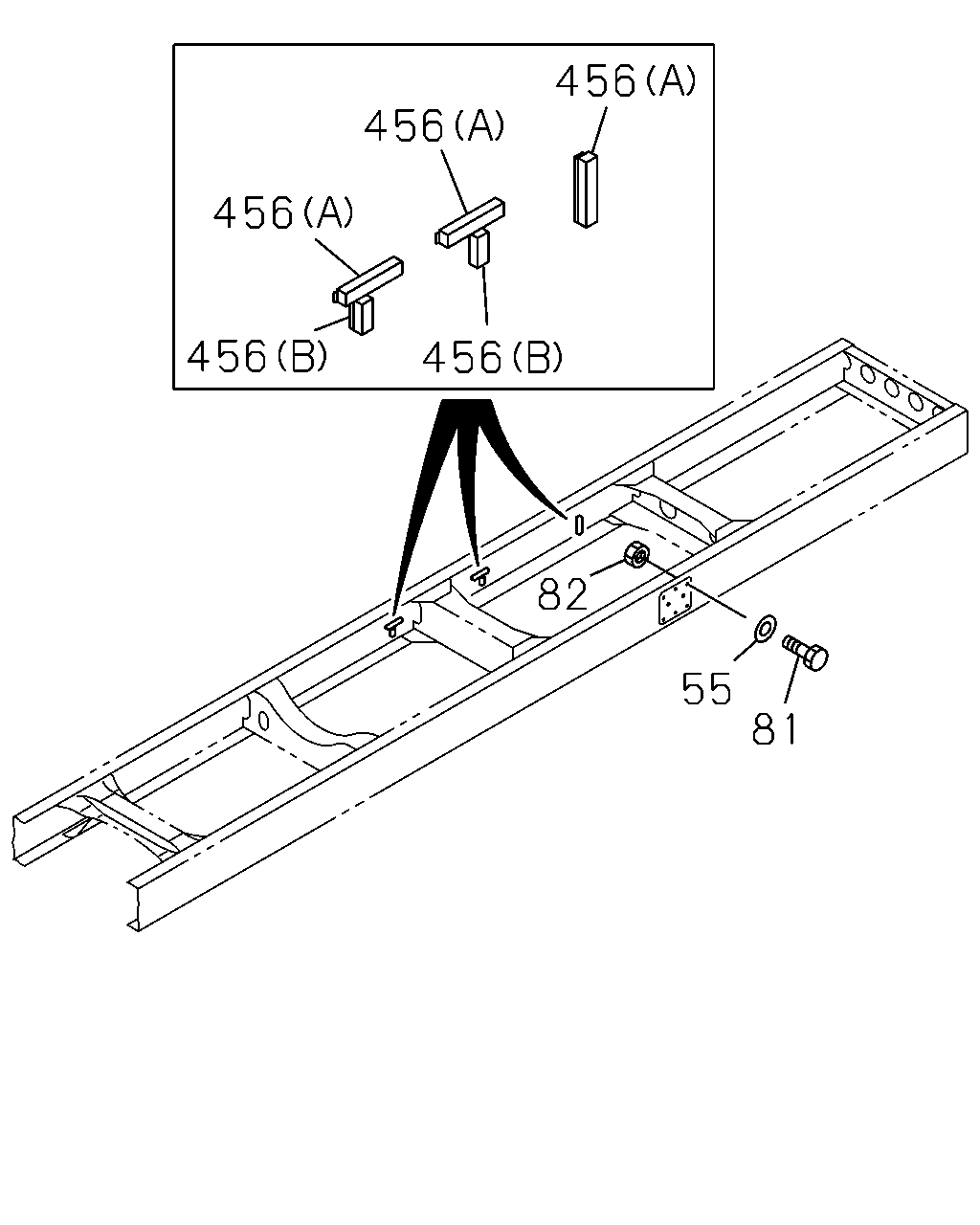

456 456 456 456 456 82 55 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	WASHER; PL ID=16.2	1-09503-316-0	08	1	1009-	●
55	WASHER; PL FXR AIR SUS(FGD***) ID=16.2	1-09503-316-0	08	1	1009-		●
55	WASHER; PL ID=15	8-98010-627-1	04	1	1009-	●
55	WASHER; PL FXR AIR SUS(FGD***) ID=15	8-98010-627-1	04	1	1009-		●
81	BOLT; BRKT M14X50	0-20951-450-0	02	1	1009-	●
81	BOLT; BRKT FXR AIR SUS(FGD***) M14X50	0-20951-450-0	02	1	1009-		●
82	NUT; BRKT M14	0-91110-514-0	02	1	1009-	●
82	NUT; BRKT FXR AIR SUS(FGD***) M14	0-91110-514-0	02	1	1009-		●
456	PATCH; STOPPER (A)	8-97611-248-0	06	1	1009-1209	●
456	PATCH; STOPPER FXR AIR SUS(FGD***) (A)	8-97611-248-0	06	1	1009-1209		●
456	PATCH; STOPPER (A)	8-97642-212-0	06	1	1210-	●
456	PATCH; STOPPER FXR AIR SUS(FGD***) (A)	8-97642-212-0	06	1	1210-		●
456	PATCH; STOPPER (B)	8-97611-249-0	04	1	1009-1209	●
456	PATCH; STOPPER FXR AIR SUS(FGD***) (B)	8-97611-249-0	04	1	1009-1209		●
456	PATCH; STOPPER (B)	8-97642-213-0	04	1	1210-	●
456	PATCH; STOPPER FXR AIR SUS(FGD***) (B)	8-97642-213-0	04	1	1210-		●

152 151 268 152 155 155 268 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
151	NUT; OUTRIGGER M16	0-91110-516-0	28	1	1011-	●
152	OUTRIGGER POOR QUALITY DIESEL FUEL<KF0>	8-97640-396-0	01	1	1103-1203	●
152	OUTRIGGER	8-97640-396-0	01	1	1204-	●
152	OUTRIGGER	8-97639-348-0	01	1	1011-1102	●
152	OUTRIGGER EXC. POOR QUALITY DIESEL FUEL<KF0>	8-97639-348-0	01	1	1103-1203	●
152	OUTRIGGER	8-97639-349-0	01	1	1011-	●
155	BOLT; OUTRIGGER M16X40	0-20951-640-0	28	1	1011-	●
268	WASHER; PL,OUTRIGGER ID=17 OD=30	9-09851-935-0	28	1	1011-	●

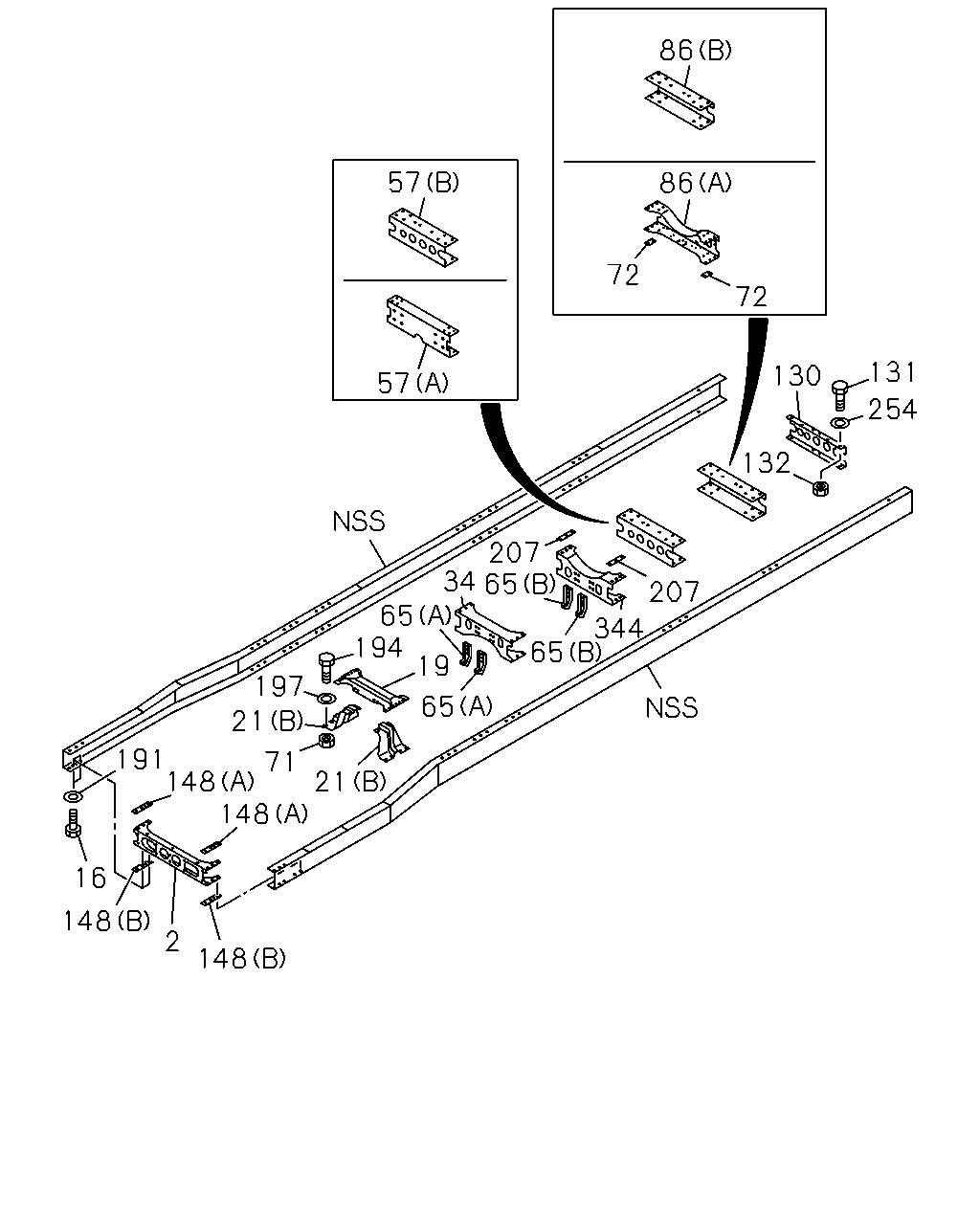

86 57 86 72 72 131 130 57 254 132 207 34 65 344 65 207 65 194 197 21 19 65 191 71 148 148 21 16 148 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1204-	●	●
19	MEMBER; CROSS,2ND	8-97610-855-1	01	1	1204-	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1203	●	●
19	MEMBER; CROSS,2ND	8-97610-855-0	01	1	1204-	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-185-1	02	1	1009-1203	●
21	GUSSET; 2ND CROSS (A)	8-98098-306-0	02	1	1204-	●
21	GUSSET; 2ND CROSS (B)	1-53164-226-1	01	1	1009-1203		●
21	GUSSET; 2ND CROSS (B)	8-98098-310-1	01	1	1204-		●
21	GUSSET; 2ND CROSS (B)	1-53164-227-1	01	1	1009-1203		●
21	GUSSET; 2ND CROSS (B)	8-98098-311-1	01	1	1204-		●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	1009-1203		●
34	MEMBER; CROSS,3RD	8-98105-393-0	01	1	1204-		●
57	MEMBER; CROSS,RR SUSP FRT (A)	8-97624-344-1	01	1	1009-	●
57	MEMBER; CROSS,RR SUSP FRT FXR AIR SUS(FGD***) (A)	8-97624-344-1	01	1	1009-		●
57	MEMBER; CROSS,RR SUSP FRT FXR LEAF SUS(FGR***) (B)	1-53181-995-6	01	1	1009-1203		●
57	MEMBER; CROSS,RR SUSP FRT FXR LEAF SUS(FGR***) (B)	8-98105-256-0	01	1	1204-1211		●
57	MEMBER; CROSS,RR SUSP FRT FXR LEAF SUS(FGR***) (B)	8-98105-256-0	01	1	1212-		●
65	BRACKET; CENTER BRG (A)	8-97614-132-0	02	1	1009-		●
65	BRACKET; CENTER BRG FXR AIR SUS(FGD***) (B)	8-97611-329-0	02	1	1009-1211		●
65	BRACKET; CENTER BRG FXR AIR SUS(FGD***) (B)	8-97611-329-0	02	1	1212-		●
65	BRACKET; CENTER BRG FXR LEAF SUS(FGR***) (B)	8-97623-447-0	02	1	1009-1211		●
65	BRACKET; CENTER BRG FXR LEAF SUS(FGR***) (B)	8-97623-447-0	02	1	1212-		●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1009-		●
72	SPACER; TRUNNION	1-53168-171-1	02	1	1009-1203	●
72	SPACER; TRUNNION FXR AIR SUS(FGD***)	1-53168-171-1	02	1	1009-1203		●
72	SPACER; TRUNNION	8-98191-613-0	02	1	1204-	●
72	SPACER; TRUNNION FXR AIR SUS(FGD***)	8-98191-613-0	02	1	1204-		●
86	MEMBER; CROSS,RR SUSP RR (A)	8-97624-484-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR FXR AIR SUS(FGD***) (A)	8-97624-484-1	01	1	1009-		●
86	MEMBER; CROSS,RR SUSP RR FXR LEAF SUS(FGR***) (B)	8-97623-454-1	01	1	1009-1211		●
86	MEMBER; CROSS,RR SUSP RR FXR LEAF SUS(FGR***) (B)	8-97623-454-1	01	1	1212-		●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	1009-1203		●
130	MEMBER; CROSS,END	8-98105-203-0	01	1	1204-		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-		●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1204-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1204-	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1204-	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1009-		●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1009-		●
207	SPACER; 4TH C/MBR	8-98098-259-0	02	1	1204-		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-		●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	1009-1203		●
344	MEMBER; CROSS,4TH	8-98105-393-0	01	1	1204-		●

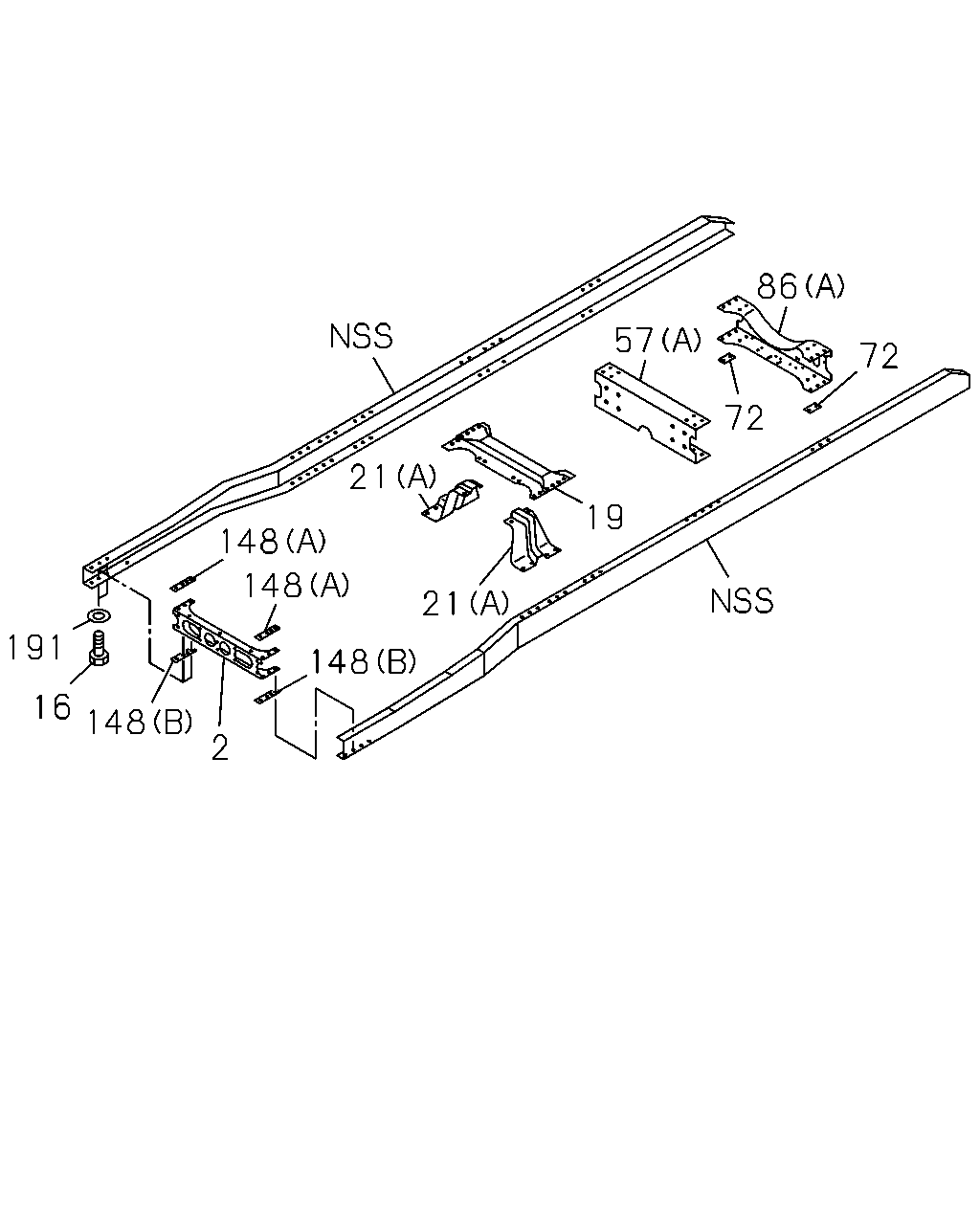

86 57 72 72 21 19 148 148 21 191 148 16 148 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1204-	●	●
19	MEMBER; CROSS,2ND	8-97610-855-1	01	1	1204-	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1203	●	●
19	MEMBER; CROSS,2ND	8-97610-855-0	01	1	1204-	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-185-1	02	1	1009-1203	●
21	GUSSET; 2ND CROSS (A)	8-98098-306-0	02	1	1204-	●
21	GUSSET; 2ND CROSS (B)	1-53164-226-1	01	1	1009-1203		●
21	GUSSET; 2ND CROSS (B)	8-98098-310-1	01	1	1204-		●
21	GUSSET; 2ND CROSS (B)	1-53164-227-1	01	1	1009-1203		●
21	GUSSET; 2ND CROSS (B)	8-98098-311-1	01	1	1204-		●
57	MEMBER; CROSS,RR SUSP FRT (A)	8-97624-344-1	01	1	1009-	●
57	MEMBER; CROSS,RR SUSP FRT FXR AIR SUS(FGD***) (A)	8-97624-344-1	01	1	1009-		●
57	MEMBER; CROSS,RR SUSP FRT FXR LEAF SUS(FGR***) (B)	1-53181-995-6	01	1	1009-1203		●
57	MEMBER; CROSS,RR SUSP FRT FXR LEAF SUS(FGR***) (B)	8-98105-256-0	01	1	1204-1211		●
57	MEMBER; CROSS,RR SUSP FRT FXR LEAF SUS(FGR***) (B)	8-98105-256-0	01	1	1212-		●
72	SPACER; TRUNNION	1-53168-171-1	02	1	1009-1203	●
72	SPACER; TRUNNION FXR AIR SUS(FGD***)	1-53168-171-1	02	1	1009-1203		●
72	SPACER; TRUNNION	8-98191-613-0	02	1	1204-	●
72	SPACER; TRUNNION FXR AIR SUS(FGD***)	8-98191-613-0	02	1	1204-		●
86	MEMBER; CROSS,RR SUSP RR (A)	8-97624-484-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR FXR AIR SUS(FGD***) (A)	8-97624-484-1	01	1	1009-		●
86	MEMBER; CROSS,RR SUSP RR FXR LEAF SUS(FGR***) (B)	8-97623-454-1	01	1	1009-1211		●
86	MEMBER; CROSS,RR SUSP RR FXR LEAF SUS(FGR***) (B)	8-97623-454-1	01	1	1212-		●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1204-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1204-	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1204-	●	●

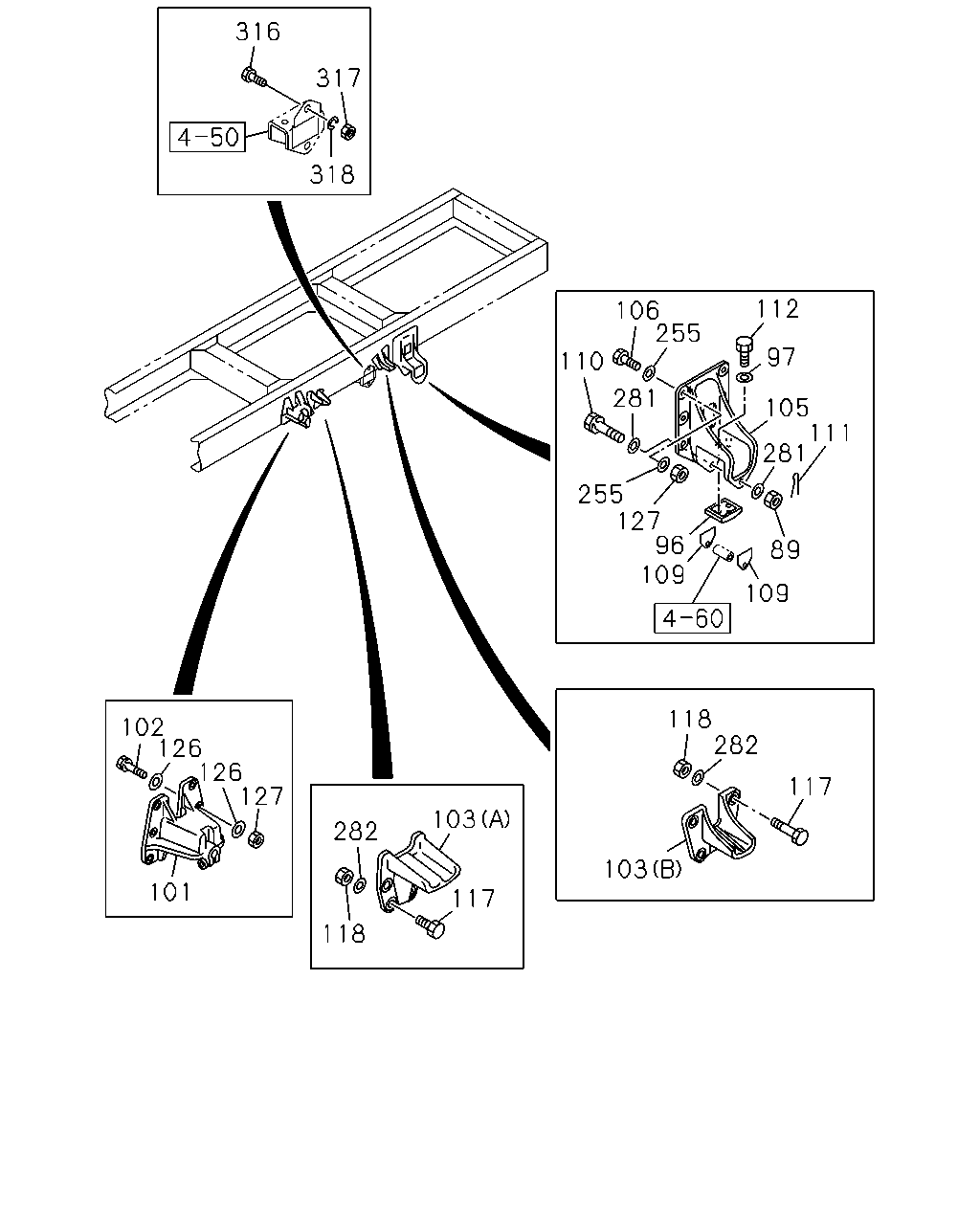

316 317 318 112 106 255 97 110 281 105 111 281 255 127 96 109 89 109 118 282 102 126 126 127 117 103 282 103 101 117 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	NUT; LEAF SPR STOPPER FXR LEAF SUS(FGR***) M14 SLOTTED	0-91116-514-0	02	1	1009-		●
96	PAD; RR SPR FXR LEAF SUS(FGR***)	1-53359-047-0	02	1	1009-		●
97	WASHER; LK,PAD FXR LEAF SUS(FGR***) ID=14.2	0-91510-514-0	04	1	1009-		●
101	BRACKET; RR SPR,FRT FXR LEAF SUS(FGR***)	1-53353-078-1	02	1	1009-1211		●
101	BRACKET; RR SPR,FRT FXR LEAF SUS(FGR***)	1-53353-078-1	02	1	1212-		●
102	BOLT; BRKT,RR SPR FXR LEAF SUS(FGR***) M14X50	0-20951-450-0	12	1	1009-1211		●
102	BOLT; BRKT,RR SPR FXR LEAF SUS(FGR***) M14X50	0-20951-450-0	12	1	1212-		●
103	STOPPER; SUB SPR FXR LEAF SUS(FGR***) (A)	1-53356-057-0	02	1	1009-1211		●
103	STOPPER; SUB SPR FXR LEAF SUS(FGR***) (A)	1-53356-057-0	02	1	1212-		●
103	STOPPER; SUB SPR FXR LEAF SUS(FGR***) (B)	1-53357-037-0	02	1	1009-1211		●
103	STOPPER; SUB SPR FXR LEAF SUS(FGR***) (B)	1-53357-037-0	02	1	1212-		●
105	BRACKET; RR SPR,RR FXR LEAF SUS(FGR***)	1-53354-064-1	02	1	1009-1211		●
105	BRACKET; RR SPR,RR FXR LEAF SUS(FGR***)	1-53354-064-1	02	1	1212-		●
106	BOLT; BRKT FXR LEAF SUS(FGR***) M14X50	0-20951-450-0	12	1	1009-1211		●
106	BOLT; BRKT FXR LEAF SUS(FGR***) M14X50	0-20951-450-0	12	1	1212-		●
109	SHIM; RR SPR FXR LEAF SUS(FGR***) T=4.5	1-53359-061-1	02	1	1009-		●
109	SHIM; RR SPR FXR LEAF SUS(FGR***) T=3.2	1-53359-062-1	02	1	1009-		●
110	BOLT; LEAF SPR STOPPER FXR LEAF SUS(FGR***)	1-09000-007-0	02	1	1009-		●
111	PIN; SPLIT,LEAF SPR STOPPER FXR LEAF SUS(FGR***) OD=2.8 L=28	0-81123-028-0	02	1	1009-		●
112	BOLT; PAD FXR LEAF SUS(FGR***) M14X35	0-20951-435-0	04	1	1009-		●
117	BOLT; STOPPER FXR LEAF SUS(FGR***) M14X40	0-20951-440-0	16	1	1009-1211		●
117	BOLT; STOPPER FXR LEAF SUS(FGR***) M14X40	0-20951-440-0	16	1	1212-		●
118	NUT; STOPPER FXR LEAF SUS(FGR***) M14	0-91110-514-0	16	1	1009-1211		●
118	NUT; STOPPER FXR LEAF SUS(FGR***) M14	0-91110-514-0	16	1	1212-		●
126	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	24	1	1009-1211		●
126	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	24	1	1212-		●
127	NUT; BRKT FXR LEAF SUS(FGR***) M14	0-91110-514-0	24	1	1009-1211		●
127	NUT; BRKT FXR LEAF SUS(FGR***) M14	0-91110-514-0	24	1	1212-		●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	18	1	1009-	●
255	WASHER; PL,BRKT FXR AIR SUS(FGD***) ID=15	8-98010-627-1	18	1	1009-		●
255	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	42	1	1009-1211		●
255	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	42	1	1212-		●
281	WASHER; LEAF SPR STOPPER FXR LEAF SUS(FGR***) ID=15 OD=30 T=2.6	0-91610-614-0	04	1	1009-		●
282	WASHER; PL,STOPPER FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	16	1	1009-1211		●
282	WASHER; PL,STOPPER FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	16	1	1212-		●
316	BOLT; STIFFENER FXR LEAF SUS(FGR***) M14X40	0-20951-440-0	06	1	1009-1211		●
316	BOLT; STIFFENER FXR LEAF SUS(FGR***) M14X40	0-20951-440-0	06	1	1212-		●
317	NUT; STIFFENER FXR LEAF SUS(FGR***) M14	0-91110-514-0	06	1	1009-1211		●
317	NUT; STIFFENER FXR LEAF SUS(FGR***) M14	0-91110-514-0	06	1	1212-		●
318	WASHER; LK,STIFFENER FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	12	1	1009-1211		●
318	WASHER; LK,STIFFENER FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	12	1	1212-1212		●
318	WASHER; LK,STIFFENER FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	12	1	1212-1212		●
318	WASHER; LK,STIFFENER FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	12	1	1301-		●

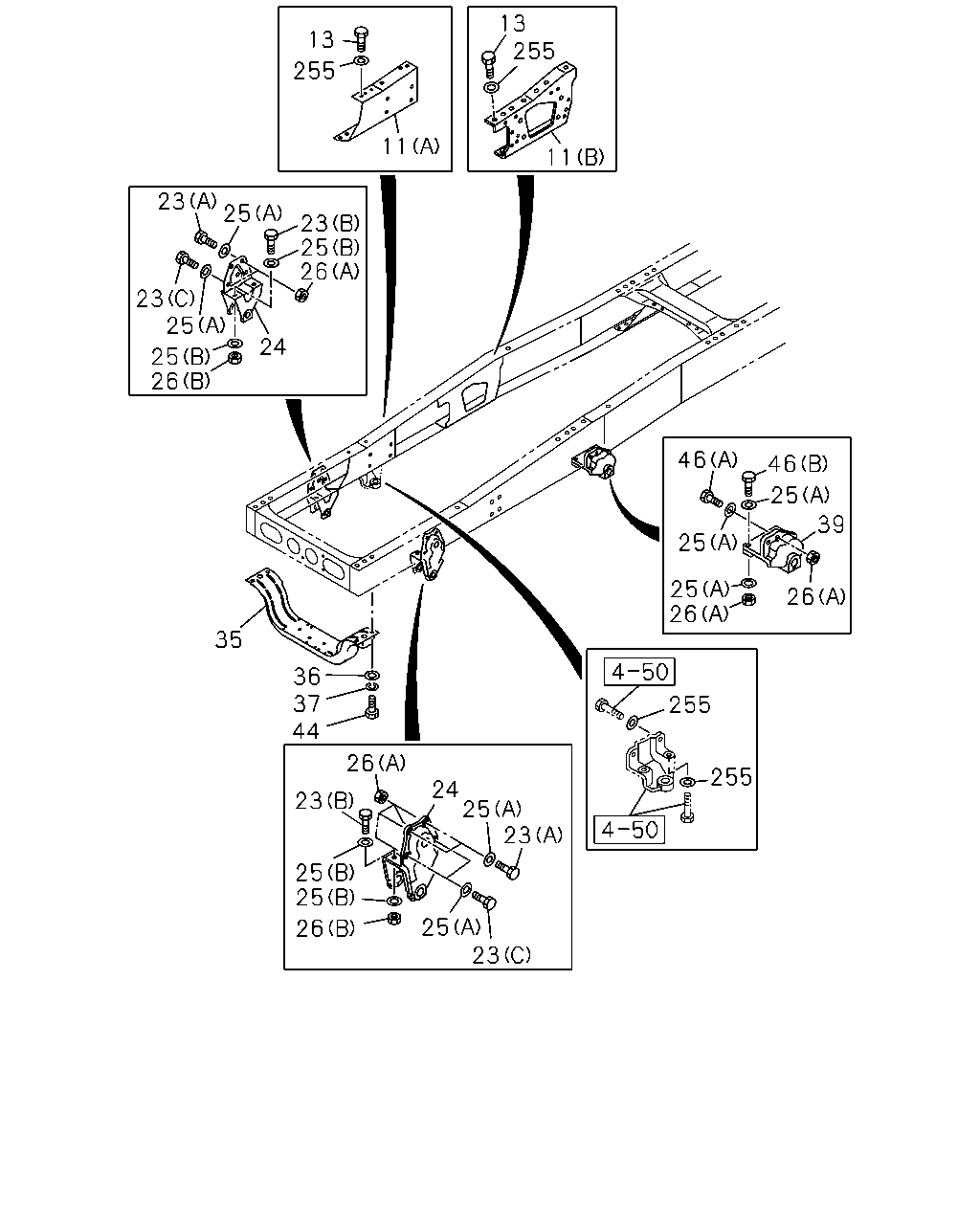

13 255 13 255 11 11 23 25 23 25 26 23 25 24 25 26 46 46 25 39 25 25 26 26 35 36 37 44 255 26 255 24 25 23 23 25 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1009-	●	●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1009-	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1009-	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1009-	●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1009-	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1009-	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1009-	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1009-	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1009-	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1009-	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1009-	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	20	1	1009-	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1009-	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1009-	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1009-1211	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1212-1511	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1512-	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1009-1211	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1212-1511	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1512-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1009-1211	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1212-1511	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1512-	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1009-	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1009-	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1009-1211	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1212-1511	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1512-	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	1009-	●	●
46	BOLT; BRKT FIX (B) M14X40	8-98097-157-0	04	1	1009-	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	18	1	1009-	●
255	WASHER; PL,BRKT FXR AIR SUS(FGD***) ID=15	8-98010-627-1	18	1	1009-		●
255	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	42	1	1009-1211		●
255	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	42	1	1212-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
