Isuzu WW
▶
TRUCKS
▶
FXR
▶
11314 - FXR/GXR(AUST)EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶
4-71 — AIR SUSPENSION PIPING
(#70677) — 26 parça
Tümü
A - FGD5MX
B - GGD5MX
◀

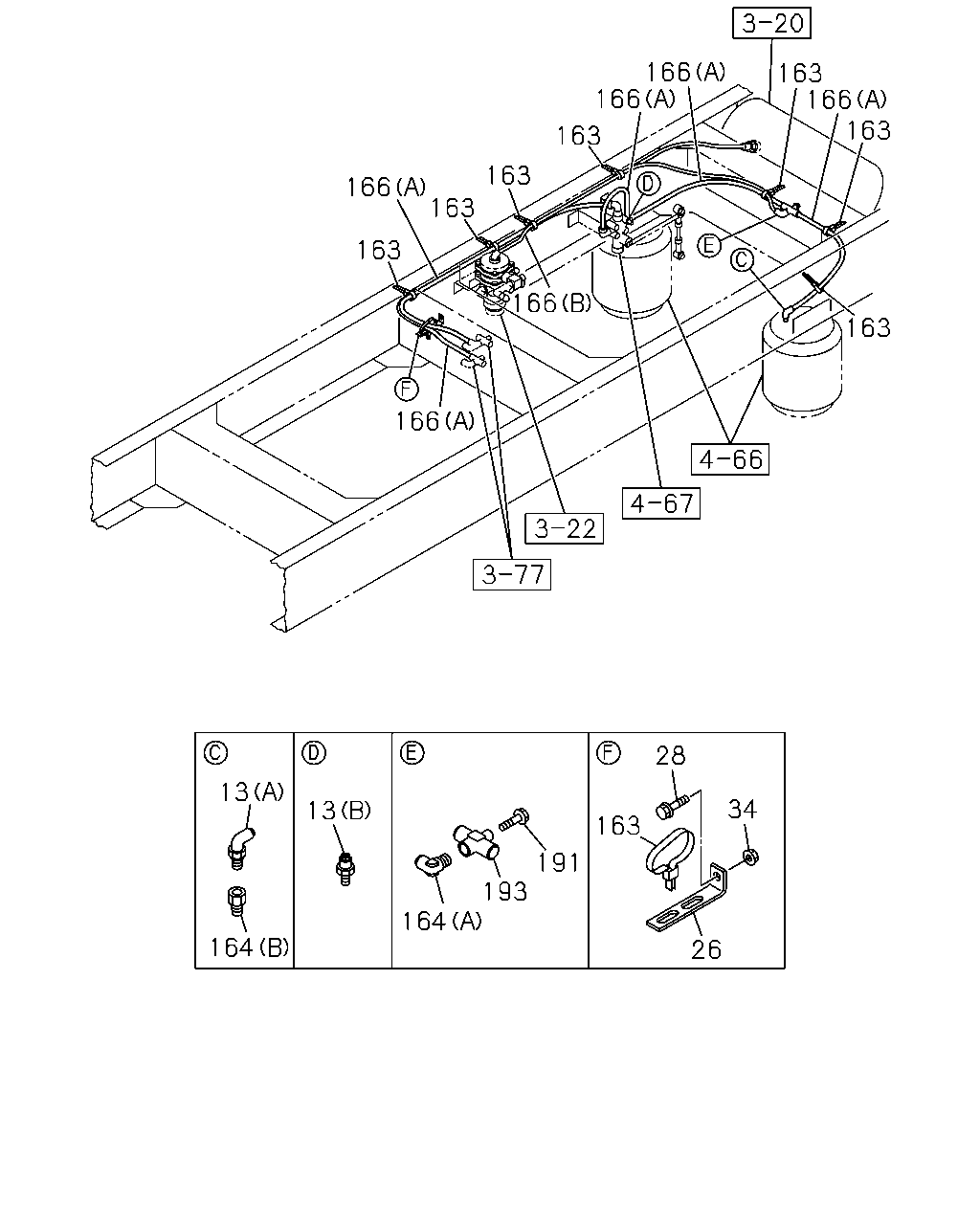

[471A] GXR AIR SUS (16 parça)

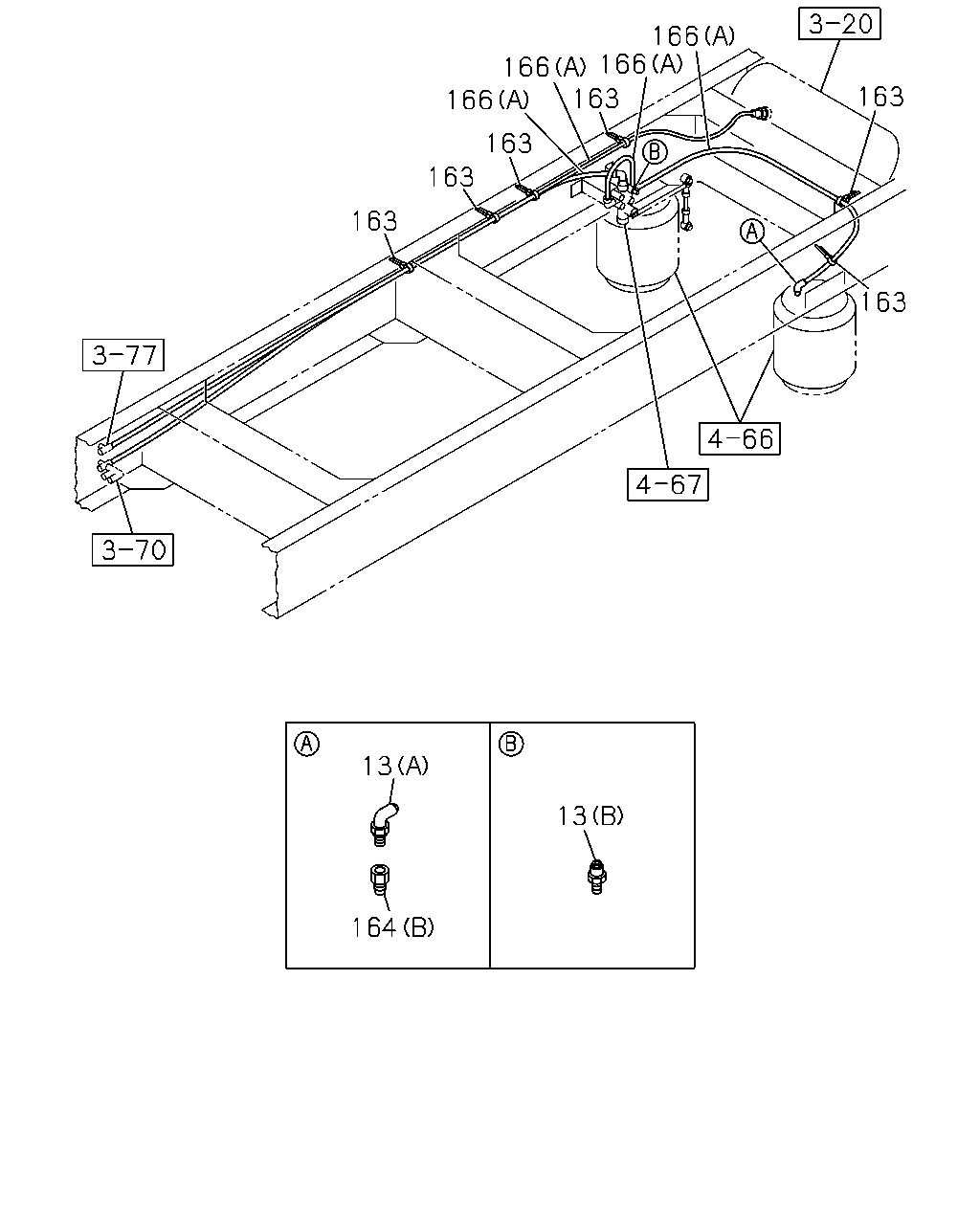

[471A] FXR AIR SUS (10 parça)
▶
166
166
163
166
163
163
163
166
163
163
166
163
166
28
13
34
13
163
191
193
164
164
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
1009-
●
●
13
UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT
1-09661-214-0
01
1
1009-
●
●
26
BRACKET; CLIP
L=100 H=30
1-47477-645-2
02
1
1009-
●
28
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1009-
●
28
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1009-
●
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1009-
●
163
CLIP; BAND
L=350
1-09707-183-0
06
1
1009-
●
163
CLIP; BAND
L=350
1-09707-183-0
01
1
1009-
●
163
CLIP; BAND
L=350
1-09707-183-0
07
1
1009-
●
164
CONNECTOR
(B)
8-98120-199-0
01
1
1009-
●
●
164
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1009-
●
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
●
●
166
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
●
166
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
●
191
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
01
1
1009-
●
193
UNION
DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
1009-
●
166
166
166
166
163
163
163
163
163
163
13
13
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
1009-
●
●
13
UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT
1-09661-214-0
01
1
1009-
●
●
163
CLIP; BAND
L=350
1-09707-183-0
06
1
1009-
●
163
CLIP; BAND
L=350
1-09707-183-0
01
1
1009-
●
163
CLIP; BAND
L=350
1-09707-183-0
07
1
1009-
●
164
CONNECTOR
(B)
8-98120-199-0
01
1
1009-
●
●
164
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1009-
●
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
●
●
166
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
●
166
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
●
