4-65 — REAR LEAF SPRING (#70673) — 24 parça

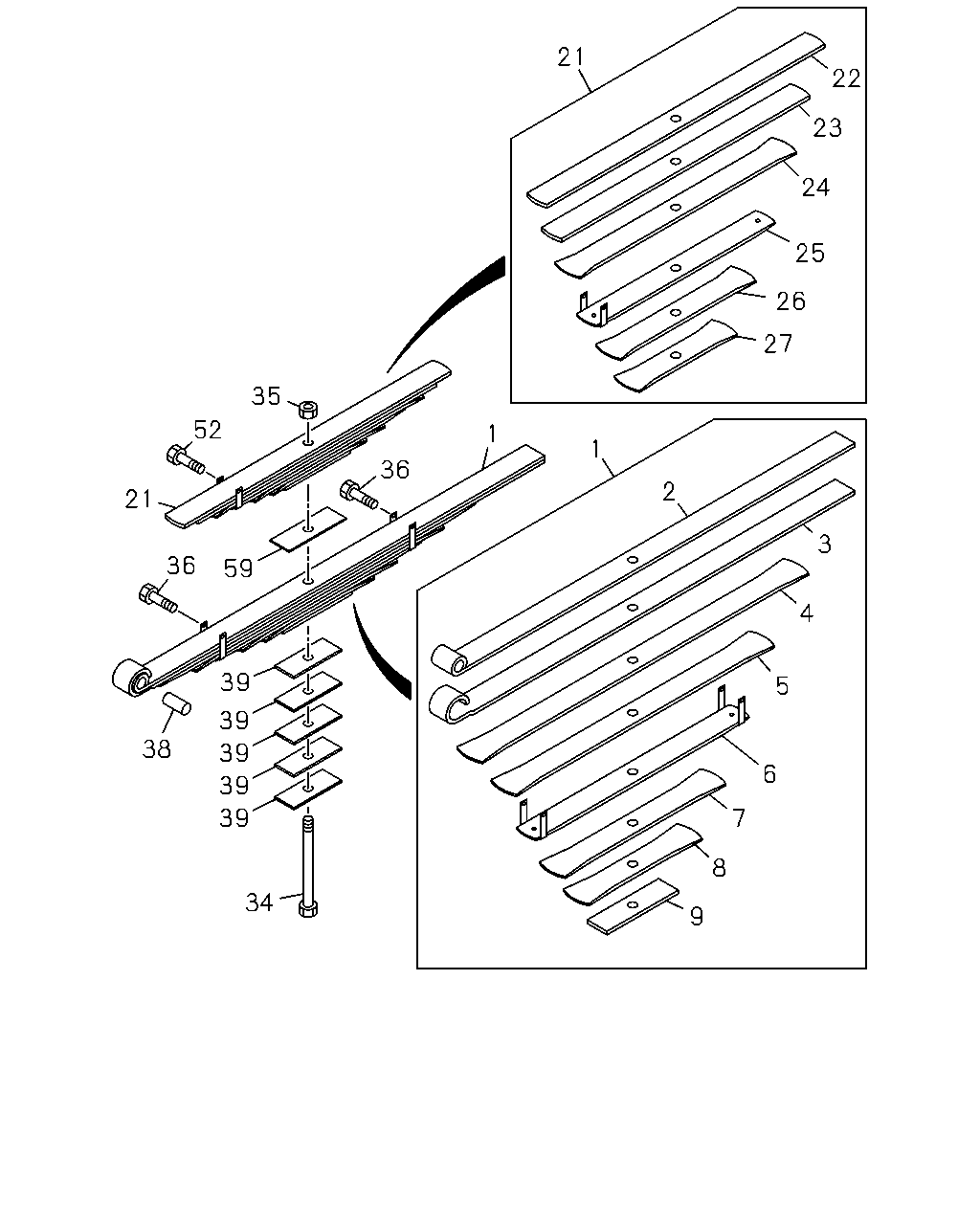

çizim 125090
21 22 23 24 25 26 27 35 52 1 1 36 2 21 3 36 59 4 39 5 39 38 39 6 39 39 7 8 34 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-961-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-962-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-963-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-964-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-965-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-966-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-967-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-968-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-98017-565-0 		8-98051-969-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98017-565-0 		8-98051-970-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98017-565-0 		8-98051-971-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98017-565-0 		8-98051-972-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98017-565-0 		8-98051-973-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98017-565-0 		8-98051-974-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98017-565-0 		8-98051-975-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98017-565-0 		8-98051-976-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: A = 8-98017-565-0 		1-51356-131-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 8-98017-565-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 8-98017-565-0 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 8-98017-565-0 		1-51351-010-0 01 1 -
38 BUSHING; LEAF SPR,RR
BEST VALUE PARTS ASM PART: A = 8-98017-565-0 		1-87610-164-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: A = 8-98017-565-0 		1-51377-118-0 05 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: A = 8-98017-565-0 		1-09000-334-0 01 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 8-98017-565-0 		1-51377-118-0 01 1 -
