4-55 — FRONT LEAF SPRING (#70670) — 17 parça

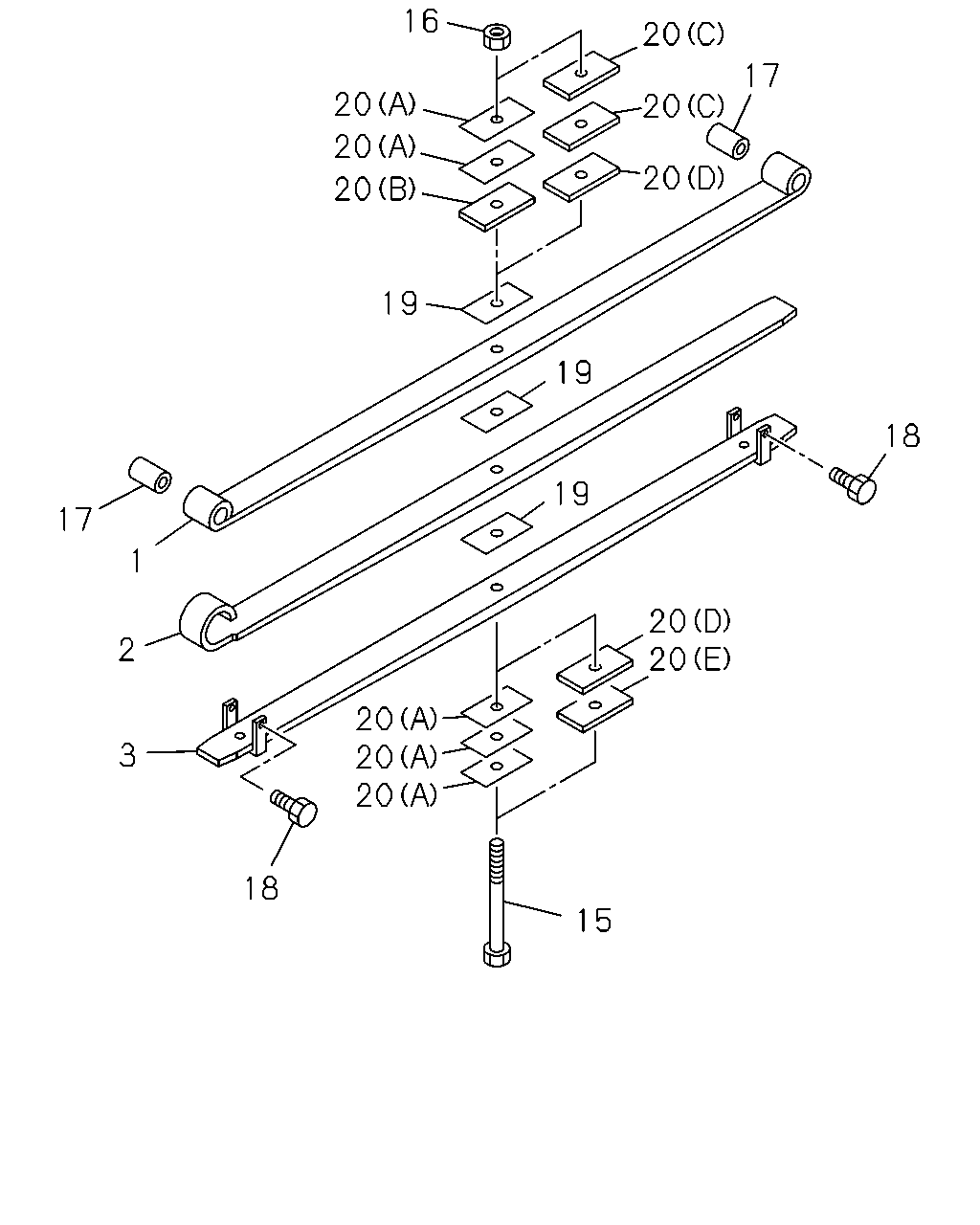

çizim 124757
16 20 17 20 20 20 20 20 19 19 18 19 17 1 20 20 2 20 20 20 3 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98053-738-0, C = 8-98112-651-0 		8-98063-140-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98053-122-0 		8-98063-143-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98053-738-0, C = 8-98112-651-0 		8-98063-141-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98053-122-0 		8-98063-144-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98053-738-0, C = 8-98112-651-0 		8-98063-142-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98053-122-0 		8-98063-145-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: A = 8-98053-122-0, C = 8-98112-651-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: B = 8-98053-738-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98112-651-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98112-651-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98112-651-0 		8-97615-331-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98112-651-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: A = 8-98053-122-0 		1-51177-074-0 05 1 -
20 SEAT; LEAF SPR,FRT
(E), T=10 ASM PART: C = 8-98112-651-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-98053-738-0, C = 8-98112-651-0 		1-51177-085-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=13 ASM PART: B = 8-98053-738-0, C = 8-98112-651-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: A = 8-98053-122-0 		1-51177-352-0 01 1 -
