4-50 — FRONT SUSPENSION (#70669) — 38 parça

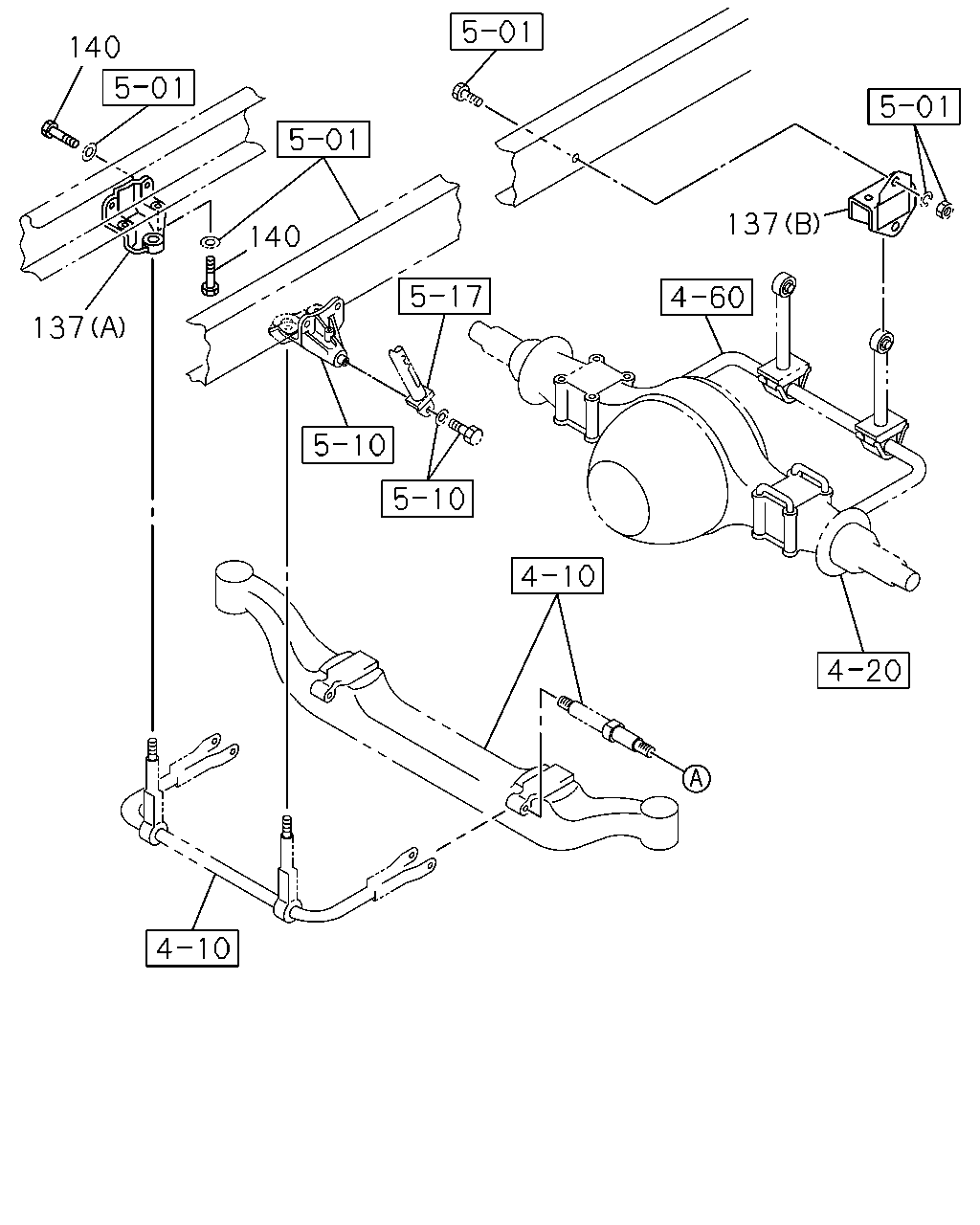

çizim 124223
140 137 137 140
BalonParca AdiParca NoAdetTipApplied Date A B C
137 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-111-0 01 1 1009- ● ● ●
137 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-074-0 02 1 1009- ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1009- ● ● ●

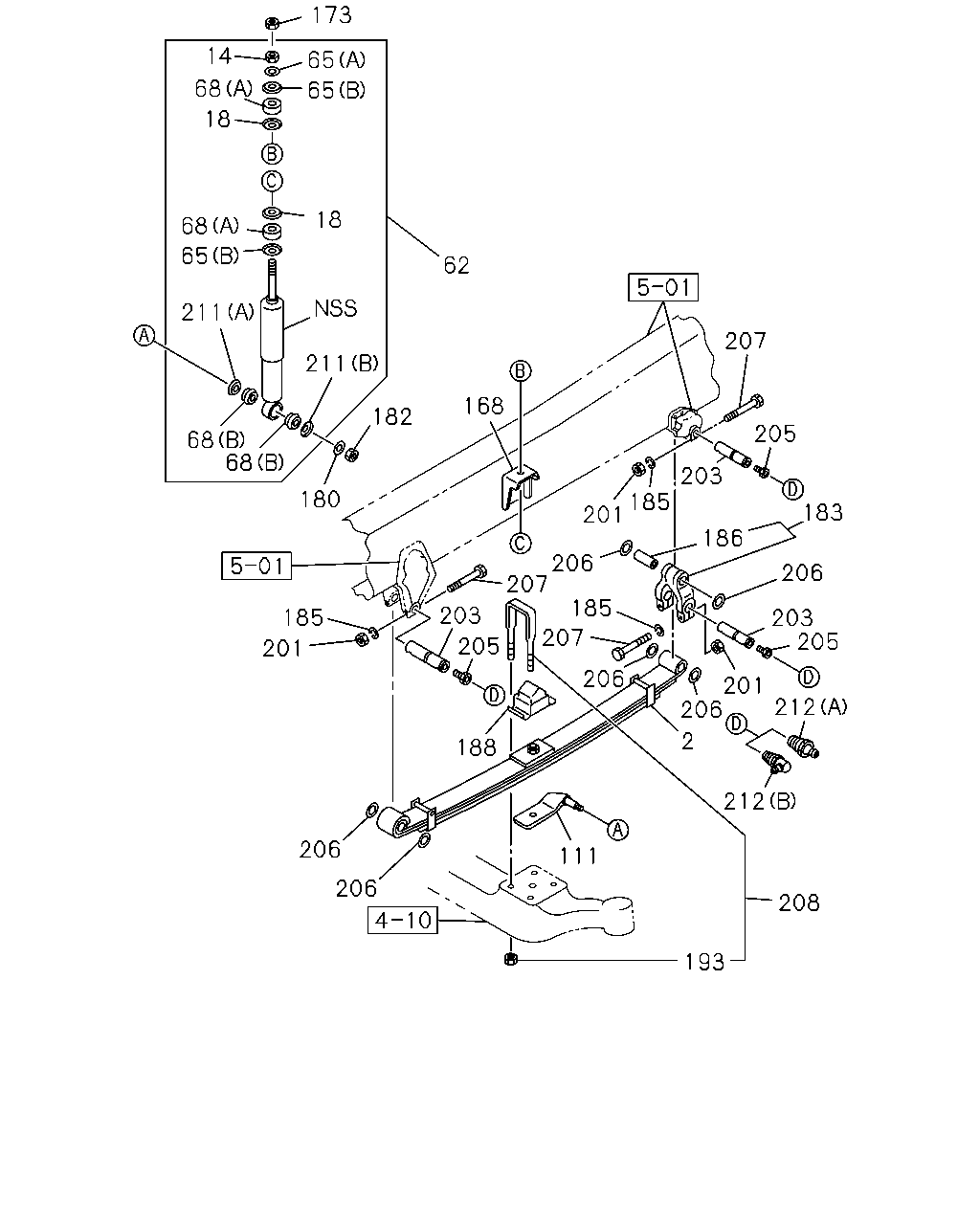

çizim 189633
173 14 65 68 65 18 18 68 65 62 211 207 211 168 182 205 68 68 203 183 180 185 201 186 206 207 206 185 203 185 203 205 207 205 201 206 201 206 212 2 188 212 206 111 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98053-122-0 02 1 1009- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98053-738-0 01 1 1009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98112-651-0 01 1 1009- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1009- ● ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1009- ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 1009- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-837-0 02 1 1009- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1009- ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1009- ● ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1009- ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1009- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1009- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1009- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1009- ● ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1009- ● ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1009- ● ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1009- ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1009- ● ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1009- ● ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1009- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1009- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98075-087-0 02 1 1009- ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1009-1206 ● ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1009- ● ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1009- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1009- ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1009- ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1009- ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 1009-1206 ● ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207- ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1009- ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1009- ● ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1009- ● ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1009- ● ● ●
