4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#70665) — 82 parça

41 280 41 157 266 111 195 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1009-	●	●	●
111	BRACKET; OIL PIPE	8-98131-436-0	01	1	1009-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1009-	●	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-	●	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1009-	●	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1009-	●	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1009-	●	●	●

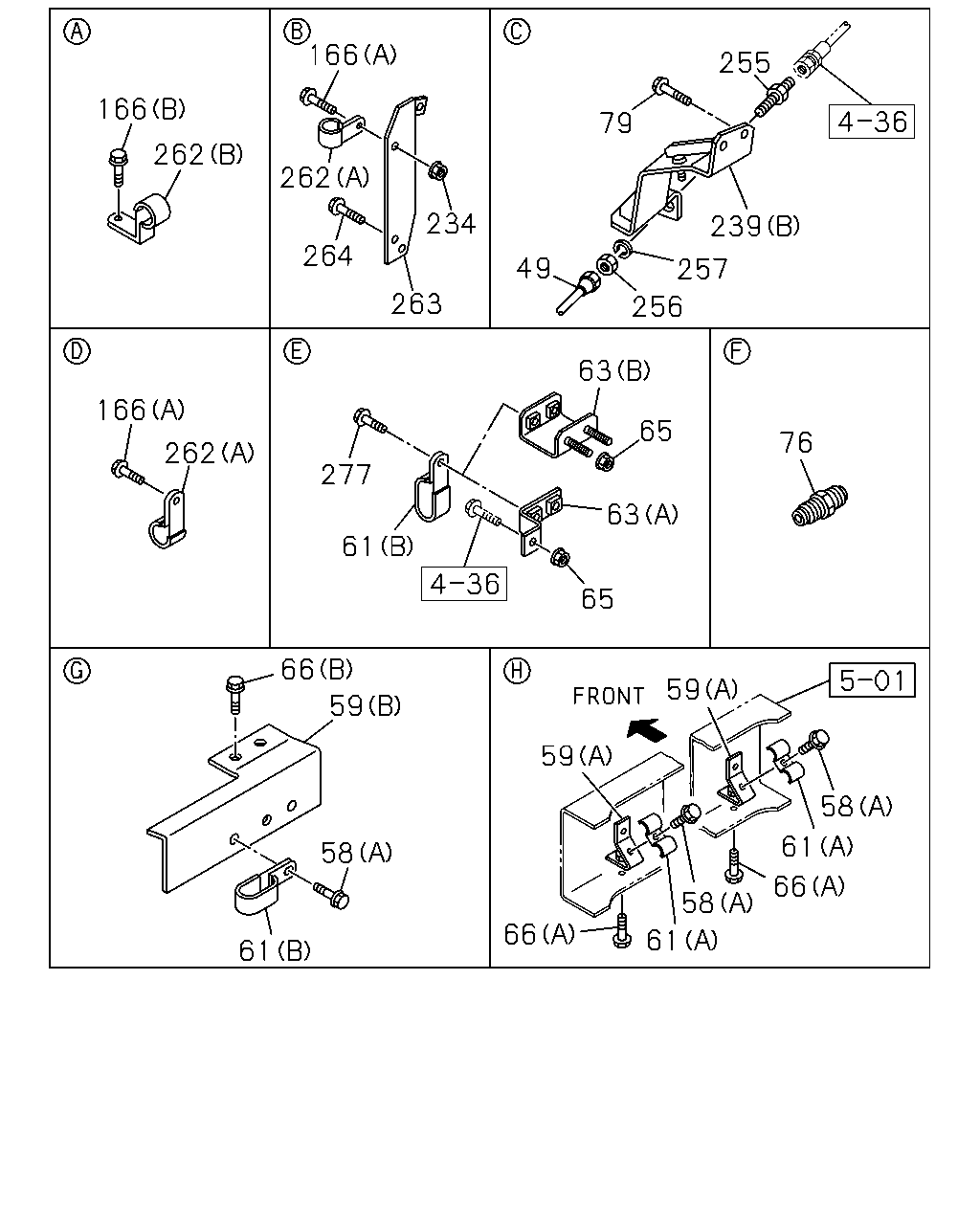

166 255 166 79 262 262 234 239 264 49 257 263 256 63 166 65 76 262 277 63 61 65 66 59 59 59 58 61 58 66 58 66 61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1009-1203	●	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98191-963-0	01	1	1204-1302	●	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-633-0	01	1	1303-	●	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1009-	●	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98169-340-0	01	1	1009-	●	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-	●	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1009-	●	●	●
63	BRACKET; CLIP,P/S (A)	1-47479-482-0	01	1	1009-1203	●	●	●
63	BRACKET; CLIP,P/S (B)	8-98191-966-0	01	1	1204-	●	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1203	●	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1204-	●	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	1009-	●	●	●
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-	●	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-	●	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1009-	●	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1009-	●	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-	●	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1009-	●	●	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-	●	●	●
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1009-	●	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-1203	●	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1204-	●	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●	●	●

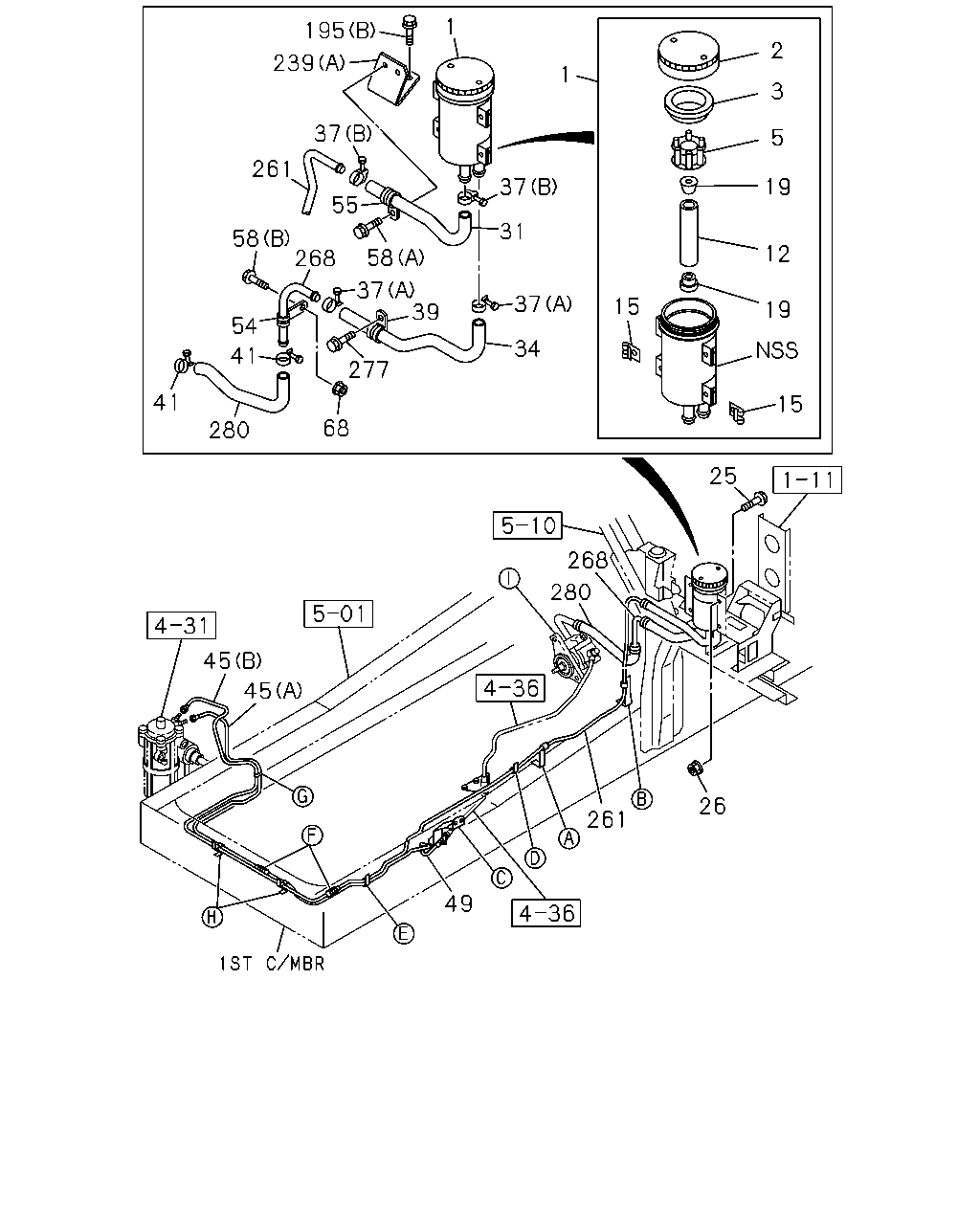

1 195 2 239 1 3 37 5 261 37 19 55 31 58 268 12 58 37 39 37 15 19 54 34 41 277 41 15 68 280 25 268 280 45 45 26 261 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1009-	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1009-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1009-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1009-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1009-	●	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1009-	●	●	●
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1009-	●	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1009-	●	●	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1009-	●	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1009-	●	●	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1009-	●	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1009-	●	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1009-	●	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1009-	●	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1009-1203	●	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98191-963-0	01	1	1204-1302	●	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-633-0	01	1	1303-	●	●	●
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1009-	●	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-	●	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-	●	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1009-	●	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1009-	●	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1009-	●	●	●
261	PIPE; OIL,UNION TO HOSE	8-98124-680-0	01	1	1009-1203	●	●	●
261	PIPE; OIL,UNION TO HOSE	8-98191-964-0	01	1	1204-1302	●	●	●
261	PIPE; OIL,UNION TO HOSE	8-98191-965-0	01	1	1303-	●	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1009-	●	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-1203	●	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1204-	●	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1009-	●	●	●
