8-15 — FIXING PARTS; WIRING HARNESS (#7066) — 216 parça
çizim 9870
16 128 14 16 171 16 16 128 14 16 16 16 16 470 194 16 16 223 48 223 194 206 228 81 341 16 81 16 48 81 263 16 51 81 183 194 225 305 16 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) L=250 		5-09707-030-1 02 1 9908-9910
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 02 1 9911-
14 CLIP; BAND,HARNESS
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) L=140 		5-09707-031-1 04 1 9908-9910
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 04 1 9911-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9908-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 9908-
16 CLIP; HARNESS
(B) ID=15 L=65 		1-09700-466-0 03 1 9908-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9908-
16 CLIP; HARNESS
(E) ID=11 L=61 		1-09700-484-0 01 1 9908-
16 CLIP; HARNESS
(W) ID=20 L=70 		1-09700-485-0 14 1 9908-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9908-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9908-
16 CLIP; HARNESS
(G) ID=21 L=24 		1-09701-201-0 02 1 9908-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9908-
16 CLIP; HARNESS
(M) ID=19 L=32 		1-09701-235-0 02 1 9908-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9908-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 9908-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 9908-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(T) L=36 		8-94224-891-1 01 1 9908-
16 CLIP; HARNESS
(K) ID=7-10 		8-94472-578-0 01 1 9908-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 02 1 9908-
16 CLIP; HARNESS
(N) ID=11 L=20 		9-09525-035-0 01 1 9908-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9908-
16 CLIP; HARNESS
(V) ID=16 L=40 		9-09525-576-0 01 1 9908-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9908-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 05 1 9908-
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9908-
48 CLIP; FRAME HARNESS
(E) ID=24 H=40 L=24 		1-09701-243-0 06 1 9908-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 05 1 9908-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 05 1 9908-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9908-
48 CLIP; FRAME HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 9908-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 9908-
81 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 04 1 9908-
81 CLIP; HARNESS
(C) L=180 		1-09707-162-1 02 1 9908-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9908-
81 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 9908-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9908-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9908-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 9908-
183 CLIP; CONNECTOR
L=180 		1-09707-162-1 01 1 9908-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 9908-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 03 1 9908-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 9908-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 03 1 9908-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9908-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) L=500 		1-09707-082-1 01 1 9908-0205
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) L=700 		1-09707-190-0 01 1 0206-
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 04 1 9908-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 06 1 9908-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 9908-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9908-
305 CLIP; ENG HARNESS
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9908-9910
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9911-
305 CLIP; ENG HARNESS
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (C) L=36 		8-94224-891-1 02 1 9908-9910
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 9911-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 9908-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9908-

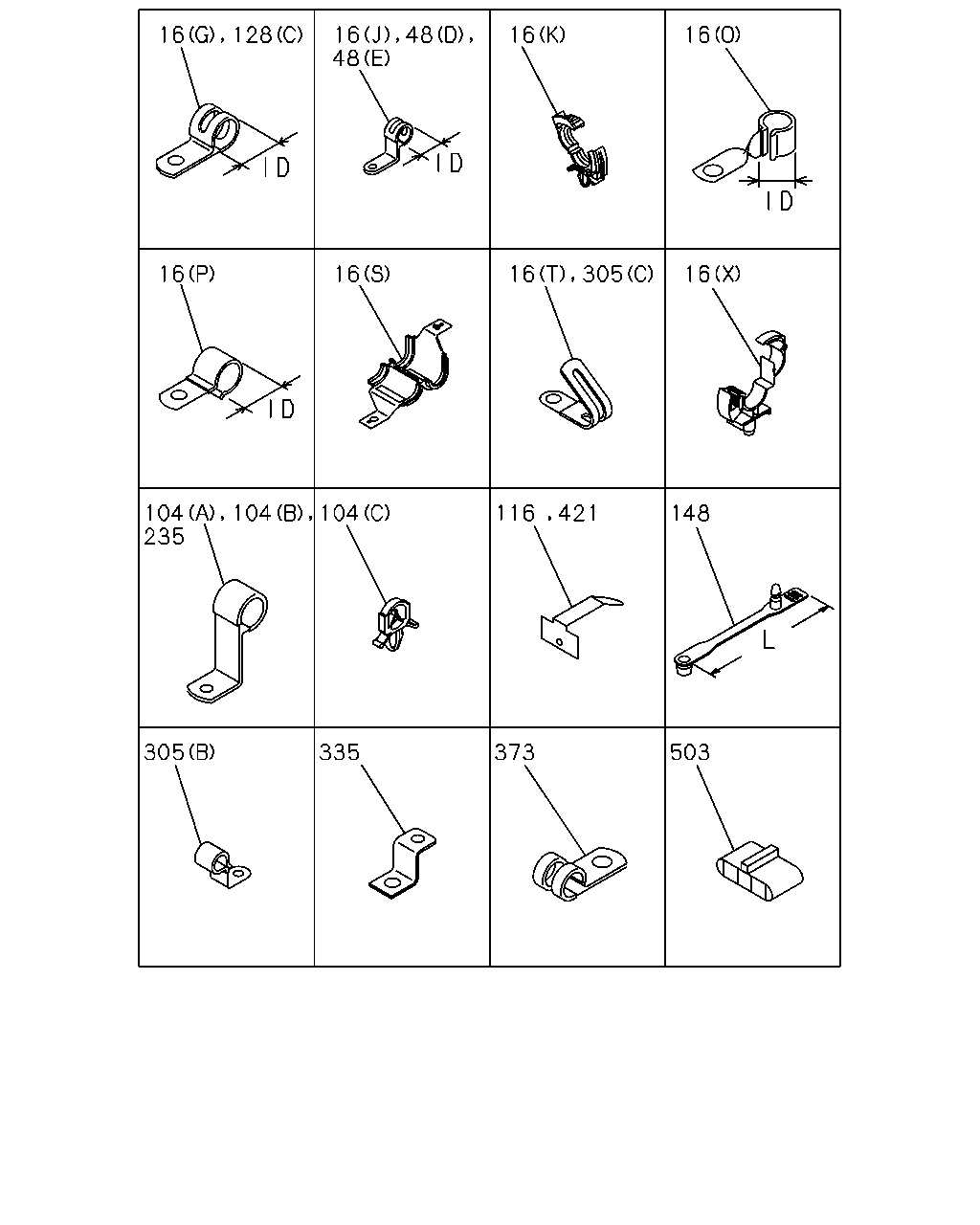

çizim 43594
16 128 16 48 48 16 16 16 16 16 305 16 104 235 104 104 116 421 148 305 335 373 503
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9908-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 9908-
16 CLIP; HARNESS
(B) ID=15 L=65 		1-09700-466-0 03 1 9908-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9908-
16 CLIP; HARNESS
(E) ID=11 L=61 		1-09700-484-0 01 1 9908-
16 CLIP; HARNESS
(W) ID=20 L=70 		1-09700-485-0 14 1 9908-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9908-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9908-
16 CLIP; HARNESS
(G) ID=21 L=24 		1-09701-201-0 02 1 9908-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9908-
16 CLIP; HARNESS
(M) ID=19 L=32 		1-09701-235-0 02 1 9908-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9908-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 9908-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 9908-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(T) L=36 		8-94224-891-1 01 1 9908-
16 CLIP; HARNESS
(K) ID=7-10 		8-94472-578-0 01 1 9908-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 02 1 9908-
16 CLIP; HARNESS
(N) ID=11 L=20 		9-09525-035-0 01 1 9908-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9908-
16 CLIP; HARNESS
(V) ID=16 L=40 		9-09525-576-0 01 1 9908-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9908-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 05 1 9908-
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9908-
48 CLIP; FRAME HARNESS
(E) ID=24 H=40 L=24 		1-09701-243-0 06 1 9908-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 05 1 9908-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 05 1 9908-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9908-
48 CLIP; FRAME HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 9908-
104 CLIP; HEADLAMP HARNESS
(A) ID=12 H=24 L=20 		1-09700-605-0 02 1 9908-
104 CLIP; HEADLAMP HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 04 1 9908-
104 CLIP; HEADLAMP HARNESS
(C) ID=4.8 		1-09701-218-0 04 1 9908-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 9908-0009
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0010-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9908-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9908-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 9908-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13 H=29 L=30 		1-09700-001-0 01 1 9908-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9908-
305 CLIP; ENG HARNESS
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9908-9910
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9911-
305 CLIP; ENG HARNESS
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (C) L=36 		8-94224-891-1 02 1 9908-9910
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 9911-
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 9908-
373 CLIP; BAND,GEN HARNESS
ID=26 L=27 		1-09701-006-0 02 1 9908-
373 CLIP; BAND,GEN HARNESS
ID=25 L=50 		1-09701-019-0 01 1 9908-
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 12 1 9908-0101
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 06 1 0102-
503 CONNECTOR 1-82690-666-0 01 1 9908-
çizim 43973
38 38 242 239 133 119 38 255 38 38 304 38 133 242 516 423 133 524 242 38 242 242 313 38 242 219 219 340 515 294 294
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M5X8 		0-20800-508-0 01 1 9908-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 07 1 9908-
38 BOLT; CLIP,HARNESS
(D) M6X16 FLANGE 		0-28680-616-0 02 1 9908-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 03 1 9908-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 05 1 9908-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 10 1 9908-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 9908-
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9908-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9908-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 9908-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9908-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9908-9908
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9909-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 16 1 9908-9908
219 NUT
(A) M8 FLANGE 		0-91150-108-0 15 1 9909-
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 9908-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 9908-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9908-
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28080-820-0 04 1 9908-9910
242 BOLT; BRKT,HARNESS
(F) M8X18 FLANGE 		0-28080-818-0 04 1 9911-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9908-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9908-
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9908-
242 BOLT; BRKT,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9908-
242 BOLT; BRKT,HARNESS
(E) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9908-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9908-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9908-
294 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 9908-
304 BOLT; ENG HARNESS CLIP
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X16 W/LK WASHER 		1-09033-012-0 06 1 9908-9910
304 BOLT; ENG HARNESS CLIP
M10X16 W/LK WASHER 		1-09033-012-0 06 1 9911-
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9908-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9908-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 9908-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9908-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9908-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9908-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 9908-
çizim 44008
53 53 312 334 342 375 375 312 342
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) 		1-82699-826-0 01 1 9908-
53 BRACKET; HARNESS
(A) 		1-82699-895-0 01 1 9908-
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82699-970-0 01 1 9908-
312 BRACKET; CLIP HARNESS
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) 		1-82699-348-0 01 1 9908-9910
312 BRACKET; CLIP HARNESS
(A) 		1-82699-348-0 01 1 9911-
334 BRACKET 1-53458-706-2 01 1 9908-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 9908-
342 BRACKET; HARNESS CAB MTG
(B) L=120 H=35 		1-82699-970-0 01 1 9908-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47476-393-0 01 1 9908-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82699-199-0 01 1 9908-
çizim 44606
16 162 283 16 168 178 178 178 178 530 530 185 1
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 L=30 		5-09360-352-0 01 1 0010-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9908-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 9908-
16 CLIP; HARNESS
(B) ID=15 L=65 		1-09700-466-0 03 1 9908-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9908-
16 CLIP; HARNESS
(E) ID=11 L=61 		1-09700-484-0 01 1 9908-
16 CLIP; HARNESS
(W) ID=20 L=70 		1-09700-485-0 14 1 9908-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9908-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9908-
16 CLIP; HARNESS
(G) ID=21 L=24 		1-09701-201-0 02 1 9908-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9908-
16 CLIP; HARNESS
(M) ID=19 L=32 		1-09701-235-0 02 1 9908-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9908-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 9908-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9908-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 9908-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(T) L=36 		8-94224-891-1 01 1 9908-
16 CLIP; HARNESS
(K) ID=7-10 		8-94472-578-0 01 1 9908-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 02 1 9908-
16 CLIP; HARNESS
(N) ID=11 L=20 		9-09525-035-0 01 1 9908-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9908-
16 CLIP; HARNESS
(V) ID=16 L=40 		9-09525-576-0 01 1 9908-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9908-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 05 1 9908-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9908-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 02 1 9908-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 9908-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9908-
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9908-
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 9908-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0005-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9908-
530 SEAL; HARNESS
(B) 180X40 		1-72498-019-0 02 1 9908-0101
530 SEAL; HARNESS
(B) 180X40 		1-72498-019-0 10 1 0102-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-0 04 1 9908-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
