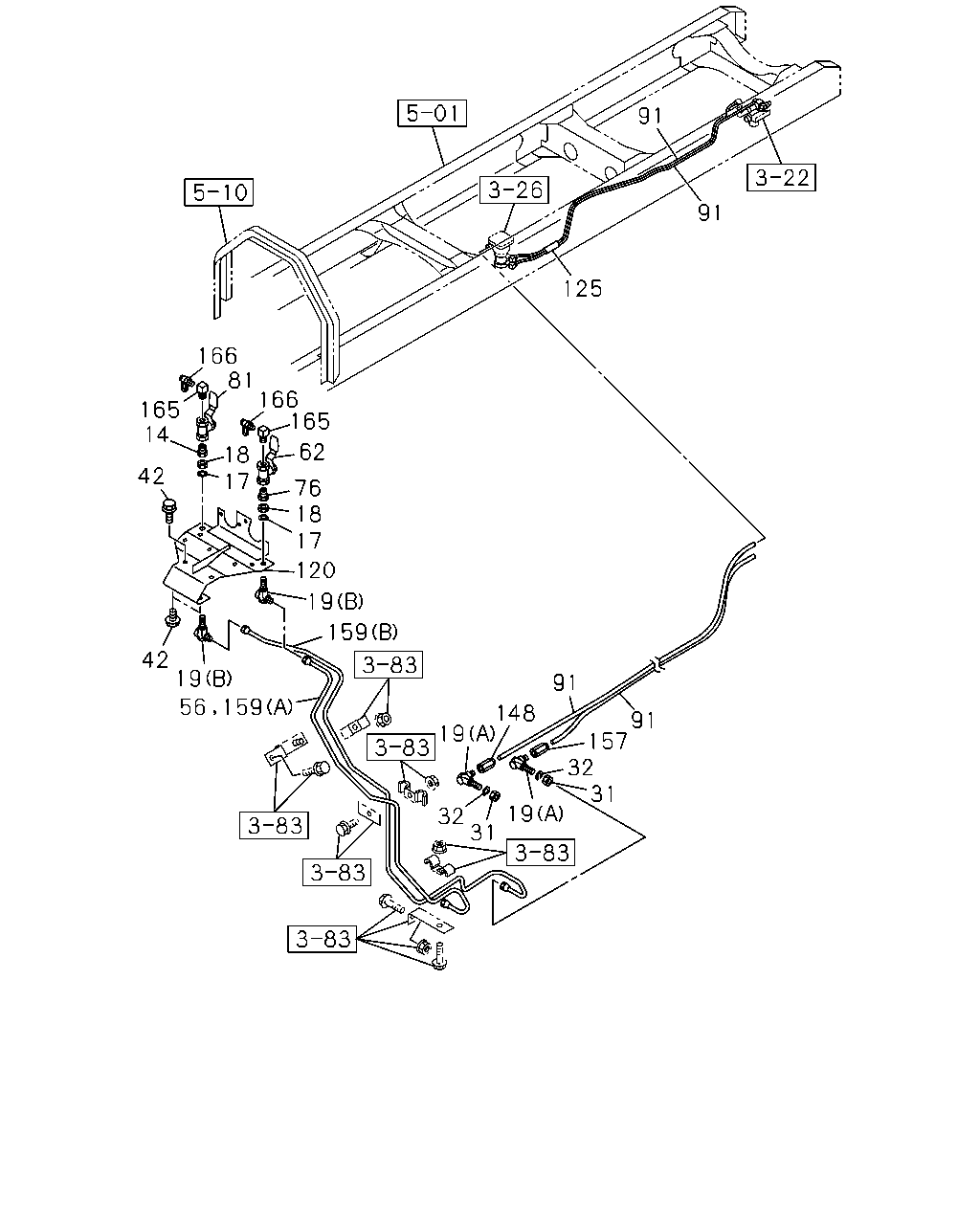

3-80 — BRAKE PIPING; TRAILER
(#70655) — 23 parça
91
91
125
166
81
166
165
165
14
62
18
17
42
76
18
17
120
19
159
42
19
91
148
91
157
32
31
19
19
32
31
56
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
CONNECTOR; AIR PIPE
M16 & PT1/2 STRAIGHT
1-09660-078-0
01
1
1009-
17
WASHER; LK,UNION
ID=16.2
0-91510-516-0
01
1
1009-
18
NUT; UNION
M16
0-91111-516-0
02
1
1009-
19
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
02
1
1009-
19
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-110-1
02
1
1009-
31
NUT; UNION
M16
0-91111-516-0
02
1
1009-
32
WASHER; LK,UNION
ID=16.2
0-91510-516-0
01
1
1009-
42
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1009-
56
PIPE; AIR,UNION TO COCK
L=1309
8-98100-125-0
01
1
1009-
62
COCK; AIR PIPE
YELLOW
1-09680-093-0
01
1
1009-
76
NIPPLE; AIR PIPE
M16 & PT1/2 STRAIGHT
1-09660-078-0
01
1
1009-
81
COCK; AIR COUPLING
RED
1-09680-091-0
01
1
1009-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
120
BRACKET; COCK
8-98118-861-0
01
1
1009-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1009-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1009-
148
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1009-
157
ADAPTER
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1009-
159
PIPE; AIR,UNION TO CONNECTOR
(A)
8-98119-479-0
01
1
1009-
159
PIPE; AIR,UNION TO CONNECTOR
(B) L=1379
8-98119-480-0
01
1
1009-
165
CONNECTOR; ELBOW
PT1/2 & NPTF1/2 2WAY
1-09660-695-0
02
1
1009-
166
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1009-
