3-78 — FIXING PARTS; AIR PIPING (#70654) — 104 parça

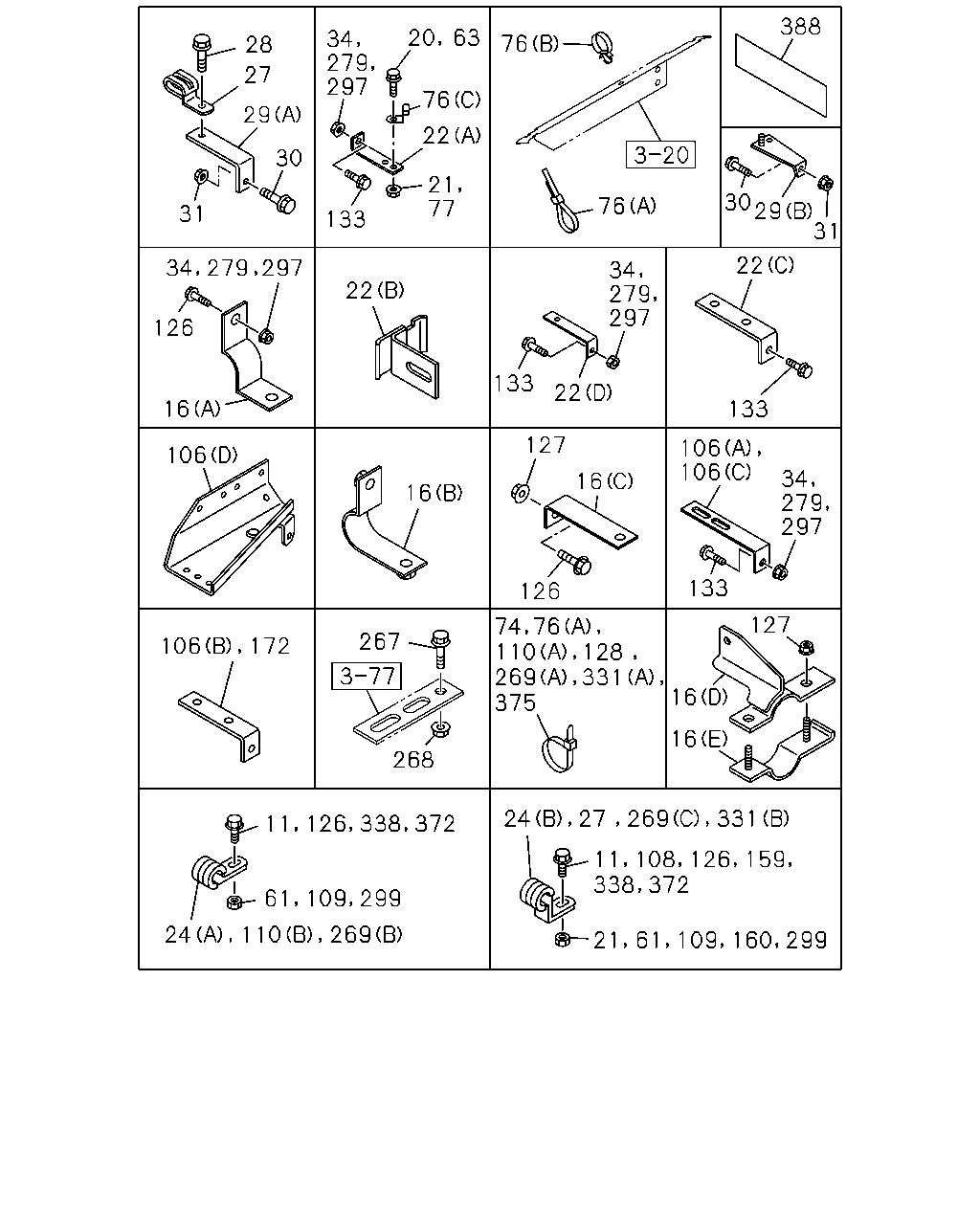

çizim 189621
388 20 63 34 279 297 76 28 27 76 29 22 30 21 77 30 29 31 76 31 133 22 34 279 297 22 126 133 22 16 133 127 106 106 106 34 279 297 16 16 133 126 127 267 106 172 16 16 268 11 11 61 24 34 279 297 126 338 372 109 299 110 269 21 61 109 160 299 372 338 159 126 108 331 269 27 24 74 76 110 128 269 331 375
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1204- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1204- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1203 ● ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1203 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1203 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1203 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1204- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1204- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009- ●
16 BRACKET; PIPE CLIP
(A) 		1-47478-588-0 01 1 1009-1110 ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98199-761-0 01 1 1111-1211 ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98212-967-0 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-249-0 01 1 1009-1110 ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98199-763-0 01 1 1111-1211 ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98212-968-0 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(C) L=95 		1-82699-085-0 01 1 1009- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-1203 ● ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-1203 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1204- ● ● ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1009-1203 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1204- ● ●
22 BRACKET; CLIP
(D) L=145 		1-47475-655-0 01 1 1009- ● ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1009- ● ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1009- ● ● ●
22 BRACKET; CLIP
(A) L=95 		1-82698-557-0 01 1 1009- ● ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1009- ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1009- ●
24 CLIP; PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009- ● ● ●
24 CLIP; PIPE
(A) ID=25 L=50 		1-09701-019-0 03 1 1009- ● ● ●
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1009- ● ● ●
28 BOLT; CLIP,FLEX HOSE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X20 FLANGE 		0-28650-820-0 01 1 1009-1203 ● ● ●
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) 		1-47475-927-0 01 1 1009-1010 ● ● ●
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) L=68 		1-47475-525-0 01 1 1011-1203 ● ● ●
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97609-096-0 01 1 1204- ● ● ●
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X30 FLANGE 		0-28650-830-0 01 1 1009-1203 ● ● ●
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X25 FLANGE 		0-28650-825-0 01 1 1204- ● ● ●
31 NUT; CLIP BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 01 1 1009- ● ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1009- ● ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ● ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 08 1 1009-1203 ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 07 1 1204- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 1009- ● ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1009- ● ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1009- ● ● ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 1009- ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1009- ● ● ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 1009- ● ● ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1009- ● ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 02 1 1009- ● ● ●
106 BRACKET; TUBE CLIP
(D) 		8-98100-335-0 01 1 1009- ● ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1009- ● ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ● ●
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1009- ● ● ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 1009- ● ● ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1110 ● ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1110 ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1111- ● ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 07 1 1009- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 11 1 1009- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 1009- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1009- ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1009- ● ● ●
159 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009- ●
172 BRACKET; TUBE CLIP 1-47479-693-0 01 1 1009- ●
267 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
268 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 1009-1203 ● ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1204- ● ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 1009-1203 ● ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 1204- ● ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 1204- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 1009-1203 ● ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 28 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 1009-1203 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 22 1 1204- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1009- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1009- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ● ●
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 1009- ● ● ●
331 CLIP; NYLON TUBE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009- ● ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1010 ●
372 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1011- ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009- ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1009- ● ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1009- ● ● ●
