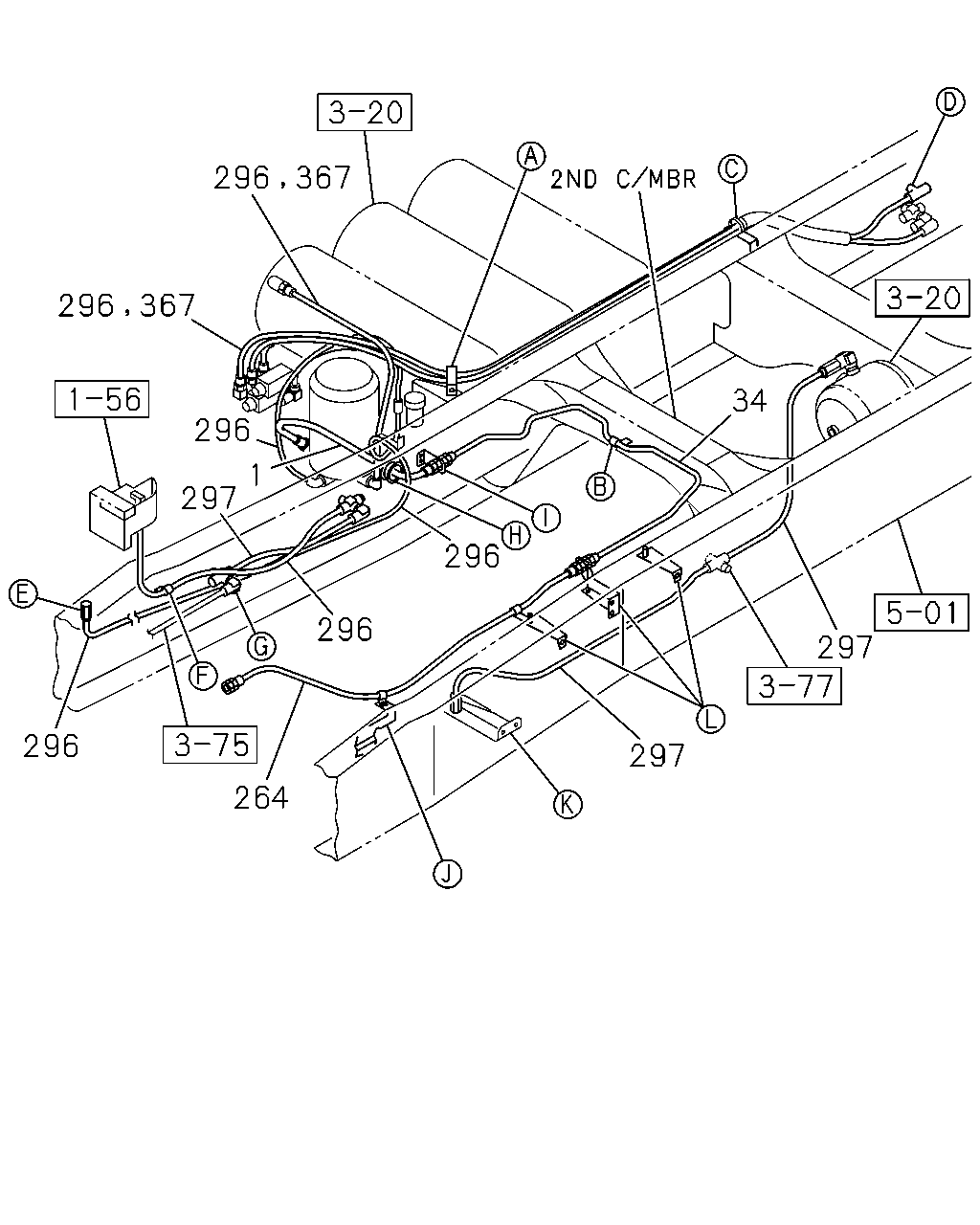

3-70 — BRAKE PIPING; AIR,AIR MASTER (#70651) — 78 parça

34 296 1 297 296 296 297 296 297 264 296 367 367 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,AIR TANK BATTERY 115E41L<8MA>	8-98100-332-0	01	1	1009-	●	●	●
1	HOSE; FLEX,AIR TANK BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	1-09363-940-0	01	1	1009-	●	●	●
34	PIPE; AIR L=1258	8-97618-580-0	01	1	1009-	●	●	●
264	HOSE; FLEX L=1150	1-09363-791-0	01	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●	●

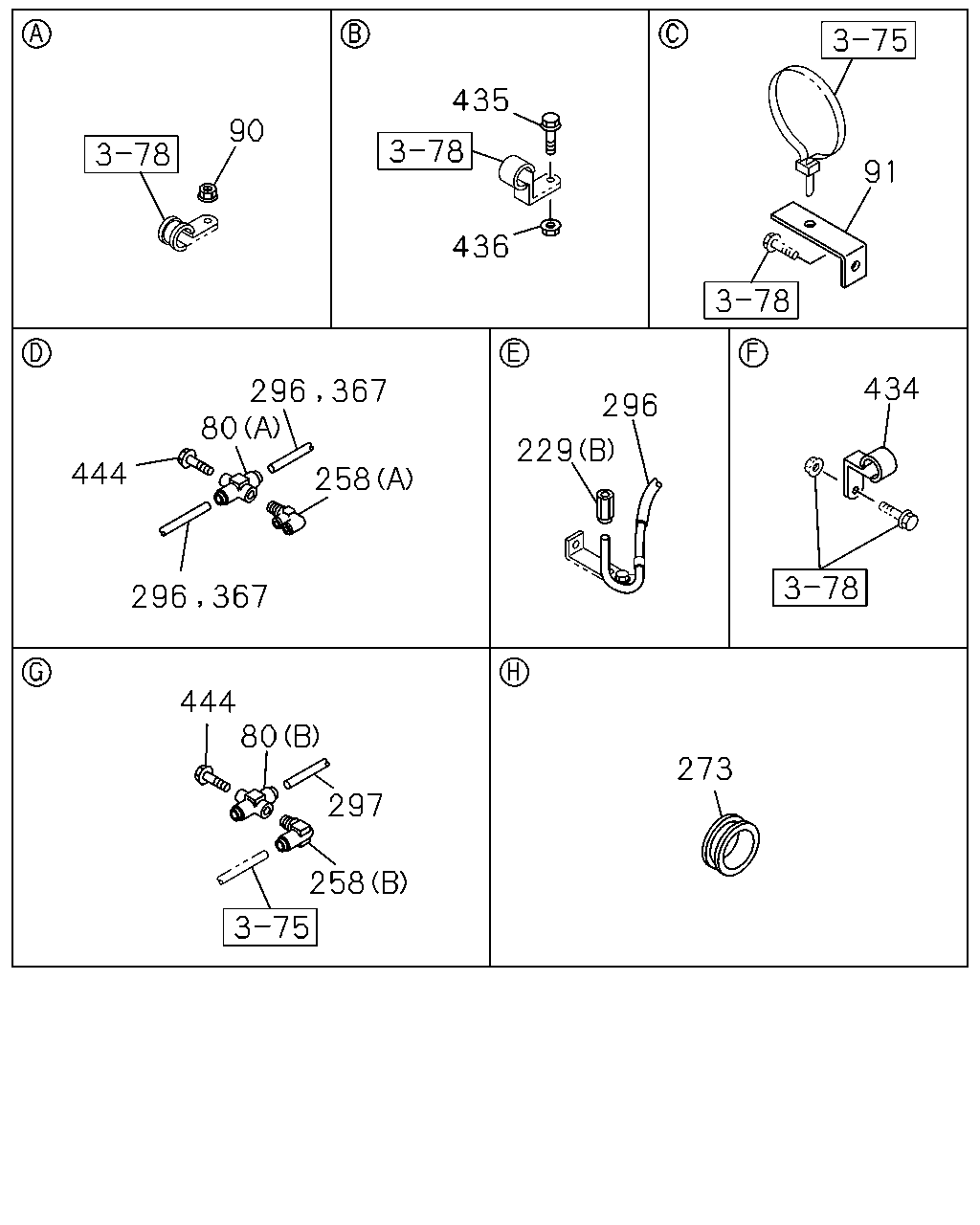

435 90 91 436 434 80 296 229 444 258 444 80 273 297 258 296 367 296 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-		●
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1009-	●		●
90	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●
91	BRACKET; TUBE CLIP L=60 H=30	1-47477-716-1	02	1	1009-	●	●	●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●	●	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1009-	●	●	●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-	●	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●	●	●
258	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-			●
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-			●
258	CONNECTOR; NYLON TUBE (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-			●
273	GROMMET ID=32 OD=40 T=18	1-09891-003-0	01	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●	●
434	CLIP ID=8 H=20 L=20	1-09700-604-0	01	1	1009-	●	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●	●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	1009-		●	●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	02	1	1009-	●

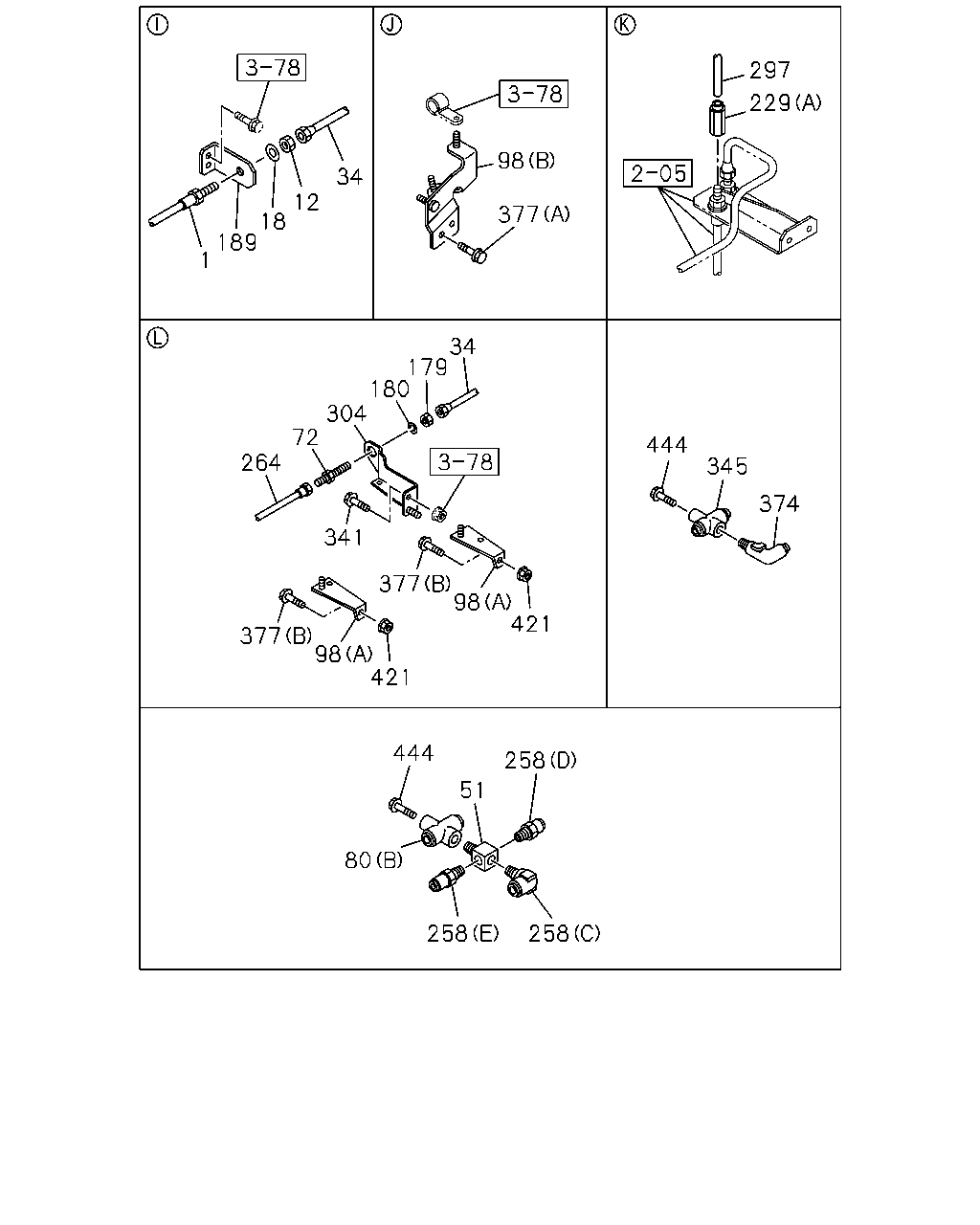

297 229 98 34 12 377 18 189 1 34 179 180 304 72 444 264 345 374 341 377 98 421 377 98 421 444 258 51 80 258 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,AIR TANK BATTERY 115E41L<8MA>	8-98100-332-0	01	1	1009-	●	●	●
1	HOSE; FLEX,AIR TANK BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	1-09363-940-0	01	1	1009-	●	●	●
12	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●	●
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●	●
34	PIPE; AIR L=1258	8-97618-580-0	01	1	1009-	●	●	●
51	UNION PT3/8 4WAY	1-09661-489-0	01	1	1009-			●
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	1009-	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-		●
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1009-	●		●
98	BRACKET; AIR PIPE (A)	8-97609-096-0	02	1	1009-	●	●	●
98	BRACKET; AIR PIPE (B)	8-97610-999-0	01	1	1009-	●	●	●
179	NUT; UNION M22	0-91111-522-0	01	1	1009-	●	●	●
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-	●	●	●
189	BRACKET; FLEX HOSE	1-47479-473-0	01	1	1009-	●	●	●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●	●	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1009-	●	●	●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-	●	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●	●	●
258	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-			●
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-			●
258	CONNECTOR; NYLON TUBE (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-			●
264	HOSE; FLEX L=1150	1-09363-791-0	01	1	1009-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●	●
304	BRACKET; UNION	8-97610-362-1	01	1	1009-	●	●	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●	●
345	UNION; AIR PIPE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1009-	●
374	CONNECTOR DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●	●
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●	●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	1009-		●	●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	02	1	1009-	●
