Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#7065) — 47 parça
◀

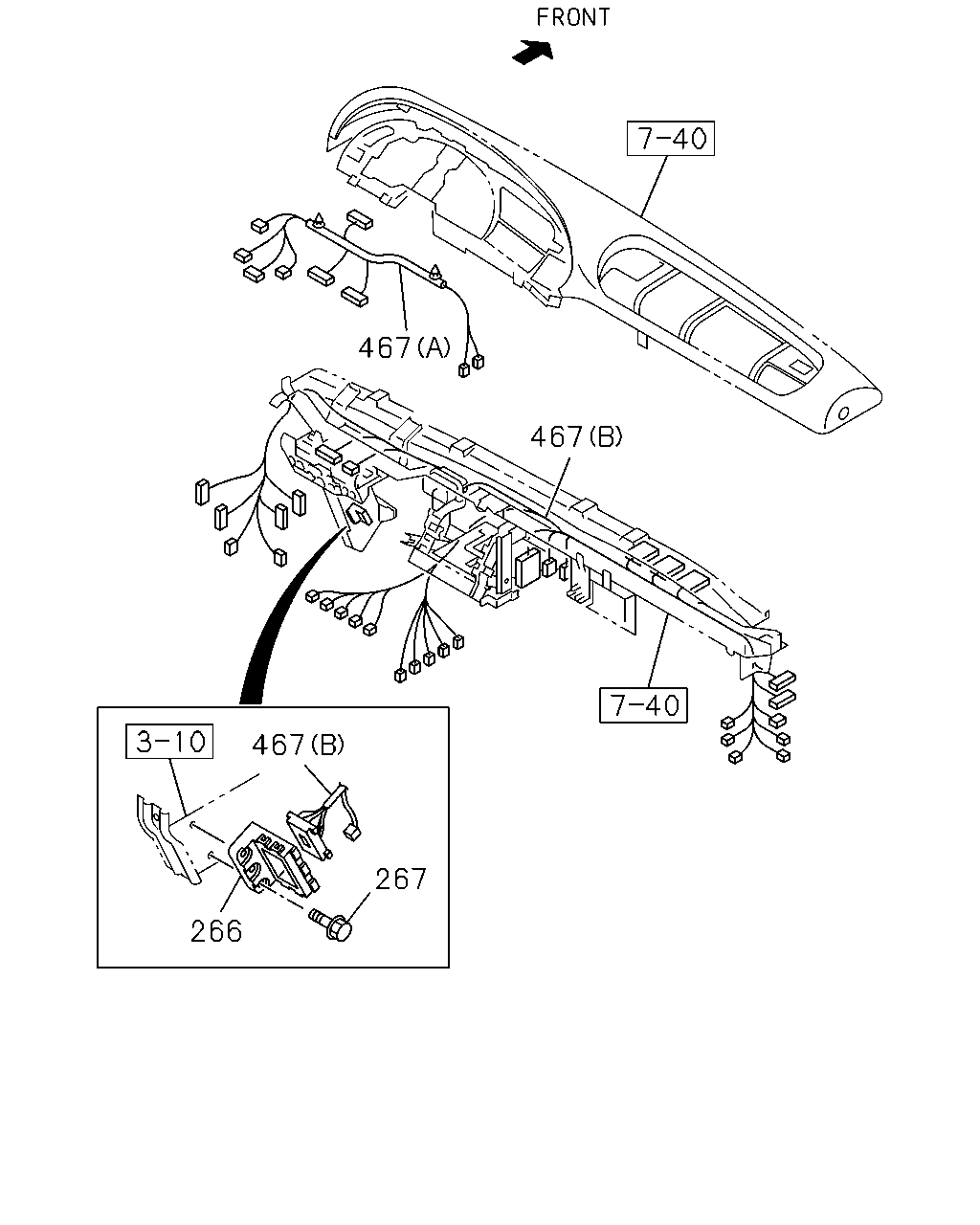

[810A] INST PANEL SIDE NO.2 (5 parça)

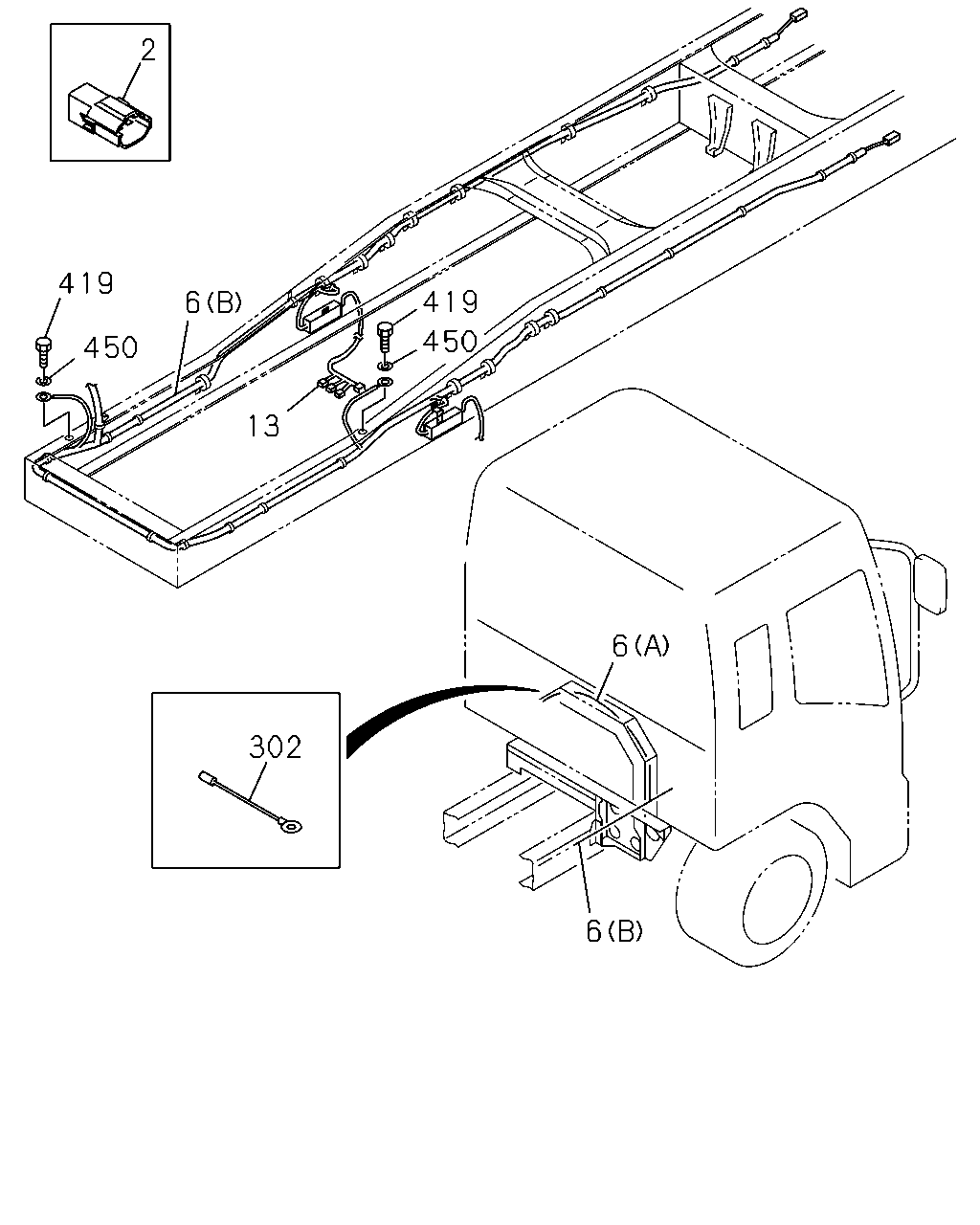

[810A] FRAME SIDE NO.2 (10 parça)

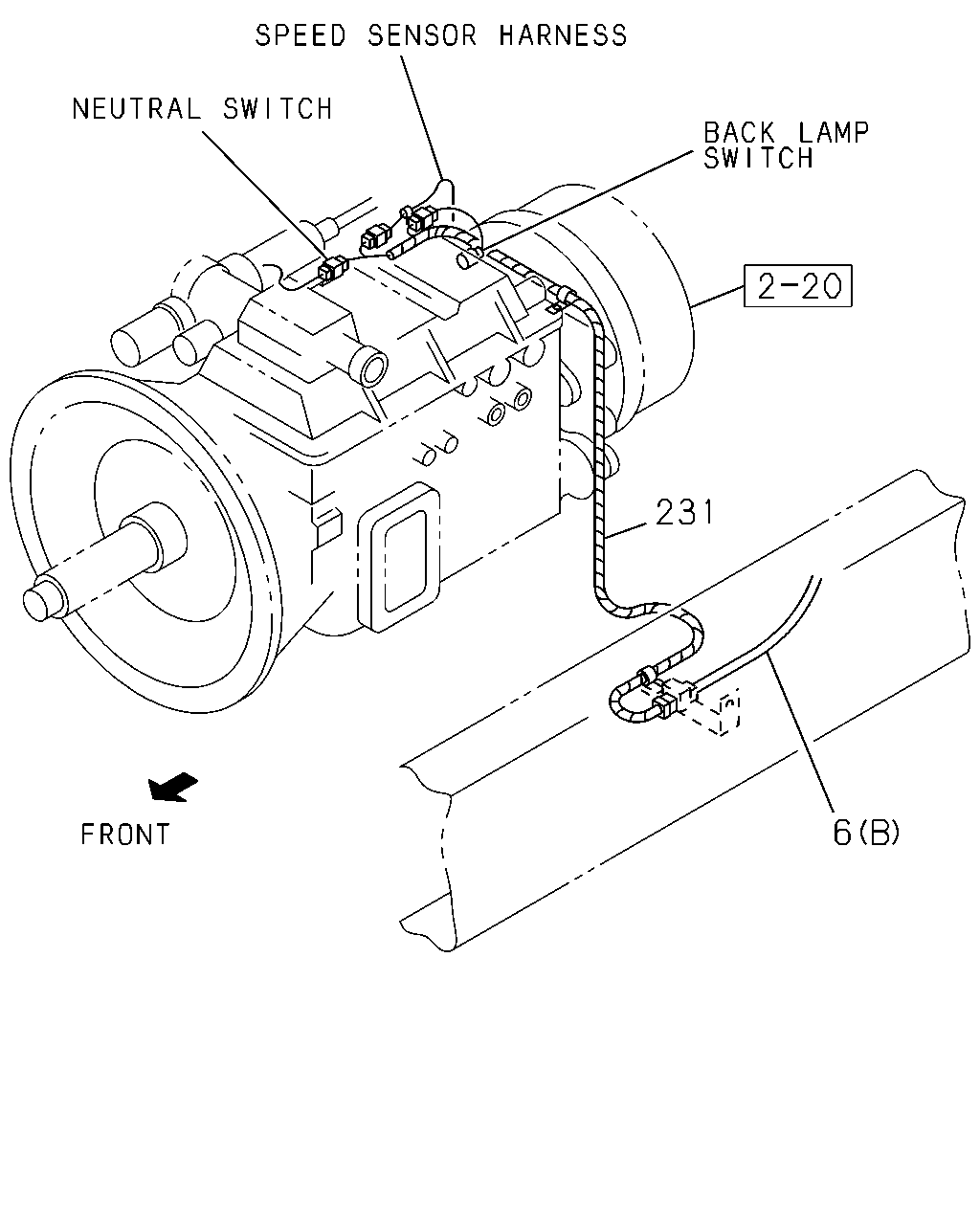

[810A] MISSION SIDE (3 parça)

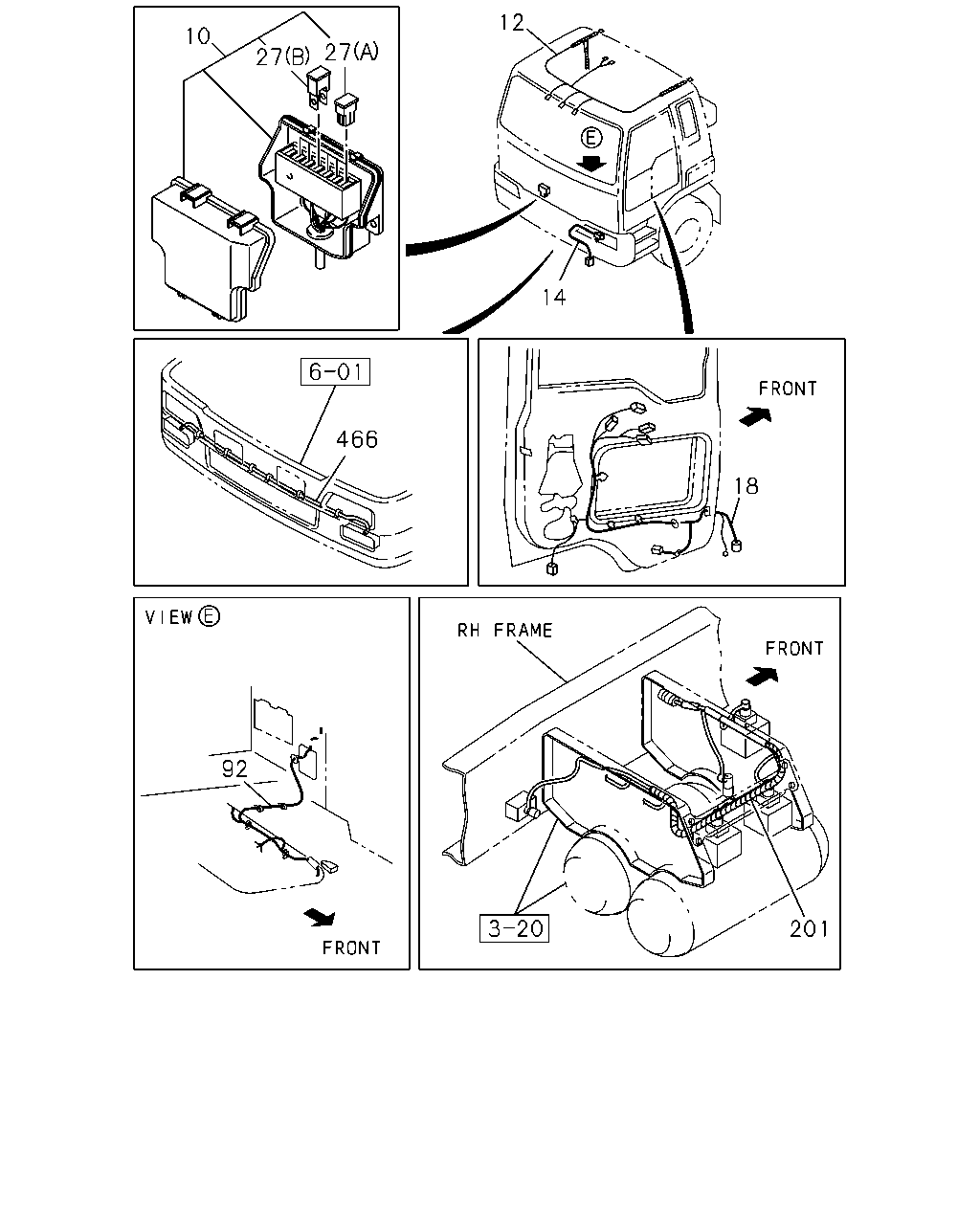

[810A] FRAME SIDE NO.1 (7 parça)

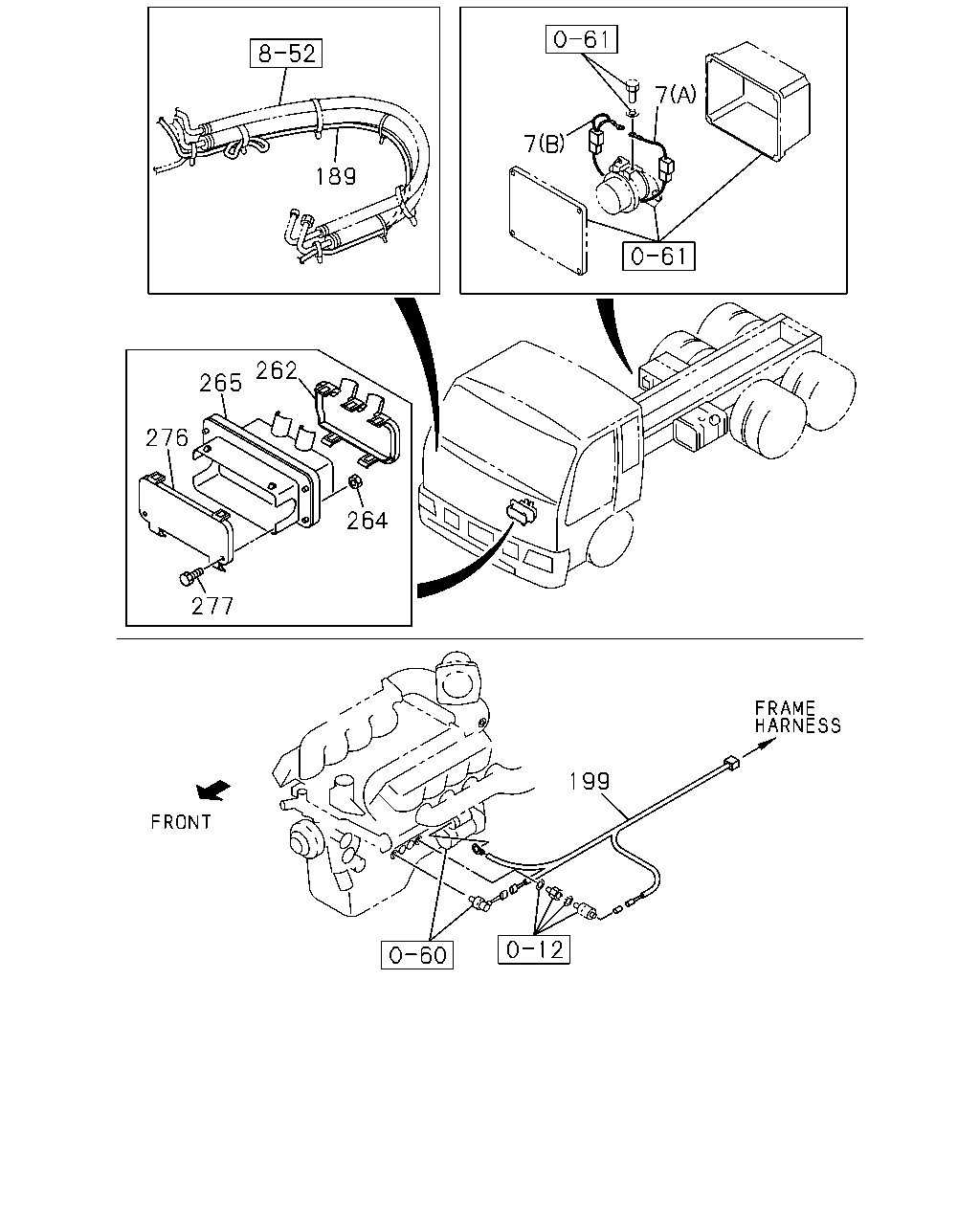

[810A] OTHER PARTS (9 parça)

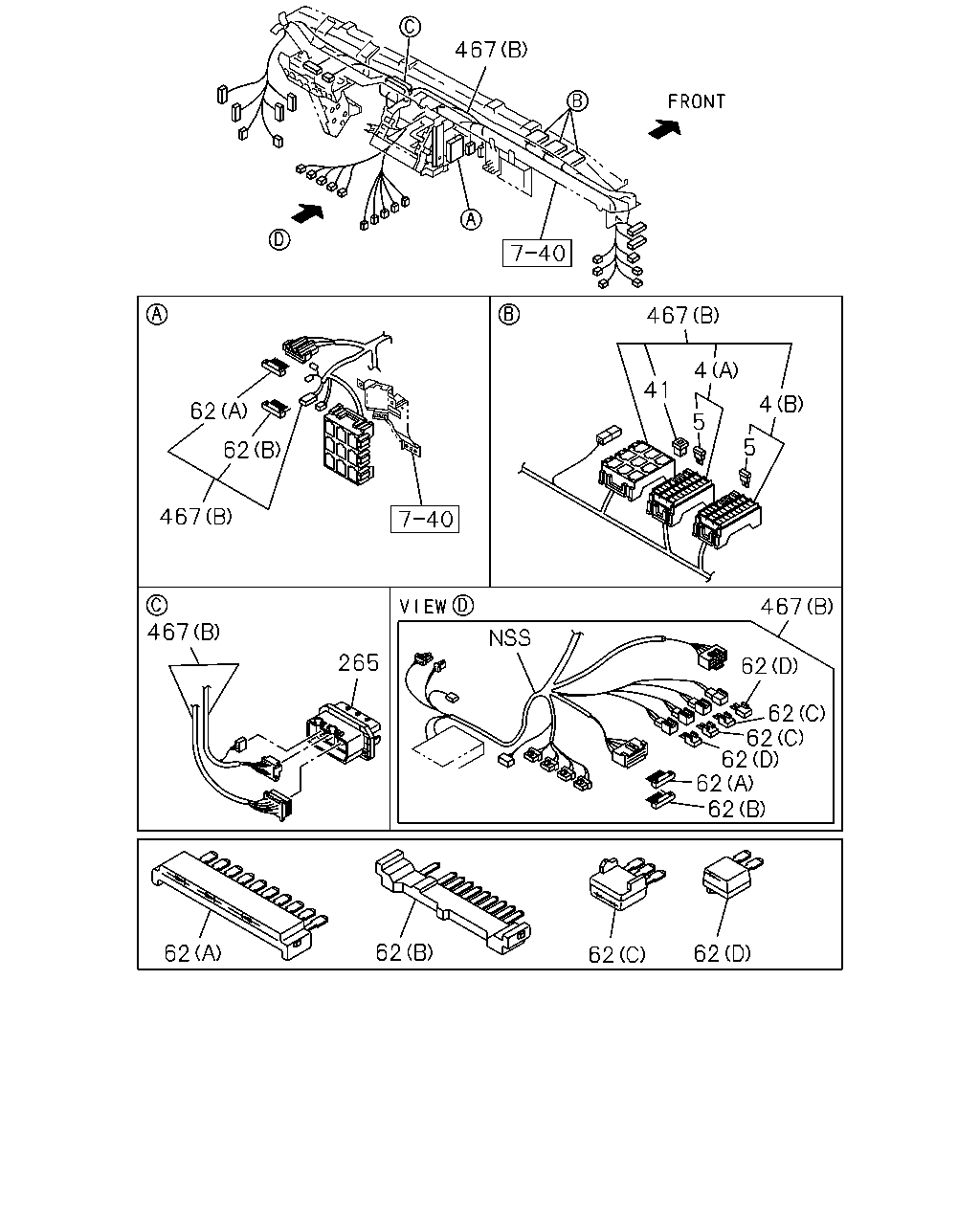

[810A] INST PANEL SIDE NO.1 (13 parça)
▶
467
467
467
267
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
266
BRACKET; CONN BOX
1-82699-580-0
01
1
9908-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
9908-
467
HARNESS; FACIA
(B)
1-82628-035-3
01
1
9908-0101
467
HARNESS; FACIA
(B)
1-82629-601-0
01
1
0102-
467
HARNESS; FACIA
(A)
1-82628-112-4
01
1
9908-
7
7
189
262
265
276
264
277
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
LINK ASM; FUSIBLE
(B)
1-82659-085-0
01
1
9908-
7
LINK ASM; FUSIBLE
(A) 60A BLUE
1-82659-119-0
01
1
9908-
189
HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) L=890
1-82636-373-0
01
1
9908-
199
HARNESS; STARTER
1-82640-733-1
01
1
9908-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
9908-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
9908-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
9908-
276
COVER; BOX,FRAME HARNESS
1-82699-892-1
01
1
9908-
277
BOLT; BOX ASM FIX
M6X35 W/LK&PL WASHER
0-50140-635-0
02
1
9908-
277
BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER
1-09030-027-0
02
1
9908-
231
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(A)
1-82671-895-0
01
1
9908-
6
HARNESS; FRAME
(B)
1-82672-720-1
01
1
9908-
231
HARNESS; TRANS
1-82671-661-1
01
1
9908-
2
419
419
6
450
450
13
6
302
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DIODE; CABLE HARNESS
GRAY 2P-1.3A
1-81514-015-0
01
1
9908-
6
HARNESS; FRAME
(A)
1-82671-895-0
01
1
9908-
6
HARNESS; FRAME
(B)
1-82672-720-1
01
1
9908-
13
HARNESS; ENG
1-82639-272-0
01
1
9908-
302
HARNESS; POWER CAB TILT
1-82639-273-0
01
1
9908-
419
BOLT; CAB EARTH
M8X16 W/LK&PL WASHER
8-97087-055-0
02
1
9908-
450
WASHER; PL,CAB EARTH
ID=8.4
1-09503-264-0
02
1
9908-
12
10
27
27
14
466
18
92
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOX; FUSE,HARNESS
1-82510-466-0
01
1
9908-
12
HARNESS; ROOF
1-82628-099-2
01
1
9908-
14
HARNESS; HEADLAMP
1-82639-226-2
02
1
9908-
18
HARNESS; DOOR
1-82628-581-0
02
1
9908-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
05
1
9908-
27
FUSE UNIT
(B) 80A BLACK
8-94468-671-0
01
1
9908-
92
HARNESS; FLOOR
1-82628-116-0
01
1
9908-
201
HARNESS; AIR TANK
1-82639-361-2
01
1
9908-
466
HARNESS; BUMPER
1-82639-227-3
01
1
9908-
467
467
4
41
4
62
5
5
62
467
467
467
265
62
62
62
62
62
62
62
62
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX17
1-82510-393-0
01
1
9908-
4
BOX ASM; FUSE,HARNESS
(B) 15AX20
1-82510-405-0
01
1
9908-
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
20
1
9908-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
17
1
9908-
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
9908-
62
DIODE; HARNESS
(B) BROWN 10P
1-82699-601-0
AR
1
9908-
62
DIODE; HARNESS
(A) BLACK 10P
1-82699-703-0
02
1
9908-
62
DIODE; HARNESS
(C) BLACK 3P-1.5A
8-94416-438-1
02
1
9908-
62
DIODE; HARNESS
(D) BLACK 2P-1.5A
8-94422-639-1
02
1
9908-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
9908-
467
HARNESS; FACIA
(B)
1-82628-035-3
01
1
9908-0101
467
HARNESS; FACIA
(B)
1-82629-601-0
01
1
0102-
467
HARNESS; FACIA
(A)
1-82628-112-4
01
1
9908-
