3-46 — AIR DRYER
(#70649) — 33 parça
Tümü
A - FGD5MX
B - FGR5MX
C - GGD5MX
◀
[346A] PISTON KIT AND THEMOSTAT KIT (5 parça)
[346A] FIXING (5 parça)
[346A] COMPONENT (22 parça)
[346A] REPAIR KIT (1 parça)
▶
3
68
70
65
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
PISTON KIT; AIR DRYER
1-85576-123-1
01
1
1009-
●
●
●
4
THERMOSTAT KIT; AIR DRYER
1-85576-057-1
01
1
1009-
●
●
●
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1009-
●
●
●
68
BODY; VALVE
1-48199-216-0
01
1
1009-
●
●
●
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1009-
●
●
●

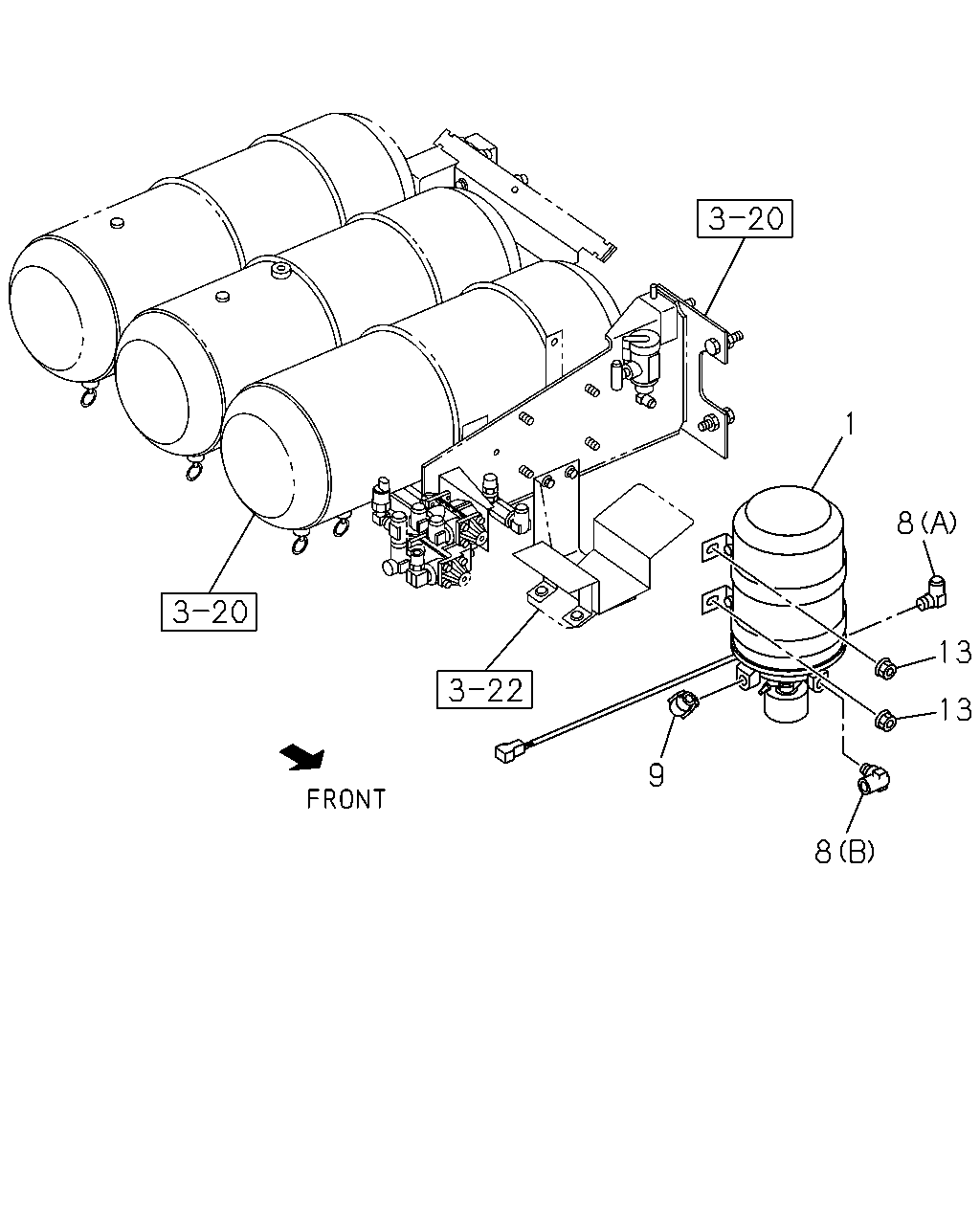

1
8
13
13
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DRYER; AIR
1-48190-347-1
01
1
1009-
●
●
●
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1009-
●
●
●
8
CONNECTOR; OUT,AIR DRYER
(B) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1009-
●
●
●
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1009-
●
●
●
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
1009-
●
●
●

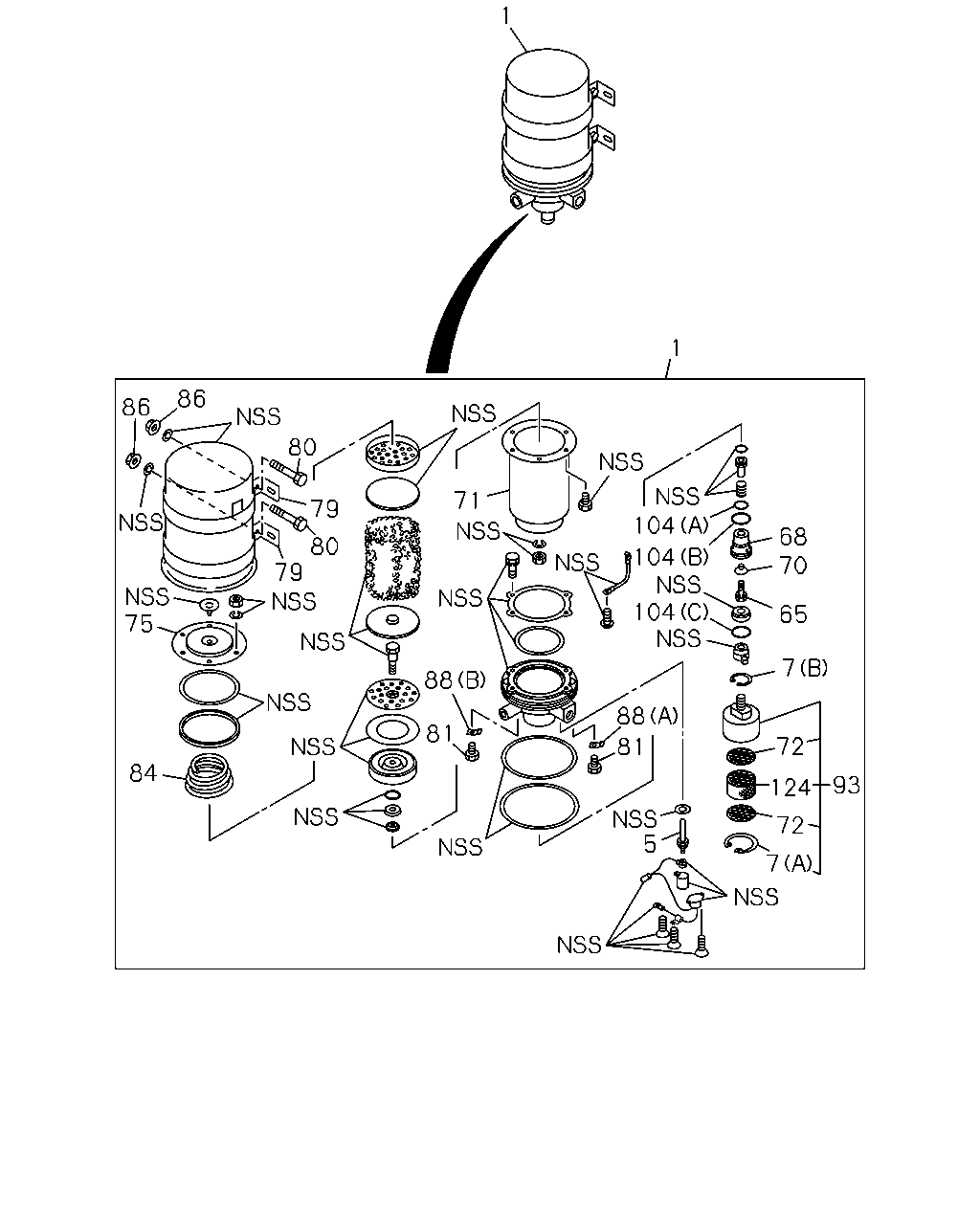

1
86
86
80
80
79
104
71
79
68
70
104
104
75
65
7
88
88
81
72
81
84
93
124
5
72
7
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DRYER; AIR
1-48190-347-1
01
1
1009-
●
●
●
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
1009-
●
●
●
7
RING; SNAP,AIR DRYER
(A)
1-47769-017-0
01
1
1009-
●
●
●
7
RING; SNAP,AIR DRYER
(B)
1-48199-154-0
01
1
1009-
●
●
●
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1009-
●
●
●
68
BODY; VALVE
1-48199-216-0
01
1
1009-
●
●
●
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1009-
●
●
●
71
CASE; INNER,AIR DRYER
1-48199-156-1
01
1
1009-
●
●
●
72
PLATE; FILTER,AIR DRYER
1-48199-464-0
02
1
1009-
●
●
●
75
COVER; CASE,AIR DRYER
1-48199-167-0
01
1
1009-
●
●
●
79
BRACKET; AIR DRYER
1-48199-189-0
02
1
1009-
●
●
●
80
BOLT; BRKT
1-48199-190-0
02
1
1009-
●
●
●
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
1009-
●
●
●
84
SPRING; AIR DRYER
1-48199-166-0
01
1
1009-
●
●
●
86
NUT; BRKT
1-48199-320-0
02
1
1009-
●
●
●
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
1009-
●
●
●
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
1009-
●
●
●
93
SILENCER; AIR DRYER
1-48199-462-0
01
1
1009-
●
●
●
104
GASKET
(A)
1-48199-108-0
01
1
1009-
●
●
●
104
GASKET
(B)
1-48199-109-0
01
1
1009-
●
●
●
104
GASKET
(C)
1-48199-153-0
01
1
1009-
●
●
●
124
FILTER; SILENCER
1-48199-465-0
01
1
1009-
●
●
●

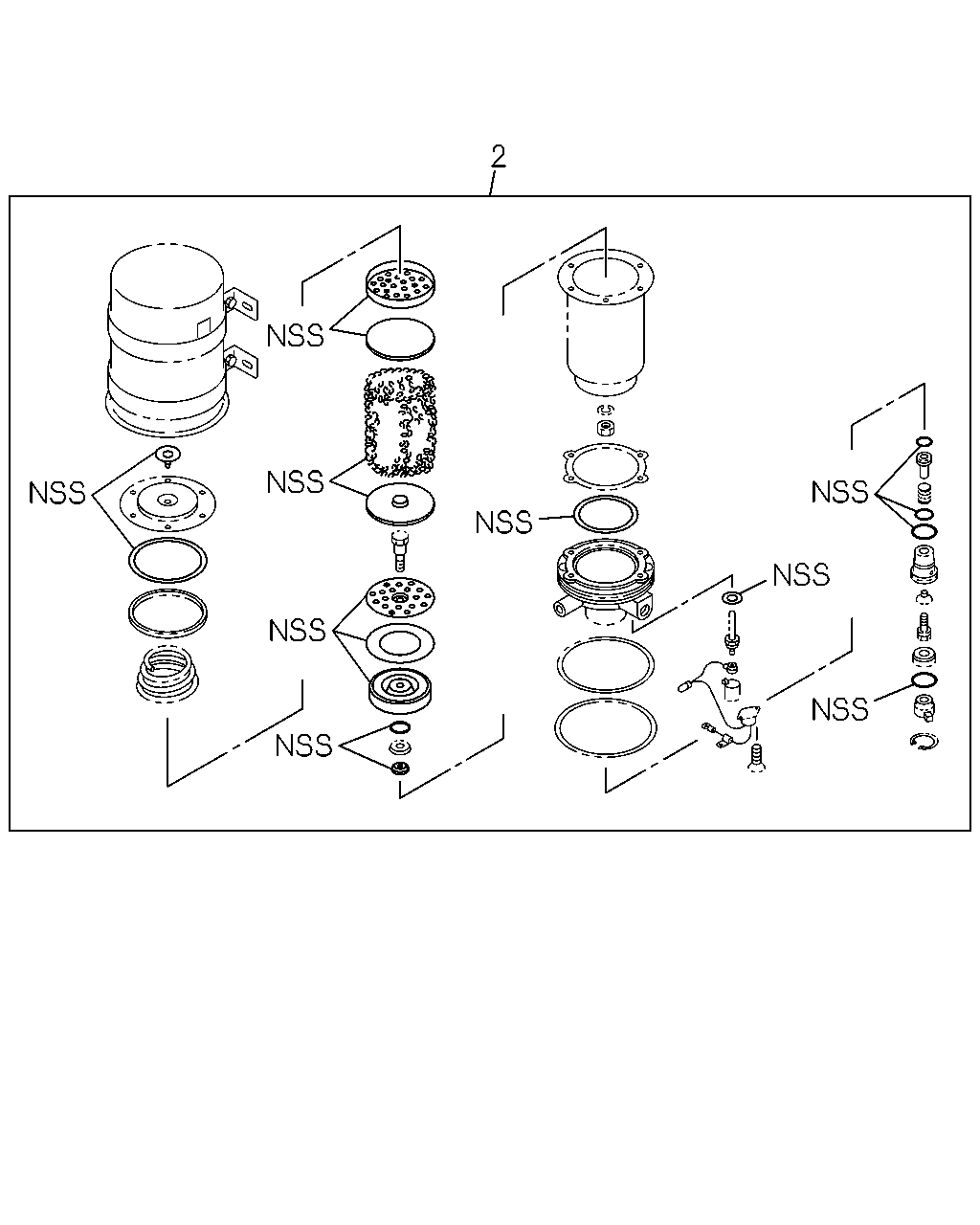

2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
REPAIR KIT; AIR DRYER
1-85576-226-0
01
1
1009-
●
●
●
