◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11314 - FXR/GXR(AUST)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#70648) — 16 parça

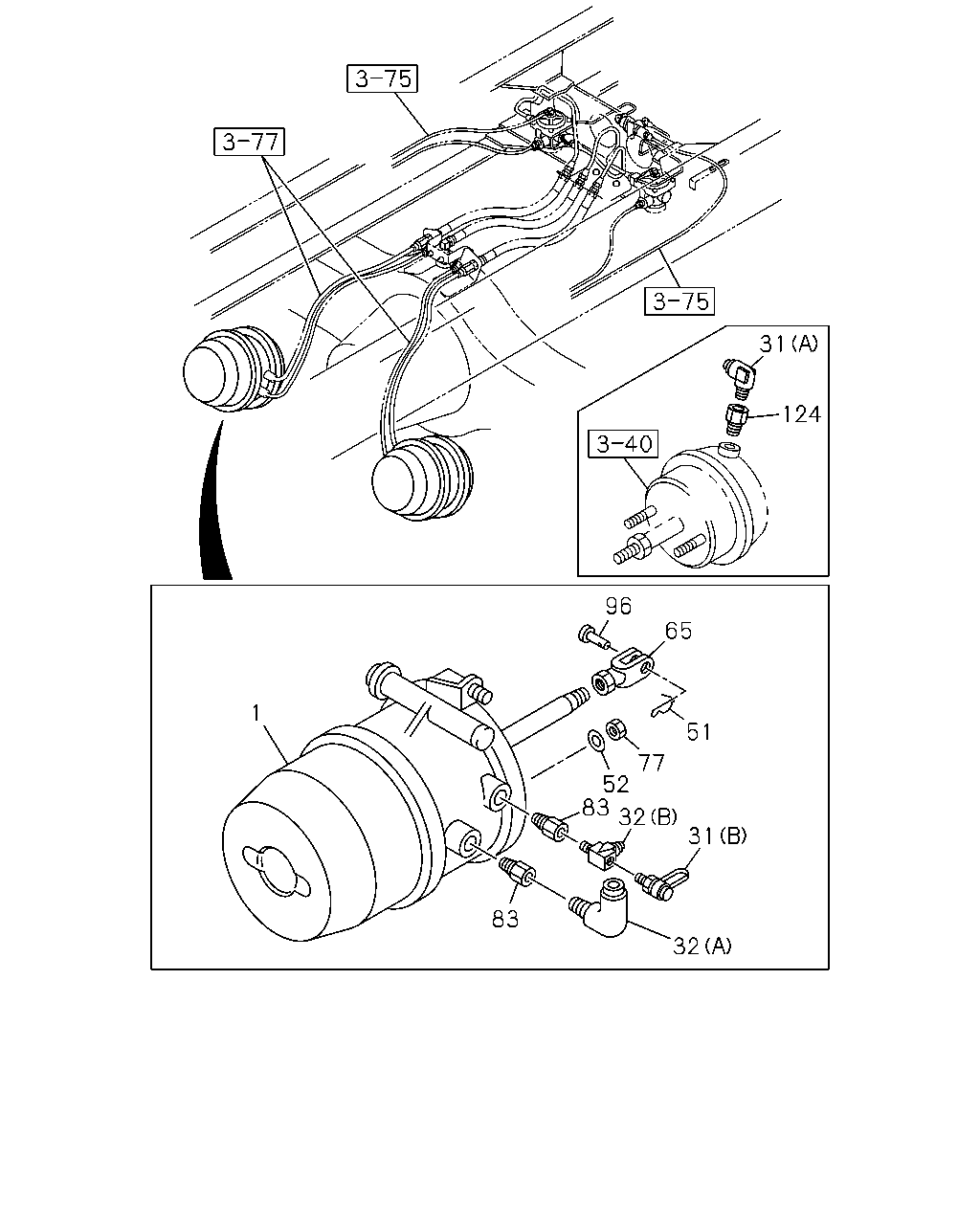

çizim 118353
31 124 96 65 1 51 77 52 83 32 31 83 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CHAMBER ASM; SPRING 1-48250-941-0 01 1 1009-1211 ● ● ●
1 CHAMBER ASM; SPRING 1-48250-959-0 01 1 1212- ● ● ●
1 CHAMBER ASM; SPRING 1-48250-942-0 01 1 1009-1211 ● ● ●
1 CHAMBER ASM; SPRING 1-48250-960-0 01 1 1212- ● ● ●
31 CONNECTOR
(A) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 1009- ● ● ●
31 CONNECTOR
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1009- ● ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 1009- ● ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009- ● ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 1009- ● ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 1009- ● ● ●
52 WASHER; PL 1-41519-038-0 04 1 1009- ● ● ●
65 JOINT; JAW 1-48259-321-0 02 1 1009- ● ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 1009- ● ● ●
83 ADAPTER; SPR CHAMBER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 1009- ● ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 1009- ● ● ●
124 ADAPTER
R1/4 & PT3/8 		8-98113-889-0 01 1 1009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
