Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#70643) — 516 parça

126 317 109 101 126 176 405 126 405 176 105 100 105 100 100 105 105 100 176 405 405 176 126 101 109 126 317 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

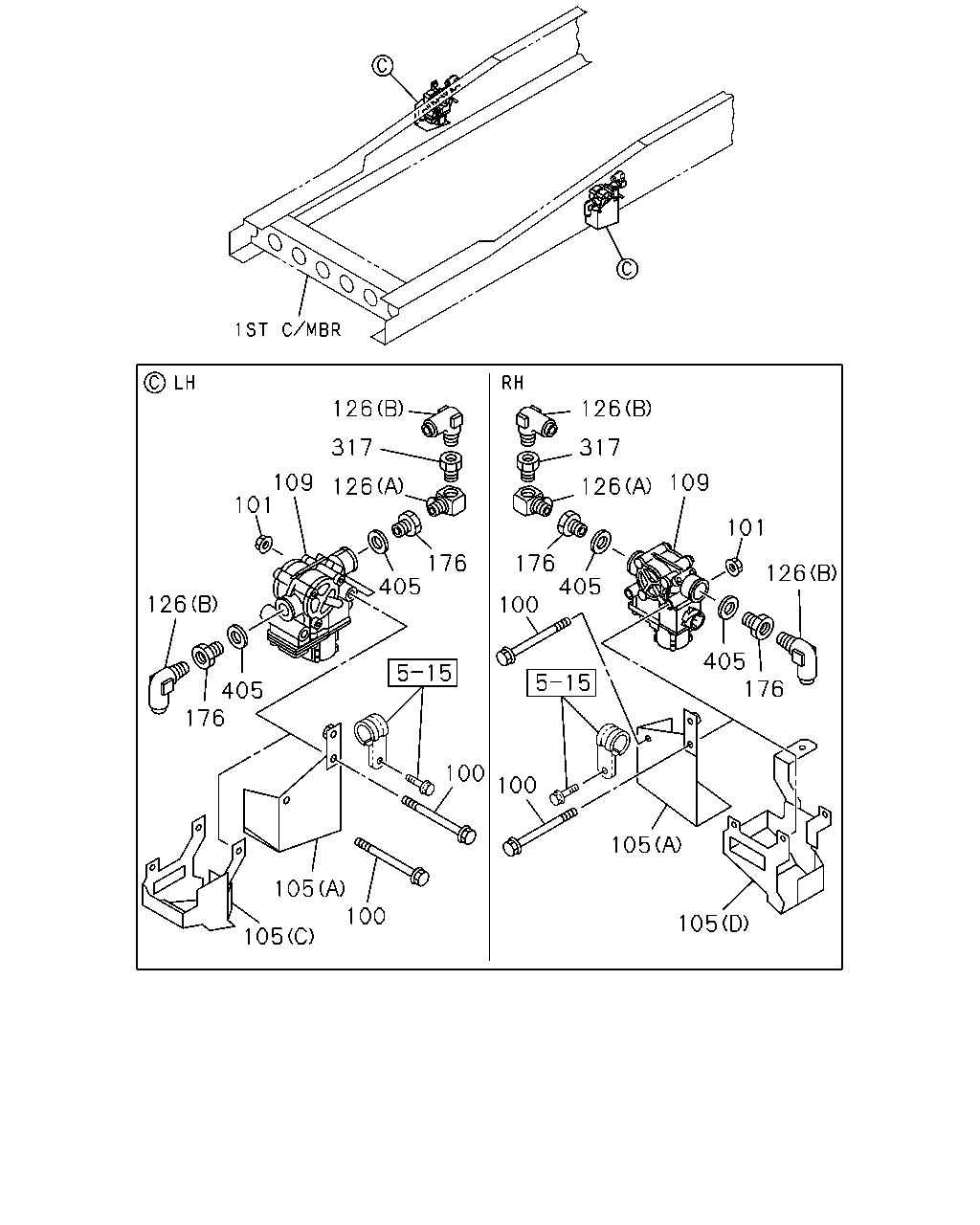

100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1009-	●	●	●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	1009-1504	●		●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	1009-1504	●		●
100	BOLT; MODULATOR M8X85	1-09044-074-0	02	1	1505-	●		●
100	BOLT; MODULATOR M8X85	1-09044-074-0	02	1	1505-	●		●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	1009-		●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1009-	●		●
105	COVER; MODULATOR (A)	8-98061-815-0	01	1	1009-1504	●	●	●
105	COVER; MODULATOR (C)	8-98300-152-0	01	1	1505-	●	●	●
105	COVER; MODULATOR (A)	8-98164-196-0	01	1	1009-1504	●	●	●
105	COVER; MODULATOR (D)	8-98300-155-0	01	1	1505-	●	●	●
105	COVER; MODULATOR (B)	1-47479-792-0	01	1	1009-1504		●
105	COVER; MODULATOR (B)	8-98272-749-0	01	1	1505-		●
109	MODULATOR; FRT	1-48240-115-0	02	1	1009-1504	●	●	●
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-	●	●	●
126	CONNECTOR; ELBOW (F) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●	●
126	CONNECTOR; ELBOW (G) PT3/8 & PT3/8 ELBOW	1-09660-778-1	01	1	1009-			●
126	CONNECTOR; ELBOW (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-			●
126	CONNECTOR; ELBOW (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-			●
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-	●	●	●
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	01	1	1009-	●		●
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	01	1	1009-			●
317	CONNECTOR; MODULATOR PT3/8	1-09664-210-0	01	1	1009-	●	●	●
405	GASKET ID=22.5	9-09571-422-0	04	1	1009-	●	●	●
405	GASKET ID=22.5	9-09571-422-0	01	1	1009-	●		●
405	GASKET ID=22.5	9-09571-422-0	01	1	1009-			●

39 126 126 126 39 26 372 28 104 103 46 46 352 104 26 7 6 104 104 28 103 126 126 39 28 28 338 39 26 372 46 46 26 7 6 28 104 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-1109			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1204-			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1109			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1204-			●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	04	1	1204-			●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1009-1109	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1009-1109	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1110-1203	●	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1110-1203	●		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1204-	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1204-	●
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-	●		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	04	1	1009-1109			●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (C)	8-97621-120-1	01	1	1009-		●
28	BRACKET; AIR TANK (G)	8-98100-973-1	02	1	1009-			●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-	●	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1109	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1109			●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1204-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1204-			●
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1009-	●	●
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1009-	●	●	●
103	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-	●		●
103	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-		●
103	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	1009-			●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-		●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-	●		●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	1009-			●
126	CONNECTOR; ELBOW (F) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●	●
126	CONNECTOR; ELBOW (G) PT3/8 & PT3/8 ELBOW	1-09660-778-1	01	1	1009-			●
126	CONNECTOR; ELBOW (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-			●
126	CONNECTOR; ELBOW (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-			●
338	CONNECTOR; 3WAY VLV DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1009-			●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-	●
352	CONNECTOR; STRAIGHT (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●	●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-	●		●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-			●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	1009-		●

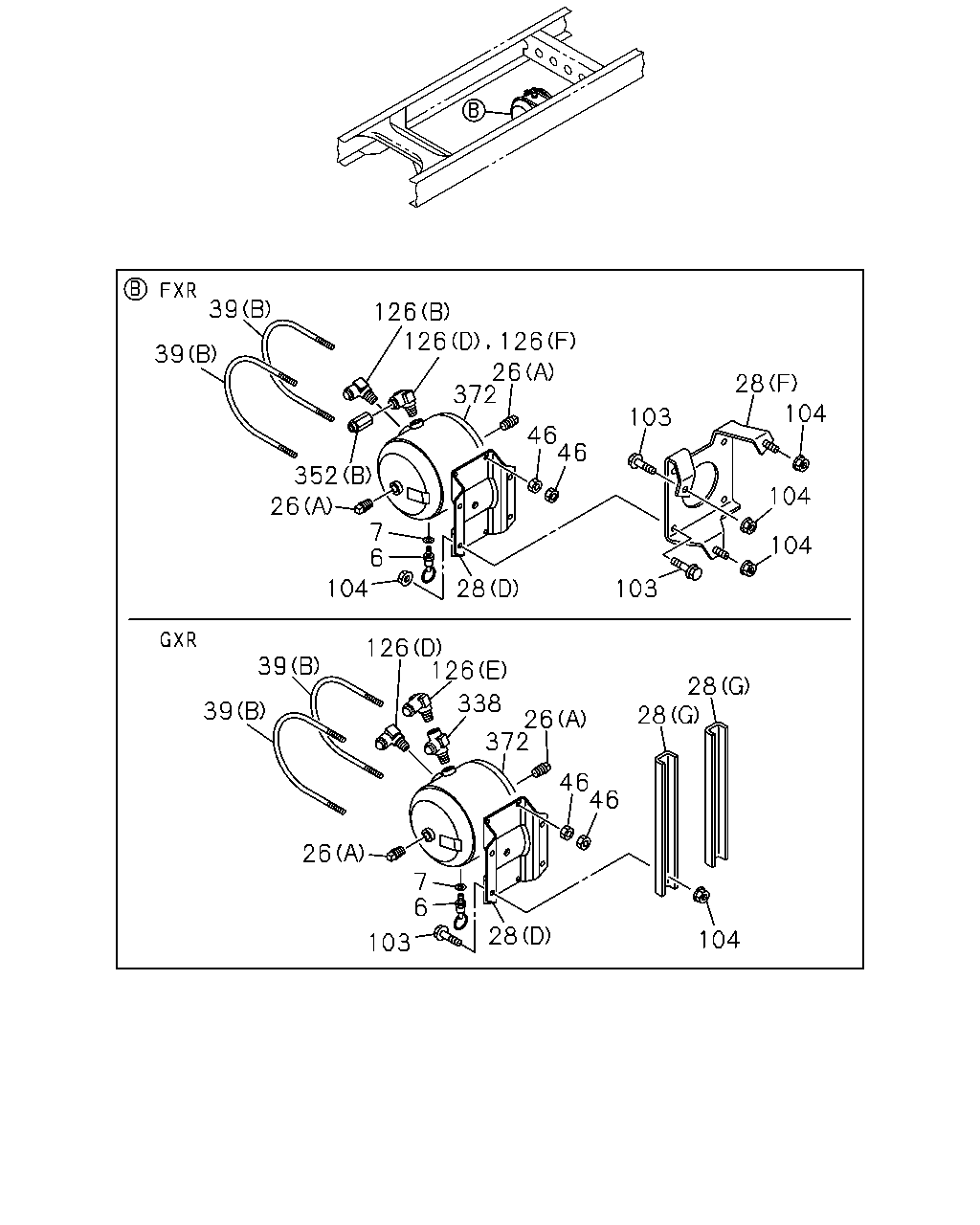

372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	1009-	●	●	●

28 184 51 51 39 166 5 126 39 5 57 192 28 10 10 10 5 119 51 36 49 11 5 36 39 166 126 10 10 5 10 10 126 166 10 8 126 1 7 6 5 104 278 184 28 8 126 39 10 39 10 1 7 6 10 5 1 39 8 3 7 6 57 192 11 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

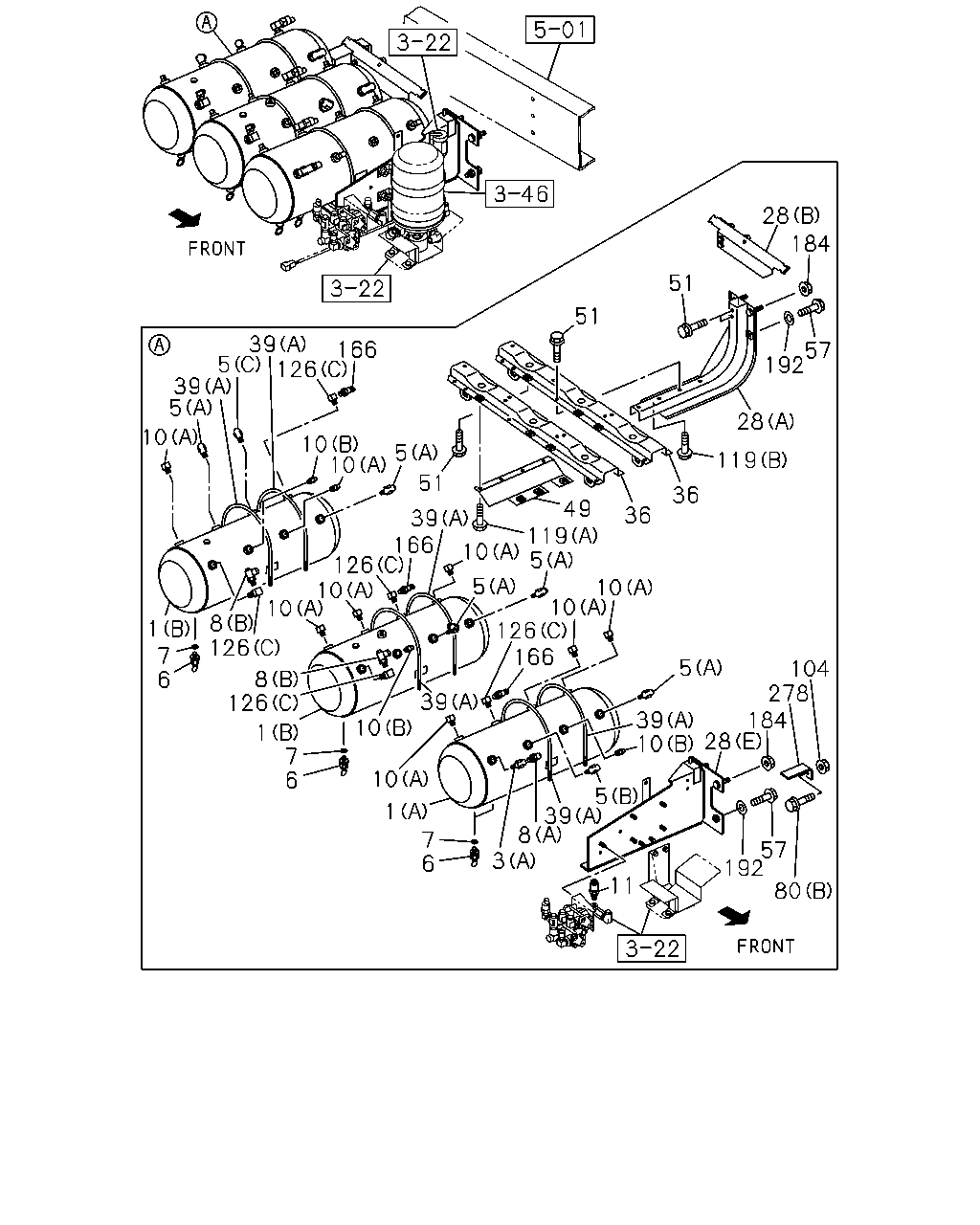

1	TANK ASM; AIR (A)	8-97617-854-0	01	1	1009-1106	●	●	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-	●	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106	●	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106	●	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-	●	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-	●	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1009-	●	●	●
3	VALVE; CHECK,AIR TANK (B) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1009-			●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-1109			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1204-			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1109			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1204-			●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-	●	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-	●	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1009-	●	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-	●	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-	●	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-	●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (C)	8-97621-120-1	01	1	1009-		●
28	BRACKET; AIR TANK (G)	8-98100-973-1	02	1	1009-			●
36	STAY; MAIN TANK	8-97618-091-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-	●	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-	●	●	●
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1009-	●	●	●
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1009-	●	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1009-	●	●	●
80	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●	●
80	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-		●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-		●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-	●		●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	1009-			●
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●	●
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-	●	●	●
126	CONNECTOR; ELBOW (F) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●	●
126	CONNECTOR; ELBOW (G) PT3/8 & PT3/8 ELBOW	1-09660-778-1	01	1	1009-			●
126	CONNECTOR; ELBOW (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-			●
126	CONNECTOR; ELBOW (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-	●	●	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1009-	●	●	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1009-	●	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1009-	●	●	●

241 241 158

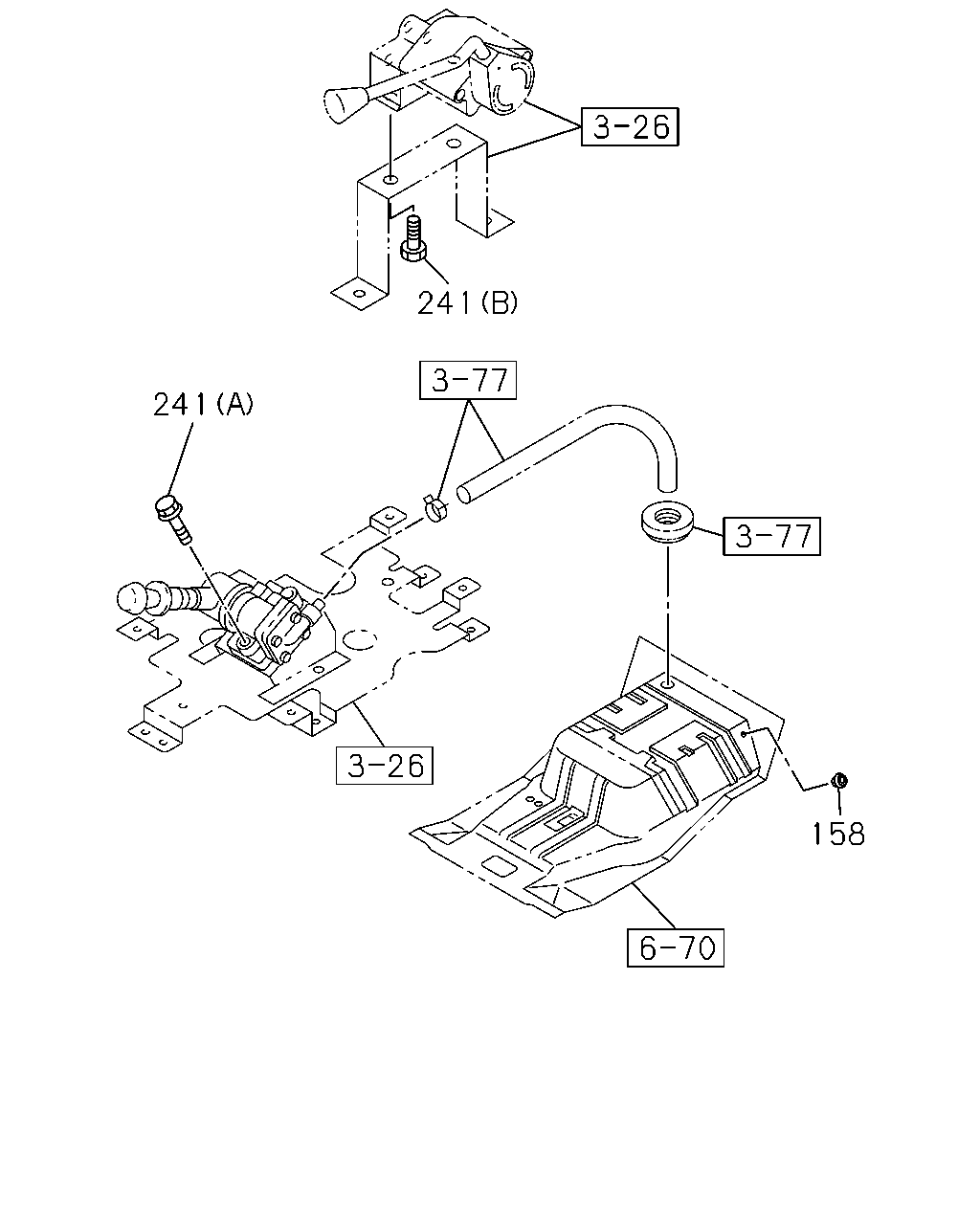

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1009-	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1009-	●	●	●
241	BOLT; SET,CONT VLV (B) M10X20 FLANGE	0-28051-020-0	02	1	1009-			●

26 27 27 27 39 7 6 39 126 8 2 30 131 80 28 46 46 131 30 26 26 167 46 46 126 103 100 104 100 103 102 352 102 104 107 352 107 105 101

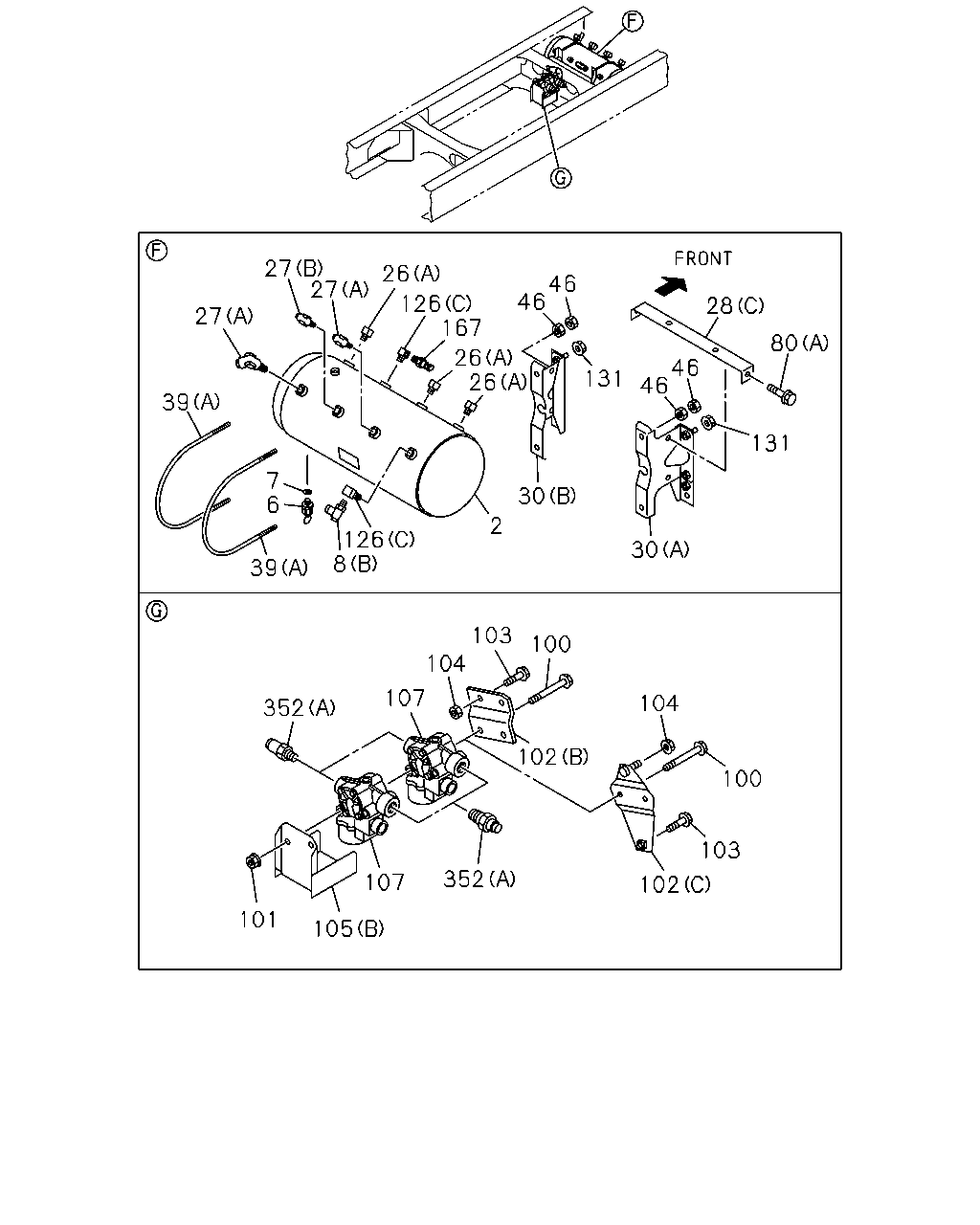

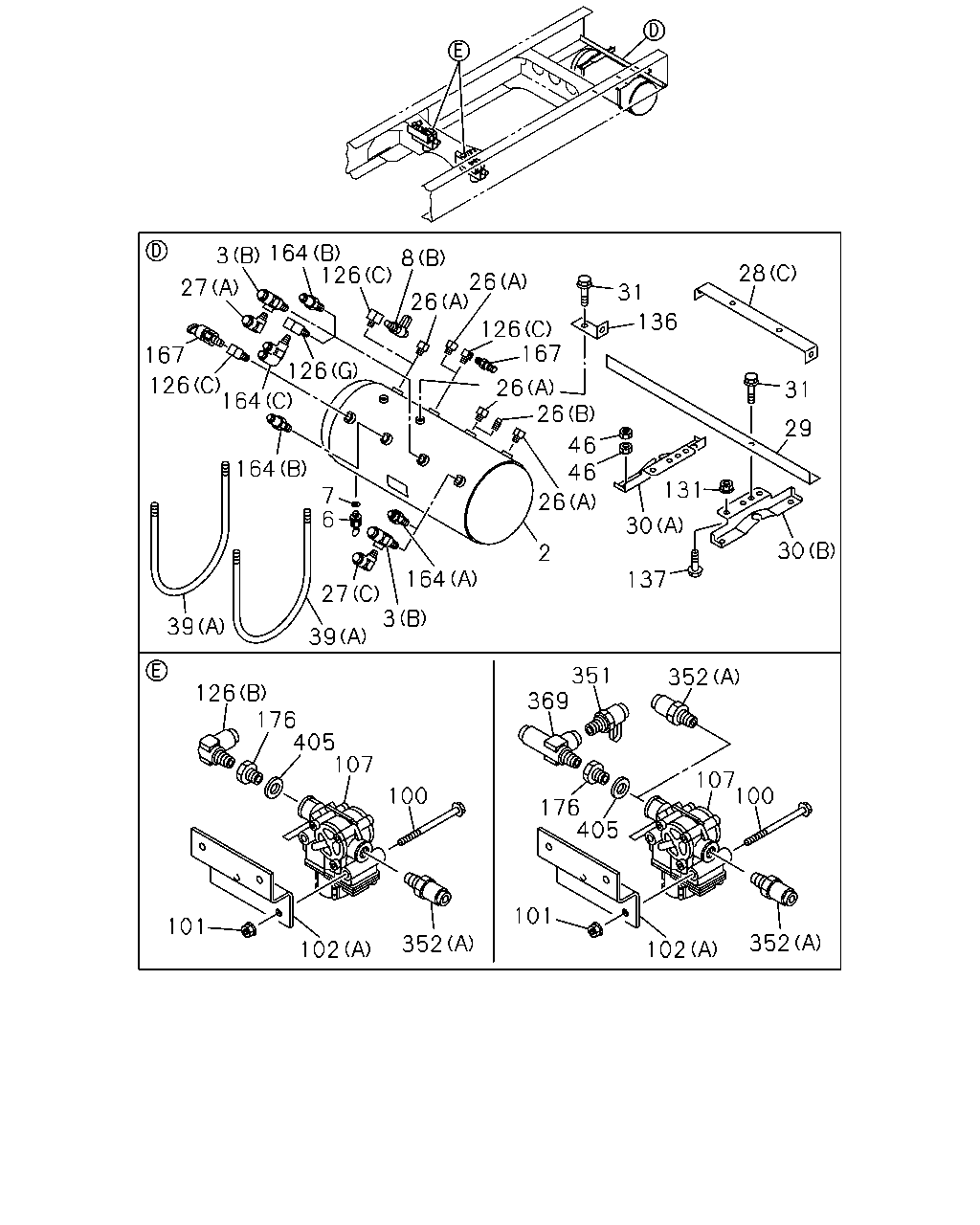

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	TANK; AIR	8-97617-855-1	01	1	1009-1106	●	●	●
2	TANK; AIR	8-98187-713-0	01	1	1107-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-1109			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1204-			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1109			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1204-			●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	04	1	1204-			●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1009-1109	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1009-1109	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1110-1203	●	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1110-1203	●		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1204-	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1204-	●
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-	●		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	04	1	1009-1109			●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-		●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
27	UNION; ELBOW,AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-			●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (C)	8-97621-120-1	01	1	1009-		●
28	BRACKET; AIR TANK (G)	8-98100-973-1	02	1	1009-			●
30	BRACKET; AIR TANK,SUB (A)	8-97618-390-1	01	1	1009-	●	●	●
30	BRACKET; AIR TANK,SUB (B)	8-97618-391-1	01	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-	●	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1109	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1109			●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1204-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1204-			●
80	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●	●
80	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-		●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1009-	●	●	●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	1009-1504	●		●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	1009-1504	●		●
100	BOLT; MODULATOR M8X85	1-09044-074-0	02	1	1505-	●		●
100	BOLT; MODULATOR M8X85	1-09044-074-0	02	1	1505-	●		●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	1009-		●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1009-	●		●
102	BRACKET; MODULATOR (A)	1-47471-180-0	01	1	1009-1504	●		●
102	BRACKET; MODULATOR (A)	1-47471-180-0	01	1	1009-1504	●		●
102	BRACKET; MODULATOR (A)	8-98300-018-0	01	1	1505-	●		●
102	BRACKET; MODULATOR (A)	8-98300-018-0	01	1	1505-	●		●
102	BRACKET; MODULATOR (B)	8-98059-827-0	01	1	1009-1504		●
102	BRACKET; MODULATOR (C)	8-98300-524-0	01	1	1505-		●
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1009-	●	●
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1009-	●	●	●
103	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-	●		●
103	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-		●
103	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	1009-			●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-		●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-	●		●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	1009-			●
105	COVER; MODULATOR (A)	8-98061-815-0	01	1	1009-1504	●	●	●
105	COVER; MODULATOR (C)	8-98300-152-0	01	1	1505-	●	●	●
105	COVER; MODULATOR (A)	8-98164-196-0	01	1	1009-1504	●	●	●
105	COVER; MODULATOR (D)	8-98300-155-0	01	1	1505-	●	●	●
105	COVER; MODULATOR (B)	1-47479-792-0	01	1	1009-1504		●
105	COVER; MODULATOR (B)	8-98272-749-0	01	1	1505-		●
107	MODULATOR; RR	1-48240-115-0	01	1	1009-1504	●		●
107	MODULATOR; RR	1-48240-115-0	01	1	1009-1504	●		●
107	MODULATOR; RR	8-98215-454-0	01	1	1505-	●		●
107	MODULATOR; RR	8-98215-454-0	01	1	1505-	●		●
107	MODULATOR; RR	1-48240-115-0	02	1	1009-1504		●
107	MODULATOR; RR	8-98215-454-0	02	1	1505-		●
126	CONNECTOR; ELBOW (F) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●	●
126	CONNECTOR; ELBOW (G) PT3/8 & PT3/8 ELBOW	1-09660-778-1	01	1	1009-			●
126	CONNECTOR; ELBOW (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-			●
126	CONNECTOR; ELBOW (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-			●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	03	1	1009-	●		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	1009-		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1009-	●	●	●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-	●
352	CONNECTOR; STRAIGHT (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●	●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-	●		●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-			●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	1009-		●

126 176 405 107 100 352 102 101 369 176 405 101 102 352 100 107 352 351 2 26 46 46 26 26 167 126 26 26 8 126 164 3 27 167 126 164 164 6 27 39 39 164 7 31 28 136 31 29 131 30 137 30 3 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	TANK; AIR	8-97617-855-1	01	1	1009-1106	●	●	●
2	TANK; AIR	8-98187-713-0	01	1	1107-	●	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1009-	●	●	●
3	VALVE; CHECK,AIR TANK (B) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1009-			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-1109	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-1109			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1203	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1204-	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1204-			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1109	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1109			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1203	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1204-	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1204-			●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	04	1	1204-			●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1009-1109	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1009-1109	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1110-1203	●	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1110-1203	●		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1204-	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	02	1	1204-	●
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-	●		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	04	1	1009-1109			●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-		●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
27	UNION; ELBOW,AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-			●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-	●	●	●
28	BRACKET; AIR TANK (C)	8-97621-120-1	01	1	1009-		●
28	BRACKET; AIR TANK (G)	8-98100-973-1	02	1	1009-			●
29	BRACKET; AIR TANK	8-97620-998-0	01	1	1009-	●		●
30	BRACKET; AIR TANK,SUB (A)	8-97618-390-1	01	1	1009-	●	●	●
30	BRACKET; AIR TANK,SUB (B)	8-97618-391-1	01	1	1009-	●	●	●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-	●	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-	●	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1109	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1109	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1109			●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1110-1203	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1204-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1204-			●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1009-	●	●	●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	1009-1504	●		●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	1009-1504	●		●
100	BOLT; MODULATOR M8X85	1-09044-074-0	02	1	1505-	●		●
100	BOLT; MODULATOR M8X85	1-09044-074-0	02	1	1505-	●		●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	1009-		●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1009-	●		●
102	BRACKET; MODULATOR (A)	1-47471-180-0	01	1	1009-1504	●		●
102	BRACKET; MODULATOR (A)	1-47471-180-0	01	1	1009-1504	●		●
102	BRACKET; MODULATOR (A)	8-98300-018-0	01	1	1505-	●		●
102	BRACKET; MODULATOR (A)	8-98300-018-0	01	1	1505-	●		●
102	BRACKET; MODULATOR (B)	8-98059-827-0	01	1	1009-1504		●
102	BRACKET; MODULATOR (C)	8-98300-524-0	01	1	1505-		●
107	MODULATOR; RR	1-48240-115-0	01	1	1009-1504	●		●
107	MODULATOR; RR	1-48240-115-0	01	1	1009-1504	●		●
107	MODULATOR; RR	8-98215-454-0	01	1	1505-	●		●
107	MODULATOR; RR	8-98215-454-0	01	1	1505-	●		●
107	MODULATOR; RR	1-48240-115-0	02	1	1009-1504		●
107	MODULATOR; RR	8-98215-454-0	02	1	1505-		●
126	CONNECTOR; ELBOW (F) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●	●
126	CONNECTOR; ELBOW (G) PT3/8 & PT3/8 ELBOW	1-09660-778-1	01	1	1009-			●
126	CONNECTOR; ELBOW (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-			●
126	CONNECTOR; ELBOW (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-			●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	03	1	1009-	●		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	1009-		●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1009-	●	●	●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	1009-	●		●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1009-		●
164	CONNECTOR; SUB AIR TANK (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-	●
164	CONNECTOR; SUB AIR TANK (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-	●
164	CONNECTOR; SUB AIR TANK (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-			●
164	CONNECTOR; SUB AIR TANK (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-			●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1009-	●	●	●
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-	●	●	●
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	01	1	1009-	●		●
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	01	1	1009-			●
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-			●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-	●
352	CONNECTOR; STRAIGHT (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●	●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-	●		●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-			●
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	1009-		●
369	CONNECTOR; 3WAY DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-			●
405	GASKET ID=22.5	9-09571-422-0	04	1	1009-	●	●	●
405	GASKET ID=22.5	9-09571-422-0	01	1	1009-	●		●
405	GASKET ID=22.5	9-09571-422-0	01	1	1009-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
