3-01 — FRONT WHEEL BRAKE (#70640) — 31 parça

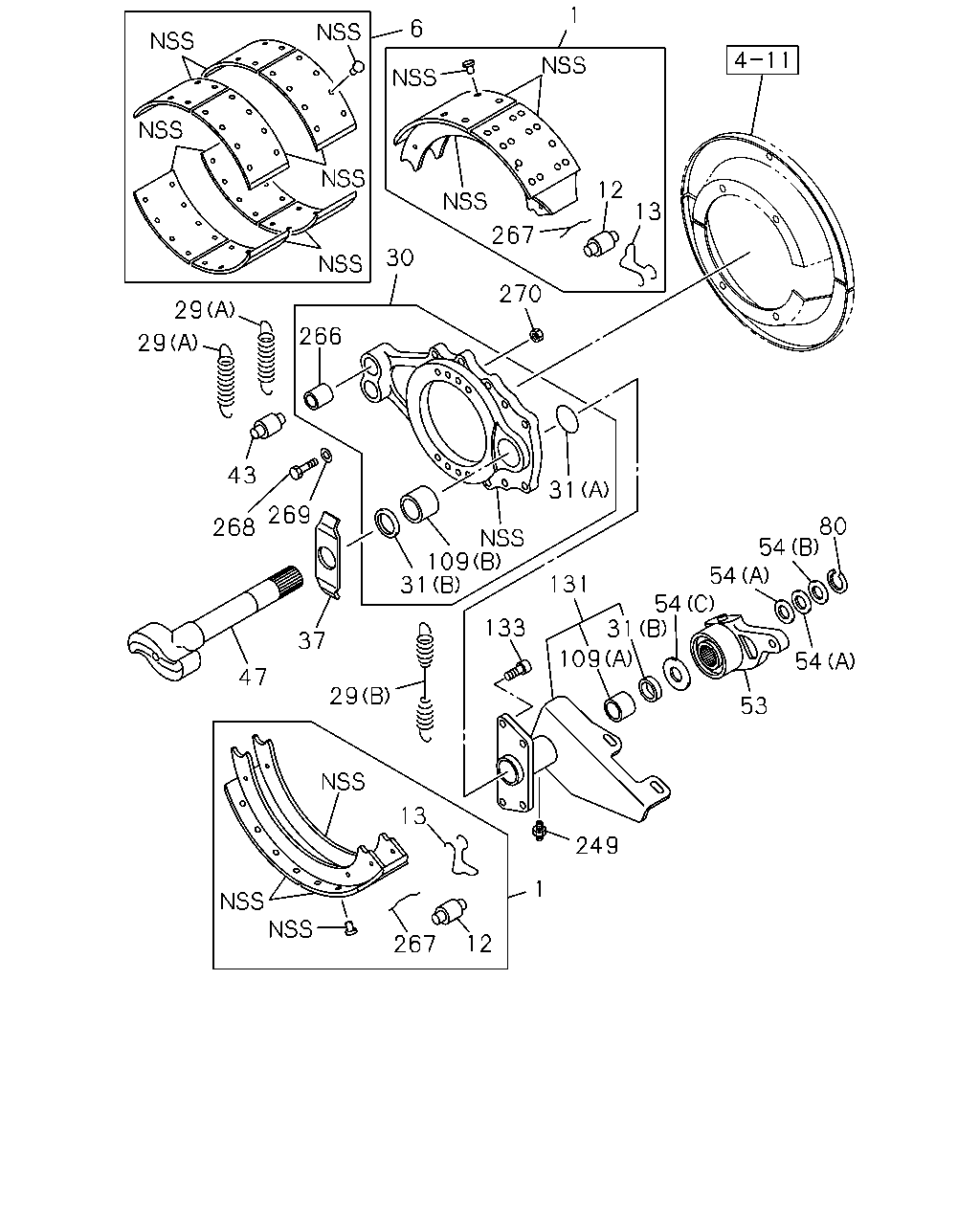

çizim 189727
1 6 12 13 267 30 270 29 266 29 43 31 269 80 54 268 109 31 131 54 54 31 133 37 109 54 47 29 53 13 249 1 12 267
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,FRT 1-47120-832-0 04 1 1009- ● ● ●
6 LINING KIT; FRT BRK 1-87050-158-0 01 1 1009-1203 ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 02 1 1009- ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 1009- ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 1009- ● ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 1009- ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-580-0 01 1 1009- ● ● ●
30 BRACKET; ANCHOR,FRT 1-47137-581-0 01 1 1009- ● ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 1009- ● ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 02 1 1009- ● ● ●
37 WASHER; ADJ CAM 1-47149-087-0 02 1 1009- ● ● ●
43 PIN; ANCHOR 1-47131-040-0 04 1 1009- ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-140-0 01 1 1009- ● ● ●
47 CAMSHAFT; FRT BRK 1-47141-141-0 01 1 1009- ● ● ●
53 ADJUSTER ASM; SLACK 1-48270-107-0 02 1 1009- ● ● ●
54 SPACER; CM/SHF
(A) T=0.06" 		1-47139-121-0 02 1 1009- ● ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 1009- ● ● ●
54 SPACER; CM/SHF
(A) T=0.03" 		1-47149-060-0 02 1 1009- ● ● ●
54 SPACER; CM/SHF
(C) 		1-47149-065-0 02 1 1009- ● ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1009- ● ● ●
109 BUSHING; CM/SHF,FRT BRK
(A) 		1-47146-012-0 02 1 1009- ● ● ●
109 BUSHING; CM/SHF,FRT BRK
(B) 		1-47146-017-0 02 1 1009- ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-245-0 01 1 1009- ● ● ●
131 BRACKET; POWER CHAMBER 1-48258-246-0 01 1 1009- ● ● ●
133 BOLT; BRKT 1-47139-116-0 08 1 1009- ● ● ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1009- ● ● ●
266 BUSHING; BRKT 1-47139-117-0 04 1 1009- ● ● ●
267 PIN; RETURN SPRING,FRT BRK SHOE 1-47119-116-0 02 1 1009- ● ● ●
268 BOLT; ANCHOR BRKT 1-47139-122-0 12 1 1009- ● ● ●
269 WASHER; ANCHOR BRKT 1-41519-102-0 28 1 1009- ● ● ●
270 NUT; ANCHOR BRKT 1-41229-169-0 14 1 1009- ● ● ●
