Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#7064) — 24 parça
◀
[805A] STEP AND ROOM LAMP (6 parça)

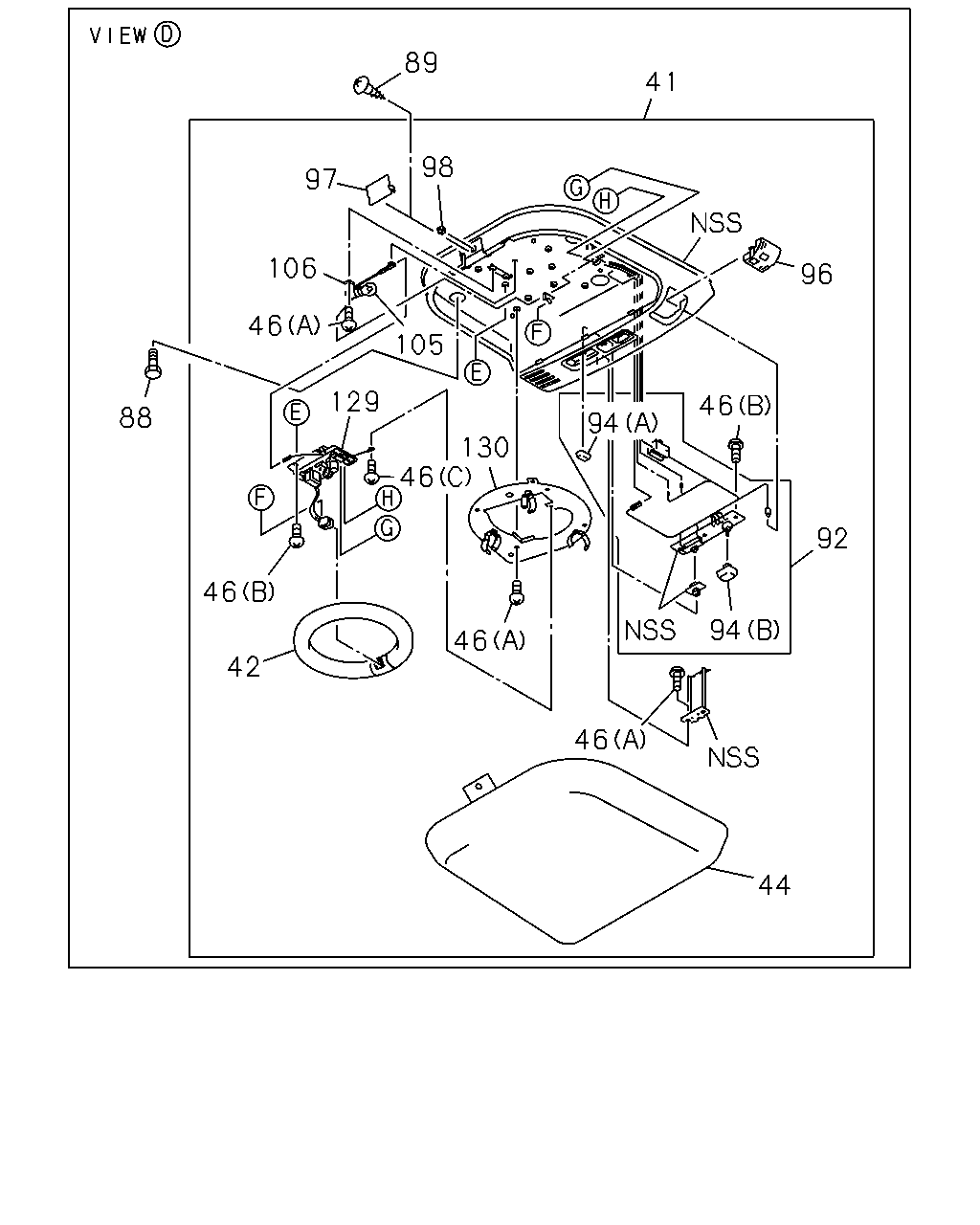

[805A] FLUORESCENT LAMP (18 parça)
▶
2
2
3
1
34
38
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; ROOM
1-82140-050-1
01
1
9908-9908
2
BULB; ROOM LAMP
24V 10W
1-82195-001-0
02
1
9908-9908
3
LENS; ROOM LAMP
1-82145-020-0
01
1
9908-9908
34
COVER; STEP LAMP
1-71907-444-0
01
1
9908-
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74310-420-0
02
1
9908-
38
COVER; STEP LAMP,DOOR
1-74997-029-2
01
1
9908-
89
41
98
97
106
96
46
105
129
46
88
94
130
46
92
46
94
46
42
46
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
LAMP ASM; FLUORESCENT
1-86830-305-2
01
1
9908-
42
LAMP; FLUORESCENT
1-86830-094-1
01
1
9908-
44
LENS; FLUORESCENT LAMP
1-86830-092-0
01
1
9908-
46
SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING
1-86830-095-0
08
1
9908-
46
SCREW; FLUORESCENT LAMP
(B) M4X12
1-86830-202-0
07
1
9908-
46
SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING
1-86830-336-0
01
1
9908-
88
BOLT; LAMP
M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
9908-
89
SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING
9-07076-510-0
01
1
9908-
92
SWITCH ASM; FLUORESCENT
1-86830-340-0
01
1
9908-
94
KNOB; ROOM LAMP SW
(A)
1-86830-099-0
01
1
9908-
94
KNOB; ROOM LAMP SW
(B)
1-86830-304-0
01
1
9908-
96
CAP; SPOT LAMP
1-86830-282-0
01
1
9908-
97
CAP; LENS FIX
1-86830-101-0
01
1
9908-
98
GROMMET; SCREW,LENS FIX
1-86830-102-0
01
1
9908-
105
BULB; FLUORESCENT LAMP
28V 20W
1-86830-200-0
01
1
9908-
106
SOCKET; BULB
1-86830-201-0
01
1
9908-
129
INVERTER ASM; FLUORESCENT LAMP
1-86830-338-0
01
1
9908-
130
PLATE ASM; FLUORESCENT LAMP
1-86830-339-0
01
1
9908-
