2-30 — GEAR SHIFTER AND QUADRANT BOX (#70635) — 196 parça

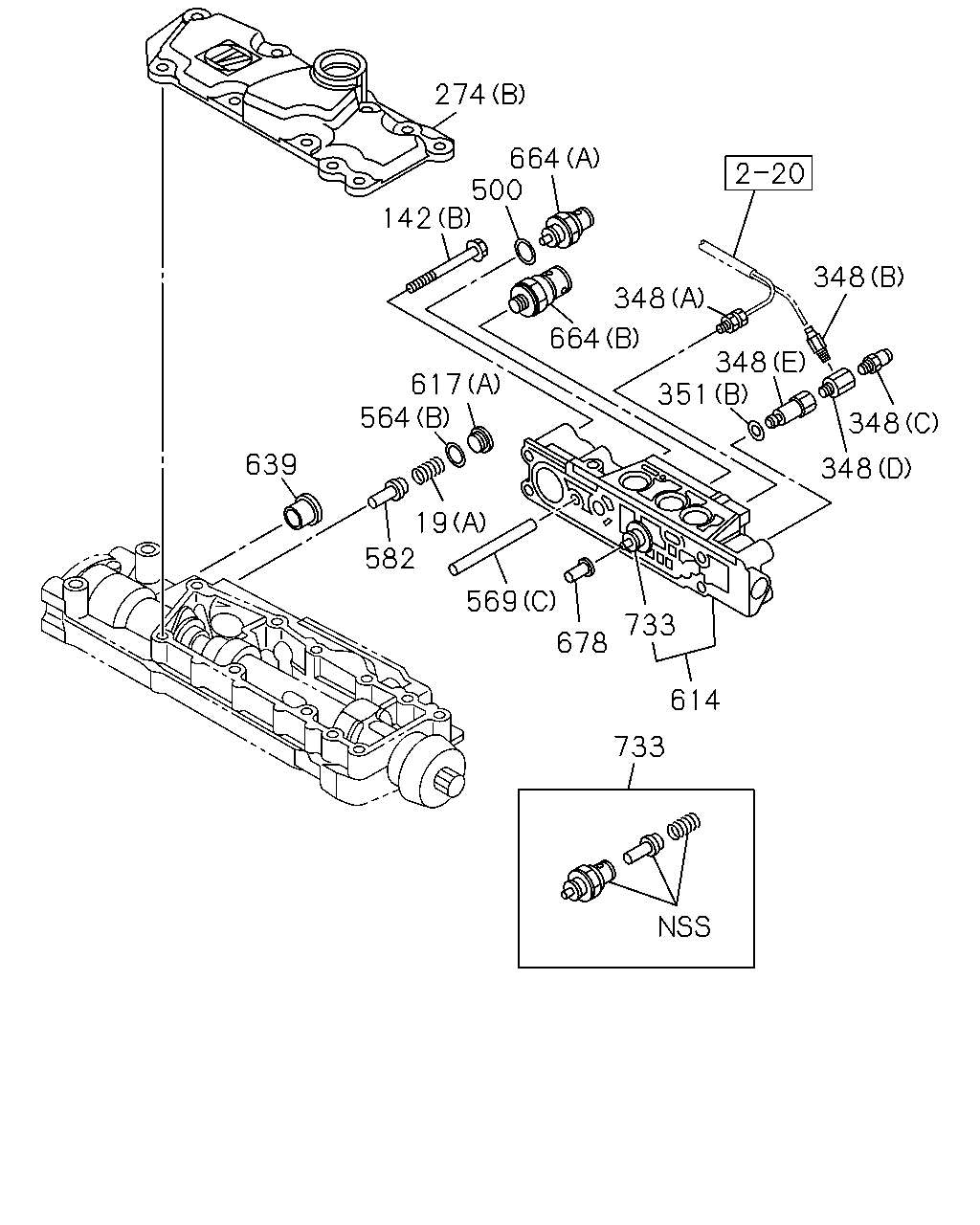

çizim 109662
274 664 500 142 664 348 348 348 348 348 733 733 569 582 639 564 617 351 614 19 678
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-022-0 01 1 1009-
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 1009-
19 SPRING; COIL COMP
(C) 		1-33539-098-0 01 1 1009-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
274 COVER; SHAFT,QUAD BOX
(A) 		1-33549-531-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
(B) 		1-33549-535-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(A) 		1-09660-466-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(B) 		1-09661-174-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-481-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(D) 		8-94338-417-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(E) 		8-98068-125-0 01 1 1009-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1107-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1009-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1009-1106
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1107-
564 SEAL; RING
(B) T=2.0 		1-82449-010-0 01 1 1009-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1009-
582 BOLT; SPRING GUIDE 1-33549-471-0 01 1 1009-
614 VALVE ASM 1-33549-549-0 01 1 1009-
617 PLUG
(A) 		1-33119-171-0 01 1 1009-1305
617 PLUG
(A) 		1-33119-619-0 01 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1009-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-
639 CAP 1-33549-465-0 01 1 1009-1106
639 CAP 1-33549-576-0 01 1 1107-
664 SWITCH
(A) 		1-33119-587-0 01 1 1009-
664 SWITCH
(B) 		1-33549-470-0 01 1 1009-
678 TAPPET 1-33549-466-0 01 1 1009-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

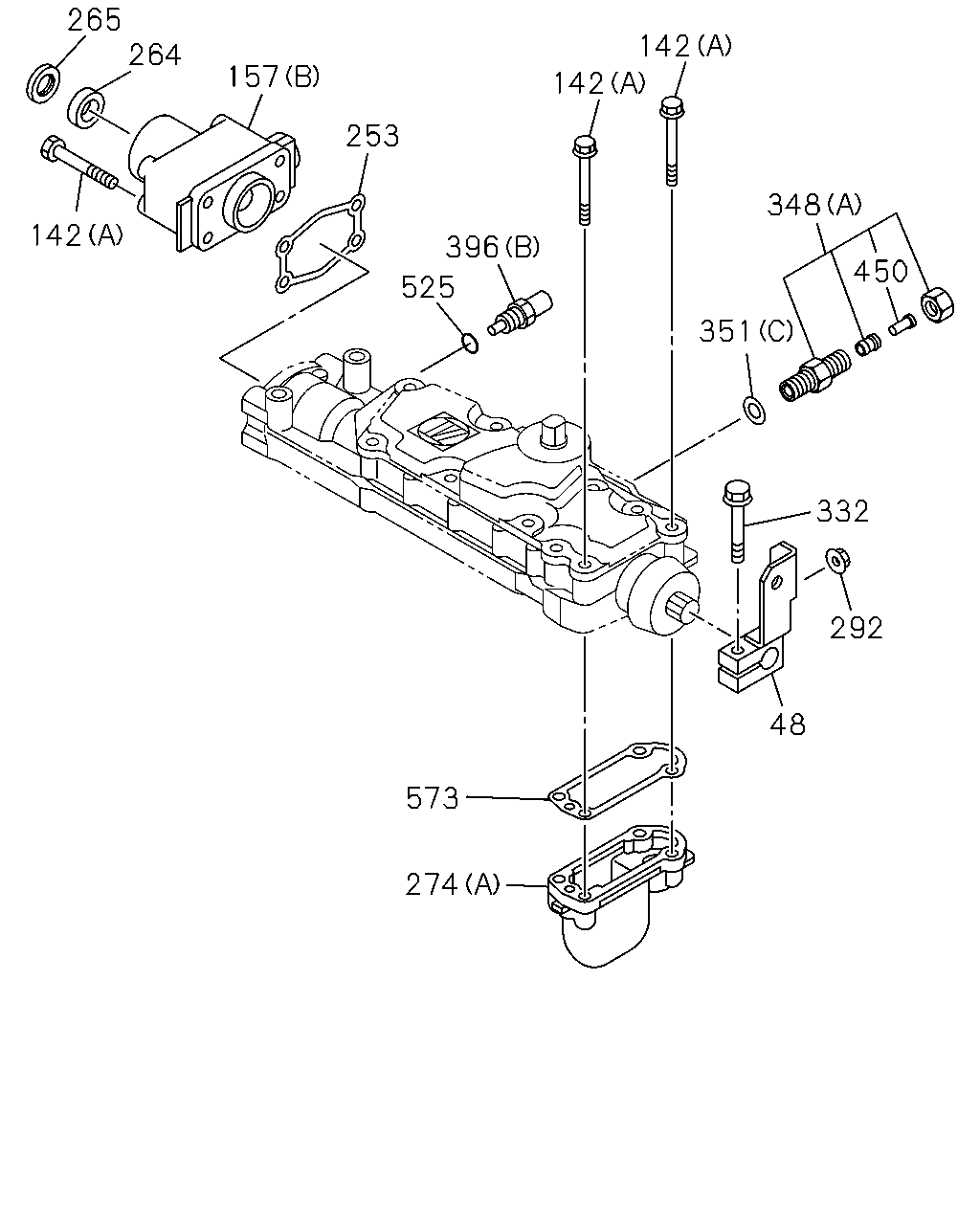

çizim 113327
265 264 142 157 142 253 348 142 396 450 525 351 332 292 48 573 274
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 8-98081-185-1 01 1 1009-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
157 BOX; QUAD,TRANS
(A) 		1-33549-445-0 01 1 1009-
157 BOX; QUAD,TRANS
(B) 		1-33549-568-0 01 1 1009-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-612-0 01 1 1306-
253 GASKET; SIDE COVER 1-33544-054-0 01 1 1009-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 1009-
265 SEAL; OIL,SHIFT 1-33549-118-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
(A) 		1-33549-531-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
(B) 		1-33549-535-0 01 1 1009-
292 NUT; LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 1009-
332 BOLT; 4TH,SHIFT LEVER
M10X45 W/PL WASHER 		8-98038-710-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(A) 		1-09660-466-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(B) 		1-09661-174-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-481-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(D) 		8-94338-417-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(E) 		8-98068-125-0 01 1 1009-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1107-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-067-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(B) 		1-33529-132-0 01 1 1306-
450 INSERT; SHIFT ARM
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1009-
525 RING; DETENT 1-33549-497-0 01 1 1009-
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 1009-

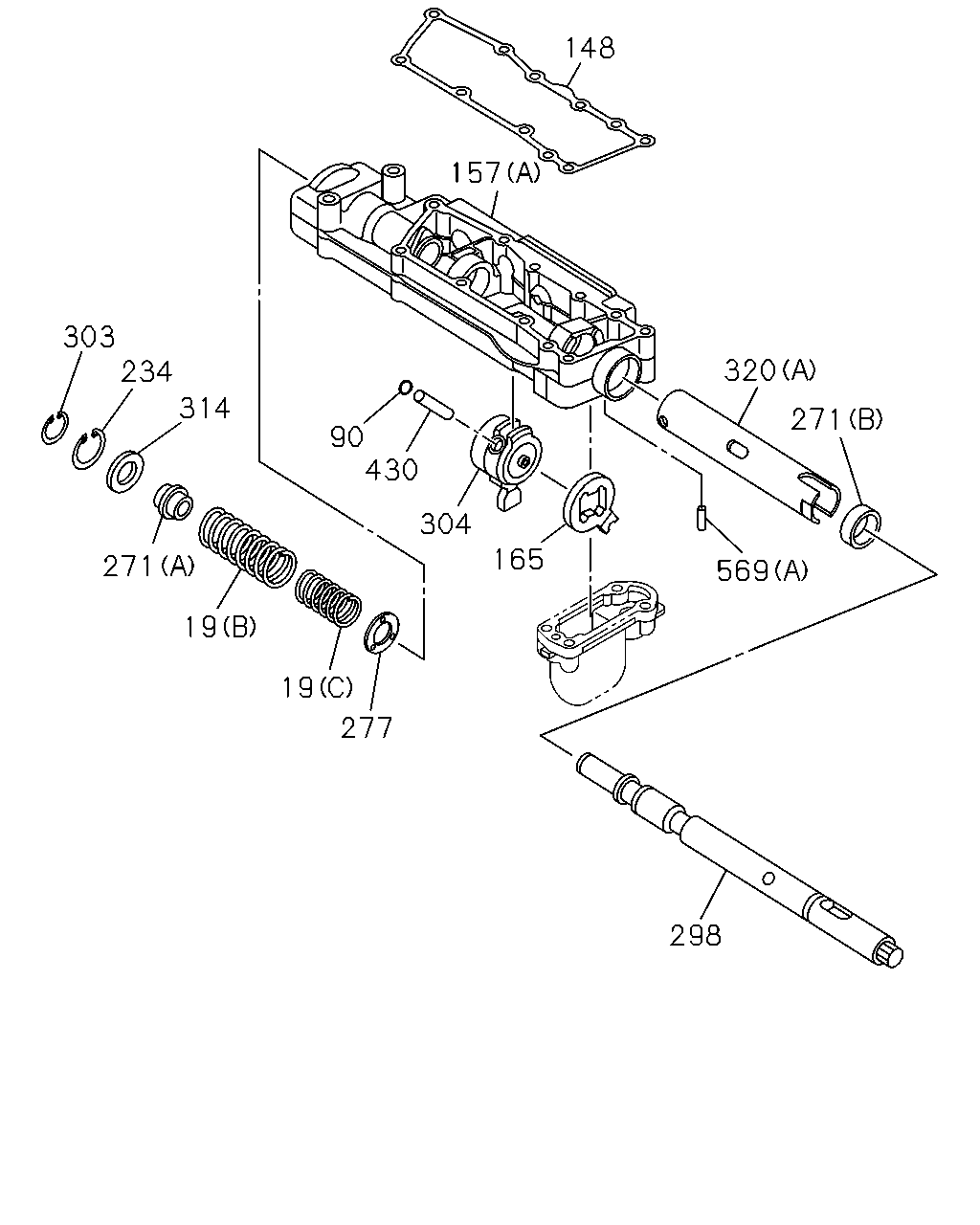

çizim 113363
148 157 303 234 320 314 271 90 430 304 165 271 569 19 19 277 298
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-022-0 01 1 1009-
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 1009-
19 SPRING; COIL COMP
(C) 		1-33539-098-0 01 1 1009-
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 1009-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-056-0 01 1 1009-
157 BOX; QUAD,TRANS
(A) 		1-33549-445-0 01 1 1009-
157 BOX; QUAD,TRANS
(B) 		1-33549-568-0 01 1 1009-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-612-0 01 1 1306-
165 LEVER; SHIFT 1-33549-533-0 01 1 1009-
234 RING; SNAP 1-44519-224-0 01 1 1009-
271 BUSHING; QUAD BOX
(A) 		1-33539-099-0 01 1 1009-
271 BUSHING; QUAD BOX
(B) 		1-33549-318-0 01 1 1009-
277 PLATE; SPRING SEAT 1-33539-026-0 01 1 1009-1305
277 PLATE; SPRING SEAT 1-33539-112-0 01 1 1306-
298 SHAFT; SHIFT LEVER 1-33522-207-0 01 1 1009-
303 RING; SNAP,SHAFT 1-33539-101-0 01 1 1009-
304 BLOCK; SHIFT SHAFT 1-33549-532-0 01 1 1009-
314 WASHER; SHAFT 1-33539-100-0 01 1 1009-
320 SHAFT; LEVER
(A) 		1-33549-447-0 01 1 1009-
320 SHAFT; LEVER
(B) 		1-33619-524-0 01 1 1009-
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 1009-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1009-

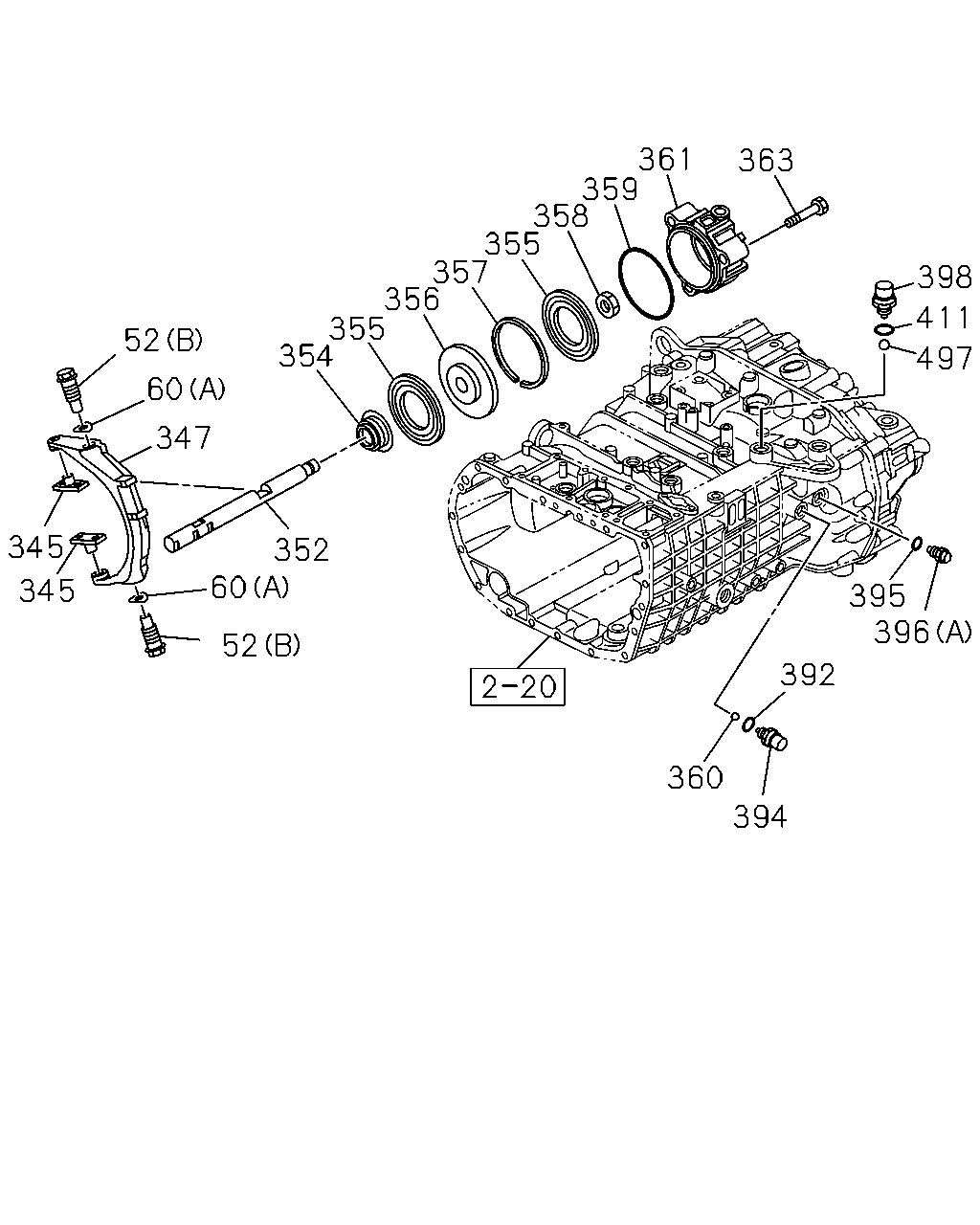

çizim 113776
361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 345 352 60 345 395 396 52 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1009-1106
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1107-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1009-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1009-1106
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1009-1305
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1009-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1009-
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1009-1305
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1009-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1009-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1009-1305
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1009-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1009-1305
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1009-
360 BALL; AIR CYL 1-33119-252-0 01 1 1009-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1009-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1009-1305
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1009-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1009-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1009-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-067-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(B) 		1-33529-132-0 01 1 1306-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1009-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1009-
497 BALL; SWITCH 1-33119-252-0 01 1 1009-
çizim 113986
321 320 433 317 315 317 505 433 319 323
BalonParca AdiParca NoAdetTipApplied Date
315 LEVER; SELECT 8-98087-673-0 01 1 1009-
317 BUSHING; LEVER 1-09330-119-0 02 1 1009-
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 1009-
320 SHAFT; LEVER
(A) 		1-33549-447-0 01 1 1009-
320 SHAFT; LEVER
(B) 		1-33619-524-0 01 1 1009-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1009-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1009-
433 GASKET; BUSHING 1-09623-594-0 02 1 1009-
505 SPACER; BRKT 1-11349-149-0 02 1 1009-

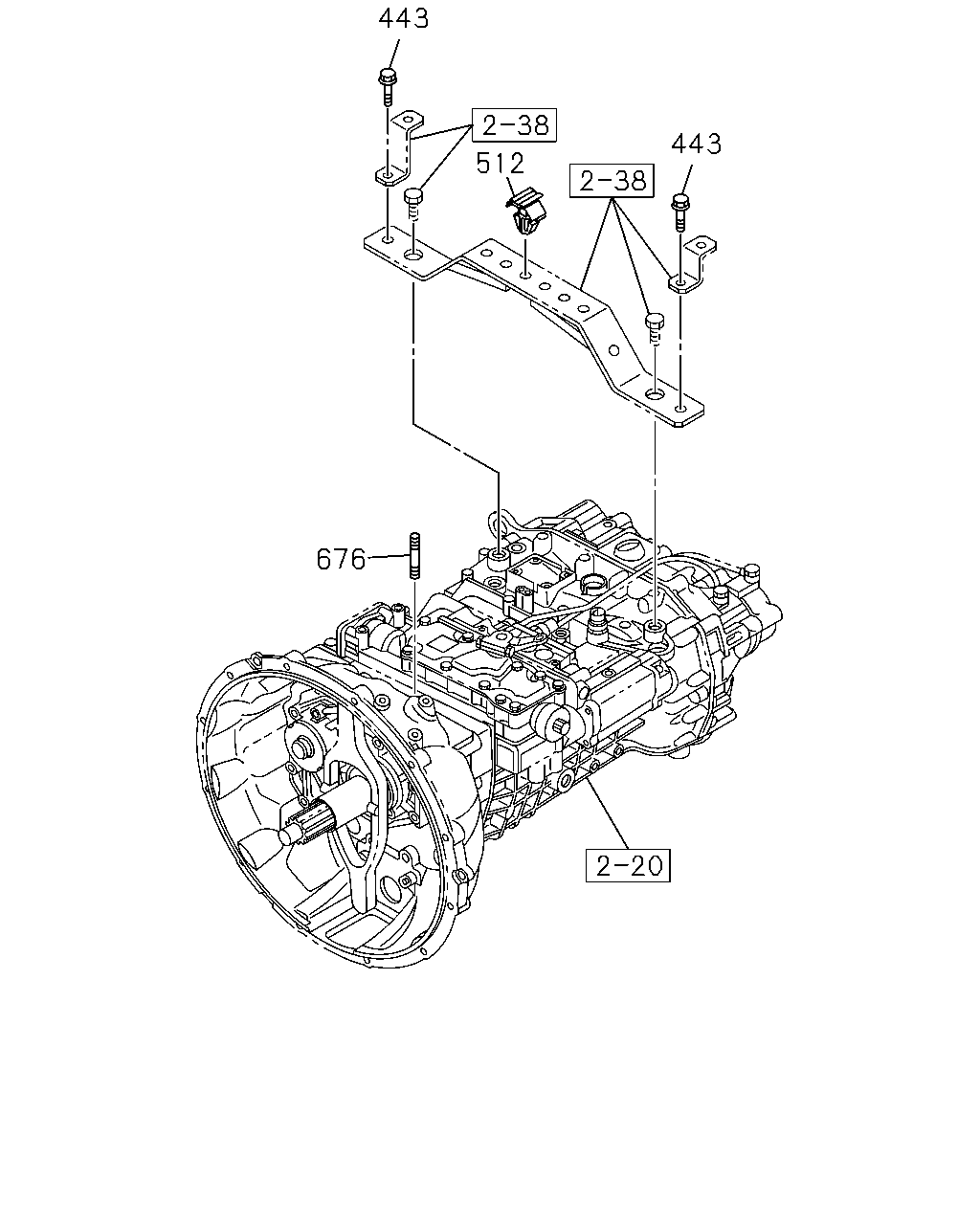

çizim 114204
443 443 512 676
BalonParca AdiParca NoAdetTipApplied Date
443 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 1009-
676 STUD
M8X14,M8X14 L=33 		1-09300-058-1 01 1 1009-

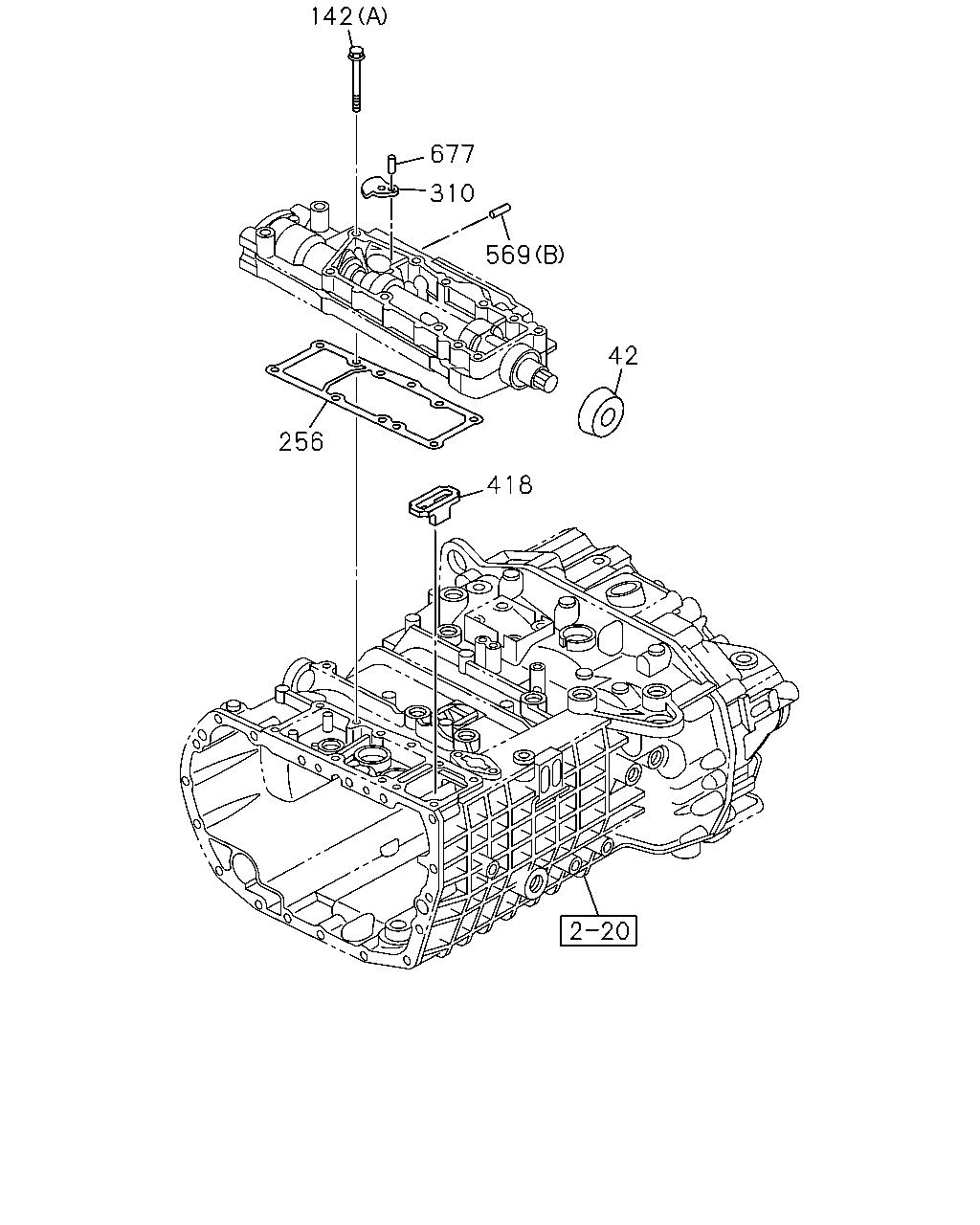

çizim 189720
142 677 310 569 42 256 418
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-548-0 01 1 1009-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-062-0 01 1 1009-
310 PLATE; LOCK,SHIFT LEVER 1-33549-453-0 01 1 1009-
418 PIECE; DIST,QUAD BOX 1-33549-454-0 01 1 1009-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1009-
677 PIN; PLATE 1-33549-452-0 01 1 1009-

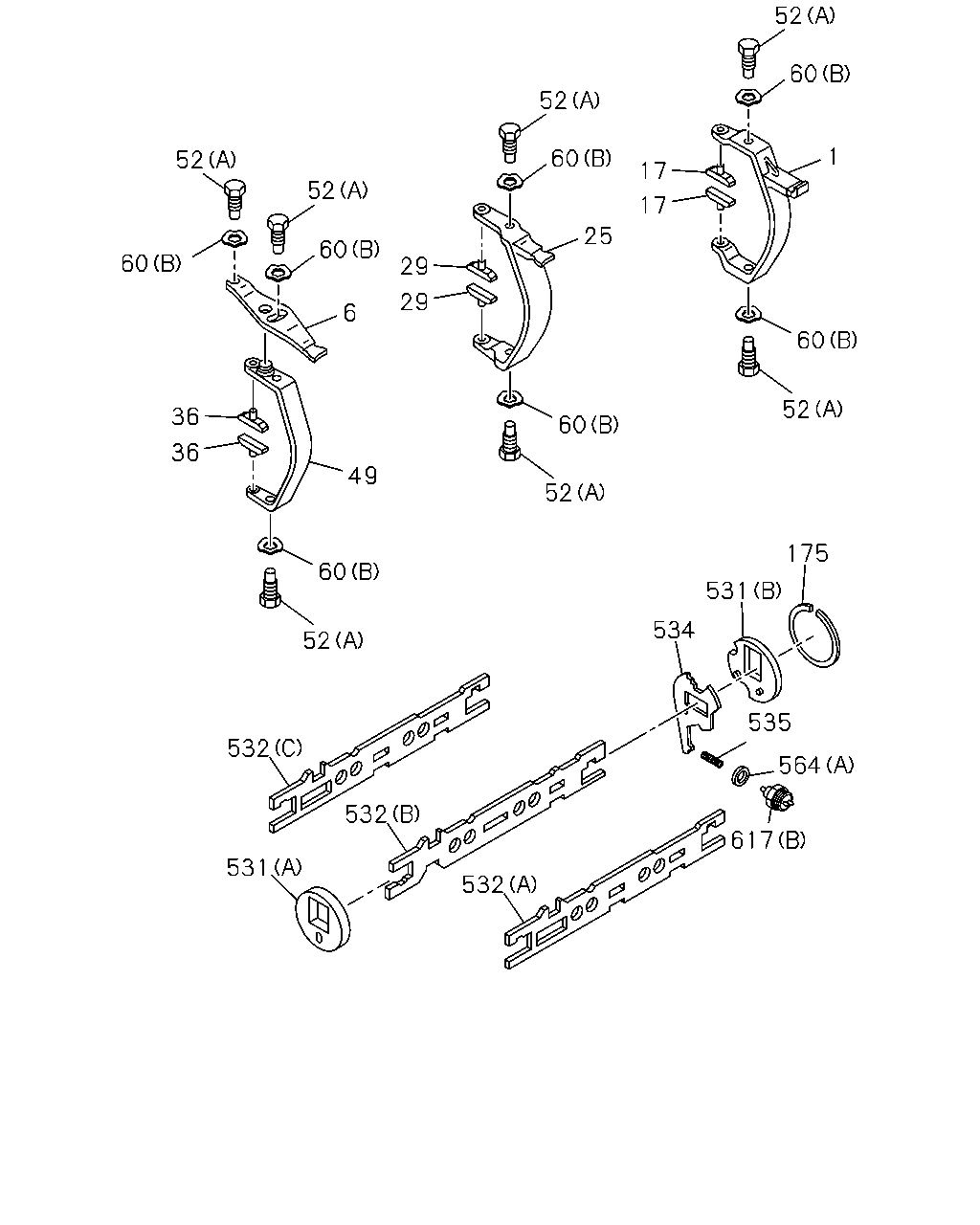

çizim 189722
52 60 52 1 60 52 17 52 17 25 60 60 29 29 6 60 52 36 60 36 49 52 175 60 531 534 52 535 532 564 532 617 531 532
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1009-
6 LEVER; RELAY 1-33511-641-0 01 1 1009-1106
6 LEVER; RELAY 1-33511-658-0 01 1 1107-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1009-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1009-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1009-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1009-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1009-
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1009-1106
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1107-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1009-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1009-1106
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1009-1305
175 RING; STOPPER,SHIFT LEVER 1-33539-097-0 01 1 1009-1106
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1107-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1009-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1009-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1009-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1009-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1009-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1009-
535 SPRING; LEVER 1-33539-049-0 01 1 1009-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1009-1106
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1107-
564 SEAL; RING
(B) T=2.0 		1-82449-010-0 01 1 1009-
617 PLUG
(A) 		1-33119-171-0 01 1 1009-1305
617 PLUG
(A) 		1-33119-619-0 01 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1009-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-

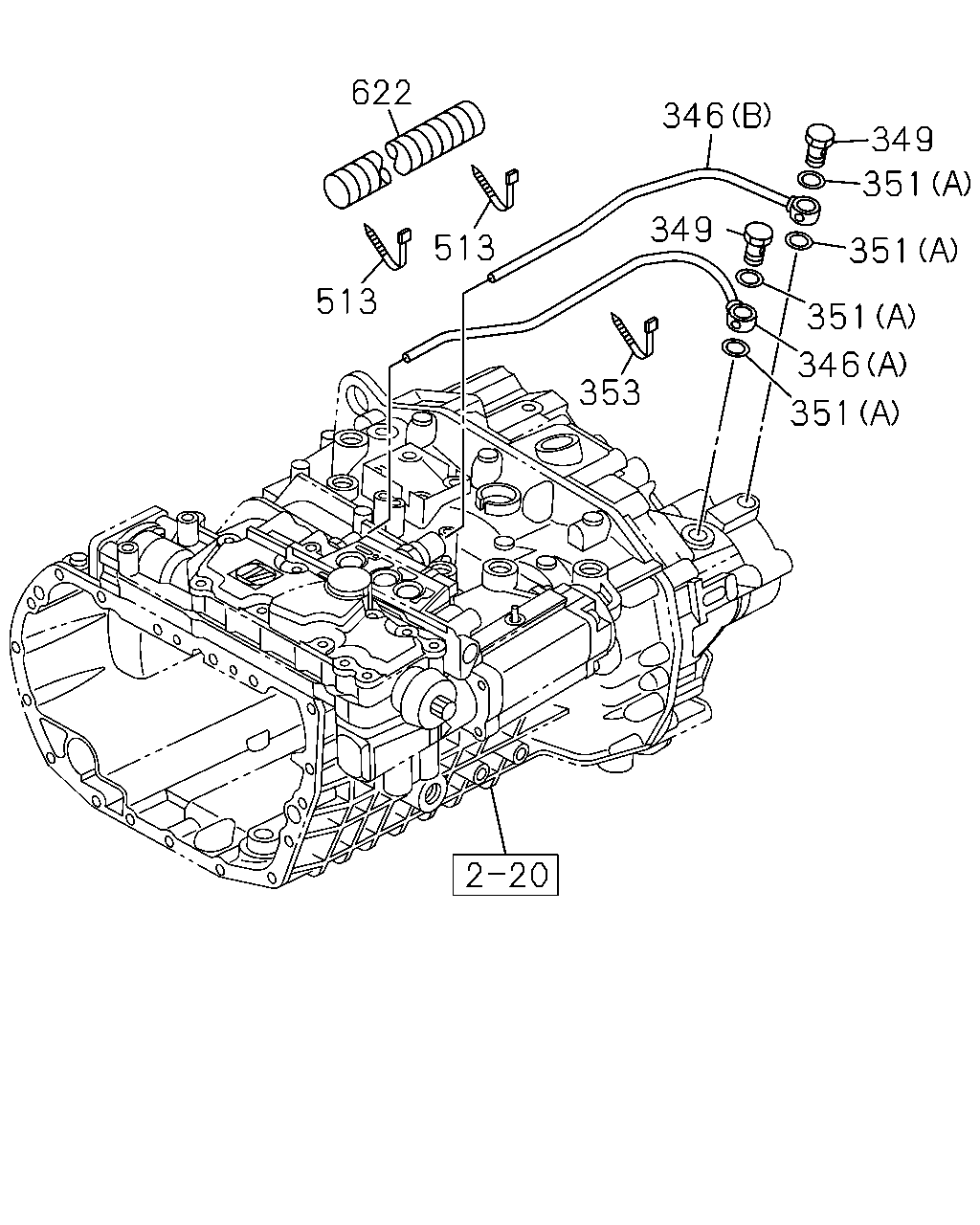

çizim 189723
622 346 349 351 349 513 351 513 351 346 353 351
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-473-0 01 1 1009-
346 HOSE; AIR
(B) 		1-33549-474-0 01 1 1009-
349 BOLT; EYE,AIR HOSE 1-33549-155-0 02 1 1009-1106
349 BOLT; EYE,AIR HOSE 1-33549-573-0 02 1 1107-1305
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 02 1 1306-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1107-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1009-1106
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1107-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1009-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
