2-05 — CLUTCH PIPING (#70630) — 85 parça
çizim 102634
235 101 210 16 42 206 30 207 206 207 42 16 210 106 51 107 27
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; FLEX HOSE
(A) ID=16 L=28 		1-09700-872-0 01 1 1009-1201 ● ● ●
16 CLIP; FLEX HOSE
(A) ID=16 L=28 		1-09700-872-0 03 1 1202- ● ● ●
16 CLIP; FLEX HOSE
(B) ID=18 L=28 H=30 		1-09701-110-0 01 1 1009-1201 ● ● ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1009- ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1009- ● ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1009- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1009-1402 ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1009-1201 ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1202- ● ● ●
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 1009- ● ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98103-346-1 01 1 1009-1201 ● ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98180-779-0 01 1 1202- ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1009- ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1009- ● ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1009- ● ● ●
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 1009- ● ● ●
206 CLIP; TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1009- ● ●
206 CLIP; TUBE
(A) L=350 		1-09707-183-0 01 1 1009- ● ●
207 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ●
207 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ● ●
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1201 ● ● ●
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1202- ● ● ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1009- ● ● ●

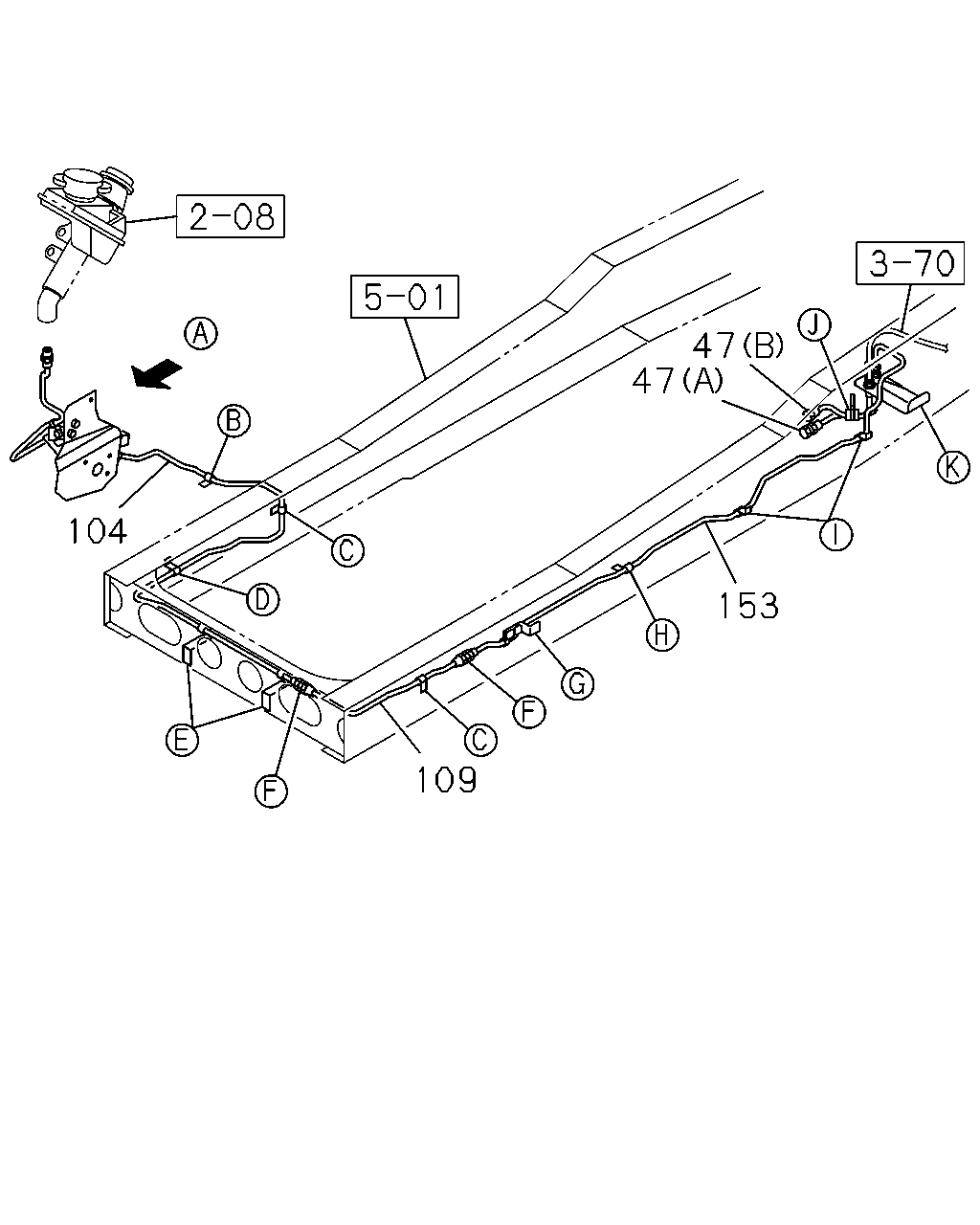

çizim 189714
47 47 104 153 109
BalonParca AdiParca NoAdetTipApplied Date A B C
47 HOSE; FLEX,CLU CONT
(A) L=580 		1-09363-692-0 01 1 1009- ● ● ●
47 HOSE; FLEX,CLU CONT
(B) L=620 		8-98072-333-0 01 1 1009- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1809 SERVICED BY L=1950 		1-47428-769-0 01 1 1009- ● ● ●
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 1009-1203 ● ● ●
109 PIPE; AIR,UNION TO UNION
L=1682 SERVICED BY L=1700 		1-47428-767-0 01 1 1204- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1485 SERVICED BY L=1550 		1-47428-766-0 01 1 1009- ● ● ●

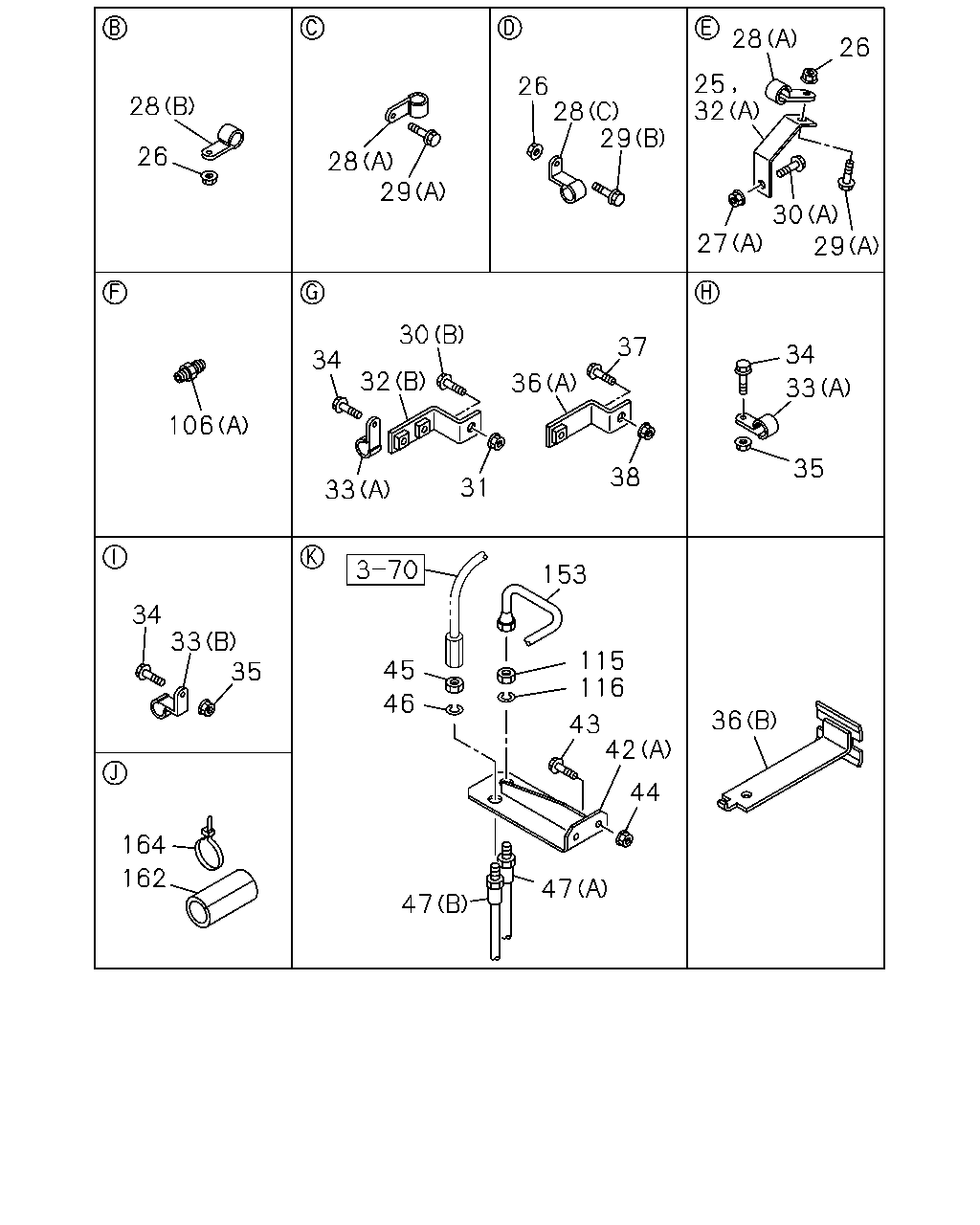

çizim 189715
28 26 25 32 26 28 29 28 26 28 29 30 29 27 30 37 34 34 32 36 33 106 35 38 31 33 153 34 33 35 115 116 45 46 36 43 42 44 164 162 47 47
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BRACKET; OIL PIPE 8-98123-057-0 01 1 1009- ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 1009- ● ● ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1009- ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1009- ● ● ●
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 1009- ● ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 1009- ● ● ●
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1009- ● ● ●
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ● ●
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1204- ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1203 ● ● ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1203 ● ● ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1203 ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1204- ● ● ●
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1009- ● ● ●
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-057-0 01 1 1009- ● ● ●
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1009- ● ● ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1009- ● ● ●
34 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1009- ● ● ●
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1009- ● ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
36 BRACKET; CLIP
(A) L=80 H=20 		1-82699-304-0 01 1 1009- ● ● ●
36 BRACKET; CLIP
(B) 		8-98124-099-0 01 1 1009- ●
37 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ● ●
38 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1009- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1009-1402 ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1009-1201 ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1202- ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1009- ● ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 1009- ● ● ●
47 HOSE; FLEX,CLU CONT
(A) L=580 		1-09363-692-0 01 1 1009- ● ● ●
47 HOSE; FLEX,CLU CONT
(B) L=620 		8-98072-333-0 01 1 1009- ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1009- ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1009- ● ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1009- ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1009- ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1009- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1485 SERVICED BY L=1550 		1-47428-766-0 01 1 1009- ● ● ●
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 1009- ● ● ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1009- ● ● ●
