1-41 — FUEL PIPING; CHASSIS (#70623) — 103 parça

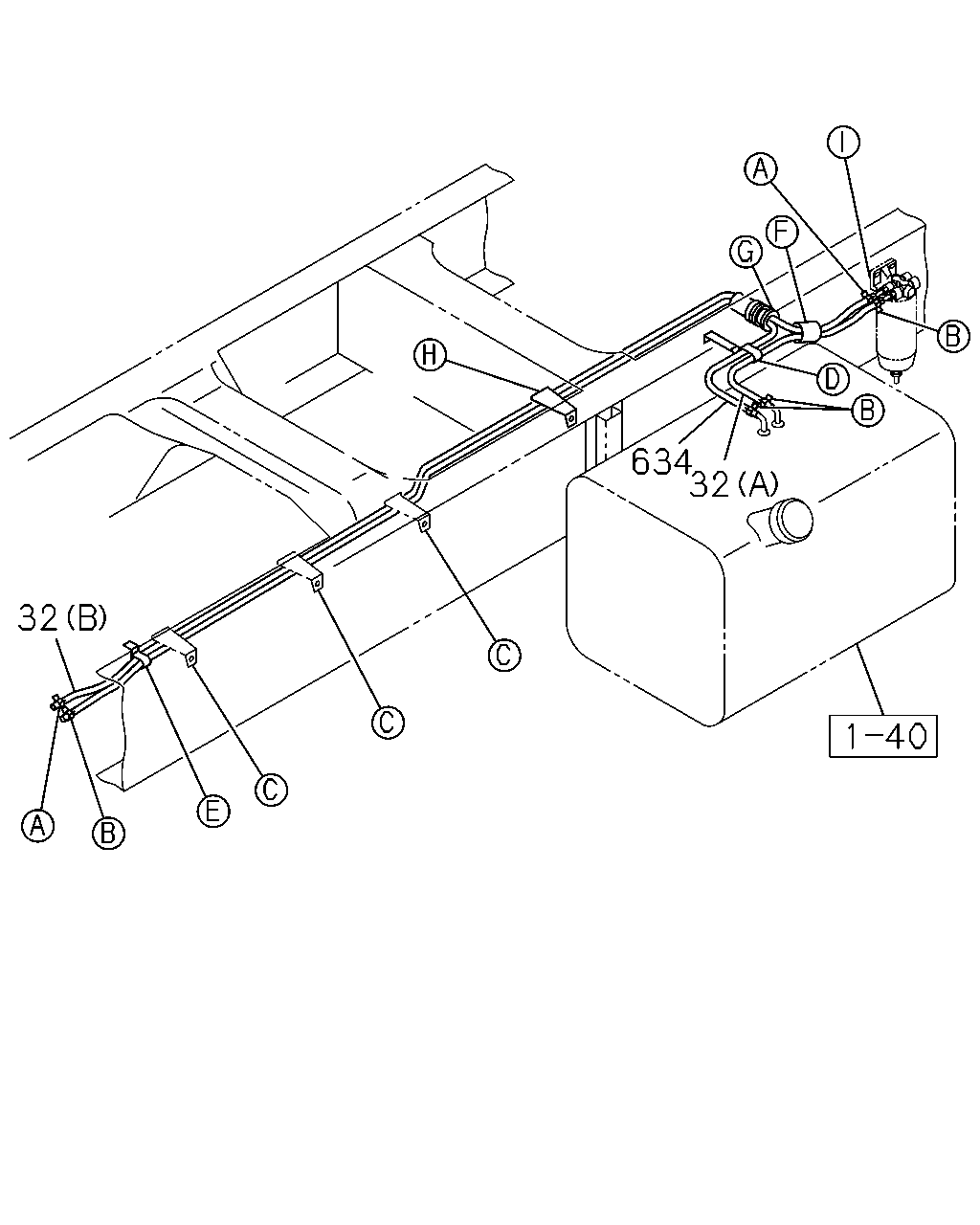

çizim 92915
634 32 32
BalonParca AdiParca NoAdetTipApplied Date A B C
32 PIPE; DELIVERY,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (A) L=600 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-1203 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1204- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (B) L=1800 SERVICED BY L=3000 		0-01262-300-0 01 1 1103-1203 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1850 SERVICED BY L=3000 		0-01859-300-0 01 1 1204- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1009-1102 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-1203 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 1009-1102 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 1103-1203 ● ● ●
634 HOSE; RUBBER RETURN
L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 1009-1203 ● ● ●
634 HOSE; RUBBER RETURN
L=1850 SERVICED BY L=3000 		0-01859-300-0 01 1 1204- ● ● ●

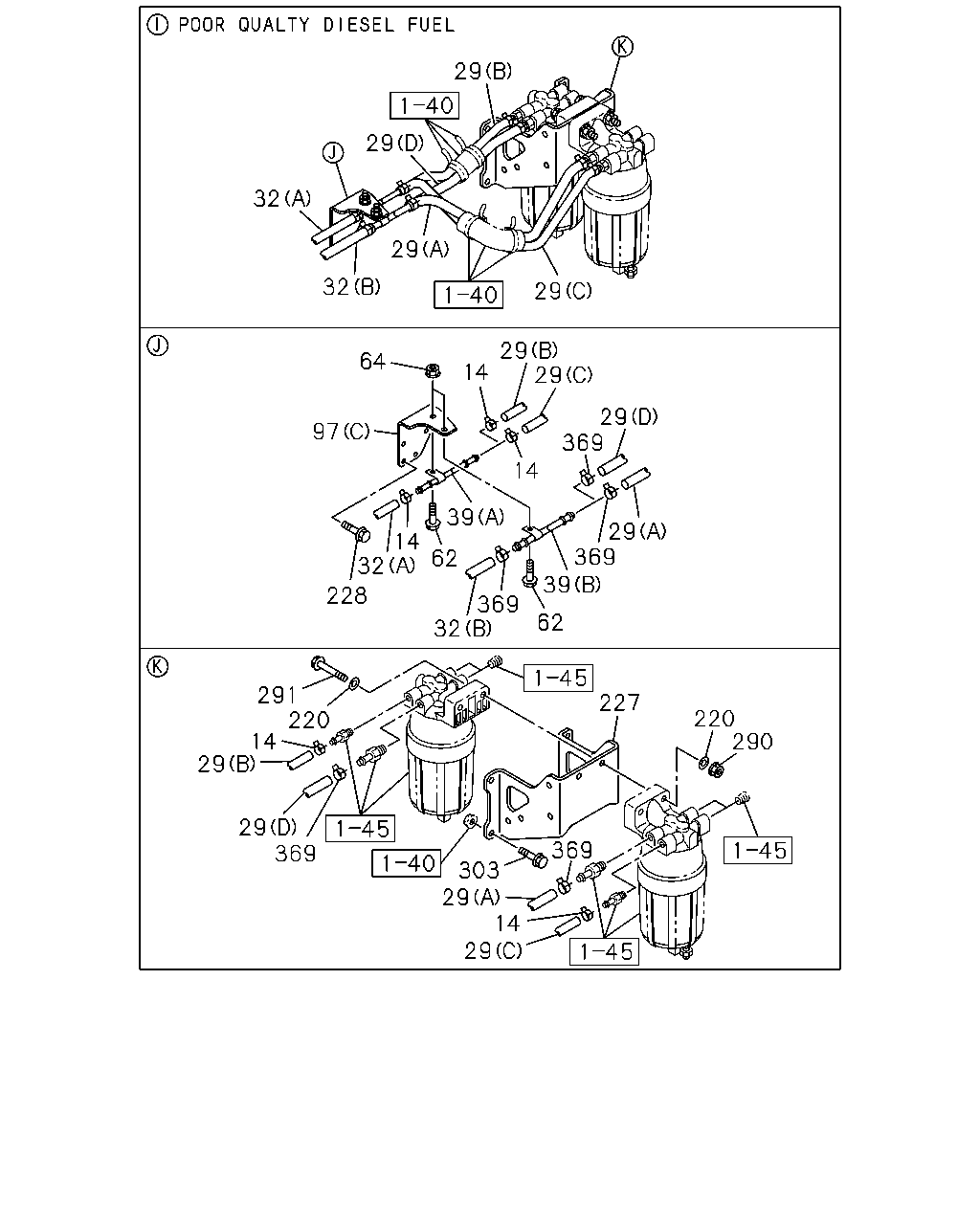

çizim 93400
29 29 32 29 32 29 29 29 64 14 29 369 97 14 39 29 369 39 14 32 62 228 369 32 62 291 220 227 220 290 14 29 29 369 369 303 29 14 29
BalonParca AdiParca NoAdetTipApplied Date A B C
14 CLIP; HOSE
POOR QUALITY DIESEL FUEL<KF0> ID=14 		1-09704-102-0 04 1 1103-1203 ● ● ●
14 CLIP; HOSE
ID=16 		8-94238-568-0 04 1 1204- ● ● ●
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98188-442-0 01 1 1103-1203 ● ●
29 HOSE; FUEL
(B) 		8-98202-999-0 01 1 1204- ● ●
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (D) 		8-98188-458-0 01 1 1103-1203 ● ●
29 HOSE; FUEL
(D) L=290 		8-98203-007-0 01 1 1204- ● ●
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-638-1 01 1 1103-1203 ● ● ●
29 HOSE; FUEL
(A) 		8-98202-626-0 01 1 1204- ● ● ●
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98188-447-0 01 1 1103-1203 ● ● ●
29 HOSE; FUEL
(C) 		8-98203-001-0 01 1 1204- ● ● ●
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98188-441-0 01 1 1103-1203 ●
29 HOSE; FUEL
(B) 		8-98202-998-0 01 1 1204- ●
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (D) 		8-98188-457-0 01 1 1103-1203 ●
29 HOSE; FUEL
(D) 		8-98203-006-0 01 1 1204- ●
32 PIPE; DELIVERY,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (A) L=600 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-1203 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1204- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (B) L=1800 SERVICED BY L=3000 		0-01262-300-0 01 1 1103-1203 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=1850 SERVICED BY L=3000 		0-01859-300-0 01 1 1204- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1009-1102 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-1203 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 1009-1102 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 1103-1203 ● ● ●
39 PIPE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-862-0 01 1 1103-1203 ● ● ●
39 PIPE; FUEL
(A) 		8-98186-862-1 01 1 1204- ● ● ●
39 PIPE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98186-864-0 01 1 1103-1203 ● ● ●
39 PIPE; FUEL
(B) 		8-98186-864-1 01 1 1204- ● ● ●
62 BOLT; CLIP FIX
POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE 		0-28650-820-0 02 1 1103-1203 ● ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1204- ● ● ●
64 NUT; CLIP
POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 02 1 1103-1203 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1204- ● ● ●
97 BRACKET; CLIP
POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98186-645-0 01 1 1103-1203 ● ● ●
97 BRACKET; CLIP
(C) 		8-98186-645-0 01 1 1204- ● ● ●
97 BRACKET; CLIP
(A) 		1-47475-927-0 01 1 1009-1010 ● ● ●
97 BRACKET; CLIP
(A) L=68 		1-47475-525-0 01 1 1011- ● ● ●
97 BRACKET; CLIP
(B) 		8-97609-096-0 01 1 1009- ● ● ●
220 WASHER; PL
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 04 1 1103-1203 ● ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 04 1 1204- ● ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1009-1102 ● ● ●
220 WASHER; PL
EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 1103-1203 ● ● ●
227 BRACKET; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98184-813-0 01 1 1103-1203 ● ●
227 BRACKET; FUEL SEDIMENTER 8-98184-813-0 01 1 1204- ● ●
227 BRACKET; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98184-814-0 01 1 1103-1203 ●
227 BRACKET; FUEL SEDIMENTER 8-98184-814-0 01 1 1204- ●
228 BOLT; BRKT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE 		0-28650-830-0 02 1 1103-1203 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M8X30 FLANGE 		0-28650-830-0 02 1 1204- ● ● ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1009- ● ● ●
291 BOLT; FILER TO BRKT
POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE 		0-28051-090-0 02 1 1103-1203 ● ● ●
291 BOLT; FILER TO BRKT
M10X90 FLANGE 		0-28051-090-0 02 1 1204- ● ● ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1009-1102 ● ● ●
291 BOLT; FILER TO BRKT
EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE 		0-28051-060-0 02 1 1103-1203 ● ● ●
303 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE 		0-28051-040-0 04 1 1103-1203 ● ● ●
303 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 04 1 1204- ● ● ●
369 CLAMP; HOSE,FUEL
POOR QUALITY DIESEL FUEL<KF0> ID=19 		8-94238-569-0 04 1 1103-1203 ● ● ●
369 CLAMP; HOSE,FUEL
ID=19 		8-94238-569-0 04 1 1204- ● ● ●

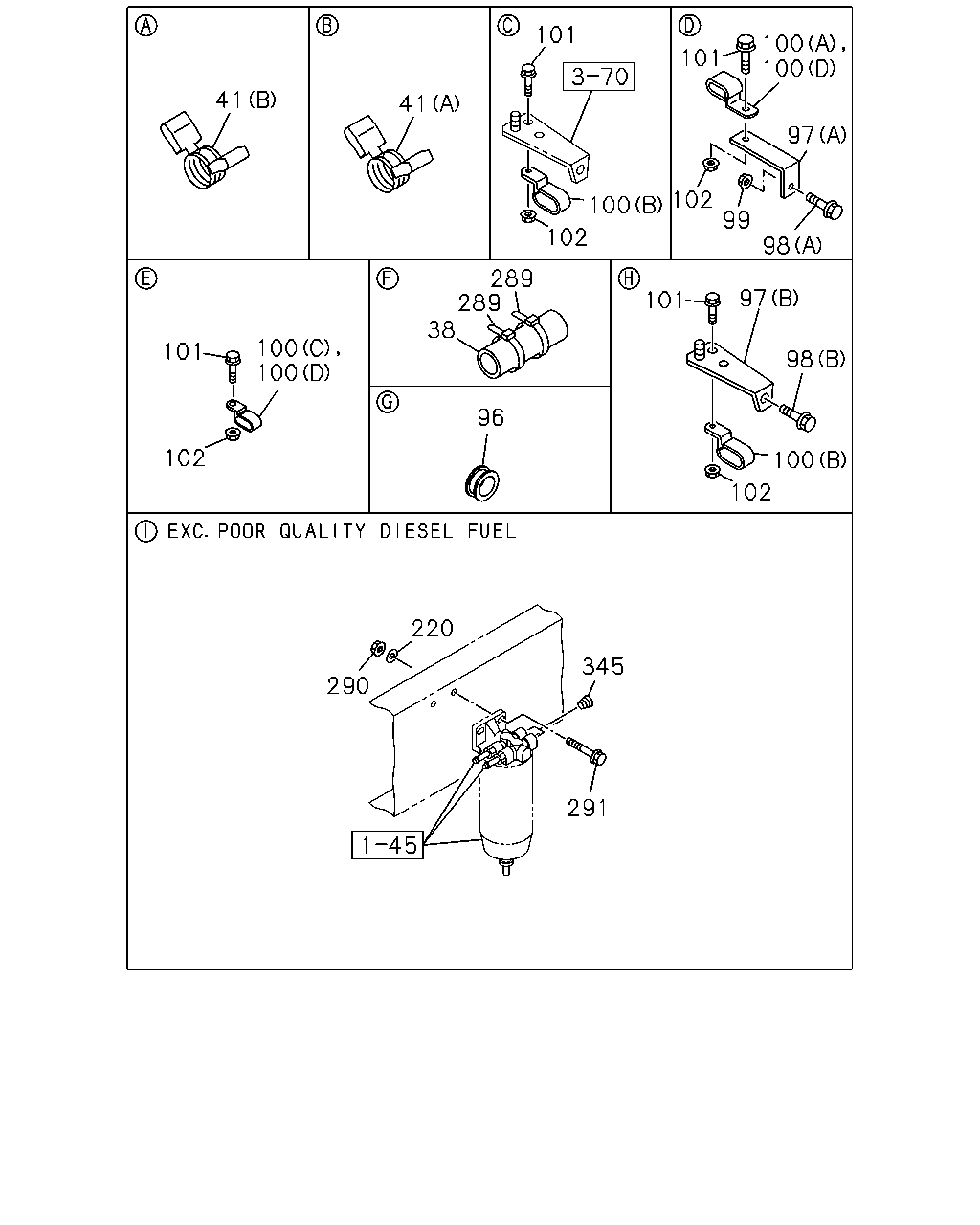

çizim 93563
101 100 100 101 41 41 97 102 100 99 102 98 289 289 38 97 101 100 100 101 98 96 102 100 102 220 345 290 291
BalonParca AdiParca NoAdetTipApplied Date A B C
38 SLEEVE; RUBBER,RUBBER HOSE
EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1103-1203 ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1009-1102 ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1103-1203 ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1204- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1009-1203 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 		8-94238-568-0 04 1 1204- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1009- ● ● ●
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1009-1203 ● ● ●
96 GROMMET; PIPE,FUEL TANK
ID=39 OD=45 T=19 		1-09332-077-0 01 1 1204- ● ● ●
97 BRACKET; CLIP
POOR QUALITY DIESEL FUEL<KF0> (C) 		8-98186-645-0 01 1 1103-1203 ● ● ●
97 BRACKET; CLIP
(C) 		8-98186-645-0 01 1 1204- ● ● ●
97 BRACKET; CLIP
(A) 		1-47475-927-0 01 1 1009-1010 ● ● ●
97 BRACKET; CLIP
(A) L=68 		1-47475-525-0 01 1 1011- ● ● ●
97 BRACKET; CLIP
(B) 		8-97609-096-0 01 1 1009- ● ● ●
98 BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ● ●
98 BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ● ●
99 NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ● ●
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1009-1203 ● ● ●
100 CLIP; FUEL PIPE
(B) ID=19X35 H=17.5 L=47.5 		8-98202-741-0 04 1 1204- ● ● ●
100 CLIP; FUEL PIPE
(C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1009-1203 ● ● ●
100 CLIP; FUEL PIPE
(D) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 02 1 1204- ● ● ●
100 CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 04 1 1009-1203 ● ● ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1009- ● ● ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 06 1 1009- ● ● ●
220 WASHER; PL
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 04 1 1103-1203 ● ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 04 1 1204- ● ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1009-1102 ● ● ●
220 WASHER; PL
EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 1103-1203 ● ● ●
289 CLIP; BAND,HOSE
EXC. POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 04 1 1103-1203 ● ● ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 1009-1102 ● ● ●
289 CLIP; BAND,HOSE
POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 02 1 1103-1203 ● ● ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 02 1 1204- ● ● ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1009- ● ● ●
291 BOLT; FILER TO BRKT
POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE 		0-28051-090-0 02 1 1103-1203 ● ● ●
291 BOLT; FILER TO BRKT
M10X90 FLANGE 		0-28051-090-0 02 1 1204- ● ● ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1009-1102 ● ● ●
291 BOLT; FILER TO BRKT
EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE 		0-28051-060-0 02 1 1103-1203 ● ● ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1009-1102 ● ● ●
345 PLUG
EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18 		8-97329-623-0 02 1 1103-1203 ● ● ●
