1-10 — RADIATOR (#70617) — 54 parça

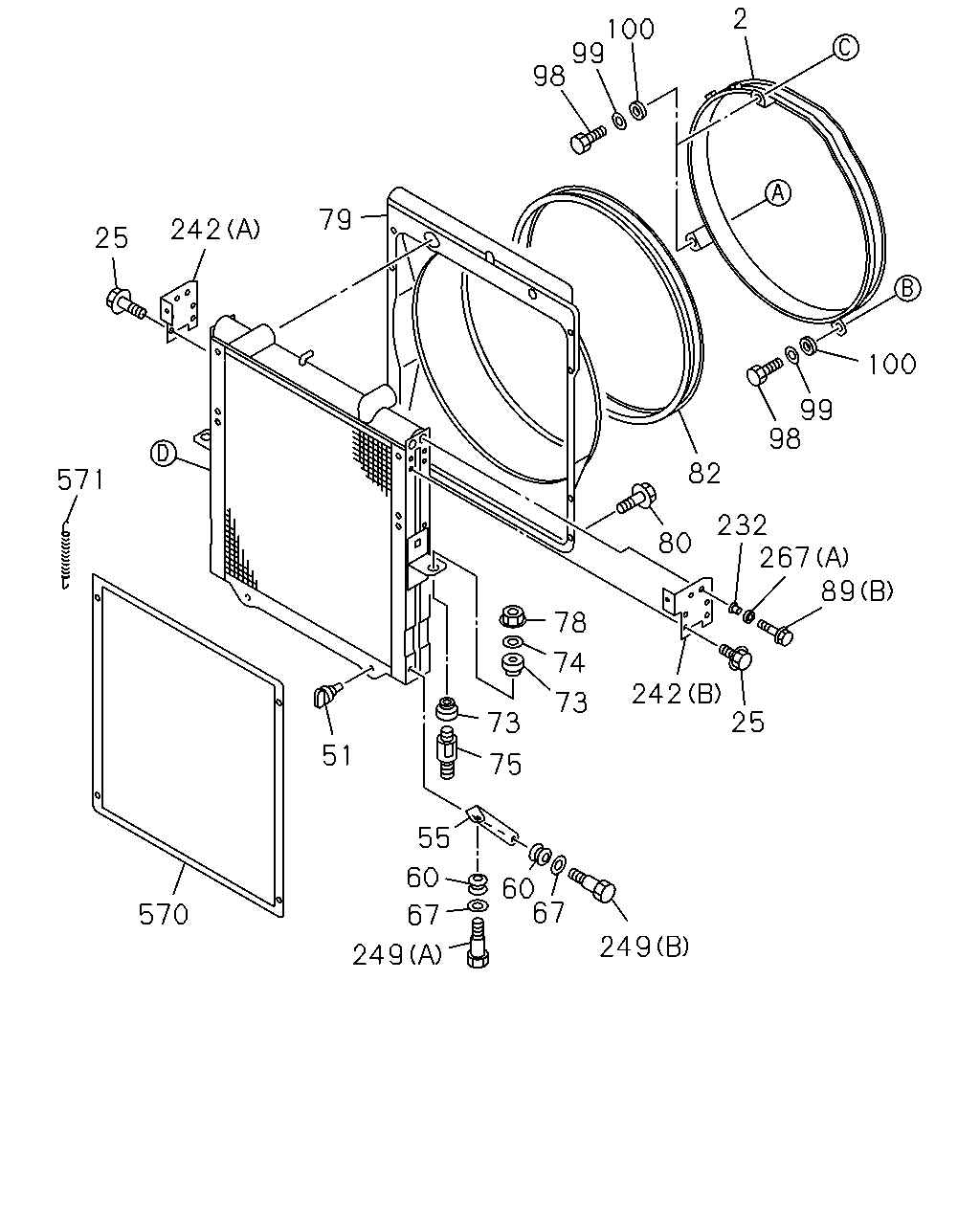

çizim 85507
2 100 99 98 79 242 25 100 99 98 82 571 232 267 89 80 78 74 242 25 73 73 51 75 55 60 60 67 570 67 249 249
BalonParca AdiParca NoAdetTipApplied Date
2 GUIDE; FAN 8-97615-753-1 01 1 1009-
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 1009-
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1009-
55 STAY; RAD TO UPR MBR 8-98055-802-0 01 1 1009-
55 STAY; RAD TO UPR MBR 8-98055-805-0 01 1 1009-
60 GROMMET 1-09332-117-0 04 1 1009-
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 1009-
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 1009-
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1009-
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 1009-
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 1009-
79 GUIDE; FAN,RAD 1-21551-545-1 01 1 1009-
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 1009-
82 COVER; FAN,RAD 1-21559-491-1 01 1 1009-
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1009-
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1009-
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 03 1 1009-
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 1009-
100 RUBBER; MTG 1-09337-017-0 06 1 1009-
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1009-
242 BRACKET; RAD
(A) 		8-98089-511-1 01 1 1009-
242 BRACKET; RAD
(B) 		8-98089-512-1 01 1 1009-
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 1009-
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 1009-
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1009-
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1009-
570 SCREEN ASM; RADIATOR
RADIATOR PROTECTOR<YC6> 		8-98202-048-1 01 1 1204-1501
570 SCREEN ASM; RADIATOR
RADIATOR PROTECTOR<YC6> 		8-98287-800-0 01 1 1502-
571 SPRING; RADIATOR SCREEN
RADIATOR PROTECTOR<YC6> 		8-98202-052-0 02 1 1204-1209
571 SPRING; RADIATOR SCREEN
RADIATOR PROTECTOR<YC6> 		8-98211-362-0 02 1 1210-
çizim 89286
528 526 529 1 528 529 527 267 235 89
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM 8-98060-764-4 01 1 1009-1203
1 RADIATOR ASM 8-98203-777-0 01 1 1204-
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1009-
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1009-
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1009-
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1009-
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1009-
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 1009-
527 TANK; LWR,RADIATOR CORE 1-21415-031-2 01 1 1009-
528 PLATE; SIDE,RADIATOR CORE 8-98060-765-2 01 1 1009-
528 PLATE; SIDE,RADIATOR CORE 8-98060-766-2 01 1 1009-
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 1009-

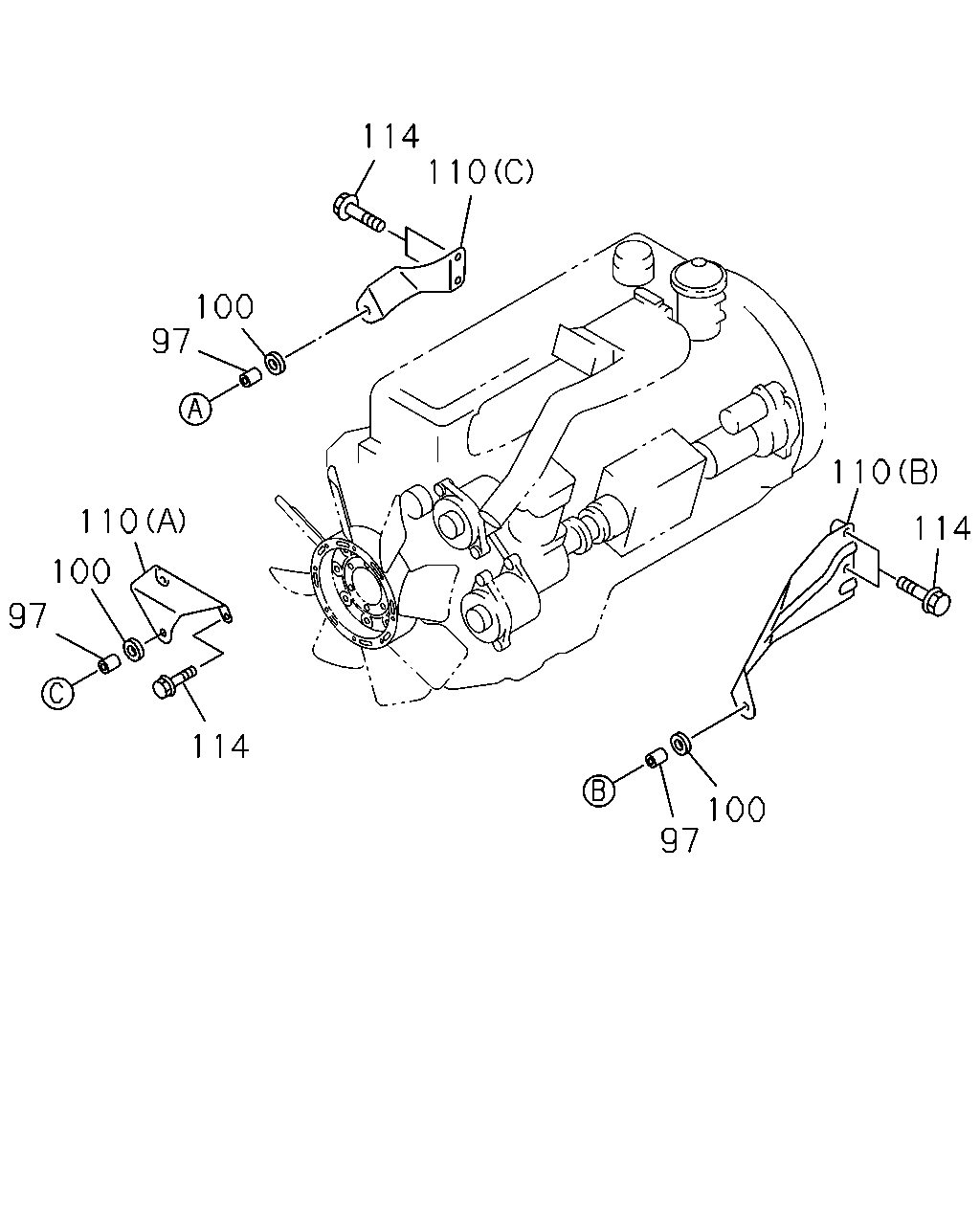

çizim 189710
114 110 100 97 110 110 114 100 97 114 100 97
BalonParca AdiParca NoAdetTipApplied Date
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 1009-
100 RUBBER; MTG 1-09337-017-0 06 1 1009-
110 STAY; FAN GUIDE
(A) 		8-97604-861-1 01 1 1009-
110 STAY; FAN GUIDE
(B) 		8-97607-503-0 01 1 1009-
110 STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-97607-501-0 01 1 1009-
110 STAY; FAN GUIDE
HEATER & DEFROSTER(C41) (C) 		8-97607-500-0 01 1 1009-1302
114 BOLT; STAY
M10X20 FLANGE 		0-28151-020-0 02 1 1009-1302
114 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X20 FLANGE 		0-28151-020-0 02 1 1009-1302
114 BOLT; STAY
M10X20 FLANGE 		0-28151-020-0 04 1 1303-
114 BOLT; STAY
M10X40 FLANGE 		0-28151-040-0 02 1 1009-1302
114 BOLT; STAY
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28151-040-0 02 1 1009-1302
114 BOLT; STAY
M10X40 FLANGE 		0-28151-040-0 02 1 1303-
