Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#70615) — 304 parça

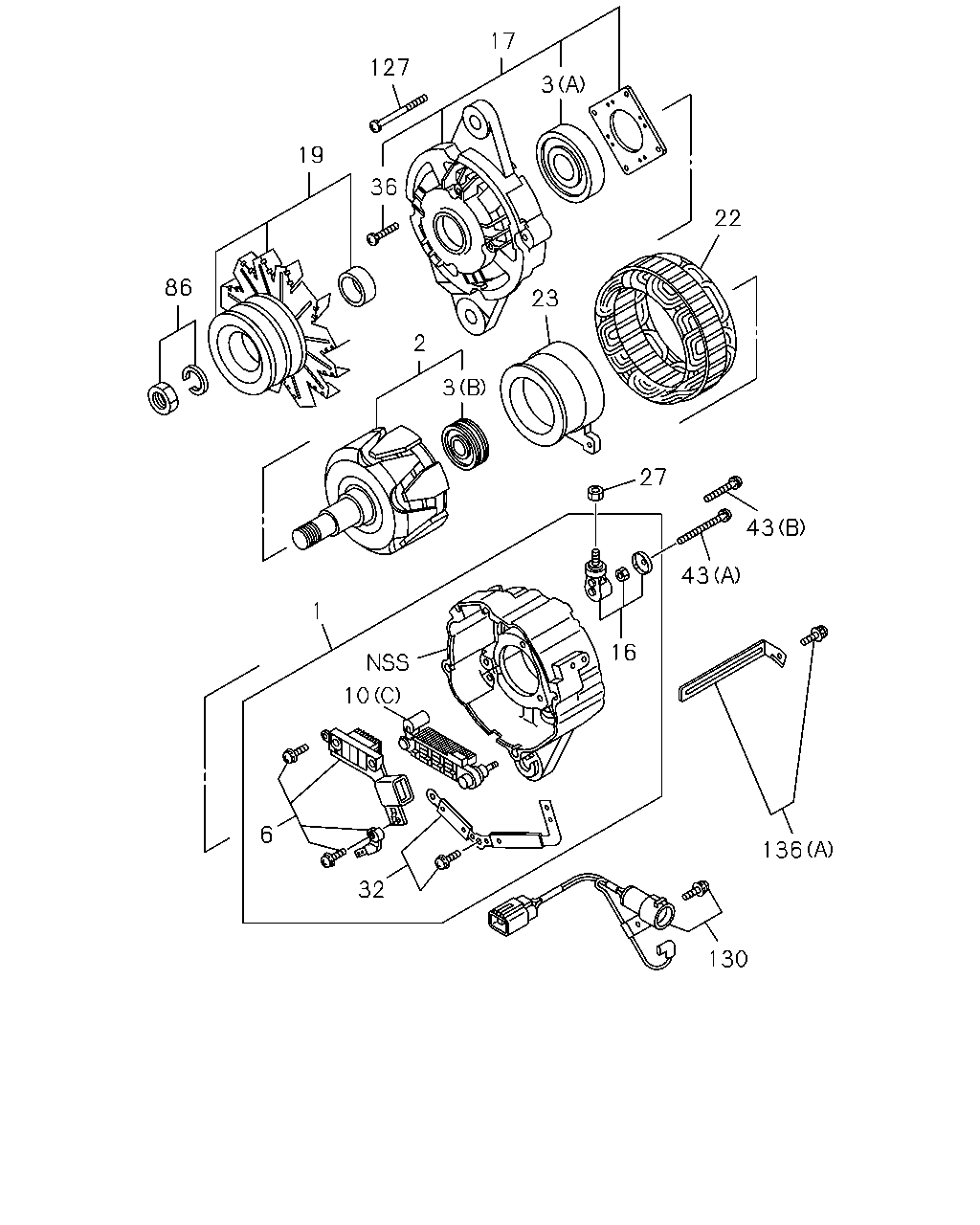

17 127 3 19 36 22 86 23 2 3 27 43 43 1 16 10 6 136 32 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98140-793-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-498-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98127-499-0	8-98140-797-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98169-360-2	8-98181-100-0	01	1	1512-
1	COVER ASM; RR,GEN ASM PART: D = 8-98169-360-2	8-98181-100-0	01	1	-1512
2	ROTOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-498-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98127-499-0	1-81221-106-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98169-360-2	8-98040-638-0	01	1	-1512
2	ROTOR; GEN ASM PART: D = 8-98169-360-2	8-98040-638-0	01	1	1512-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98169-360-2	1-81229-723-0	01	1	-1512
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98169-360-2	1-81229-723-0	01	1	1512-
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98169-360-2	1-81229-758-0	01	1	-1512
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98169-360-2	1-81229-758-0	01	1	1512-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98169-360-2	8-98040-688-0	01	1	1512-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98169-360-2	8-98040-688-0	01	1	-1512
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-498-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-079-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-98127-499-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (D) ASM PART: B = 8-98127-498-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-082-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 8-98127-499-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 8-98127-499-0	8-98047-084-0	01	1	-
10	RECTIFIER; GEN (E) ASM PART: D = 8-98169-360-2	8-98181-102-0	01	1	-1512
10	RECTIFIER; GEN (E) ASM PART: D = 8-98169-360-2	8-98335-685-0	01	1	1512-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-98127-499-0	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98140-794-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-98127-498-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98127-499-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-498-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98169-360-2	8-97382-872-0	01	1	1512-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98169-360-2	8-97382-872-0	01	1	-1512
19	PULLEY; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81222-134-1	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-498-0	1-81222-138-1	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98127-499-0	1-81222-162-3	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98169-360-2	8-98181-099-0	01	1	1512-
19	PULLEY; GEN ASM PART: D = 8-98169-360-2	8-98181-099-0	01	1	-1512
22	STATOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98127-499-0	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-498-0	1-81211-135-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98169-360-2	8-98040-640-0	01	1	1512-
22	STATOR; GEN ASM PART: D = 8-98169-360-2	8-98040-640-0	01	1	-1512
23	COIL; ROTOR GEN ASM PART: A = 8-98127-497-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 8-98127-499-0	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 8-98127-498-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98169-360-2	8-98040-645-0	01	1	-1512
23	COIL; ROTOR GEN ASM PART: D = 8-98169-360-2	8-98040-645-0	01	1	1512-
23	COIL; ROTOR GEN ASM PART: E = 8-98200-164-0	8-98200-173-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98169-360-2	8-98040-687-0	01	1	1512-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98169-360-2	8-98040-687-0	01	1	-1512
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 8-98127-498-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-088-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: C = 8-98127-499-0	8-98047-089-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-814-0	01	1	-
43	SCREW; RR END COVER (C) ASM PART: D = 8-98169-360-2	1-81229-476-0	03	1	-1512
43	SCREW; RR END COVER (C) ASM PART: D = 8-98169-360-2	1-81229-476-0	03	1	1512-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-817-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: C = 8-98127-499-0	1-81229-892-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 8-98127-498-0	8-98022-107-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: B = 8-98127-498-0	1-81229-897-0	01	1	-

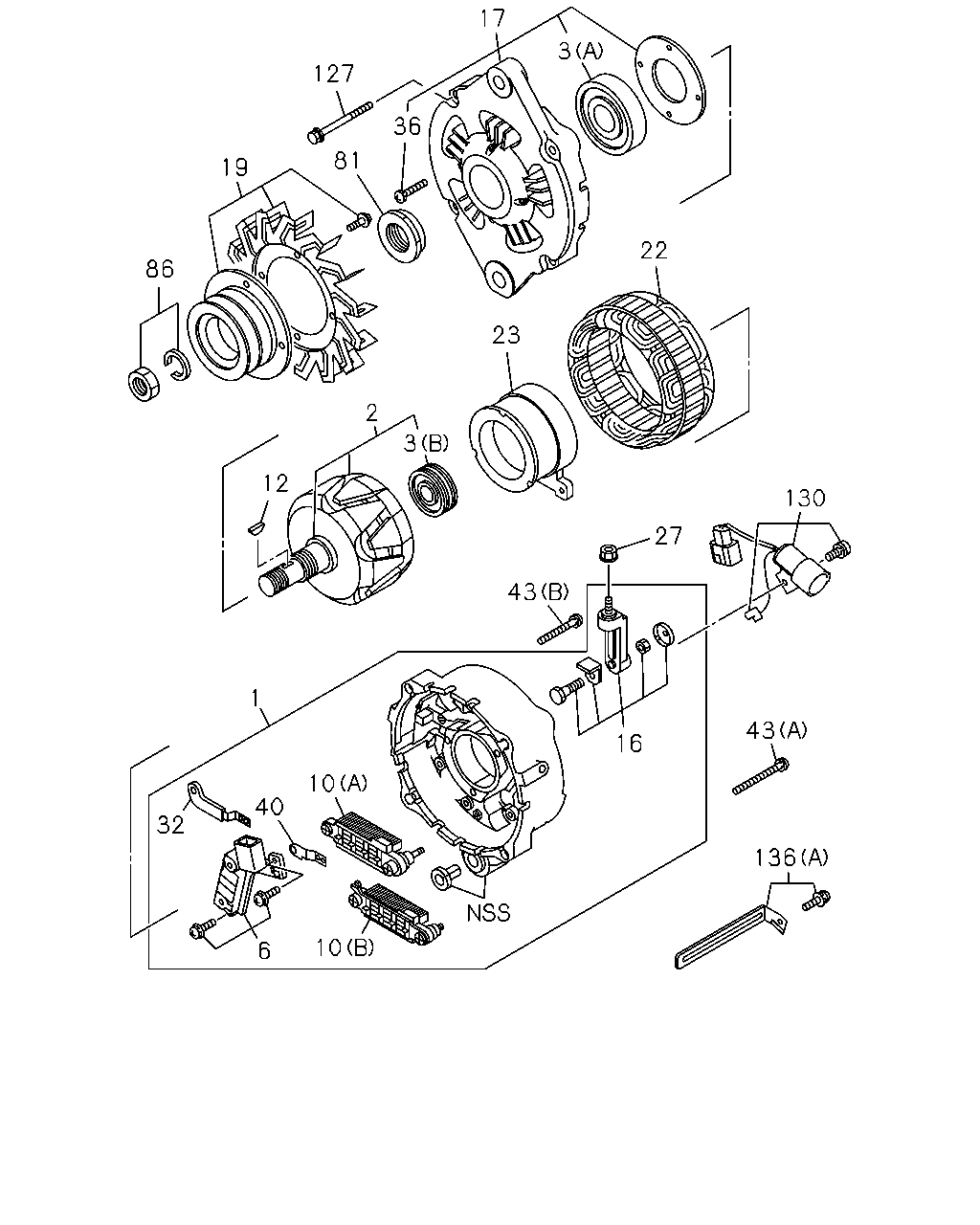

86 19 127 22 81 36 12 3 17 1 3 2 130 6 32 23 136 40 10 27 43 136 65 43 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98140-793-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-498-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98127-499-0	8-98140-797-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98169-360-2	8-98181-100-0	01	1	1512-
1	COVER ASM; RR,GEN ASM PART: D = 8-98169-360-2	8-98181-100-0	01	1	-1512
2	ROTOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-498-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98127-499-0	1-81221-106-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98169-360-2	8-98040-638-0	01	1	-1512
2	ROTOR; GEN ASM PART: D = 8-98169-360-2	8-98040-638-0	01	1	1512-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98169-360-2	1-81229-723-0	01	1	-1512
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98169-360-2	1-81229-723-0	01	1	1512-
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98169-360-2	1-81229-758-0	01	1	-1512
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98169-360-2	1-81229-758-0	01	1	1512-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98169-360-2	8-98040-688-0	01	1	1512-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98169-360-2	8-98040-688-0	01	1	-1512
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-498-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-079-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-98127-499-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (D) ASM PART: B = 8-98127-498-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-082-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 8-98127-499-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 8-98127-499-0	8-98047-084-0	01	1	-
10	RECTIFIER; GEN (E) ASM PART: D = 8-98169-360-2	8-98181-102-0	01	1	-1512
10	RECTIFIER; GEN (E) ASM PART: D = 8-98169-360-2	8-98335-685-0	01	1	1512-
12	KEY; ROTOR,GEN ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-98127-499-0	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98140-794-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-98127-498-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98127-499-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-498-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98169-360-2	8-97382-872-0	01	1	1512-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98169-360-2	8-97382-872-0	01	1	-1512
19	PULLEY; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81222-134-1	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-498-0	1-81222-138-1	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98127-499-0	1-81222-162-3	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98169-360-2	8-98181-099-0	01	1	1512-
19	PULLEY; GEN ASM PART: D = 8-98169-360-2	8-98181-099-0	01	1	-1512
22	STATOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98127-499-0	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-498-0	1-81211-135-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98169-360-2	8-98040-640-0	01	1	1512-
22	STATOR; GEN ASM PART: D = 8-98169-360-2	8-98040-640-0	01	1	-1512
23	COIL; ROTOR GEN ASM PART: A = 8-98127-497-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 8-98127-499-0	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 8-98127-498-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98169-360-2	8-98040-645-0	01	1	-1512
23	COIL; ROTOR GEN ASM PART: D = 8-98169-360-2	8-98040-645-0	01	1	1512-
23	COIL; ROTOR GEN ASM PART: E = 8-98200-164-0	8-98200-173-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98169-360-2	8-98040-687-0	01	1	1512-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98169-360-2	8-98040-687-0	01	1	-1512
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 8-98127-498-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-088-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: C = 8-98127-499-0	8-98047-089-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: C = 8-98127-499-0	1-81222-163-0	01	1	-
40	PLATE; RR COVER ASM PART: B = 8-98127-498-0	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (C) ASM PART: D = 8-98169-360-2	1-81229-476-0	03	1	-1512
43	SCREW; RR END COVER (C) ASM PART: D = 8-98169-360-2	1-81229-476-0	03	1	1512-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-817-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 8-98127-498-0	1-84132-016-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-813-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 8-98169-360-2	8-97382-870-0	02	1	-1512
81	SPACER; ROTOR,GEN ASM PART: D = 8-98169-360-2	8-97382-870-0	02	1	1512-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: C = 8-98127-499-0	1-81229-892-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 8-98127-498-0	8-98022-107-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: B = 8-98127-498-0	1-81229-897-0	01	1	-

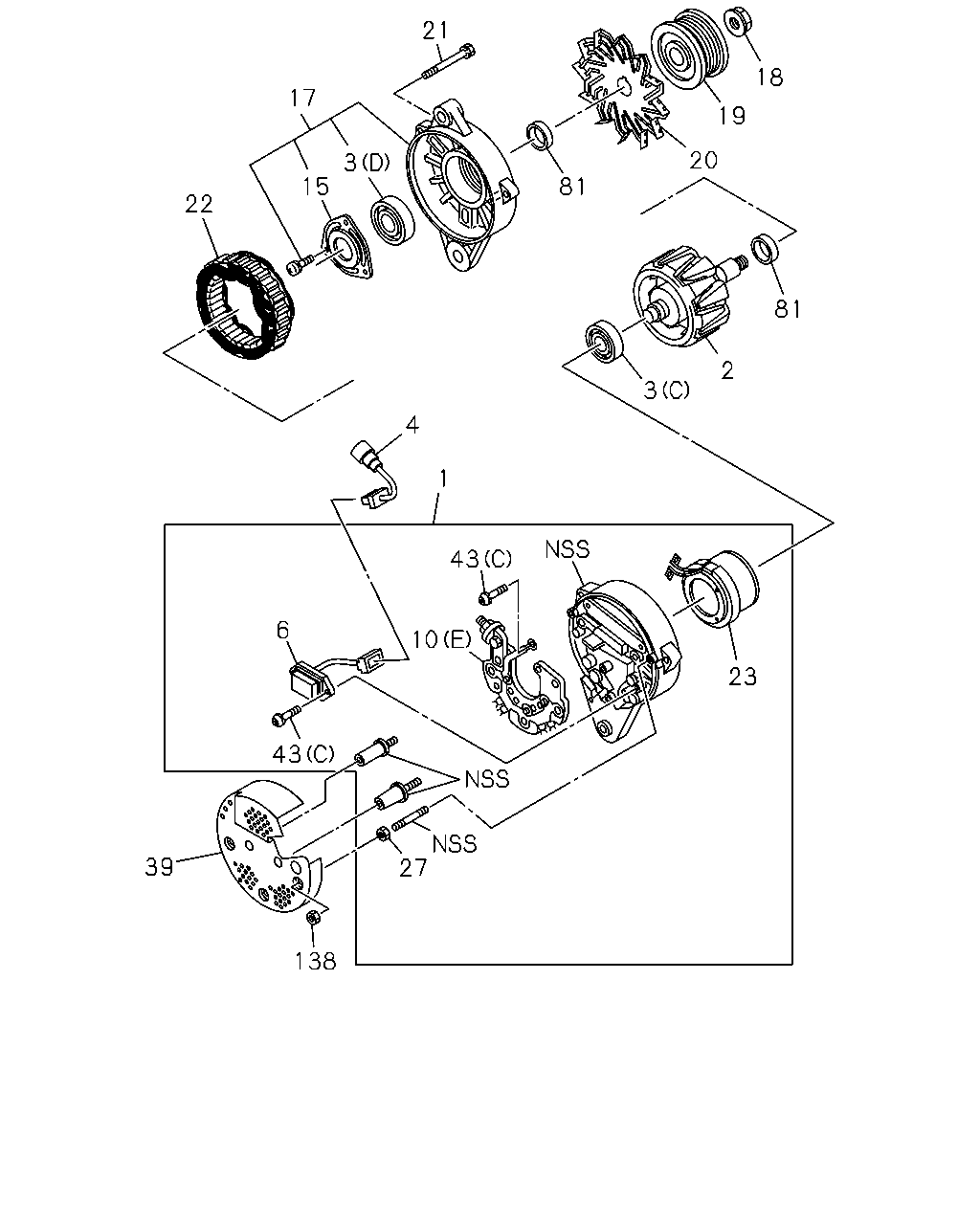

21 18 17 19 20 3 15 81 22 81 2 3 4 1 43 6 10 23 43 27 39 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98140-793-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-498-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98127-499-0	8-98140-797-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98169-360-2	8-98181-100-0	01	1	1512-
1	COVER ASM; RR,GEN ASM PART: D = 8-98169-360-2	8-98181-100-0	01	1	-1512
2	ROTOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-498-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98127-499-0	1-81221-106-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98169-360-2	8-98040-638-0	01	1	-1512
2	ROTOR; GEN ASM PART: D = 8-98169-360-2	8-98040-638-0	01	1	1512-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98169-360-2	1-81229-723-0	01	1	-1512
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98169-360-2	1-81229-723-0	01	1	1512-
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98169-360-2	1-81229-758-0	01	1	-1512
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98169-360-2	1-81229-758-0	01	1	1512-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-816-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: D = 8-98169-360-2	8-98181-104-0	01	1	-1512
4	TERMINAL; BRUSH,GEN ASM PART: D = 8-98169-360-2	8-98181-104-0	01	1	1512-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98169-360-2	8-98040-688-0	01	1	1512-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98169-360-2	8-98040-688-0	01	1	-1512
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-498-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-079-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-98127-499-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (D) ASM PART: B = 8-98127-498-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-082-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 8-98127-499-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 8-98127-499-0	8-98047-084-0	01	1	-
10	RECTIFIER; GEN (E) ASM PART: D = 8-98169-360-2	8-98181-102-0	01	1	-1512
10	RECTIFIER; GEN (E) ASM PART: D = 8-98169-360-2	8-98335-685-0	01	1	1512-
15	RETAINER; ROTOR,GEN ASM PART: D = 8-98169-360-2	1-81229-760-1	01	1	1512-
15	RETAINER; ROTOR,GEN ASM PART: D = 8-98169-360-2	1-81229-760-1	01	1	-1512
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98127-499-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-498-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98169-360-2	8-97382-872-0	01	1	1512-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98169-360-2	8-97382-872-0	01	1	-1512
18	NUT; PULLEY,GEN ASM PART: D = 8-98169-360-2	8-98040-643-0	01	1	-1512
18	NUT; PULLEY,GEN ASM PART: D = 8-98169-360-2	8-98040-643-0	01	1	1512-
19	PULLEY; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81222-134-1	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-498-0	1-81222-138-1	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98127-499-0	1-81222-162-3	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98169-360-2	8-98181-099-0	01	1	1512-
19	PULLEY; GEN ASM PART: D = 8-98169-360-2	8-98181-099-0	01	1	-1512
20	FAN; GEN ASM PART: D = 8-98169-360-2	8-97382-874-0	01	1	1512-
20	FAN; GEN ASM PART: D = 8-98169-360-2	8-97382-874-0	01	1	-1512
21	BOLT; THROUGH,GEN ASM PART: D = 8-98169-360-2	1-81229-382-0	03	1	-1512
21	BOLT; THROUGH,GEN ASM PART: D = 8-98169-360-2	1-81229-382-0	03	1	1512-
22	STATOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98127-499-0	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-498-0	1-81211-135-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98169-360-2	8-98040-640-0	01	1	1512-
22	STATOR; GEN ASM PART: D = 8-98169-360-2	8-98040-640-0	01	1	-1512
23	COIL; ROTOR GEN ASM PART: A = 8-98127-497-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: C = 8-98127-499-0	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 8-98127-498-0	1-81212-031-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98169-360-2	8-98040-645-0	01	1	-1512
23	COIL; ROTOR GEN ASM PART: D = 8-98169-360-2	8-98040-645-0	01	1	1512-
23	COIL; ROTOR GEN ASM PART: E = 8-98200-164-0	8-98200-173-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98169-360-2	8-98040-687-0	01	1	1512-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98169-360-2	8-98040-687-0	01	1	-1512
39	COVER; END,RR COVER,GEN ASM PART: D = 8-98169-360-2	8-98181-103-0	01	1	-1512
39	COVER; END,RR COVER,GEN ASM PART: D = 8-98169-360-2	8-98181-103-0	01	1	1512-
43	SCREW; RR END COVER (C) ASM PART: D = 8-98169-360-2	1-81229-476-0	03	1	-1512
43	SCREW; RR END COVER (C) ASM PART: D = 8-98169-360-2	1-81229-476-0	03	1	1512-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-817-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-813-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 8-98169-360-2	8-97382-870-0	02	1	-1512
81	SPACER; ROTOR,GEN ASM PART: D = 8-98169-360-2	8-97382-870-0	02	1	1512-
138	NUT; COVER,GENERATOR ASM PART: D = 8-98169-360-2	8-98040-690-0	03	1	1512-
138	NUT; COVER,GENERATOR ASM PART: D = 8-98169-360-2	8-98040-690-0	03	1	-1512

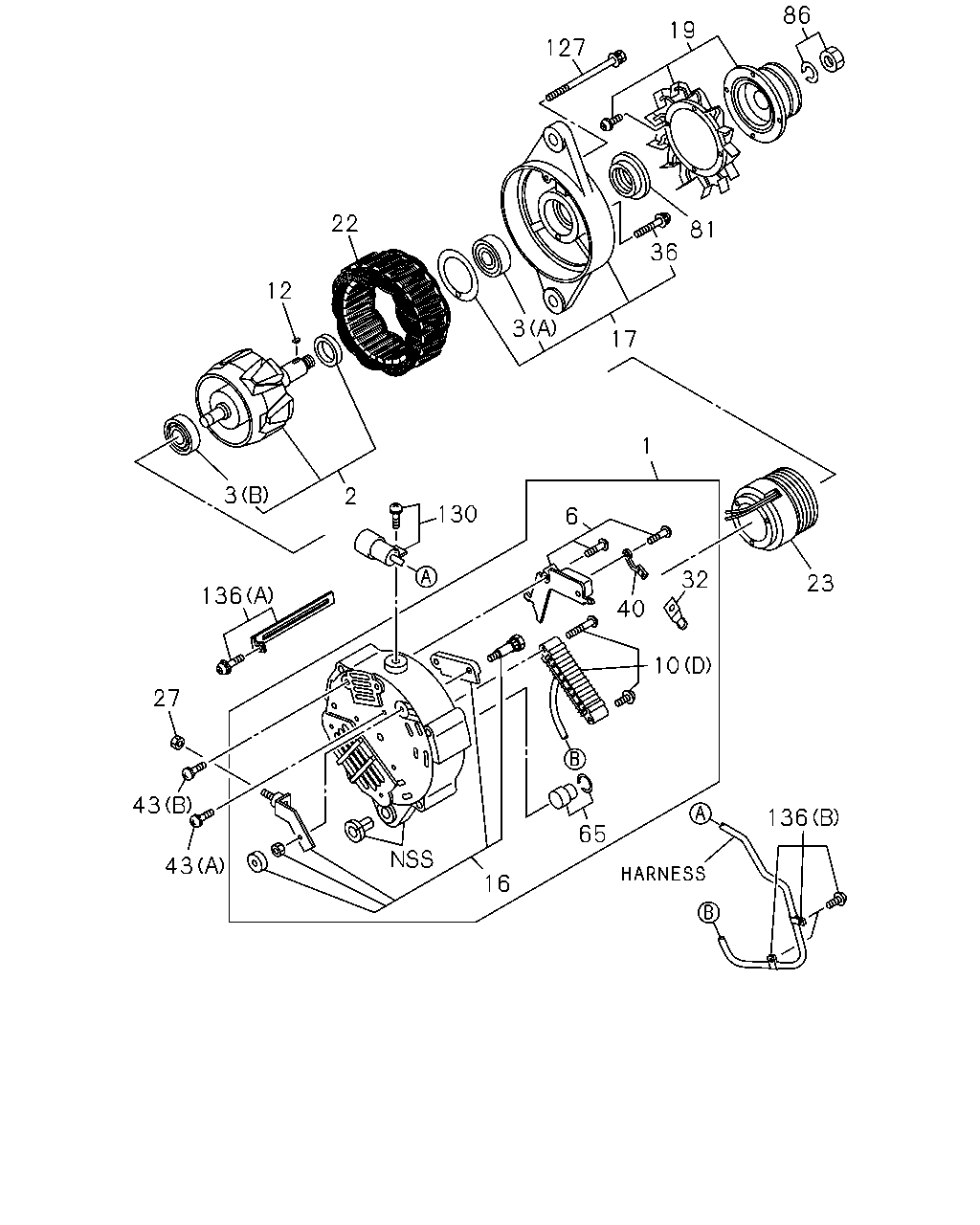

17 3 127 36 81 19 22 86 2 2 3 12 130 27 43 1 43 16 10 40 32 136 10 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98140-793-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-498-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98127-499-0	8-98140-797-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98169-360-2	8-98181-100-0	01	1	1512-
1	COVER ASM; RR,GEN ASM PART: D = 8-98169-360-2	8-98181-100-0	01	1	-1512
2	ROTOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-498-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98127-499-0	1-81221-106-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98169-360-2	8-98040-638-0	01	1	-1512
2	ROTOR; GEN ASM PART: D = 8-98169-360-2	8-98040-638-0	01	1	1512-
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98169-360-2	1-81229-723-0	01	1	-1512
3	BEARING; ROTOR,GEN (C) ASM PART: D = 8-98169-360-2	1-81229-723-0	01	1	1512-
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98169-360-2	1-81229-758-0	01	1	-1512
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-98169-360-2	1-81229-758-0	01	1	1512-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98169-360-2	8-98040-688-0	01	1	1512-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98169-360-2	8-98040-688-0	01	1	-1512
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-498-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-079-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-98127-499-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (D) ASM PART: B = 8-98127-498-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-082-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 8-98127-499-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: C = 8-98127-499-0	8-98047-084-0	01	1	-
10	RECTIFIER; GEN (E) ASM PART: D = 8-98169-360-2	8-98181-102-0	01	1	-1512
10	RECTIFIER; GEN (E) ASM PART: D = 8-98169-360-2	8-98335-685-0	01	1	1512-
12	KEY; ROTOR,GEN ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-98127-499-0	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98140-794-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-98127-498-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98127-499-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-498-0	1-81213-116-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98169-360-2	8-97382-872-0	01	1	1512-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98169-360-2	8-97382-872-0	01	1	-1512
19	PULLEY; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81222-134-1	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-498-0	1-81222-138-1	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98127-499-0	1-81222-162-3	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98169-360-2	8-98181-099-0	01	1	1512-
19	PULLEY; GEN ASM PART: D = 8-98169-360-2	8-98181-099-0	01	1	-1512
22	STATOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98127-499-0	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-498-0	1-81211-135-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98169-360-2	8-98040-640-0	01	1	1512-
22	STATOR; GEN ASM PART: D = 8-98169-360-2	8-98040-640-0	01	1	-1512
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-821-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98169-360-2	8-98040-687-0	01	1	1512-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98169-360-2	8-98040-687-0	01	1	-1512
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 8-98127-498-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	8-98047-088-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: C = 8-98127-499-0	8-98047-089-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: C = 8-98127-499-0	1-81222-163-0	01	1	-
40	PLATE; RR COVER ASM PART: B = 8-98127-498-0	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (C) ASM PART: D = 8-98169-360-2	1-81229-476-0	03	1	-1512
43	SCREW; RR END COVER (C) ASM PART: D = 8-98169-360-2	1-81229-476-0	03	1	1512-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-817-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-813-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 8-98169-360-2	8-97382-870-0	02	1	-1512
81	SPACER; ROTOR,GEN ASM PART: D = 8-98169-360-2	8-97382-870-0	02	1	1512-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 8-98127-498-0, C = 8-98127-499-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 8-98127-497-0, E = 8-98200-164-0	1-81229-776-0	01	1	-
130	CONNECTOR; GEN ASM PART: C = 8-98127-499-0	1-81229-892-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 8-98127-498-0	8-98022-107-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-497-0, B = 8-98127-498-0, C = 8-98127-499-0, E = 8-98200-164-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: B = 8-98127-498-0	1-81229-897-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
