7-70 — SEPARATER AND BED (#7061) — 41 parça

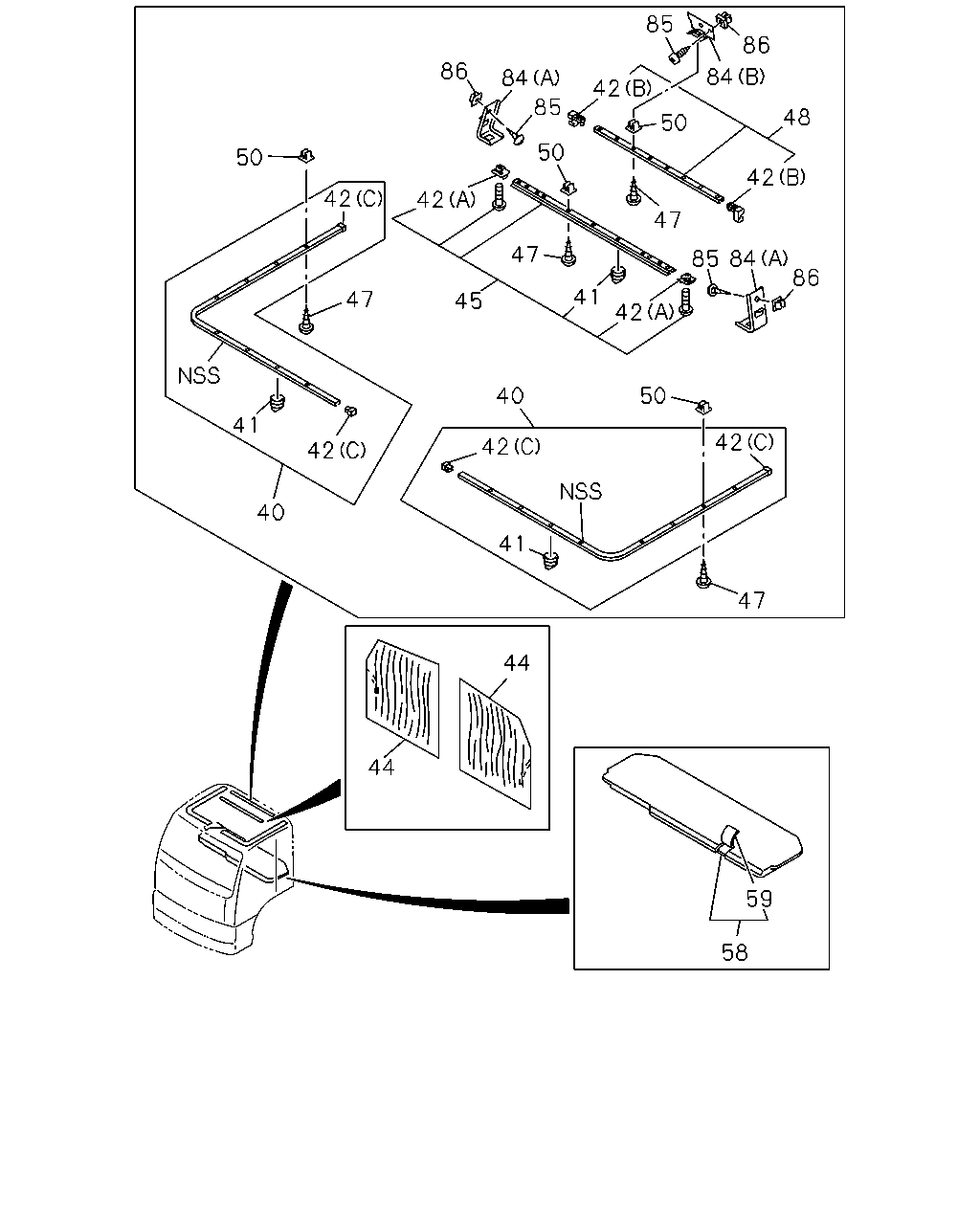

85 86 86 84 84 42 85 48 50 50 50 42 42 42 47 47 85 84 86 41 47 45 42 40 50 41 42 42 42 40 41 47 44 44 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE	1-73907-424-0	01	1	9908-
40	RAIL; CURTAIN,SIDE	1-73907-423-0	01	1	9908-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	14	1	9908-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9908-
42	STOPPER; CURTAIN RAIL (C)	1-73908-193-0	04	1	9908-
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9908-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-0	01	1	9908-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-0	01	1	9908-
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-379-5	01	1	9908-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-420-0	01	1	9908-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	32	1	9908-
48	RAIL; CURTAIN,BACK	1-73996-279-0	01	1	9908-0008
48	RAIL; CURTAIN,BACK	1-73908-111-0	01	1	0009-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5	8-94279-078-0	32	1	9908-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-828-3	01	1	9908-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-997-0	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-862-1	01	1	9908-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-086-0	01	1	0004-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9908-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9908-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	9908-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	09	1	9908-

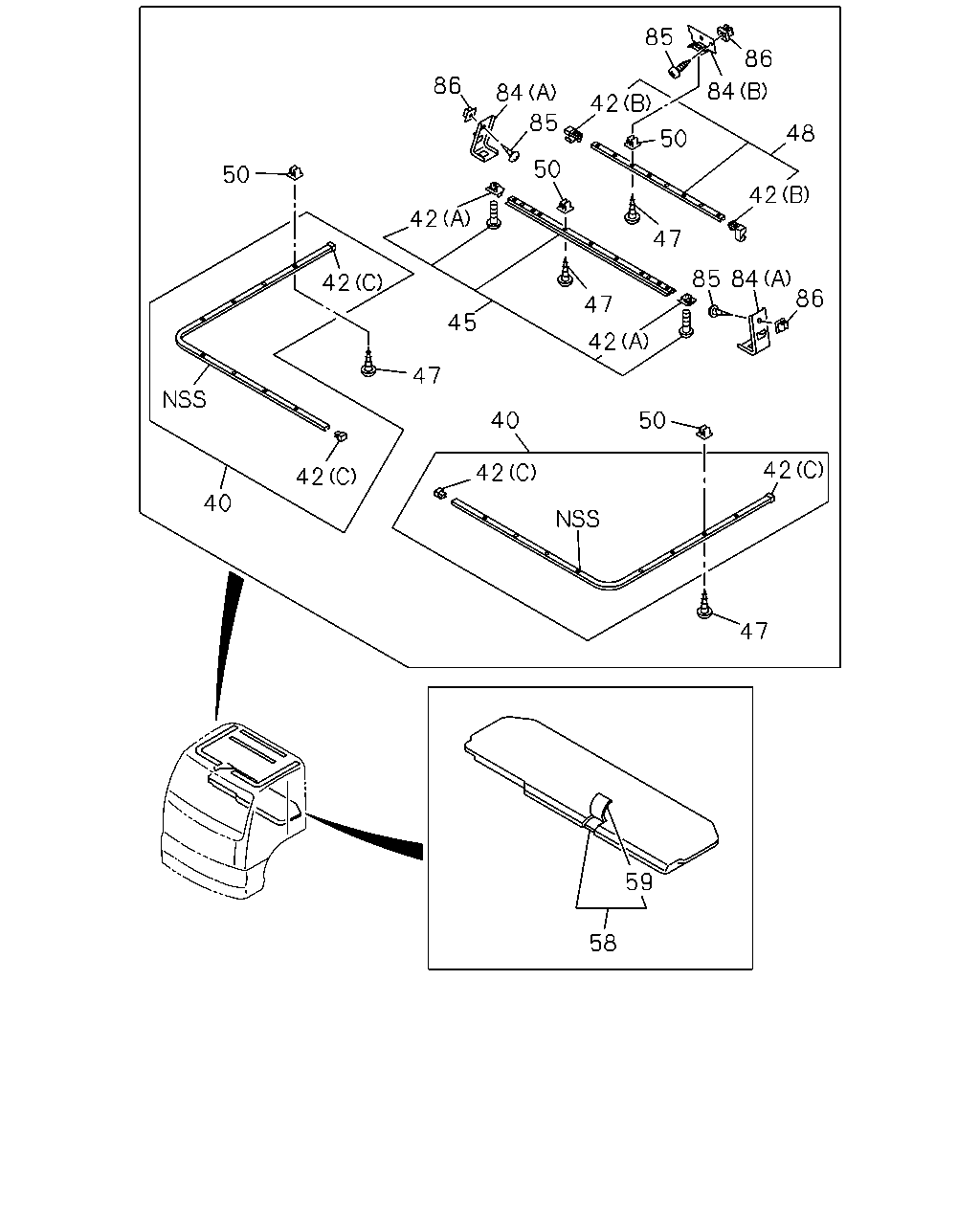

85 86 86 84 84 42 85 48 50 50 50 42 42 47 85 84 86 42 47 45 42 47 50 40 42 42 42 40 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE	1-73907-424-0	01	1	9908-
40	RAIL; CURTAIN,SIDE	1-73907-423-0	01	1	9908-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9908-
42	STOPPER; CURTAIN RAIL (C)	1-73908-193-0	04	1	9908-
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9908-
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-379-5	01	1	9908-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-420-0	01	1	9908-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	32	1	9908-
48	RAIL; CURTAIN,BACK	1-73996-279-0	01	1	9908-0008
48	RAIL; CURTAIN,BACK	1-73908-111-0	01	1	0009-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5	8-94279-078-0	32	1	9908-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-828-3	01	1	9908-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-997-0	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-862-1	01	1	9908-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-086-0	01	1	0004-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9908-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9908-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	9908-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	09	1	9908-
