Isuzu WW
▶
TRUCKS
▶
FXR
▶
11314 - FXR/GXR(AUST)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#70607) — 28 parça
◀

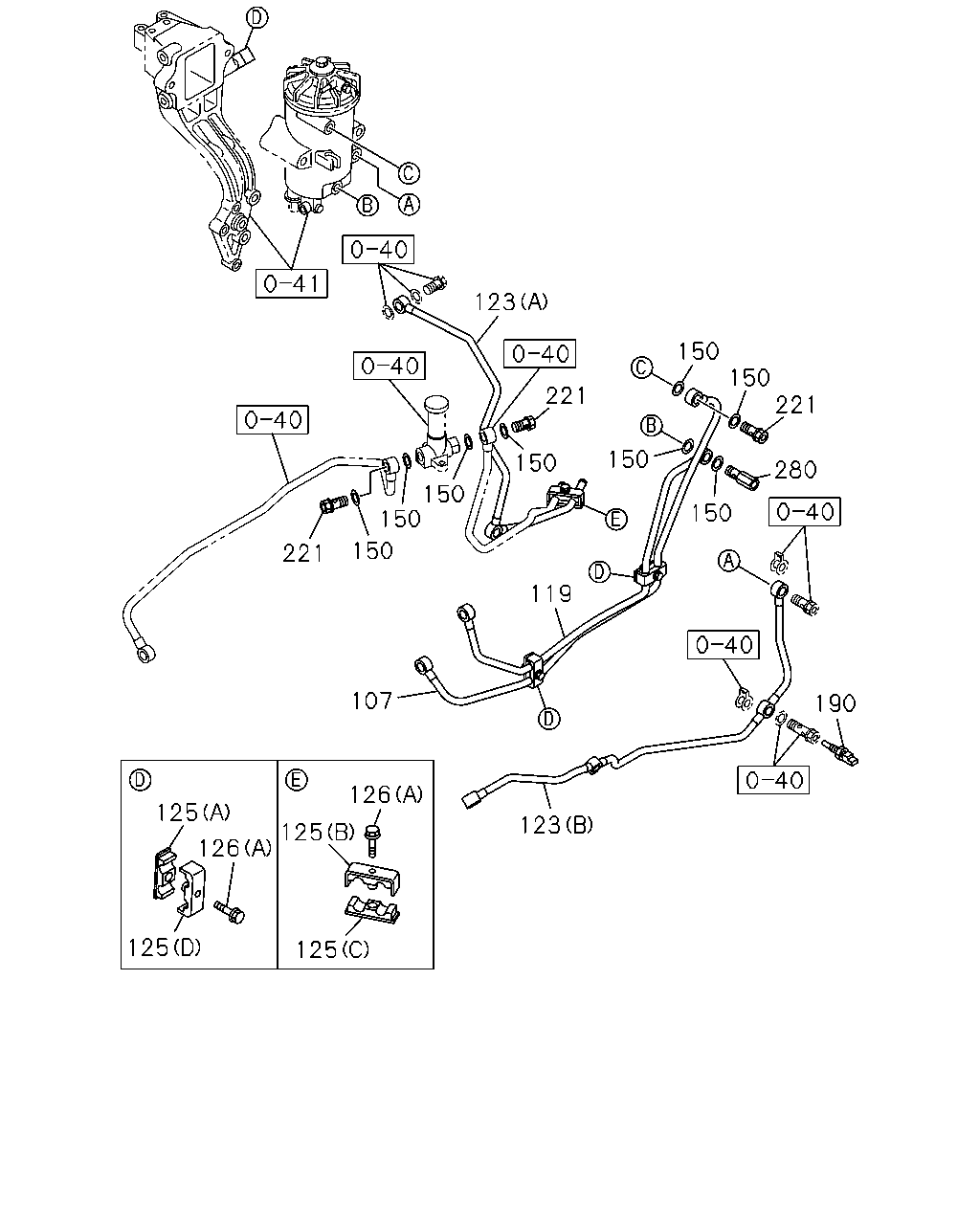

[042A] PIPING (16 parça)

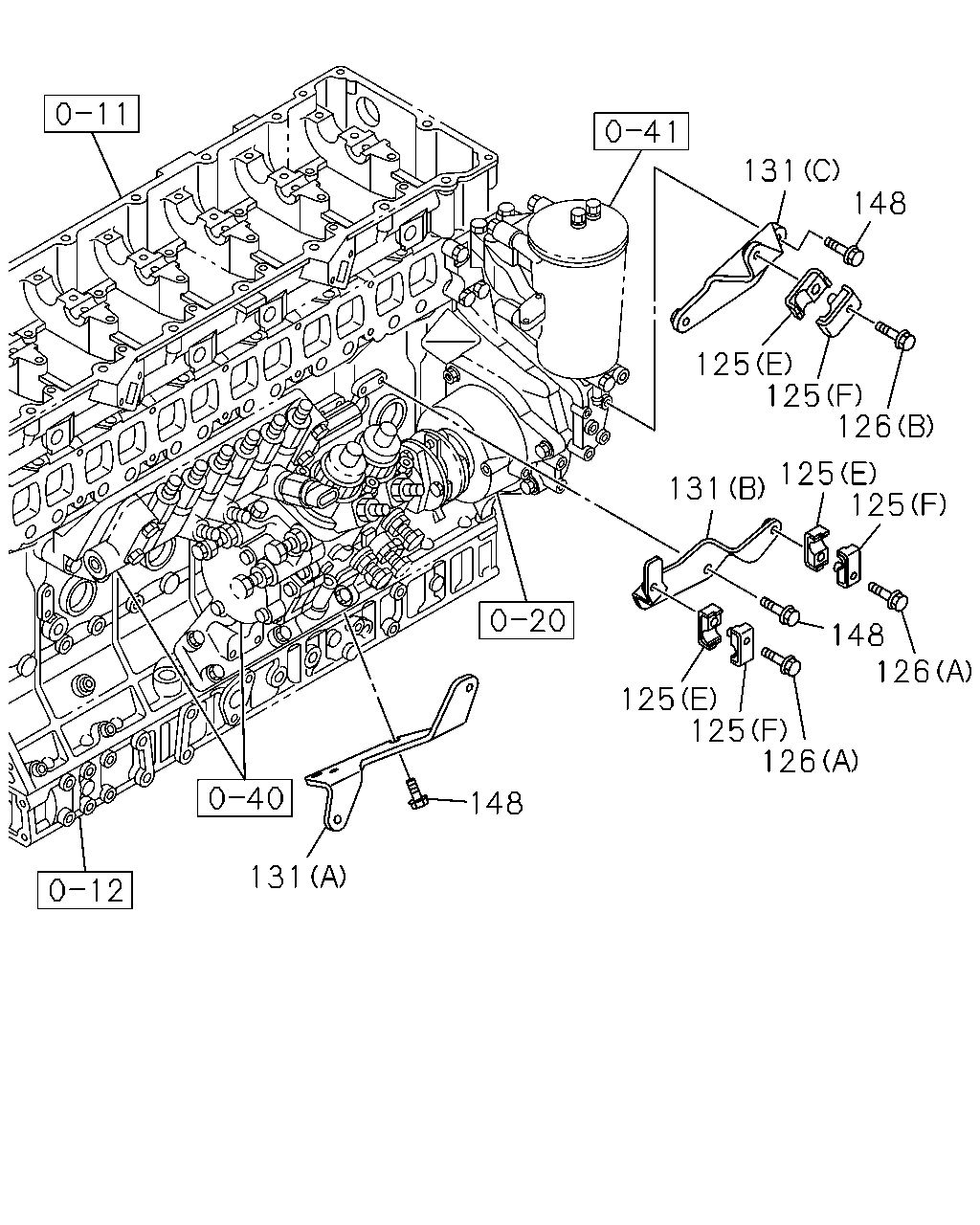

[042A] BRACKET (12 parça)
▶
123
150
150
221
221
150
150
280
150
150
150
150
221
119
107
190
126
125
123
125
126
125
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97627-768-0
01
1
1009-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97624-138-0
01
1
1009-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97619-458-0
01
1
1009-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-98098-885-0
01
1
1009-
125
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
03
1
1009-
125
CLIP; FUEL PIPE
(B) ID=9 & 11 L=28
1-09701-193-1
01
1
1009-
125
CLIP; FUEL PIPE
(C) ID=9 & 11 L=28
1-09701-194-1
01
1
1009-
125
CLIP; FUEL PIPE
(D) ID=9 & 9 L=25
8-94393-280-3
03
1
1009-
125
CLIP; FUEL PIPE
(E) ID=8 L=14
8-98060-970-0
03
1
1009-
125
CLIP; FUEL PIPE
(F) ID=8 L=14
8-98060-971-0
03
1
1009-
126
BOLT; CLIP,FUEL PIPE
(A) M6X35 FLANGE
0-28650-635-0
06
1
1009-
126
BOLT; CLIP,FUEL PIPE
(B) M6X40 FLANGE
0-28650-640-0
01
1
1009-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
08
1
1009-
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
1009-
221
BOLT; FUEL PIPE
M14X27 FLANGE
1-09675-086-0
03
1
1009-
280
ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT
1-15419-716-1
01
1
1009-
131
148
125
125
126
125
125
131
148
126
125
125
126
148
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
125
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
03
1
1009-
125
CLIP; FUEL PIPE
(B) ID=9 & 11 L=28
1-09701-193-1
01
1
1009-
125
CLIP; FUEL PIPE
(C) ID=9 & 11 L=28
1-09701-194-1
01
1
1009-
125
CLIP; FUEL PIPE
(D) ID=9 & 9 L=25
8-94393-280-3
03
1
1009-
125
CLIP; FUEL PIPE
(E) ID=8 L=14
8-98060-970-0
03
1
1009-
125
CLIP; FUEL PIPE
(F) ID=8 L=14
8-98060-971-0
03
1
1009-
126
BOLT; CLIP,FUEL PIPE
(A) M6X35 FLANGE
0-28650-635-0
06
1
1009-
126
BOLT; CLIP,FUEL PIPE
(B) M6X40 FLANGE
0-28650-640-0
01
1
1009-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97605-982-1
01
1
1009-
131
BRACKET; FUEL PIPE CLIP
(C)
8-97624-140-0
01
1
1009-
131
BRACKET; FUEL PIPE CLIP
(A)
8-97624-141-0
01
1
1009-
148
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
07
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
