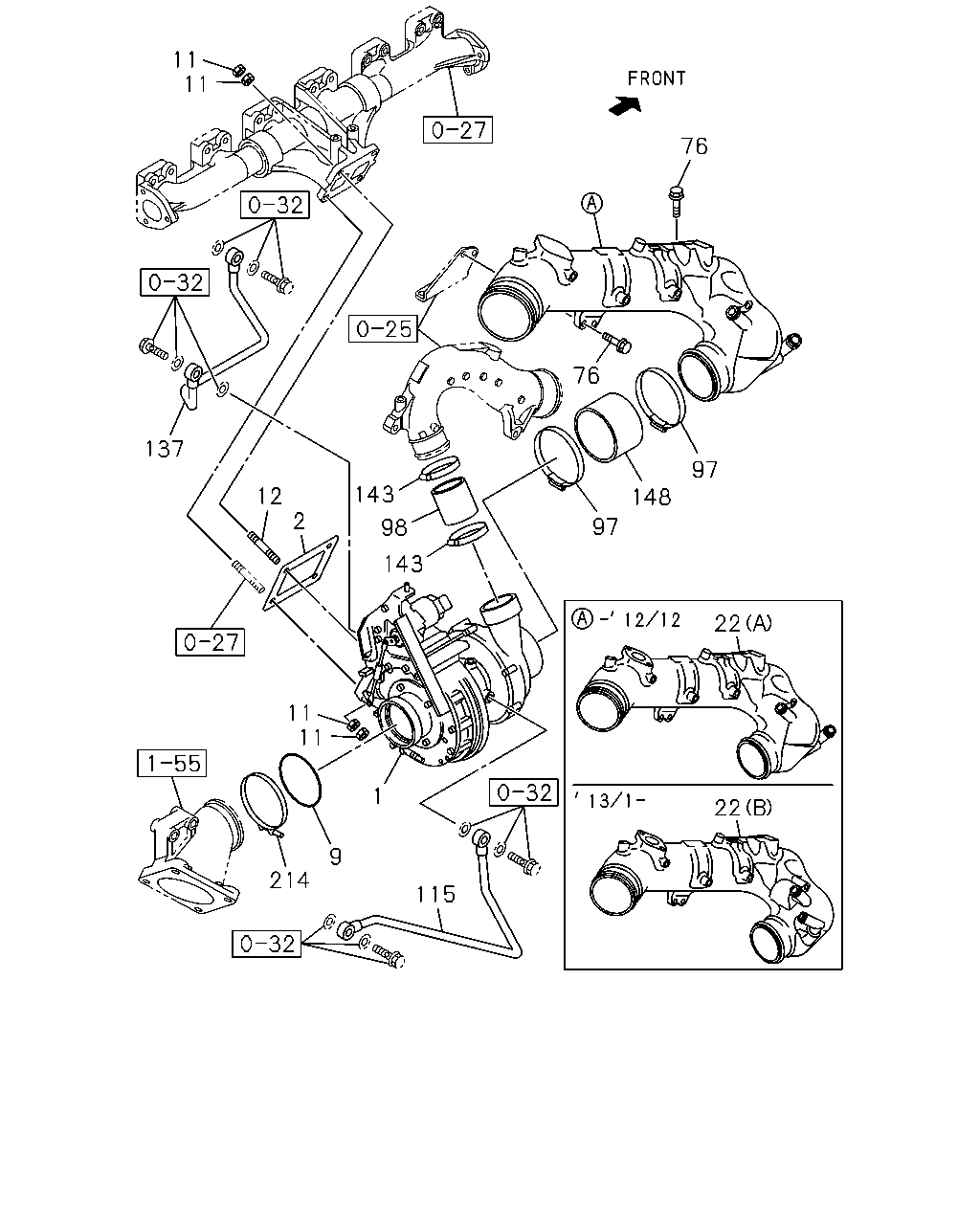

0-36 — TURBOCHARGER SYSTEM (#70602) — 16 parça

11 11 137 12 2 11 11 1 9 214 115 143 143 98 97 148 97 76 76 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM	1-14400-461-7	01	1	1009-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98162-161-0	01	1	1009-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84	8-97618-761-1	01	1	1009-
11	NUT; TURBOCHARGER M10	1-09420-005-0	08	1	1009-
12	STUD; TURBOCHARGER M10X25 L=47	8-97378-071-0	02	1	1009-
22	DUCT; INL,ACL TO TURBOCHARGER (A)	8-98121-701-3	01	1	1009-1212
22	DUCT; INL,ACL TO TURBOCHARGER (B)	8-98231-860-0	01	1	1301-
76	BOLT; AIR DUCT M10X45 FLANGE	0-28151-045-0	03	1	1009-
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-138-0	02	1	1009-
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=63.6 L=64	8-98169-677-0	01	1	1009-
115	PIPE; WATER,TURBOCHARGER OUT	8-97605-217-0	01	1	1009-
137	PIPE; WATER,TURBOCHARGER IN	8-97607-435-0	01	1	1009-
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=68-85	8-98096-592-0	02	1	1009-
148	HOSE; TURBOCHARGER,INL ID=101.6 OD=111.6 L=70	1-09360-913-0	01	1	1009-
214	BAND; "V",TURBOCHARGER TO EXH PIPE	8-98006-007-1	01	1	1009-

309

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	309	BOLT; TURBOCHARGER M6X20 FLANGE	0-28650-620-0	02	1	1009-
