Isuzu WW
▶
TRUCKS
▶
FXR
▶
11314 - FXR/GXR(AUST)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#70601) — 21 parça
◀

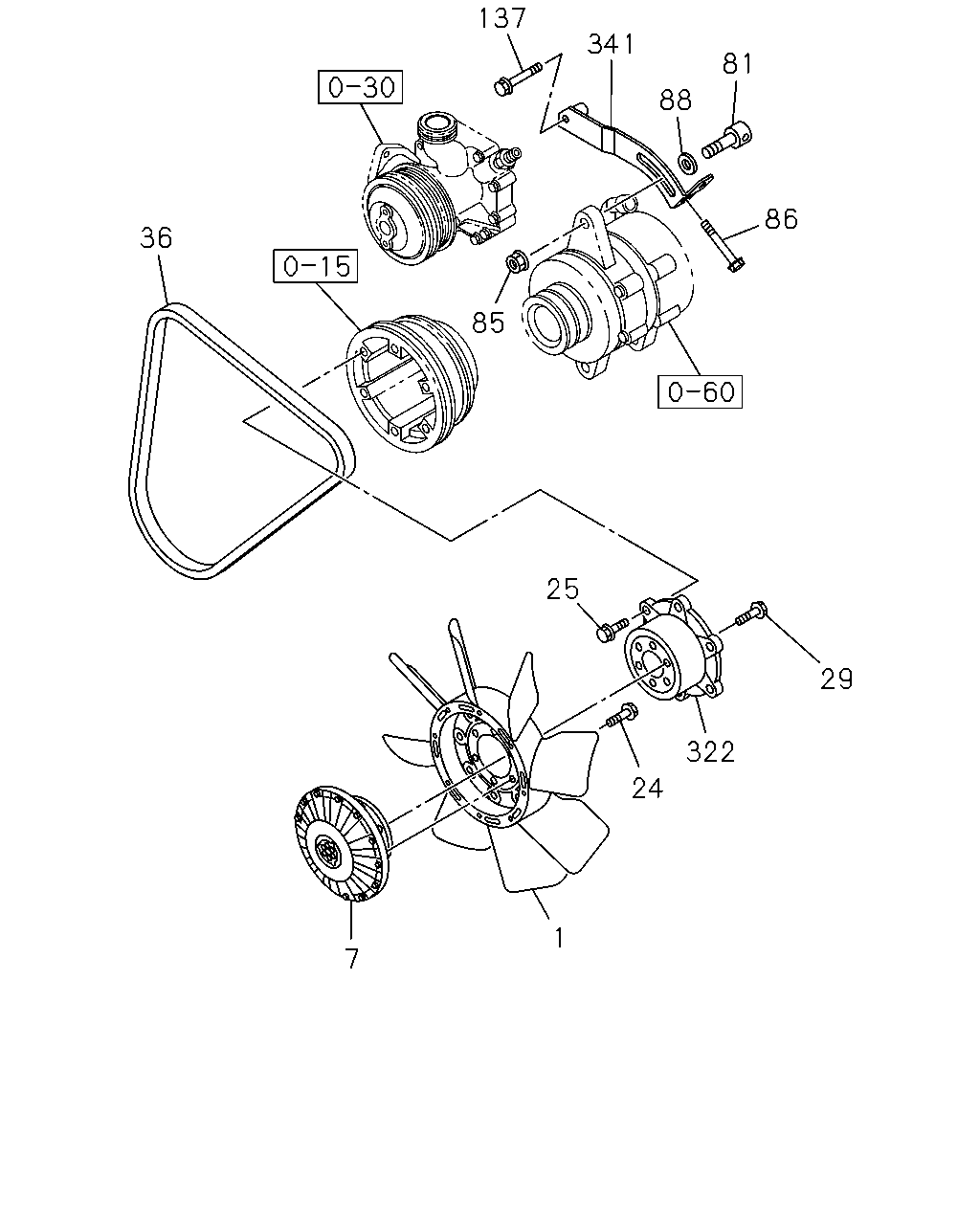

[033A] FAN AND COUPLING (20 parça)

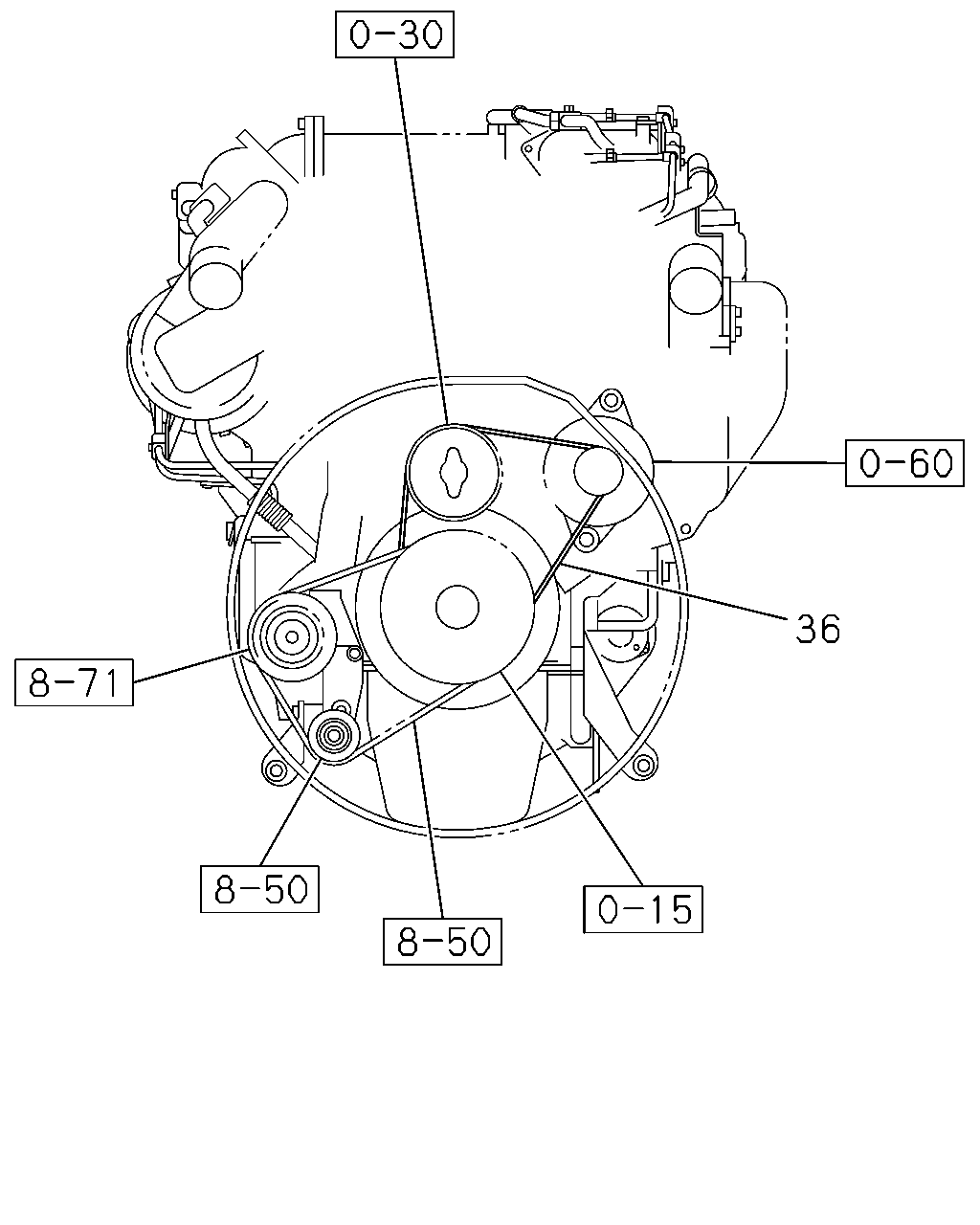

[033A] FAN BELT (1 parça)
▶
137
341
81
88
86
36
85
25
29
322
24
1
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
OD=700
1-13660-286-1
01
1
1009-1510
1
FAN; COOLING
OD=700
8-98296-792-0
01
1
1511-
7
COUPLING; FAN
8-98071-042-0
01
1
1009-
24
BOLT; FAN
M10X16 FLANGE
0-28161-016-0
06
1
1009-
25
BOLT; ADAPTER
M10X30 FLANGE
0-28161-030-0
06
1
1009-
29
BOLT; COUPLING TO WATER PUMP
M10X75 FLANGE
8-94399-669-1
06
1
1009-
36
BELT; COOLING FAN
L=1241 MITSUBOSHI
8-97603-284-0
01
1
1009-
81
PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X45
1-13674-160-0
01
1
1009-1203
81
PIECE; SLIDING
GENERATOR 24V60A(KG2) M12X45
1-13674-160-0
01
1
1204-
81
PIECE; SLIDING
GENERATOR 24V90A(K44) M12X59
1-13674-161-0
01
1
1009-
85
NUT; AC GEN
M12 FLANGE
0-91180-112-0
01
1
1009-
86
BOLT; ADJ
M10X135
1-09009-113-1
01
1
1009-
88
WASHER; PL,ADJ PLATE
ID=12.5
0-91610-712-0
01
1
1009-
137
BOLT; TENSION
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X70 FLANGE
0-28151-270-0
01
1
1009-1203
137
BOLT; TENSION
GENERATOR 24V60A(KG2) M12X70 FLANGE
0-28151-270-0
01
1
1204-
137
BOLT; TENSION
GENERATOR 24V90A(K44) M12X60 FLANGE
0-28151-260-0
01
1
1009-
322
ADAPTER; COUPLING
8-97607-150-0
01
1
1009-
341
PLATE ASM; ADJUST
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
8-97632-243-0
01
1
1009-1203
341
PLATE ASM; ADJUST
GENERATOR 24V60A(KG2)
8-97632-243-0
01
1
1204-
341
PLATE ASM; ADJUST
GENERATOR 24V90A(K44)
8-97603-825-1
01
1
1009-
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
BELT; COOLING FAN
L=1241 MITSUBOSHI
8-97603-284-0
01
1
1009-
