0-65 — STARTER (#706) — 80 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	SEAL KIT; STARTER ASM PART: B = 1-81100-295-0	1-81129-671-0	01	1	-

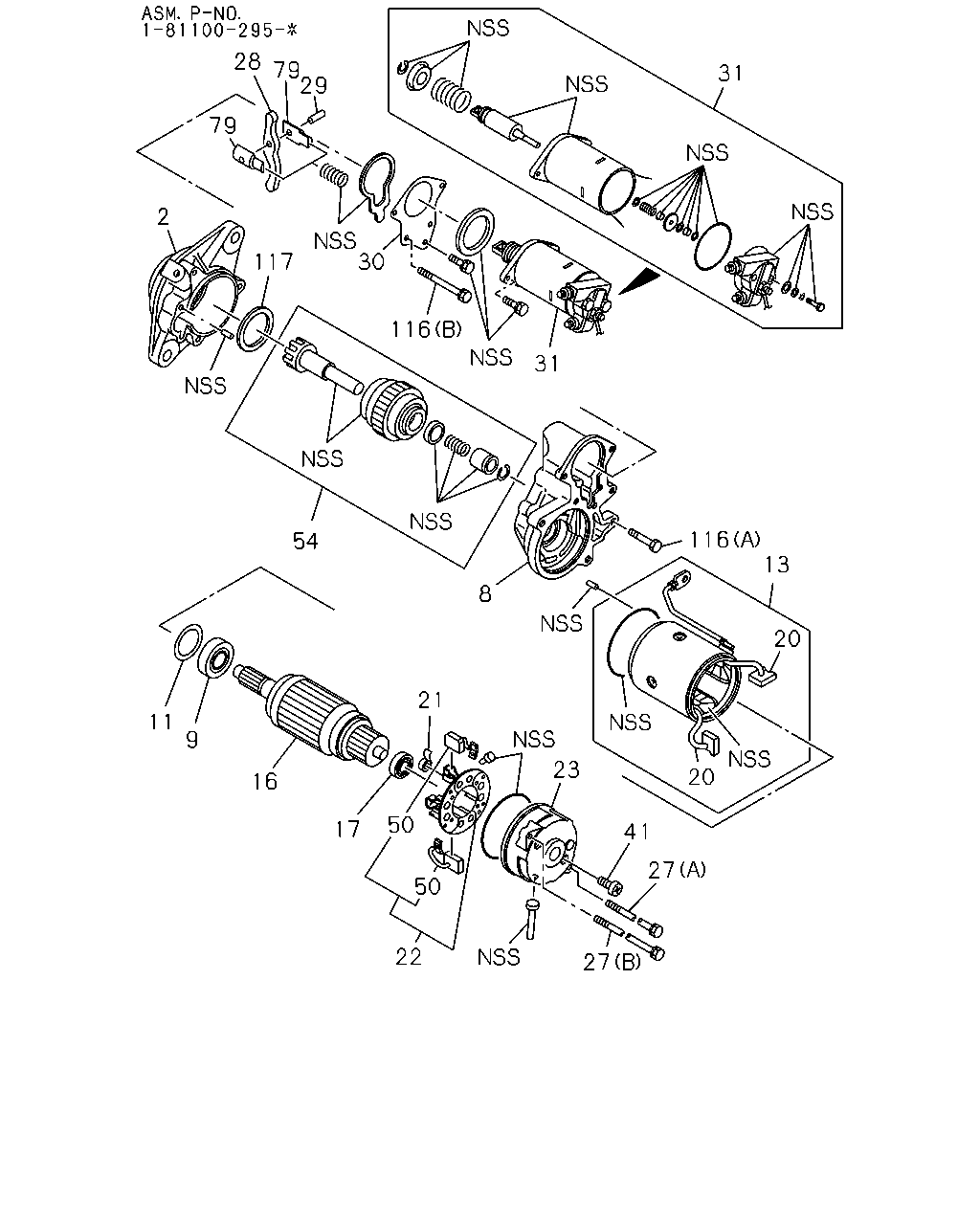

28 79 29 31 79 2 30 117 116 31 116 13 54 8 20 21 11 9 23 20 16 50 17 41 27 50 22 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-230-1	1-81114-033-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-295-0	1-81123-041-1	01	1	-
8	BRACKET; CENTER STARTER ASM PART: B = 1-81100-295-0	1-81118-052-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: B = 1-81100-295-0	8-94340-476-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: B = 1-81100-295-0	9-82125-213-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-230-1	1-81111-004-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-295-0	1-81129-704-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-230-1	1-81121-044-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-295-0	1-81121-061-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-230-1	1-81129-495-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: B = 1-81100-295-0	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-230-1	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-295-0	1-81116-057-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 1-81100-295-0	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-230-1	1-81118-043-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-295-0	1-81118-057-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-295-0	1-81115-218-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-230-1	1-81129-520-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 1-81100-230-1	1-81129-483-0	03	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-230-1	1-81129-498-0	01	1	-9402
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-230-1	1-81129-519-0	01	1	-9402
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 1-81100-295-0	1-81129-606-0	01	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 1-81100-295-0	1-81129-607-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-230-1	1-81129-675-0	01	1	9403-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-230-1	1-81129-676-0	01	1	9403-
28	LEVER; SHIFT,STARTER ASM PART: B = 1-81100-295-0	1-81127-037-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: B = 1-81100-295-0	8-94340-471-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: B = 1-81100-295-0	1-81129-670-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-230-1	1-81151-074-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-295-0	1-81151-094-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 1-81100-295-0	1-81129-602-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: B = 1-81100-295-0	1-81116-058-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-230-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-295-0	1-81129-614-0	01	1	-
79	HOLDER; SHIFT LEVER ASM PART: B = 1-81100-295-0	1-81118-051-0	02	1	-
116	BOLT; BRKT (A) ASM PART: B = 1-81100-295-0	1-81129-604-0	01	1	-
116	BOLT; BRKT (B) ASM PART: B = 1-81100-295-0	1-81129-605-0	01	1	-
117	WASHER; CLUTCH ASM PART: B = 1-81100-295-0	8-94340-468-0	01	1	-

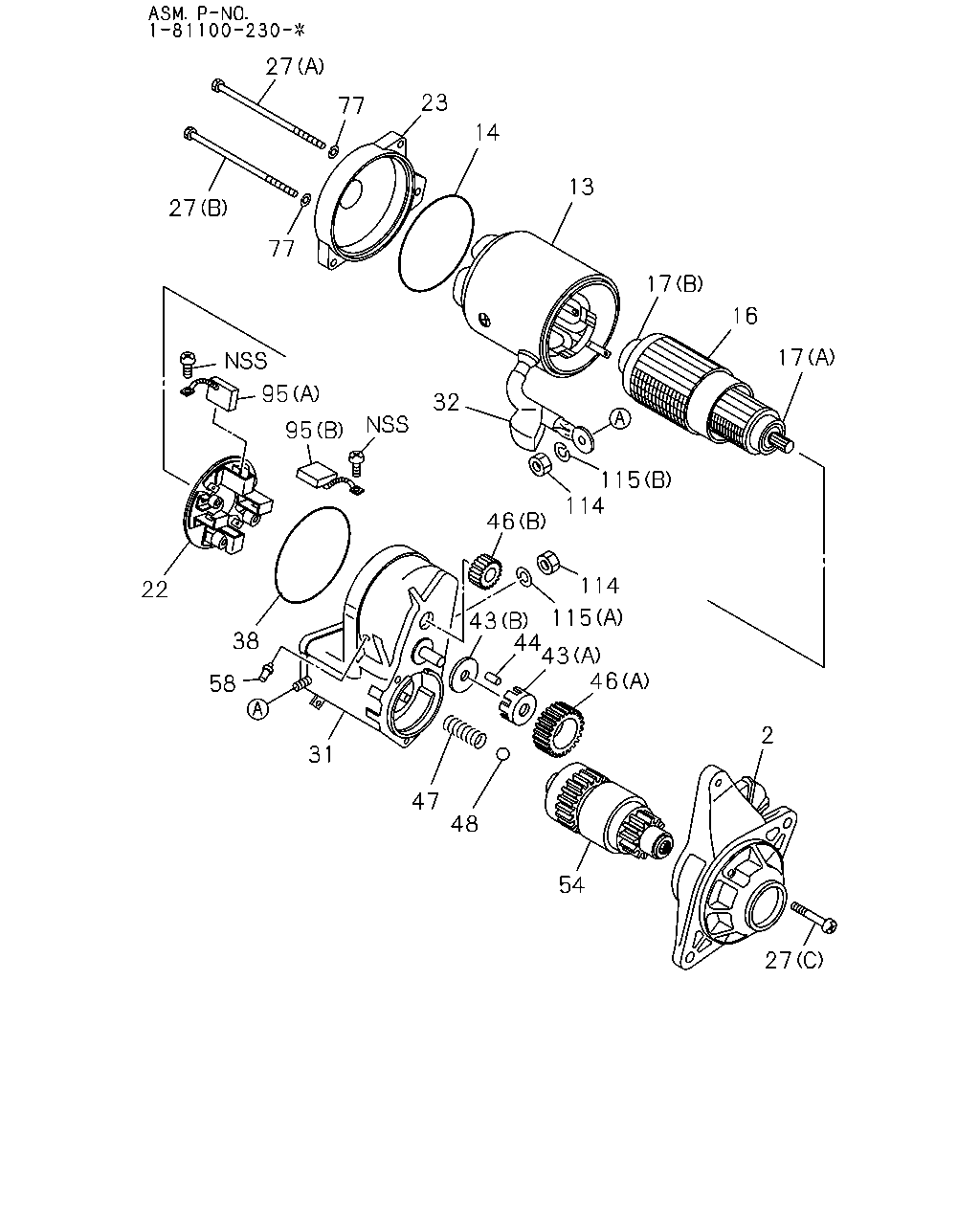

27 23 77 14 13 27 77 17 16 17 95 32 95 115 114 46 114 22 115 43 44 43 46 38 58 2 31 47 48 54 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-230-1	1-81114-033-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-295-0	1-81123-041-1	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-230-1	1-81111-004-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-295-0	1-81129-704-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 1-81100-230-1	1-81129-502-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-230-1	1-81121-044-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-295-0	1-81121-061-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-230-1	1-81129-495-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: B = 1-81100-295-0	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-230-1	5-09800-081-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-230-1	1-81118-043-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-295-0	1-81118-057-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-295-0	1-81115-218-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-230-1	1-81129-520-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 1-81100-230-1	1-81129-483-0	03	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-230-1	1-81129-498-0	01	1	-9402
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-230-1	1-81129-519-0	01	1	-9402
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 1-81100-295-0	1-81129-606-0	01	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 1-81100-295-0	1-81129-607-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-230-1	1-81129-675-0	01	1	9403-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-230-1	1-81129-676-0	01	1	9403-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-230-1	1-81151-074-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-295-0	1-81151-094-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 1-81100-230-1	1-81129-504-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 1-81100-230-1	1-81129-502-0	01	1	-
43	RETAINER; PINION STARTER (A) ASM PART: A = 1-81100-230-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: A = 1-81100-230-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-230-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER (A) ASM PART: A = 1-81100-230-1	1-81123-034-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 1-81100-230-1	1-81123-035-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 1-81100-230-1	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-230-1	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-230-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-295-0	1-81129-614-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 1-81100-230-1	1-81129-479-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER ASM PART: A = 1-81100-230-1	9-88130-033-0	02	1	-9402
95	BRUSH ASM; STARTER (+) ASM PART: A = 1-81100-230-1	1-81116-048-0	02	1	-
95	BRUSH ASM; STARTER (-) ASM PART: A = 1-81100-230-1	1-81116-049-0	02	1	-
114	NUT; TERMINAL ASM PART: A = 1-81100-230-1	5-81129-126-0	02	1	-
115	WASHER; TERMINAL (A) ASM PART: A = 1-81100-230-1	5-81129-129-0	01	1	-
115	WASHER; TERMINAL (B) ASM PART: A = 1-81100-230-1	5-81129-134-0	01	1	-
