Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#7059) — 276 parça

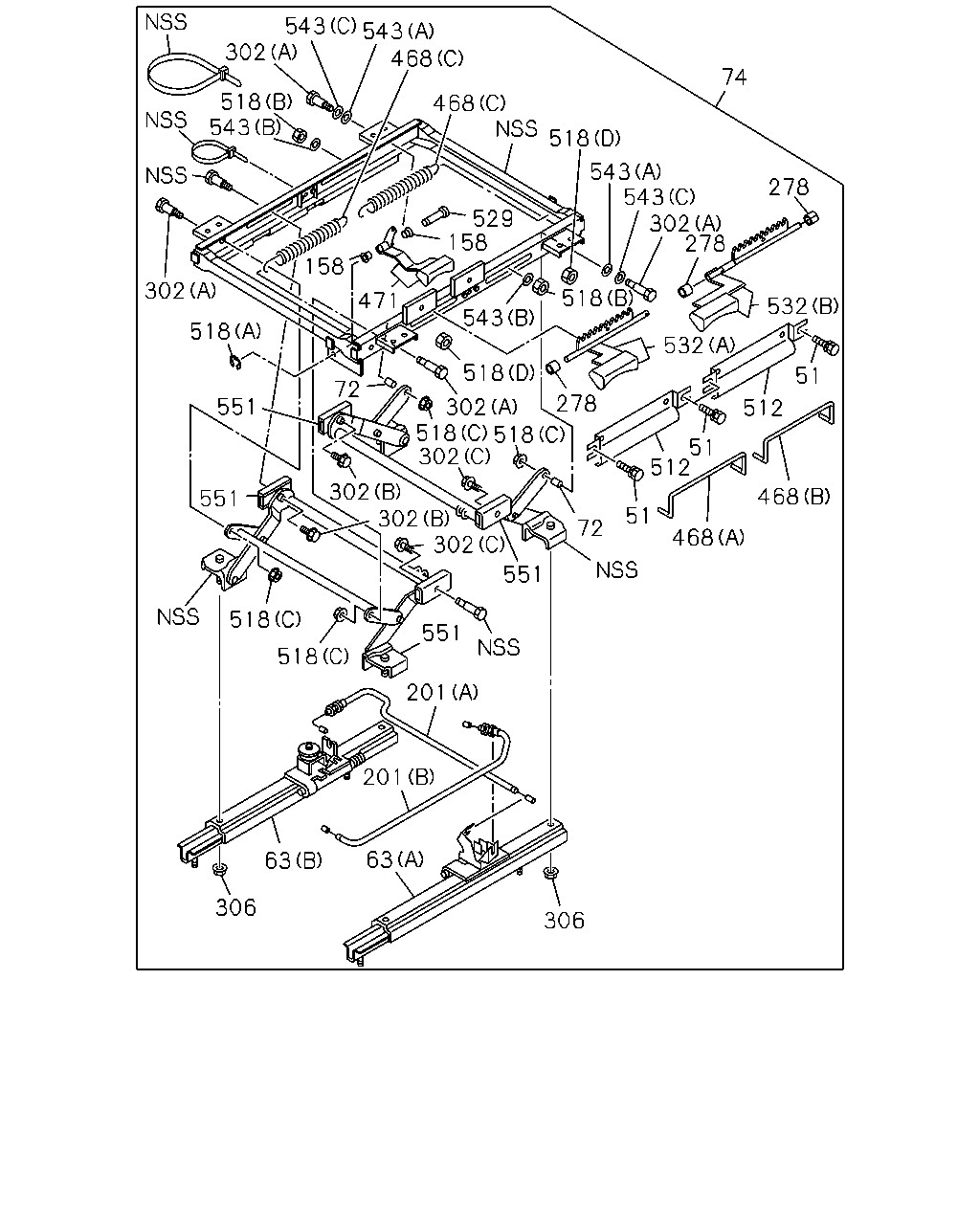

543 543 302 468 74 518 543 468 518 543 543 302 278 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER M6X12 W/LK WASHER	9-03910-612-0	04	1	9908-0102
51	SCREW; COVER	1-75518-325-0	04	1	0103-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9908-9910
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-226-0	01	1	9911-9912
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-226-0	01	1	9911-9912
63	ADJUSTER; SEAT SLIDE (B)	1-75518-295-0	01	1	9908-9912
63	ADJUSTER; SEAT SLIDE (B)	1-75518-324-0	01	1	0001-
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-0	01	1	9911-9912
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	0001-
72	SPACER; SEAT ADJ	1-75518-269-0	02	1	9908-0102
72	SPACER; SEAT ADJ	1-75518-334-0	02	1	0103-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9908-9912
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0001-0102
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-0	01	1	0103-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9908-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9908-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9908-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	9908-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-1	02	1	9908-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-0	04	1	9908-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-271-1	02	1	9908-0102
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-0	02	1	0103-
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9908-9912
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	06	1	0001-0003
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	06	1	0004-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	9908-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	9908-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	9908-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	9908-
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9908-
512	COVER; LEVER	1-75518-245-1	02	1	9908-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9908-
518	NUT; TILT ADJ (B)	1-75518-264-0	04	1	9908-
518	NUT; TILT ADJ (D)	5-09984-020-0	02	1	9908-
518	NUT; TILT ADJ (C) M8 FLANGE	8-94152-886-0	04	1	9908-
529	PIN; LINK	1-75518-262-0	01	1	9908-
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	9908-
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	9908-
543	WASHER; HEIGHT ADJUSTER (B) ID=6.4	9-09160-506-0	04	1	9908-
543	WASHER; HEIGHT ADJUSTER (A) ID=10.5	9-09164-510-0	02	1	9908-0102
543	WASHER; HEIGHT ADJUSTER (C)	1-75518-335-0	02	1	0103-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-337-0	02	1	0103-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	9908-

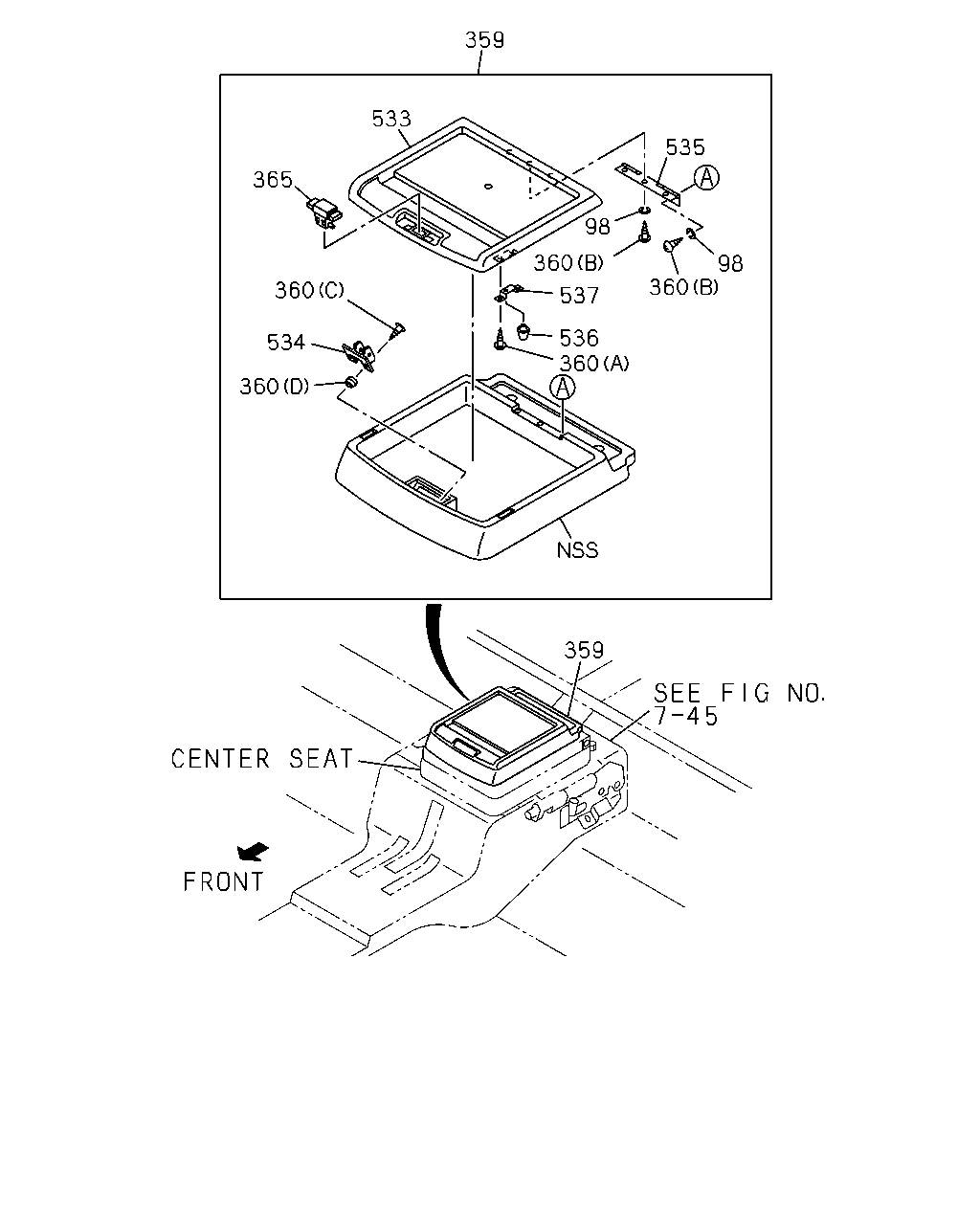

359 360 536 537 360 98 360 98 535 359 533 365 360 534 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9908-
359	BOX; PARCEL	1-72538-157-3	01	1	9908-
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9908-
360	SCREW; PARCEL (B)	0-70080-416-0	06	1	9908-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9908-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	9908-
365	LOCK ASM; SEAT	1-72538-180-0	01	1	9908-
533	LID; PARCEL BOX	1-72538-194-2	01	1	9908-
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	9908-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	9908-
536	RUBBER; CUSHION	5-09983-002-1	02	1	9908-
537	BRACKET; RUBBER	1-72548-057-1	02	1	9908-

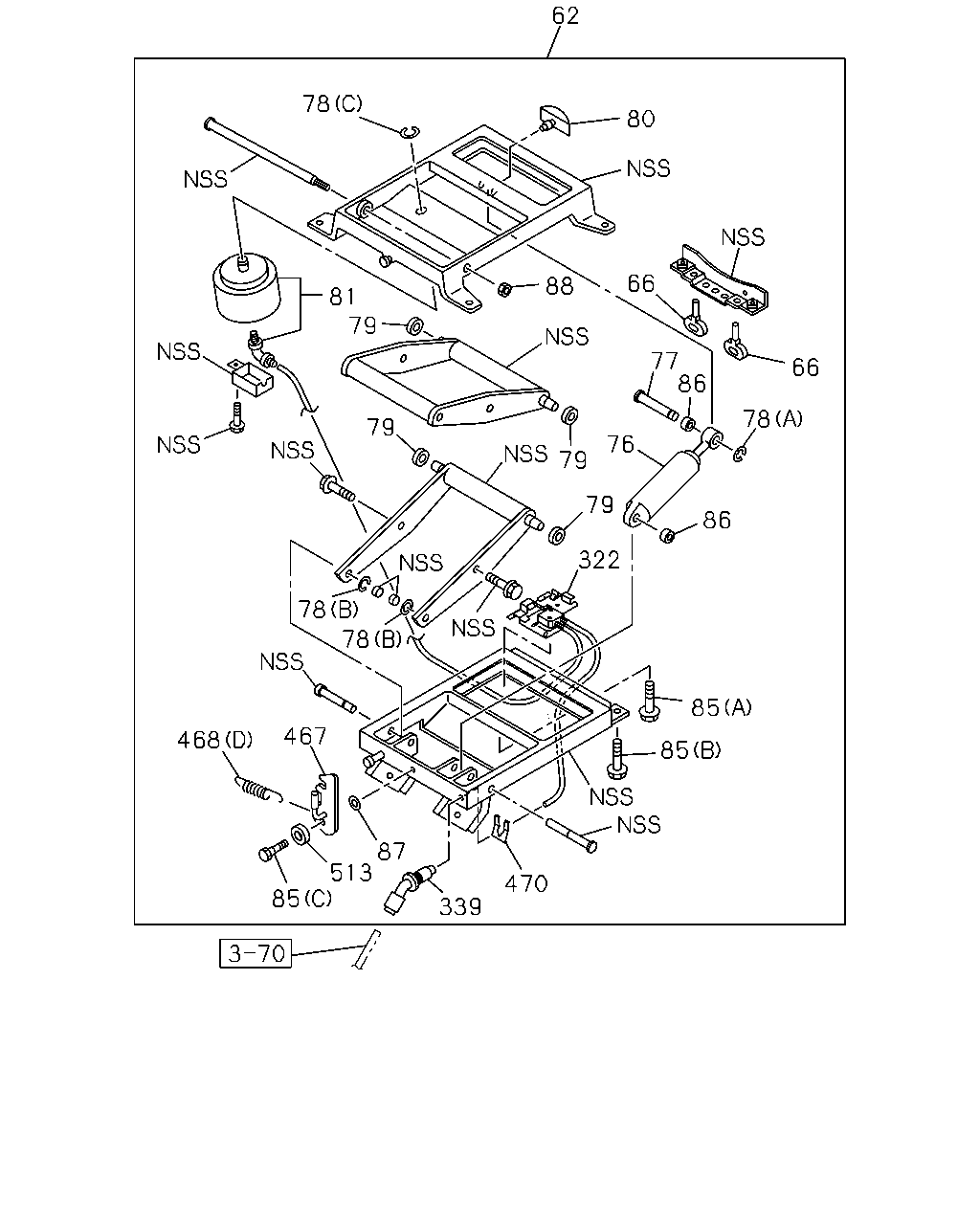

62 78 80 66 88 81 79 77 86 66 78 79 76 79 79 86 322 78 78 85 467 468 85 87 513 85 470 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-4	01	1	9908-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	9908-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	9908-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	9908-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	9908-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	9908-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	9908-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	9908-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	9908-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-1	01	1	9908-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9908-0102
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-0	02	1	0103-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9908-0003
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0004-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	9908-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9908-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	9908-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	9908-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-2	01	1	9908-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-1	01	1	9908-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	9908-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	9908-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	9908-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	9908-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	9908-
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	9908-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	9908-

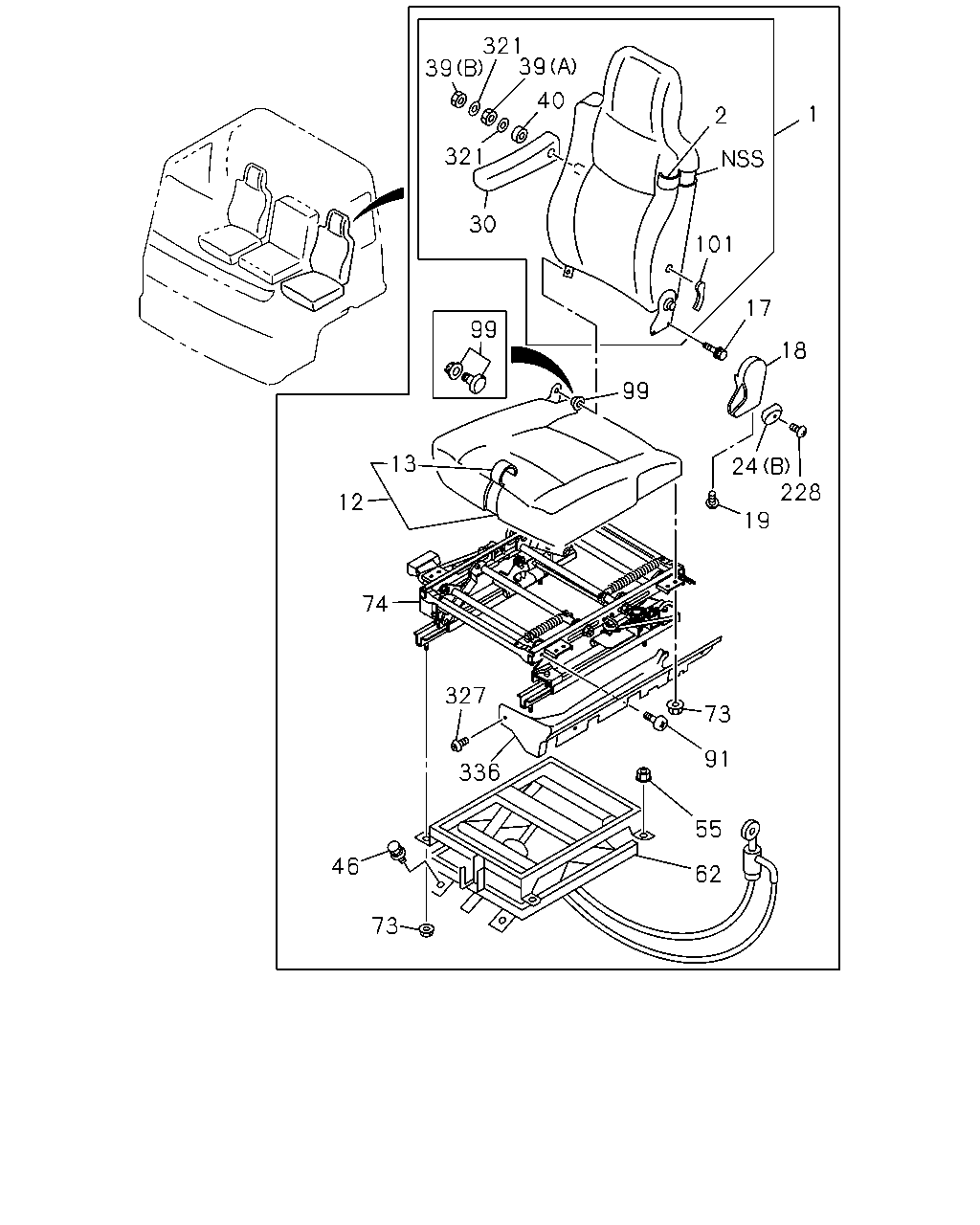

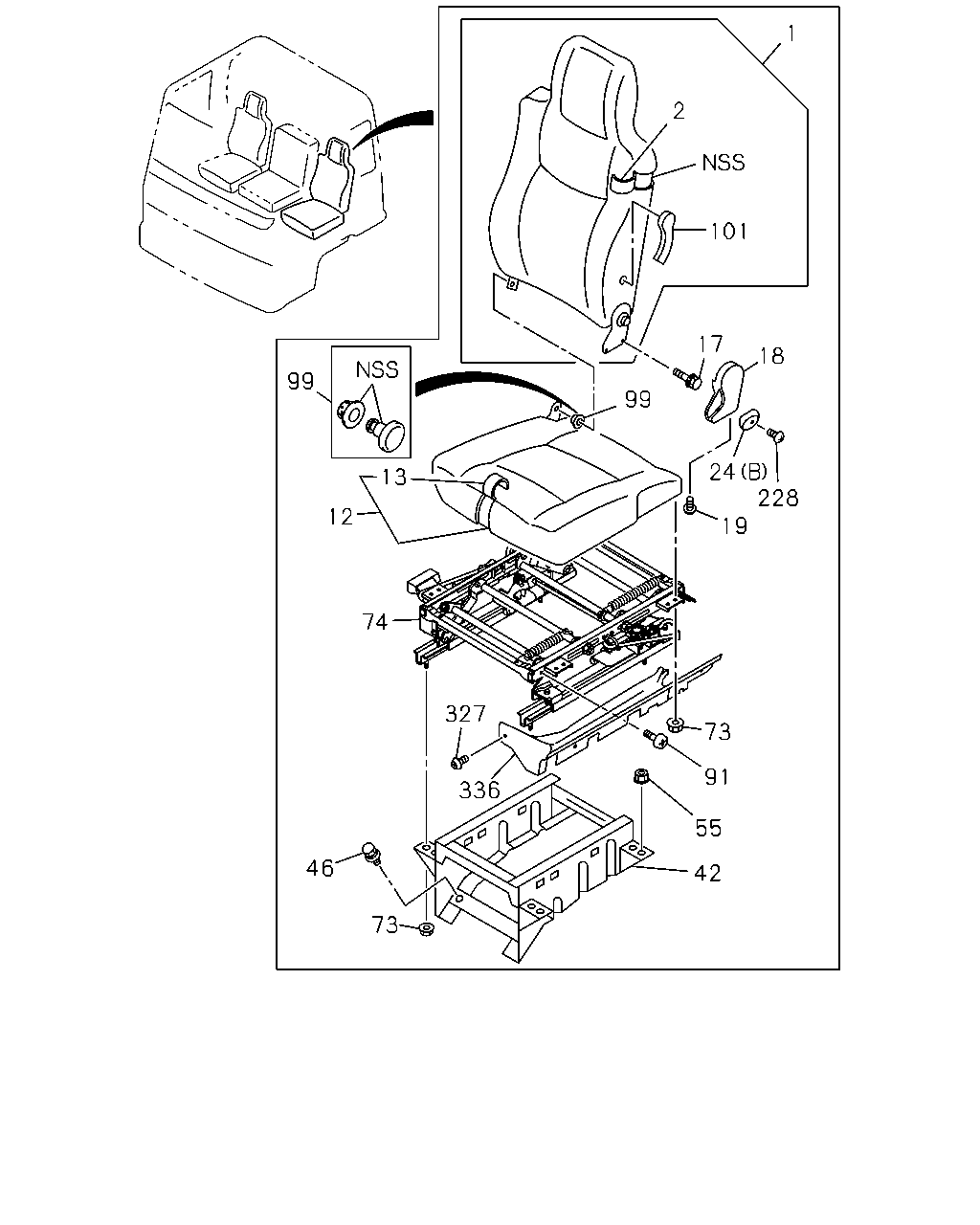

1 2 101 17 18 99 99 24 228 13 12 19 74 327 73 91 336 55 46 42 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9908-9910
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9911-0003
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9911-0003
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0004-0105
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0004-0105
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-456-0	01	1	0106-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-456-0	01	1	0106-
1	BACK ASM; SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9908-9910
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9911-0003
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	01	1	0004-0105
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-457-0	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9908-9910
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0004-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0004-
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9908-9910
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	01	1	0004-
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9908-9910
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-1	01	1	0004-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-1	01	1	0004-
12	CUSHION; SEAT,FRT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9908-9910
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9911-0003
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-1	01	1	0004-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9908-9910
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0004-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0004-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9908-9910
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	01	1	0004-
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9908-0003
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-
18	COVER; RECLINING	1-75418-052-0	01	1	9908-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9908-
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9908-
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9908-
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-491-4	01	1	9908-0003
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0004-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9908-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9908-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9908-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9908-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9908-9912
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0001-0102
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-0	01	1	0103-
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9908-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9908-
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	9908-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9908-
327	CLIP; COVER	1-09987-249-0	01	1	9908-
336	COVER; DRIVER SEAT	1-75518-194-2	01	1	9908-

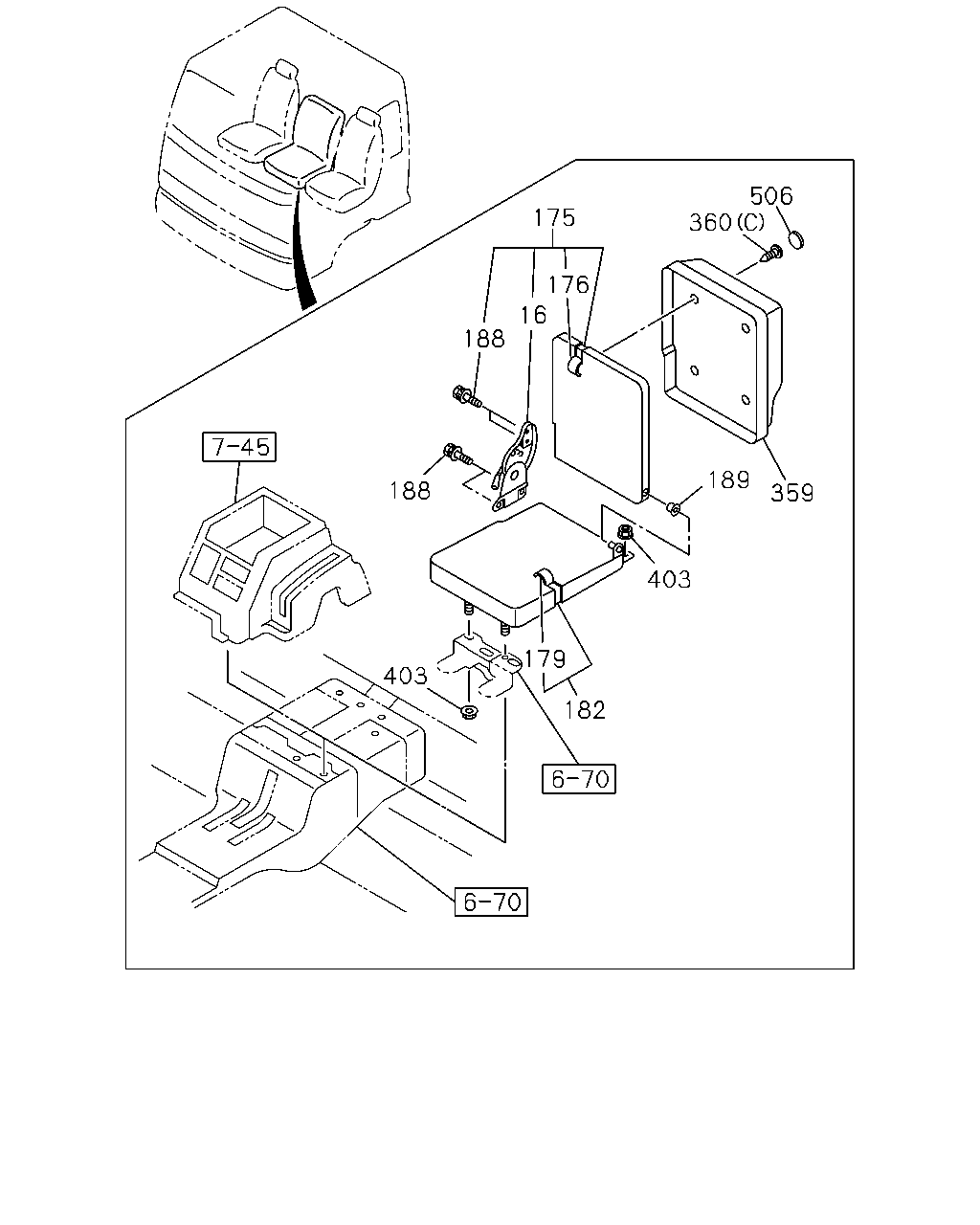

506 360 175 176 16 188 189 188 359 403 179 403 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING	1-75418-062-0	01	1	9908-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-598-1	01	1	9908-0003
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-255-0	01	1	0004-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75027-864-0	01	1	9908-0003
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-257-0	01	1	0004-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75116-884-0	01	1	9908-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-075-0	01	1	0004-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75117-941-0	01	1	9908-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-077-0	01	1	0004-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75117-931-0	01	1	9908-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75127-068-0	01	1	0004-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75117-932-0	01	1	9908-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-069-0	01	1	0004-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-830-0	01	1	9908-0003
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-247-1	01	1	0004-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75027-858-0	01	1	9908-0003
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-248-1	01	1	0004-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	9908-
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	9908-
359	BOX; PARCEL	1-72538-157-3	01	1	9908-
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9908-
360	SCREW; PARCEL (B)	0-70080-416-0	06	1	9908-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9908-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	9908-
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	9908-
506	CAP; PARCEL BOX	1-09983-164-1	04	1	9908-

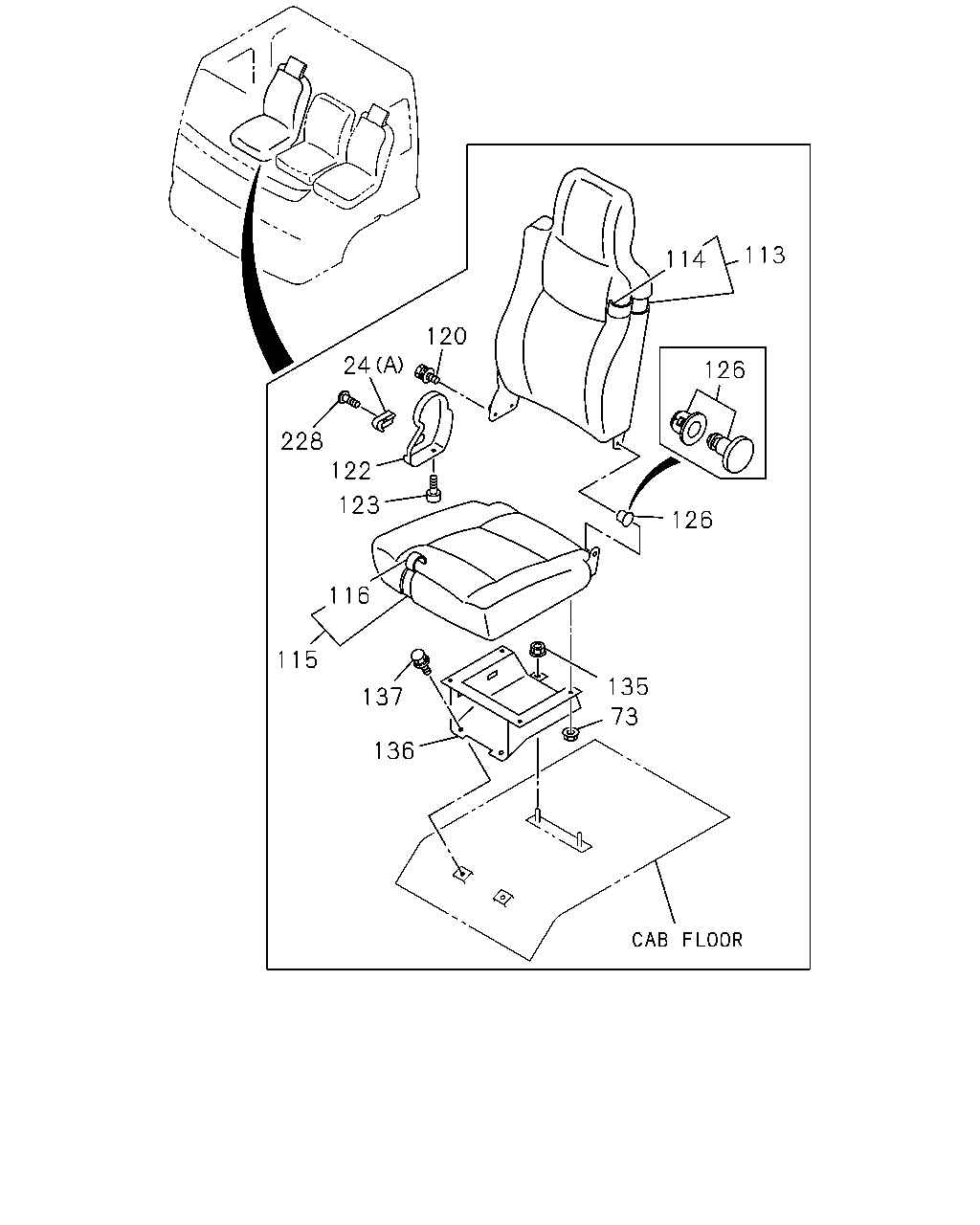

113 114 120 24 126 228 122 123 126 116 115 135 137 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9908-
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9908-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9908-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9908-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-832-0	01	1	9908-0003
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-226-0	01	1	0004-0105
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-547-1	01	1	0106-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75028-590-2	01	1	9908-0003
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-721-0	01	1	0004-0105
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75208-060-1	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75117-939-0	01	1	9908-0003
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-056-0	01	1	0004-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-277-2	01	1	9908-0003
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-600-0	01	1	0004-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75027-829-0	01	1	9908-0003
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-210-0	01	1	0004-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75028-531-2	01	1	9908-0003
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-771-0	01	1	0004-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75117-929-0	01	1	9908-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-026-0	01	1	0004-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-225-1	01	1	9908-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-575-0	01	1	0004-
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	02	1	9908-0003
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-
122	COVER; ADJ,RECLINING	1-75418-050-0	01	1	9908-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9908-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	9908-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9908-
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	9908-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9908-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9908-

321 39 39 40 1 2 321 30 101 17 99 18 99 24 228 13 12 19 74 327 73 91 336 55 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9908-9910
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9911-0003
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9911-0003
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0004-0105
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-169-0	01	1	0004-0105
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-456-0	01	1	0106-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-456-0	01	1	0106-
1	BACK ASM; SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9908-9910
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9911-0003
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	01	1	0004-0105
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-457-0	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9908-9910
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0004-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-041-0	01	1	0004-
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9908-9910
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9911-0003
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	01	1	0004-
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9908-9910
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-1	01	1	0004-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-152-1	01	1	0004-
12	CUSHION; SEAT,FRT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9908-9910
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9911-0003
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-1	01	1	0004-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9908-9910
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0004-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-100-0	01	1	0004-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9908-9910
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9911-0003
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	01	1	0004-
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9908-0003
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-
18	COVER; RECLINING	1-75418-052-0	01	1	9908-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9908-
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9908-
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9908-
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9908-9910
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9911-0003
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9911-0003
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-012-0	01	1	0004-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-012-0	01	1	0004-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-94279-521-0	01	1	9908-9910
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-94279-521-0	01	1	9911-0003
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-94279-521-0	01	1	9911-0003
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0004-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0004-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0004-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0004-
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	9908-9910
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	9911-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	9911-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9908-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9908-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-4	01	1	9908-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9908-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9908-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9908-9912
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0001-0102
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-0	01	1	0103-
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9908-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9908-
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	9908-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9908-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	9908-9910
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	9911-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	9911-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0004-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0004-
327	CLIP; COVER	1-09987-249-0	01	1	9908-
336	COVER; DRIVER SEAT	1-75518-194-2	01	1	9908-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
