Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#70570) — 47 parça

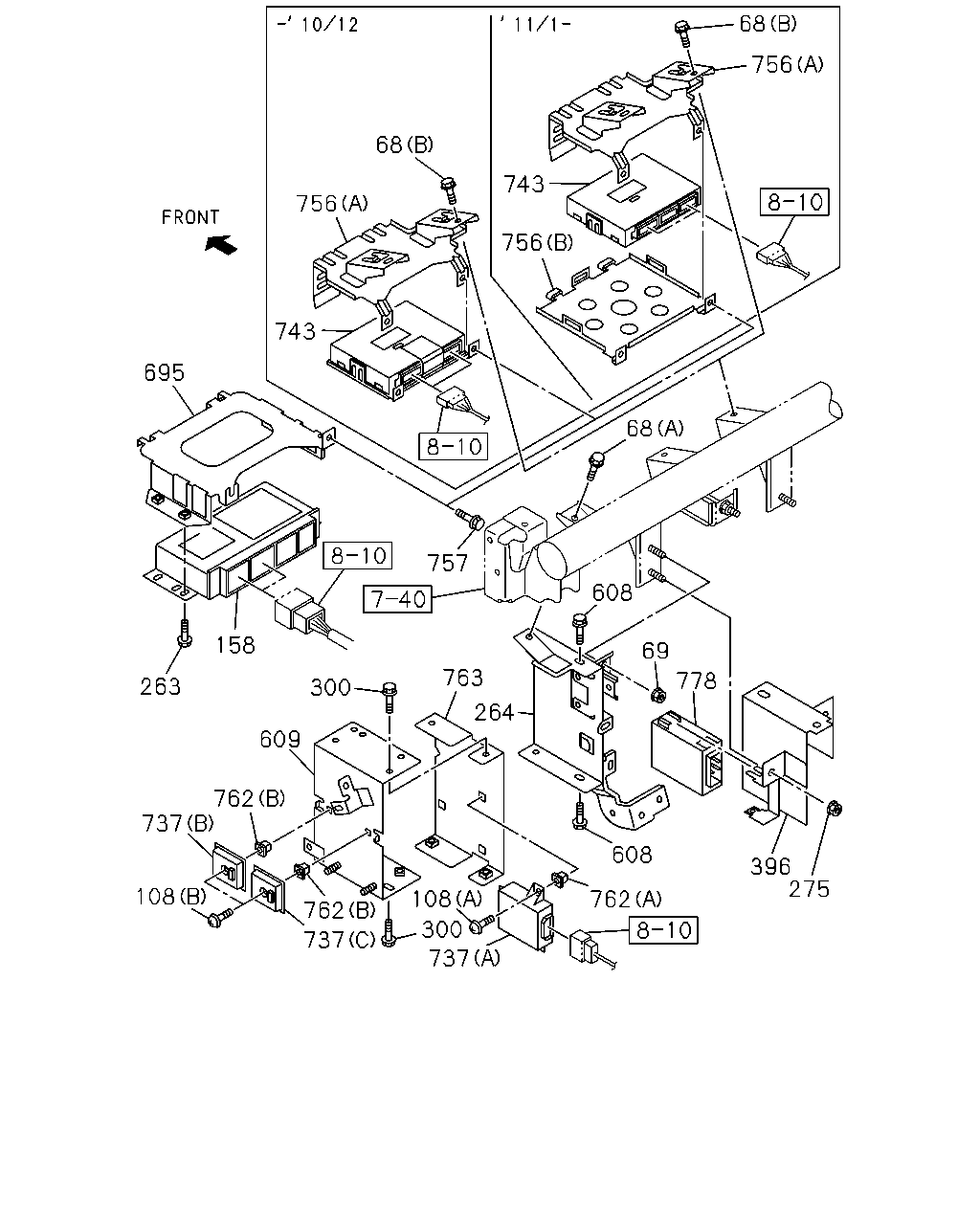

68 756 68 743 756 756 743 695 68 757 608 158 69 763 778 263 300 264 609 762 737 608 396 275 108 108 762 762 300 737 737

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1009-
68	BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1009-
68	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1009-
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1009-
108	BOLT; TRANS CONT MODULE (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1009-
108	BOLT; TRANS CONT MODULE (B) M4X25 TAPPING	0-74160-425-0	02	1	1009-
158	CONTROLLER; ABS TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) ANTILOCK BRAKE SYSTEM(BFA)	1-80119-261-0	01	1	1009-1201
158	CONTROLLER; ABS TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) ANTILOCK BRAKE SYSTEM(BFA)	8-98170-648-0	01	1	1202-
158	CONTROLLER; ABS TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) ANTILOCK BRAKE SYSTEM(BFA)	1-80119-229-2	01	1	1009-1201
158	CONTROLLER; ABS TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) ANTILOCK BRAKE SYSTEM(BFA)	8-98170-647-0	01	1	1202-
263	BOLT; CONT UNIT ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	04	1	1009-
264	BRACKET; CONT UNIT	8-97609-985-9	01	1	1009-
275	NUT; BRKT AUTO CRUISE<K30> M6 FLANGE	0-91180-106-0	02	1	1009-
300	BOLT; CONT UNIT BRKT M6X16 FLANGE	0-28650-616-0	04	1	1009-
396	BRACKET AUTO CRUISE<K30>	8-98084-467-4	01	1	1009-
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	1009-
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-337-0	01	1	1009-1308
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98169-737-1	01	1	1309-
695	BRACKET; CONT UNIT,ABS ANTILOCK BRAKE SYSTEM(BFA)	8-98045-016-1	01	1	1009-
737	CONTROL UNIT; TRANSMISSION (A)	1-80111-271-0	01	1	1009-
737	CONTROL UNIT; TRANSMISSION (B)	8-98095-040-0	01	1	1009-
737	CONTROL UNIT; TRANSMISSION (C)	8-98095-041-0	01	1	1009-
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98176-213-0	01	1	1009-1012
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98182-026-3	01	1	1101-
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> (B)	8-98111-836-1	01	1	1101-
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98056-411-3	01	1	1009-
756	BRACKET; ECU,BCM ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98056-411-3	01	1	1009-
757	BOLT; BRKT,BCM MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	02	1	1009-
757	BOLT; BRKT,BCM ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	02	1	1009-
762	GROMMET; TRANS CONT MODULE (A) D=8.6X7.7 L=7.5	8-94279-078-0	03	1	1009-
762	GROMMET; TRANS CONT MODULE (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1009-
763	BRACKET; TRANS CONT MODULE	8-98085-587-0	01	1	1009-
778	MODULE; CRUISE CONT AUTO CRUISE<K30>	8-97620-055-0	01	1	1009-

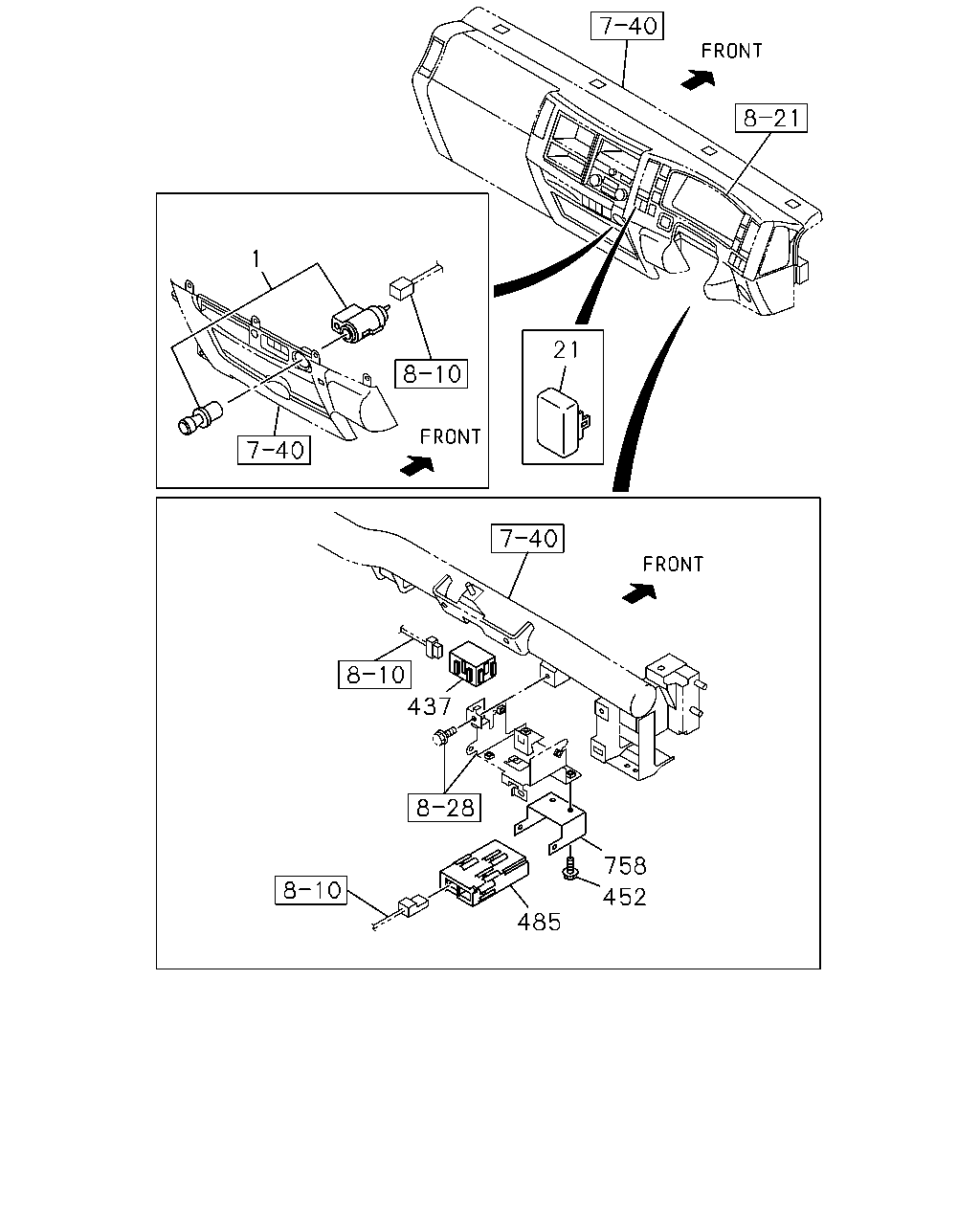

1 21 437 758 452 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LIGHTER; CIGAR	8-98142-962-0	01	1	1009-
21	COVER; HOLE	8-98025-954-1	01	1	1009-
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	1009-
452	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	1009-
485	CONTROL UNIT; SPEED SENSOR	1-80190-063-0	01	1	1009-
758	BRACKET; ELEC CONT UNIT,SPEED SENSOR	8-98048-743-1	01	1	1009-

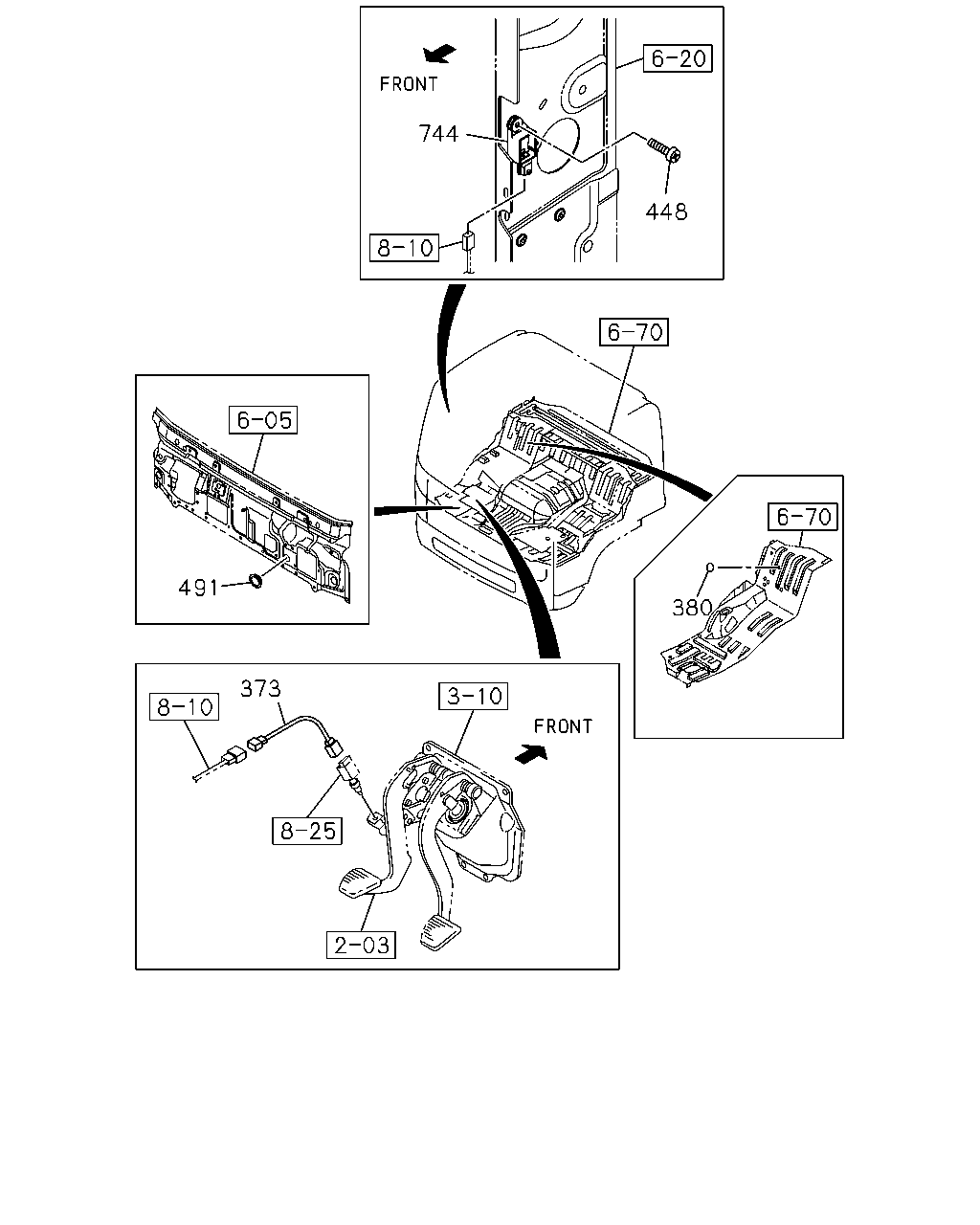

744 448 491 380 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
373	HARNESS; CLU SWITCH	8-98059-419-2	01	1	1009-
380	SEAL OD=25 BLACK	1-76798-019-0	01	1	1009-
448	BOLT; SENSOR M6X18 W/PL WASHER	8-97105-796-1	02	1	1009-
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	1009-
744	SENSOR; AIR BAG	8-97386-841-2	01	1	1009-

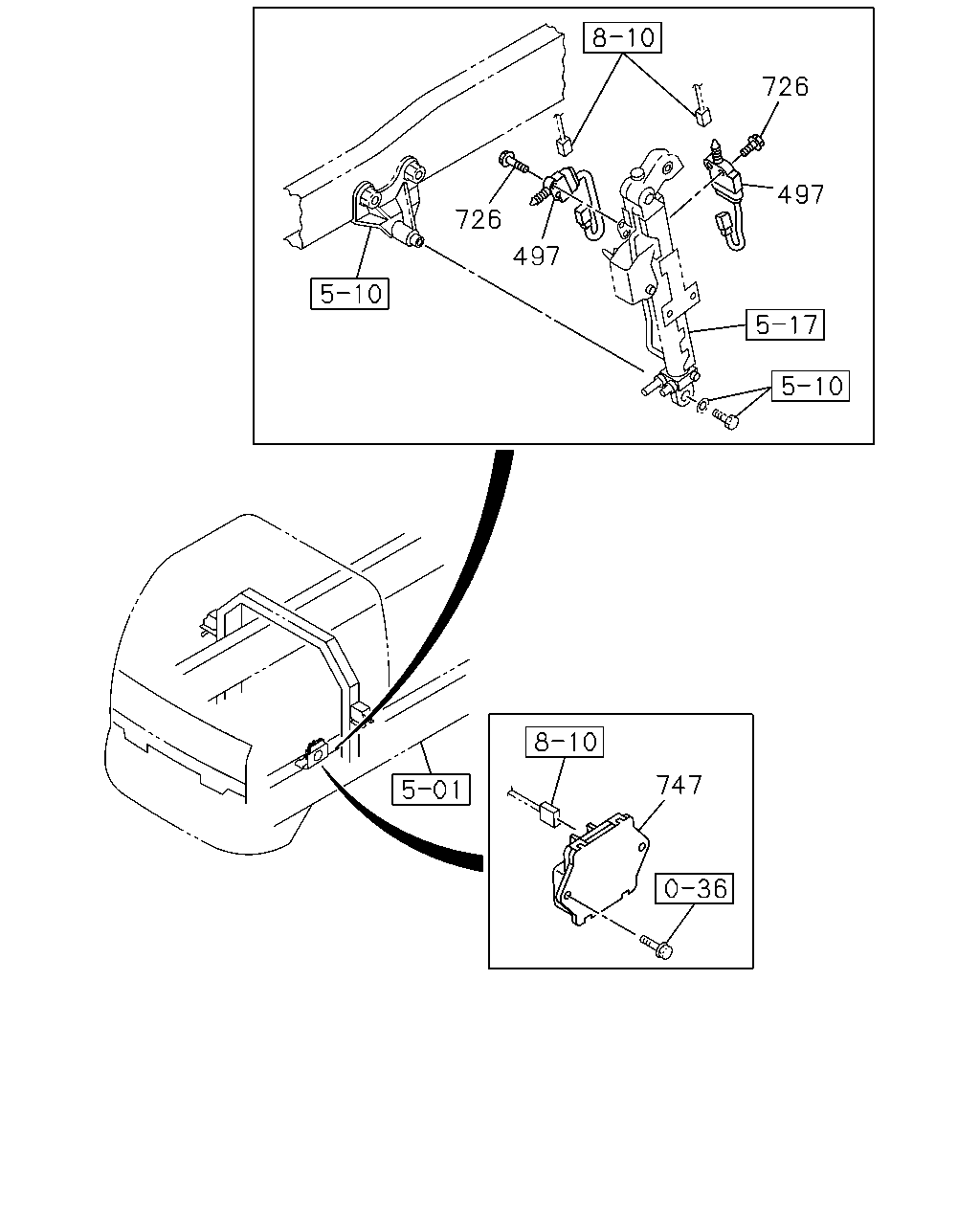

726 497 726 497 747

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
497	SWITCH; CAB TILT STAMP NO	1-82380-172-1	02	1	1009-
726	BOLT; SW,CAB TILT M6X25 FLANGE	0-28050-625-0	04	1	1009-
747	CONTROL UNIT; TURBOCHARGER	8-98118-472-0	01	1	1009-
