Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#7057) — 72 parça
◀

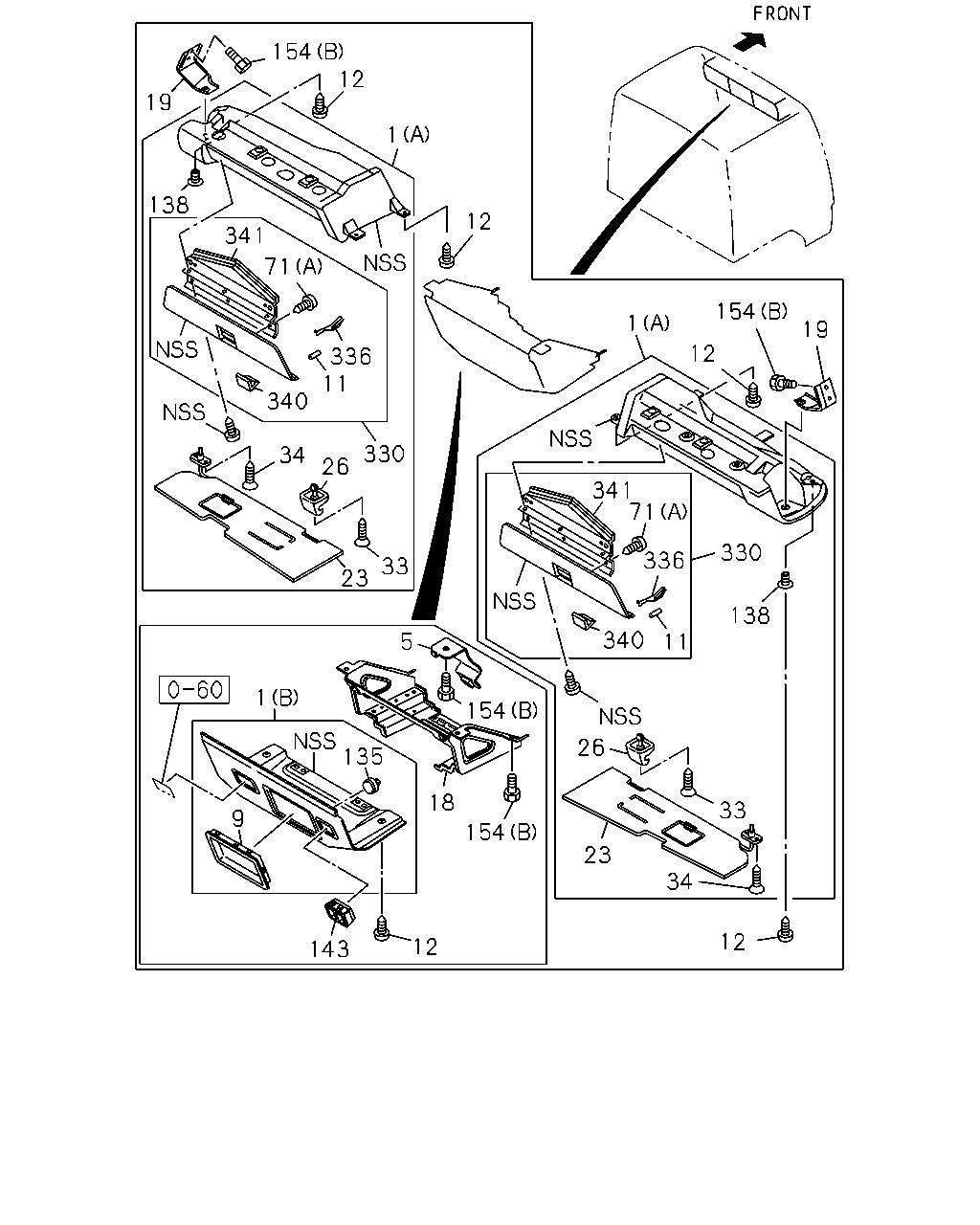

[743A] HEADER SHELF (28 parça)

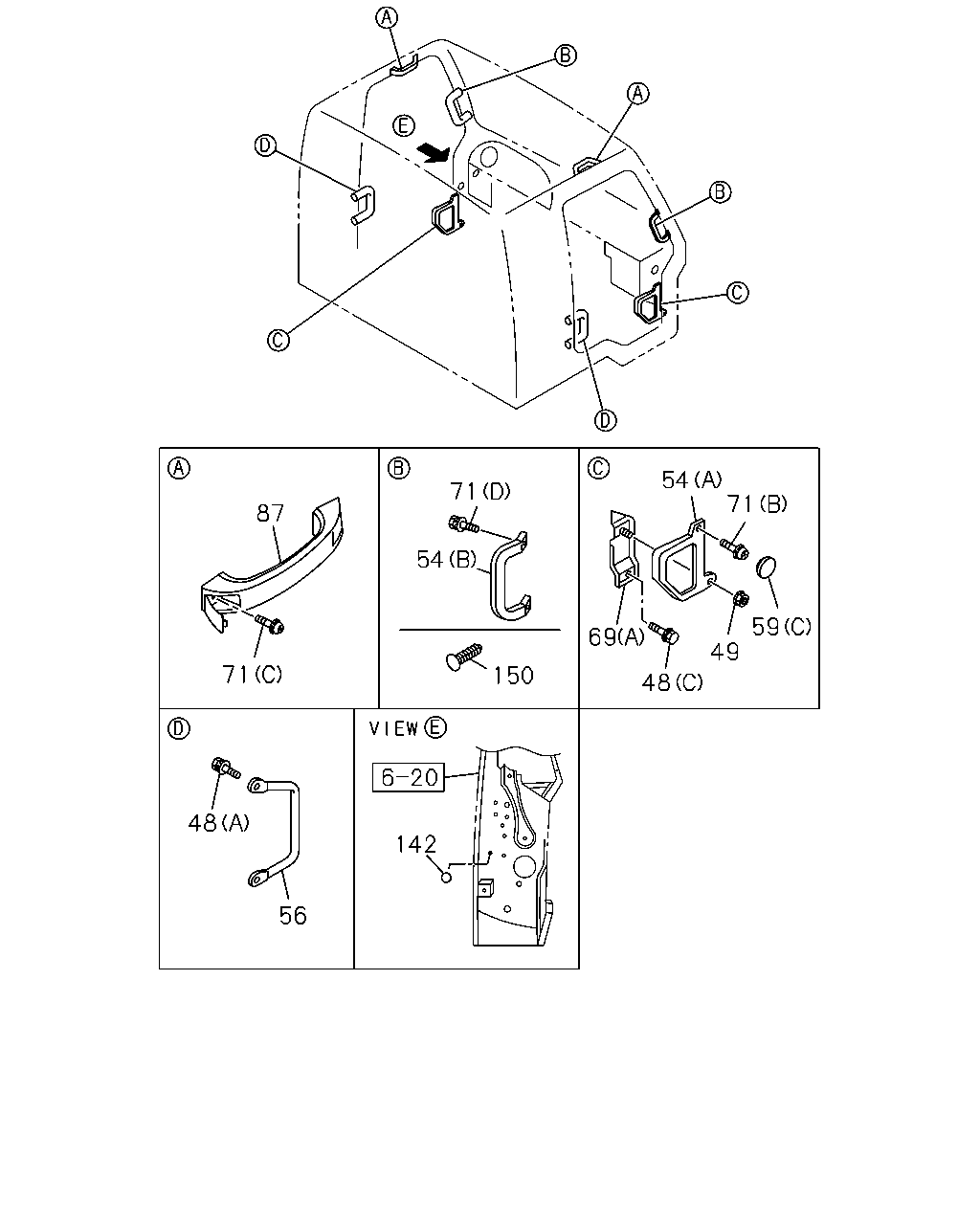

[743A] ASSIST GRIP;CAB INSIDE (24 parça)
[743A] ASSIST GRIP;CAB OUTSIDE (20 parça)
▶
154
12
19
1
138
12
341
71
154
1
19
12
336
11
340
330
34
26
341
71
330
336
33
23
138
340
5
11
1
154
135
26
18
33
9
154
23
34
12
12
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(B)
1-72447-700-0
01
1
9908-
1
BOARD; HEADER SHELF
(A)
1-72448-597-2
01
1
9908-
1
BOARD; HEADER SHELF
(A)
1-72448-596-2
01
1
9908-
5
BRACKET; HEADER SHELF FRAME
1-72447-677-2
01
1
9908-
9
COVER; HOLE,HEADER SHELF CENTER
1-72447-663-2
01
1
9908-
11
CAP; HEADER SHELF
8-94270-538-0
04
1
9908-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
12
1
9908-
18
SUPPORT; HEADER SHELF CENTER
1-72447-739-0
01
1
9908-
19
SUPPORT ASM; HEADER SHELF
1-72448-324-1
01
1
9908-
19
SUPPORT ASM; HEADER SHELF
1-72448-323-1
01
1
9908-
23
SUN VISOR
1-73138-150-1
01
1
9908-
23
SUN VISOR
1-73138-148-1
01
1
9908-
26
HOLDER; SUN VISOR
1-73138-142-0
02
1
9908-
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70580-416-0
02
1
9908-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
9908-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
02
1
9908-
71
SCREW
(C) M6X35 W/PL WASHER
1-09981-422-0
04
1
9908-
71
SCREW
(A) M5X14 W/PL WASHER
5-09981-050-0
06
1
9908-
71
SCREW
(D) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
9908-
135
CLIP; HEADER SHELF
OD=7.9 BLACK
8-94279-974-1
04
1
9908-
138
NUT; BRKT,HEADER SHELF
1-09984-166-0
04
1
9908-
143
BEZEL
1-72448-411-0
01
1
9908-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
9908-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
10
1
9908-
330
LID; HEADER SHELF
1-72448-360-3
02
1
9908-
336
STAY; LID
1-72448-379-3
04
1
9908-
340
LOCK; HEADER SHELF
1-72448-376-0
02
1
9908-
341
HINGE; LID,HEADER SHELF
1-72448-403-1
02
1
9908-
54
71
71
87
54
59
69
49
71
150
48
48
142
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) SIDE SILL M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9908-
48
BOLT; ASSIST GRIP
(E) FRONT ROOF GRIP M6X33.5 W/LK&PL WASHER
1-09980-613-1
02
1
9908-
48
BOLT; ASSIST GRIP
(B) FRONT HINGE M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
9908-
48
BOLT; ASSIST GRIP
(C) CAB ENTRY,BACK M8X20 W/LK&PL WASHER
8-94279-208-0
02
1
9908-
48
BOLT; ASSIST GRIP
(D) FRONT GRIP M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9908-
49
NUT; ASSIST GRIP
M6 FLANGE
0-91150-106-0
02
1
9908-
54
GRIP; ASSIST,QUARTER SIDE
(B)
1-73618-185-0
02
1
9908-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-067-0
01
1
9908-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-066-0
01
1
9908-
56
GRIP; ASSIST,SIDE SILL
1-73617-062-5
02
1
9908-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9908-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9908-
59
COVER; ASSIST GRIP
(C)
1-73617-069-0
02
1
9908-
69
BRACKET; ASSIST GRIP
(A)
1-73618-178-2
01
1
9908-
69
BRACKET; ASSIST GRIP
(A)
1-73618-181-1
01
1
9908-
69
BRACKET; ASSIST GRIP
(B)
1-65570-243-0
01
1
0010-
69
BRACKET; ASSIST GRIP
(B)
1-65570-242-0
01
1
0010-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
02
1
9908-
71
SCREW
(C) M6X35 W/PL WASHER
1-09981-422-0
04
1
9908-
71
SCREW
(A) M5X14 W/PL WASHER
5-09981-050-0
06
1
9908-
71
SCREW
(D) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
9908-
87
GRIP; ASSIST,CANT RAIL SIDE
1-73618-170-0
02
1
9908-
142
SEAL; ASSIST GRIP
OD=25 BLACK
1-76798-019-0
01
1
9909-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-128-1
04
1
9908-0009
64
64
154
62
48
48
66
103
48
59
66
48
103
48
59
48
59
48
48
59
68
69
68
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) SIDE SILL M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9908-
48
BOLT; ASSIST GRIP
(E) FRONT ROOF GRIP M6X33.5 W/LK&PL WASHER
1-09980-613-1
02
1
9908-
48
BOLT; ASSIST GRIP
(B) FRONT HINGE M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
9908-
48
BOLT; ASSIST GRIP
(C) CAB ENTRY,BACK M8X20 W/LK&PL WASHER
8-94279-208-0
02
1
9908-
48
BOLT; ASSIST GRIP
(D) FRONT GRIP M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9908-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9908-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9908-
59
COVER; ASSIST GRIP
(C)
1-73617-069-0
02
1
9908-
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
01
1
9908-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
9908-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
9908-
68
BRACKET; ASSIST GRIP,FRT PANEL
1-65580-203-0
02
1
9908-0009
69
BRACKET; ASSIST GRIP
(A)
1-73618-178-2
01
1
9908-
69
BRACKET; ASSIST GRIP
(A)
1-73618-181-1
01
1
9908-
69
BRACKET; ASSIST GRIP
(B)
1-65570-243-0
01
1
0010-
69
BRACKET; ASSIST GRIP
(B)
1-65570-242-0
01
1
0010-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
9908-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
9908-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
9908-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
10
1
9908-
