Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#70566) — 378 parça

16 16 142 142 16 16 206 16

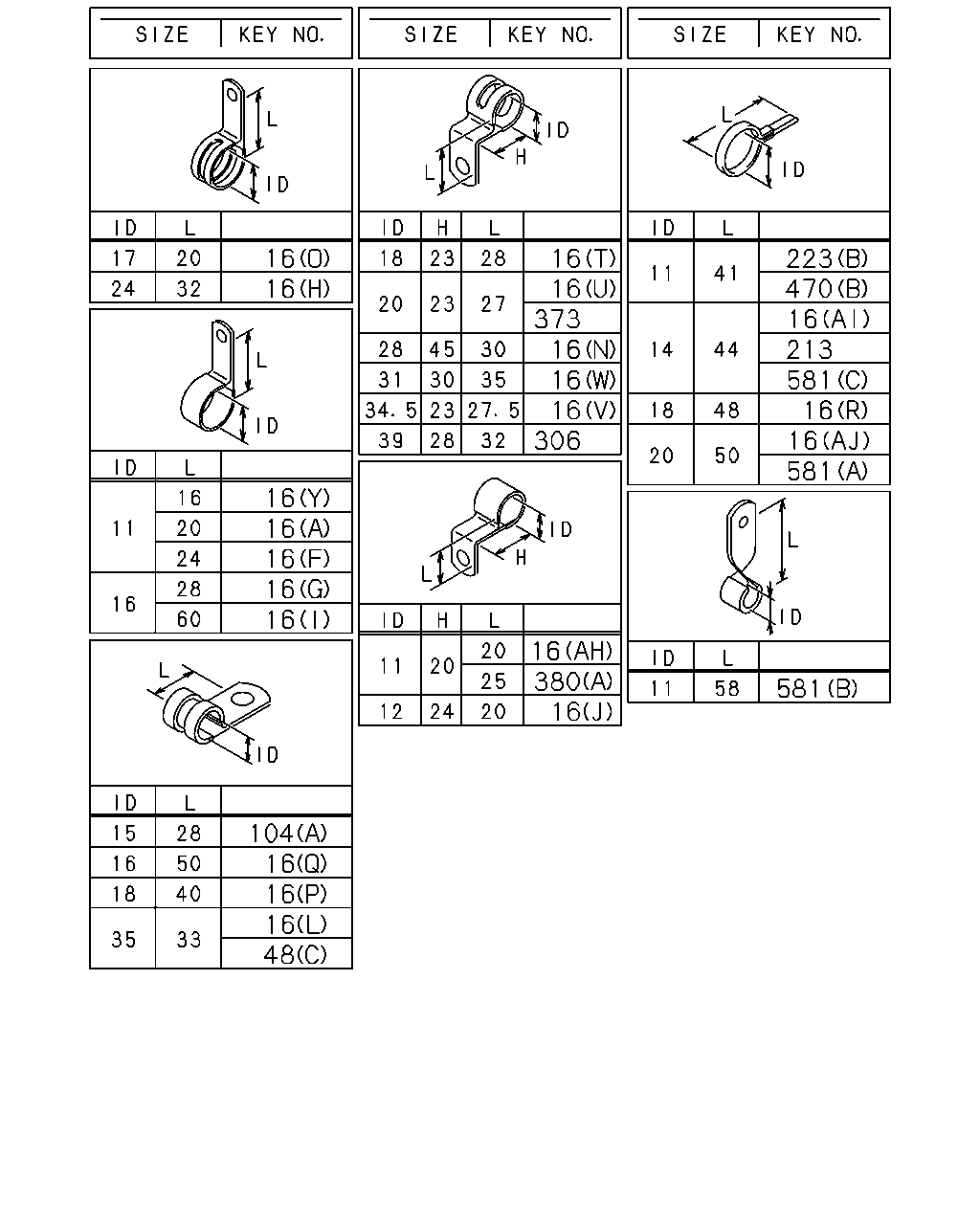

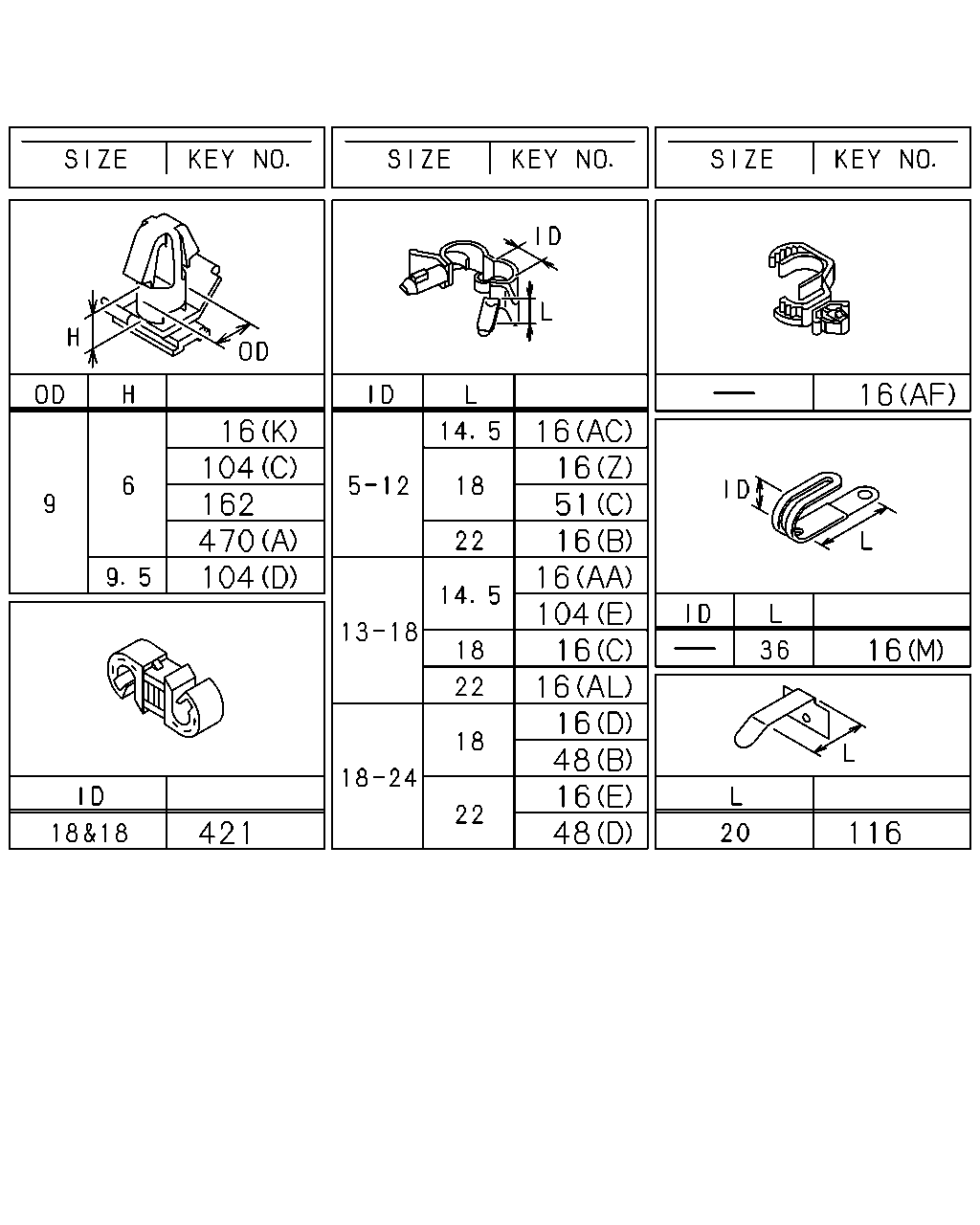

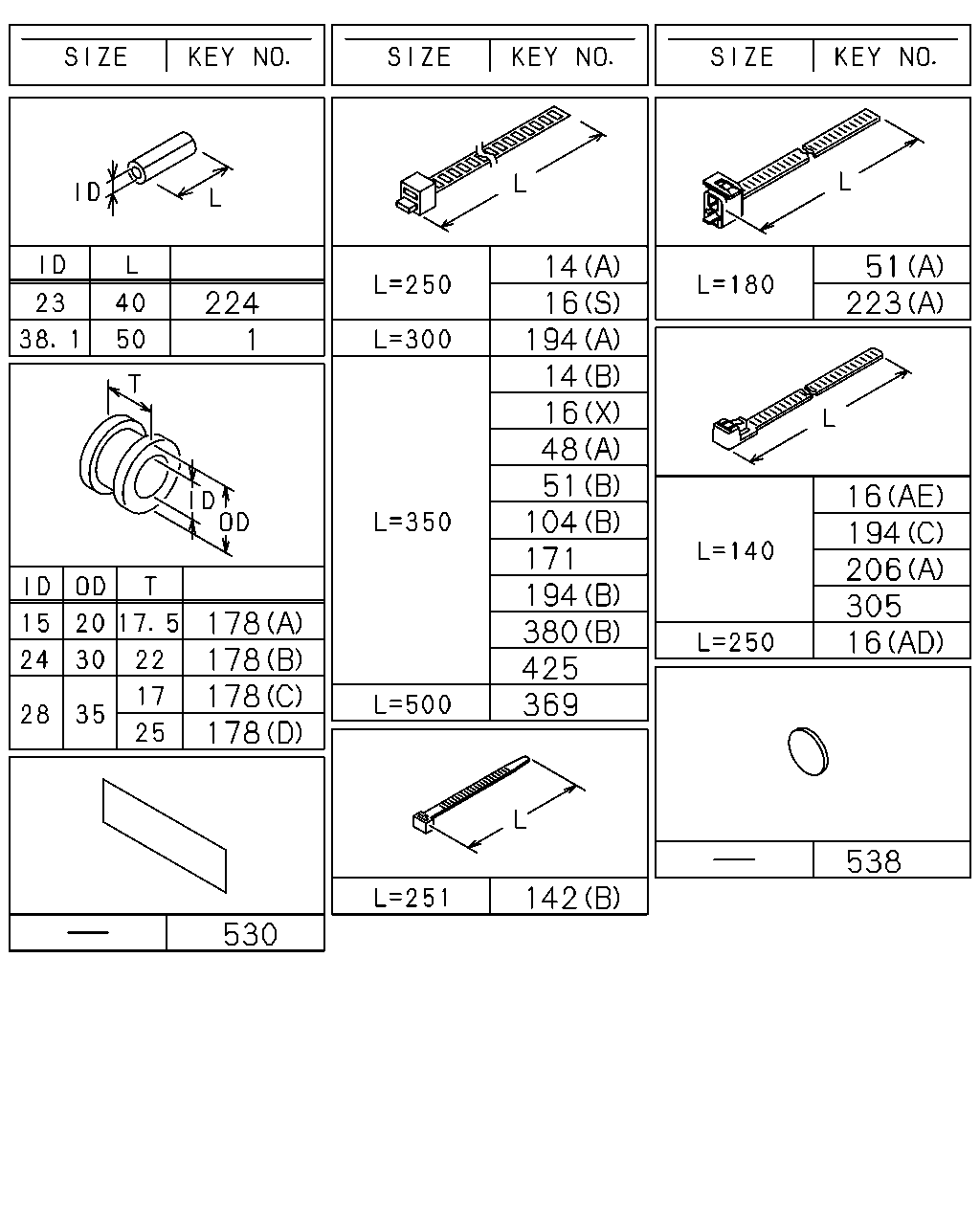

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1009-1102
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (AD) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1009-
16	CLIP; HARNESS (F) ID=11 L=24	0-95235-045-0	01	1	1009-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	01	1	1009-
16	CLIP; HARNESS (I) ID=16 L=60	0-95235-596-0	02	1	1009-
16	CLIP; HARNESS (J) ID=12 H=24 L=20	1-09700-605-0	01	1	1009-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1009-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1009-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1009-
16	CLIP; HARNESS (L) ID=35 L=33	1-09700-945-0	01	1	1009-
16	CLIP; HARNESS (N) ID=28 H=45 L=30	1-09700-948-0	01	1	1009-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1009-
16	CLIP; HARNESS (Q) ID=16 L=50	1-09701-158-0	01	1	1009-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1009-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1009-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1009-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1009-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1009-
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	01	1	1009-
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	1009-
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	02	1	1009-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1009-1102
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1009-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1009-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1009-
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1009-
16	CLIP; HARNESS (AK) L=40.6	8-97229-357-0	02	1	1009-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	1009-1105
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1009-
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1009-
16	CLIP; HARNESS (R) ID=18 L=48	9-09917-429-0	01	1	1009-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1009-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Y) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AN) ID=11X2 L=16	0-95325-025-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (S) L=250	1-09707-126-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1009-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1009-
142	CLIP; HARNESS,ENG (A) L=170.3	8-97209-720-0	01	1	1009-
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1009-
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	01	1	1009-1009
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	02	1	1010-
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1009-
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1009-

16 16 16 16 373 16 16 16 306 223 470 16 213 581 16 16 581 16 16 16 16 16 16 380 16 581 104 16 16 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1009-1102
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (AD) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1009-
16	CLIP; HARNESS (F) ID=11 L=24	0-95235-045-0	01	1	1009-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	01	1	1009-
16	CLIP; HARNESS (I) ID=16 L=60	0-95235-596-0	02	1	1009-
16	CLIP; HARNESS (J) ID=12 H=24 L=20	1-09700-605-0	01	1	1009-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1009-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1009-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1009-
16	CLIP; HARNESS (L) ID=35 L=33	1-09700-945-0	01	1	1009-
16	CLIP; HARNESS (N) ID=28 H=45 L=30	1-09700-948-0	01	1	1009-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1009-
16	CLIP; HARNESS (Q) ID=16 L=50	1-09701-158-0	01	1	1009-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1009-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1009-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1009-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1009-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1009-
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	01	1	1009-
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	1009-
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	02	1	1009-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1009-1102
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1009-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1009-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1009-
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1009-
16	CLIP; HARNESS (AK) L=40.6	8-97229-357-0	02	1	1009-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	1009-1105
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1009-
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1009-
16	CLIP; HARNESS (R) ID=18 L=48	9-09917-429-0	01	1	1009-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1009-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Y) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AN) ID=11X2 L=16	0-95325-025-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (S) L=250	1-09707-126-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1009-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1009-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1009-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1009-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1009-
48	CLIP; FRAME HARNESS (B) ID=18-24 L=18	1-09709-294-0	01	1	1009-
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	1009-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1009-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1009-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1009-
223	CLIP; AIR TANK HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1009-
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1009-
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1009-
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1009-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1009-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1009-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1009-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1009-
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=58	9-09917-135-2	01	1	1009-
581	CLIP; HARNESS,REAR SUSP (C) ID=14 L=44	9-09917-427-0	01	1	1009-
581	CLIP; HARNESS,REAR SUSP (A) ID=20 L=50	9-09917-430-0	03	1	1009-

16 16 104 162 470 104 16 16 51 16 16 104 16 16 16 48 16 48 16 421 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1009-1102
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (AD) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1009-
16	CLIP; HARNESS (F) ID=11 L=24	0-95235-045-0	01	1	1009-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	01	1	1009-
16	CLIP; HARNESS (I) ID=16 L=60	0-95235-596-0	02	1	1009-
16	CLIP; HARNESS (J) ID=12 H=24 L=20	1-09700-605-0	01	1	1009-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1009-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1009-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1009-
16	CLIP; HARNESS (L) ID=35 L=33	1-09700-945-0	01	1	1009-
16	CLIP; HARNESS (N) ID=28 H=45 L=30	1-09700-948-0	01	1	1009-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1009-
16	CLIP; HARNESS (Q) ID=16 L=50	1-09701-158-0	01	1	1009-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1009-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1009-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1009-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1009-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1009-
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	01	1	1009-
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	1009-
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	02	1	1009-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1009-1102
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1009-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1009-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1009-
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1009-
16	CLIP; HARNESS (AK) L=40.6	8-97229-357-0	02	1	1009-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	1009-1105
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1009-
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1009-
16	CLIP; HARNESS (R) ID=18 L=48	9-09917-429-0	01	1	1009-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1009-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Y) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AN) ID=11X2 L=16	0-95325-025-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (S) L=250	1-09707-126-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1009-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1009-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1009-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1009-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1009-
48	CLIP; FRAME HARNESS (B) ID=18-24 L=18	1-09709-294-0	01	1	1009-
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	1009-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1009-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	01	1	1009-1410
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	02	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	1009-1410
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1009-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1009-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	01	1	1009-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1009-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1009-
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	1009-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1009-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1009-

51 223 14 16 194 14 16 48 51 104 171 194 380 425 369 224 1 16 194 206 305 16 178 178 178 178 538 142 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1009-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1009-
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	02	1	1009-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1009-1102
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (AD) L=250	5-09707-030-1	02	1	1103-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1009-
16	CLIP; HARNESS (F) ID=11 L=24	0-95235-045-0	01	1	1009-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	01	1	1009-
16	CLIP; HARNESS (I) ID=16 L=60	0-95235-596-0	02	1	1009-
16	CLIP; HARNESS (J) ID=12 H=24 L=20	1-09700-605-0	01	1	1009-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1009-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1009-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1009-
16	CLIP; HARNESS (L) ID=35 L=33	1-09700-945-0	01	1	1009-
16	CLIP; HARNESS (N) ID=28 H=45 L=30	1-09700-948-0	01	1	1009-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1009-
16	CLIP; HARNESS (Q) ID=16 L=50	1-09701-158-0	01	1	1009-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1009-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1009-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1009-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1009-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1009-
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	01	1	1009-
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	1009-
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	02	1	1009-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1009-1102
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1009-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1009-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1009-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1009-
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1009-
16	CLIP; HARNESS (AK) L=40.6	8-97229-357-0	02	1	1009-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	1009-1105
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1009-
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1009-
16	CLIP; HARNESS (R) ID=18 L=48	9-09917-429-0	01	1	1009-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1009-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Y) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AN) ID=11X2 L=16	0-95325-025-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (S) L=250	1-09707-126-0	01	1	1009-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1009-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1009-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1009-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1009-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1009-
48	CLIP; FRAME HARNESS (B) ID=18-24 L=18	1-09709-294-0	01	1	1009-
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	1009-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1009-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	01	1	1009-1410
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	02	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	1009-1410
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1009-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1009-
142	CLIP; HARNESS,ENG (A) L=170.3	8-97209-720-0	01	1	1009-
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1009-
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	01	1	1009-1009
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	02	1	1010-
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1009-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	1009-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1009-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1009-
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25	1-09332-011-1	03	1	1009-
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1009-
194	CLIP; BAND (C) L=140	5-09707-031-1	02	1	1009-
194	CLIP; BAND AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=300	1-09707-001-1	02	1	1009-
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1009-
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1009-
223	CLIP; AIR TANK HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1009-
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1009-
224	SLEEVE; RUBBER,HARNESS ID=23 OD=27 L=40	1-09337-015-0	01	1	1009-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1009-
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1009-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1009-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1009-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) L=350	1-09707-183-0	03	1	1009-
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1009-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1009-

7 53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1009-
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1009-1404
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1009-
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1009-
53	BRACKET; HARNESS (A)	1-47479-537-0	08	1	1009-
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1009-
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1009-
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1009-
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1009-
53	BRACKET; HARNESS (L)	8-98078-801-0	01	1	1009-
53	BRACKET; HARNESS (D)	8-98102-490-0	01	1	1009-
53	BRACKET; HARNESS (I)	8-98124-778-0	01	1	1009-
53	BRACKET; HARNESS (C)	8-98127-603-1	01	1	1009-
53	BRACKET; HARNESS (B)	8-98154-215-1	01	1	1009-1009
53	BRACKET; HARNESS (B)	8-98178-990-0	01	1	1010-

137 211 335 375 335 375 600 312 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP ANTILOCK BRAKE SYSTEM(BFA)	1-82698-140-0	01	1	1009-
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-97621-353-1	01	1	1009-
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-97621-352-1	01	1	1009-
312	BRACKET; CLIP HARNESS L=120	8-97619-440-0	01	1	1009-
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1009-
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82698-167-0	01	1	1009-
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1009-
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1009-
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1009-
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1009-

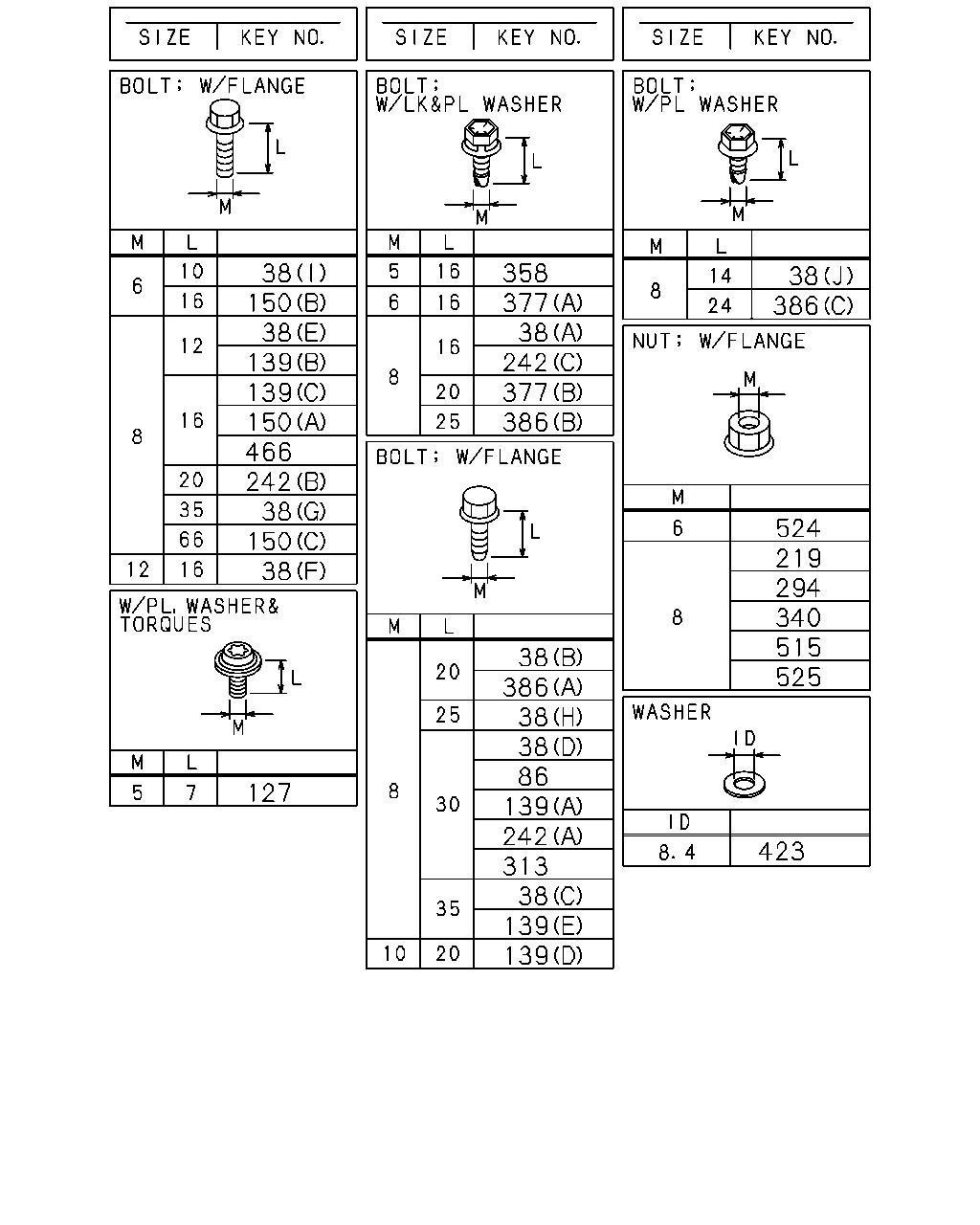

38 150 38 139 139 150 466 242 38 150 38 358 377 38 242 377 386 38 386 524 219 294 340 515 525 38 386 38 38 86 139 242 313 38 139 139 127 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE	0-28050-610-0	01	1	1009-
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28050-812-0	02	1	1009-
38	BOLT; CLIP,HARNESS (G) M8X35 FLANGE	0-28050-835-0	01	1	1009-
38	BOLT; CLIP,HARNESS (G) M8X35 FLANGE	0-28050-835-0	03	1	1009-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	07	1	1009-
38	BOLT; CLIP,HARNESS (H) M8X25 FLANGE	0-28650-825-0	03	1	1009-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	03	1	1009-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	04	1	1009-
38	BOLT; CLIP,HARNESS (C) M8X35 FLANGE	0-28650-835-0	02	1	1009-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	1009-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (A) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1009-1201
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1009-
139	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	1011-
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	1009-
139	BOLT; BRKT (D) M10X20 FLANGE	0-28151-020-0	02	1	1009-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	08	1	1009-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1010
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1010
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	01	1	1011-
150	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	1009-
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	10	1	1009-
150	BOLT; CLIP (C) M8X66 FLANGE	8-98081-507-0	02	1	1009-
219	NUT M8 FLANGE	0-91180-108-0	09	1	1009-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1009-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1009-
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1009-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1009-
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1009-
294	NUT M8 FLANGE	0-91180-108-0	08	1	1009-
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1009-
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1009-
313	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	1009-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	03	1	1009-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1009-
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1009-
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1009-
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
386	BOLT; GRAND HARNESS (B) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	1009-1202
386	BOLT; GRAND HARNESS (C) M8X24 W/PL WASHER	8-98141-256-1	02	1	1203-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1009-
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	1009-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1009-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1009-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
