8-10 — WIRING HARNESS AND FUSE
(#70565) — 170 parça
◀
[810A] FRAME SIDE NO.1 (19 parça)
[810A] CAB SIDE NO.2 (33 parça)
[810A] CAB SIDE NO.1 (37 parça)
[810A] OTHER HARNESS NO.2 (22 parça)

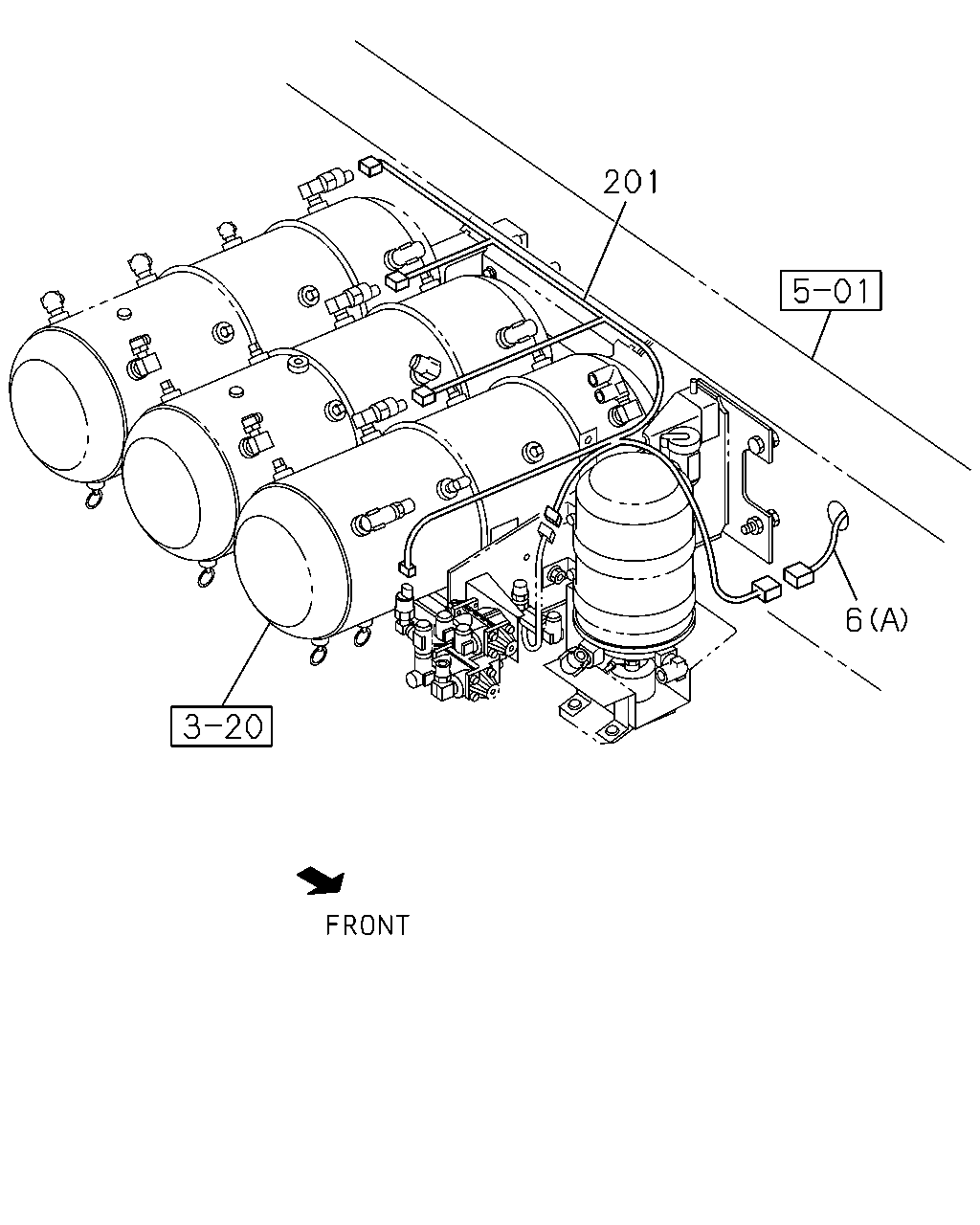

[810A] AIR TANK SIDE (4 parça)

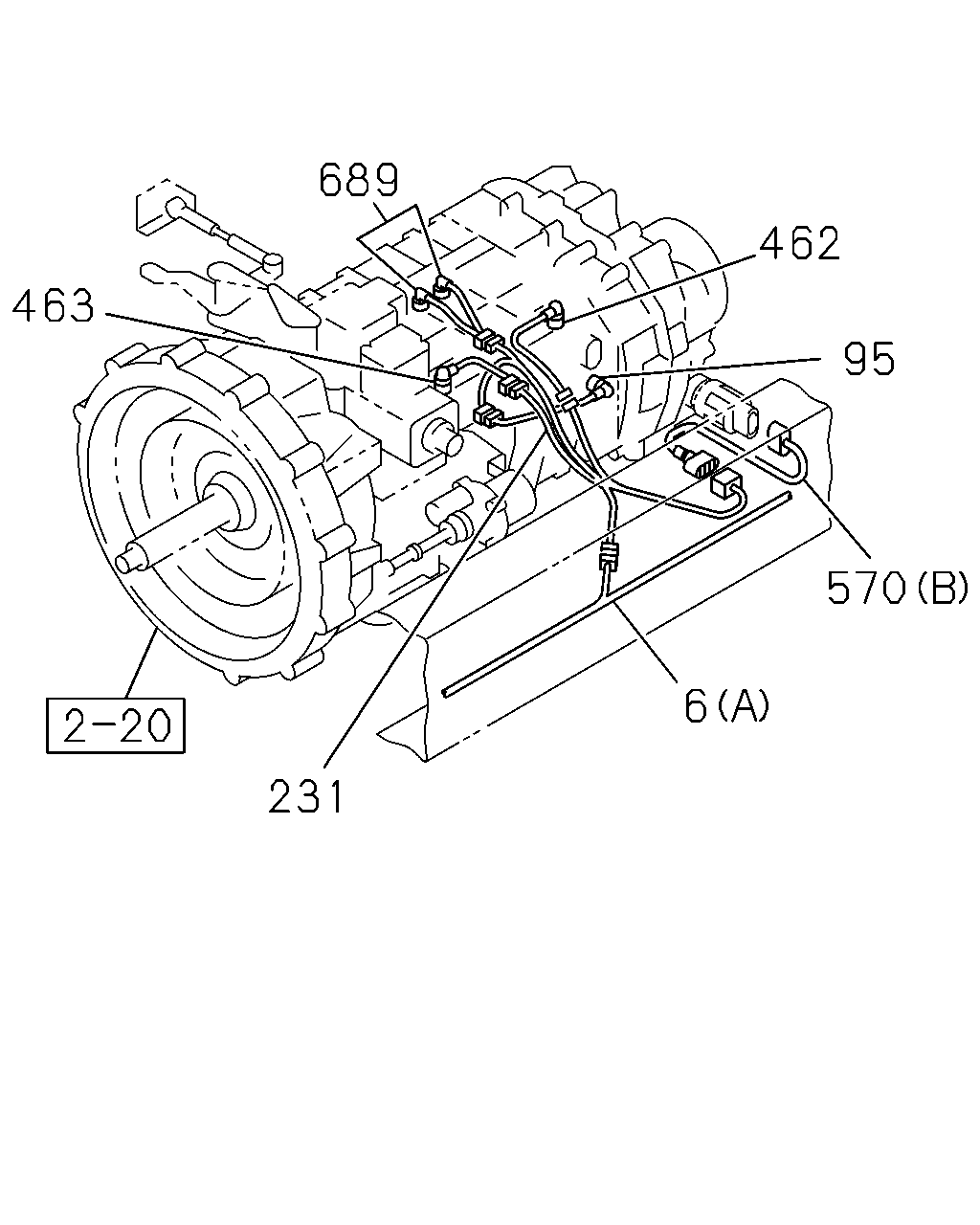

[810A] TRANSMISSION SIDE (11 parça)
[810A] FRAME SIDE NO.2 (30 parça)
[810A] OTHER HARNESS NO.1 (7 parça)

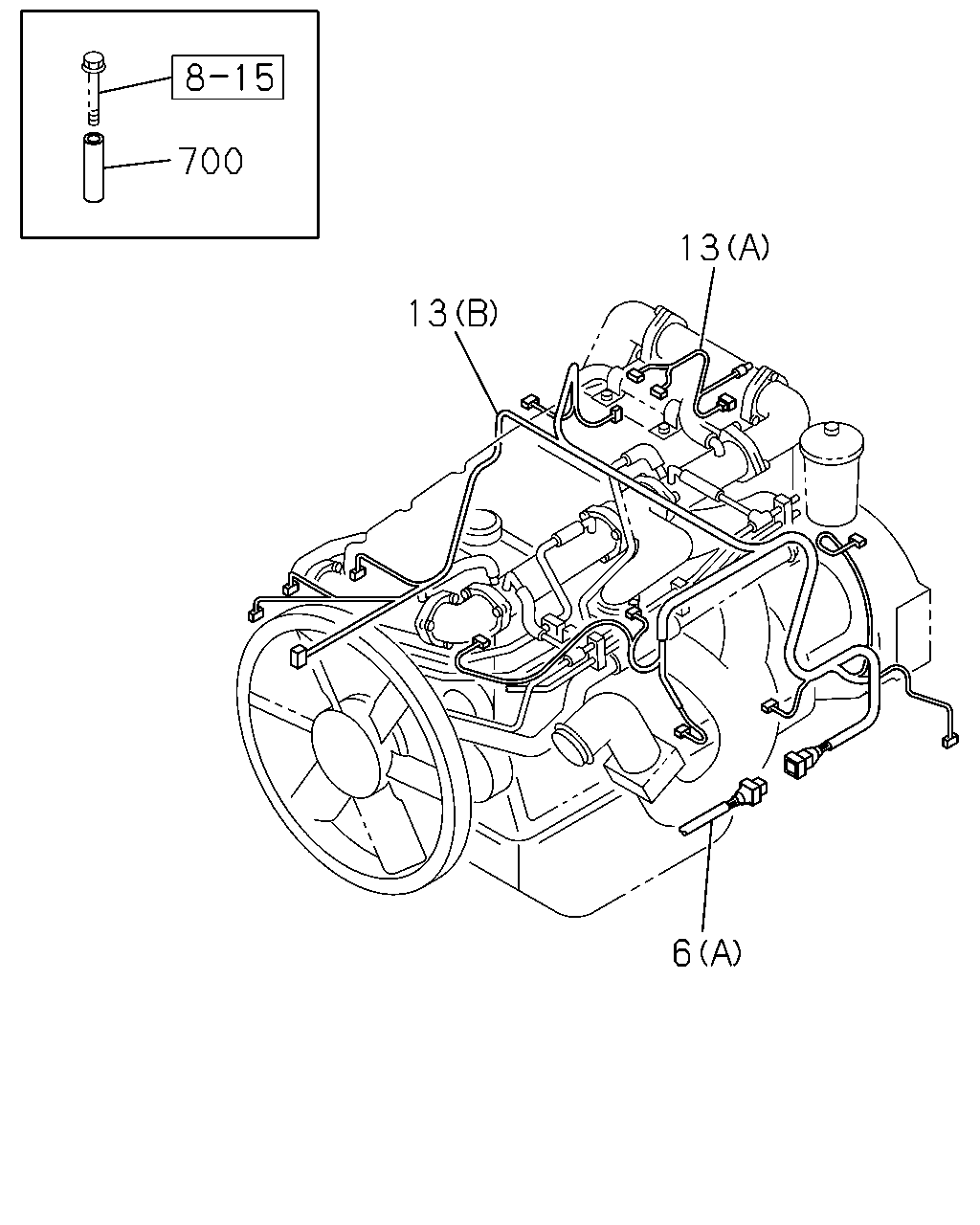

[810A] ENGINE SIDE (7 parça)
▶

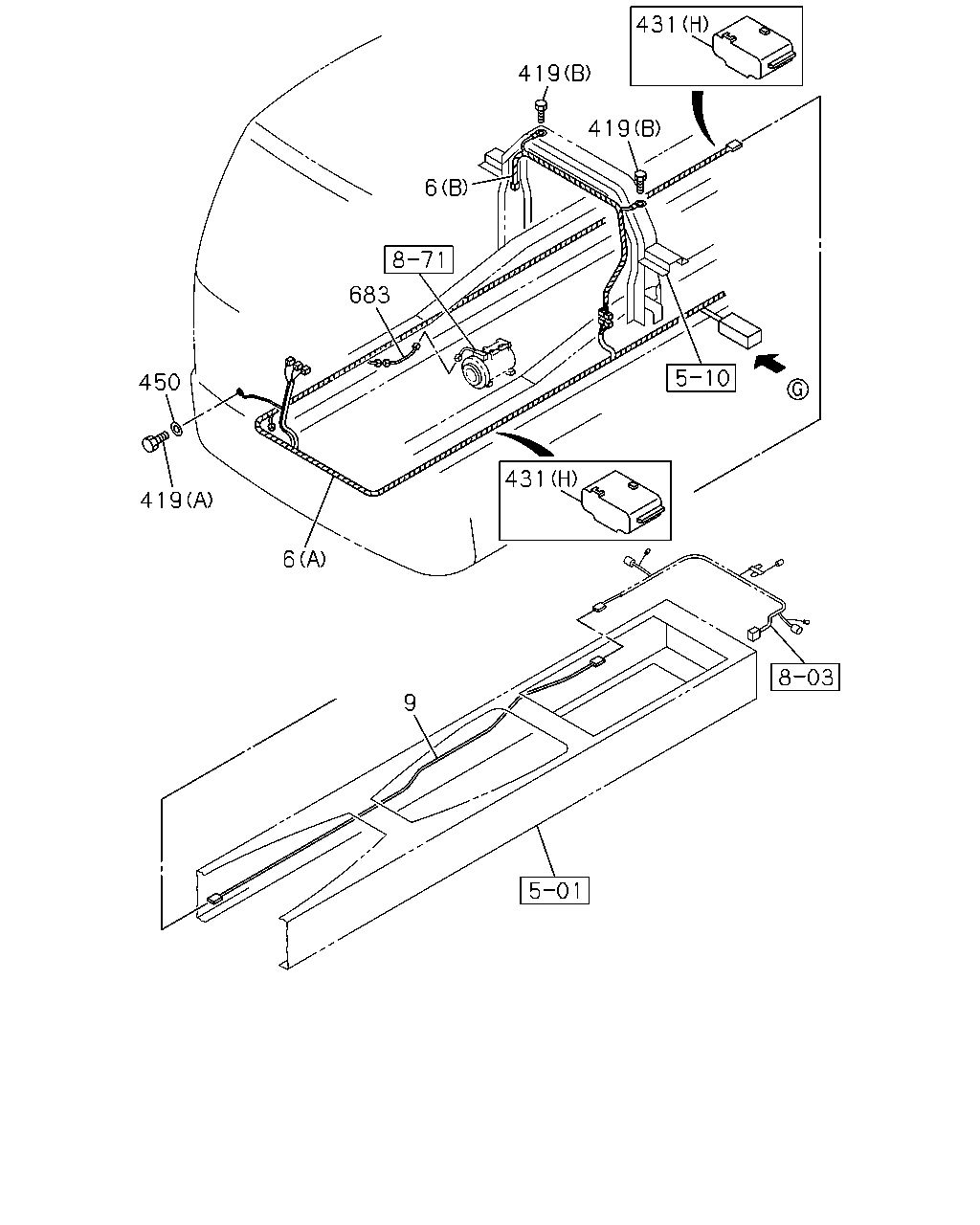

431
419
419
6
683
450
431
419
6
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(B)
8-98156-190-1
01
1
1009-
6
HARNESS; FRAME
GENERATOR 24V90A(K44) (A)
8-98163-091-2
01
1
1009-
6
HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A)
8-98163-090-2
01
1
1009-
9
HARNESS; FRAME,RR
8-98131-636-1
01
1
1009-
419
BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
1009-
419
BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER
8-97087-055-0
03
1
1009-1201
419
BOLT; CAB EARTH
(B) M8X14 W/PL WASHER
8-98164-837-0
03
1
1202-
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82698-579-0
01
1
1009-1207
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
01
1
1009-1207
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
04
1
1009-
431
CONNECTOR; JOINT
(G) 10P GREEN
1-82699-599-0
07
1
1009-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1009-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
08
1
1009-1207
431
CONNECTOR; JOINT
(E) 10P
8-97077-943-0
02
1
1009-1207
431
CONNECTOR; JOINT
(H) 6P BLACK
8-97616-194-0
02
1
1009-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1009-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1009-
450
WASHER; PL,CAB EARTH
ID=8.4
1-09503-264-0
01
1
1009-
683
HARNESS; EXT,COOLER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-97609-020-1
01
1
1009-

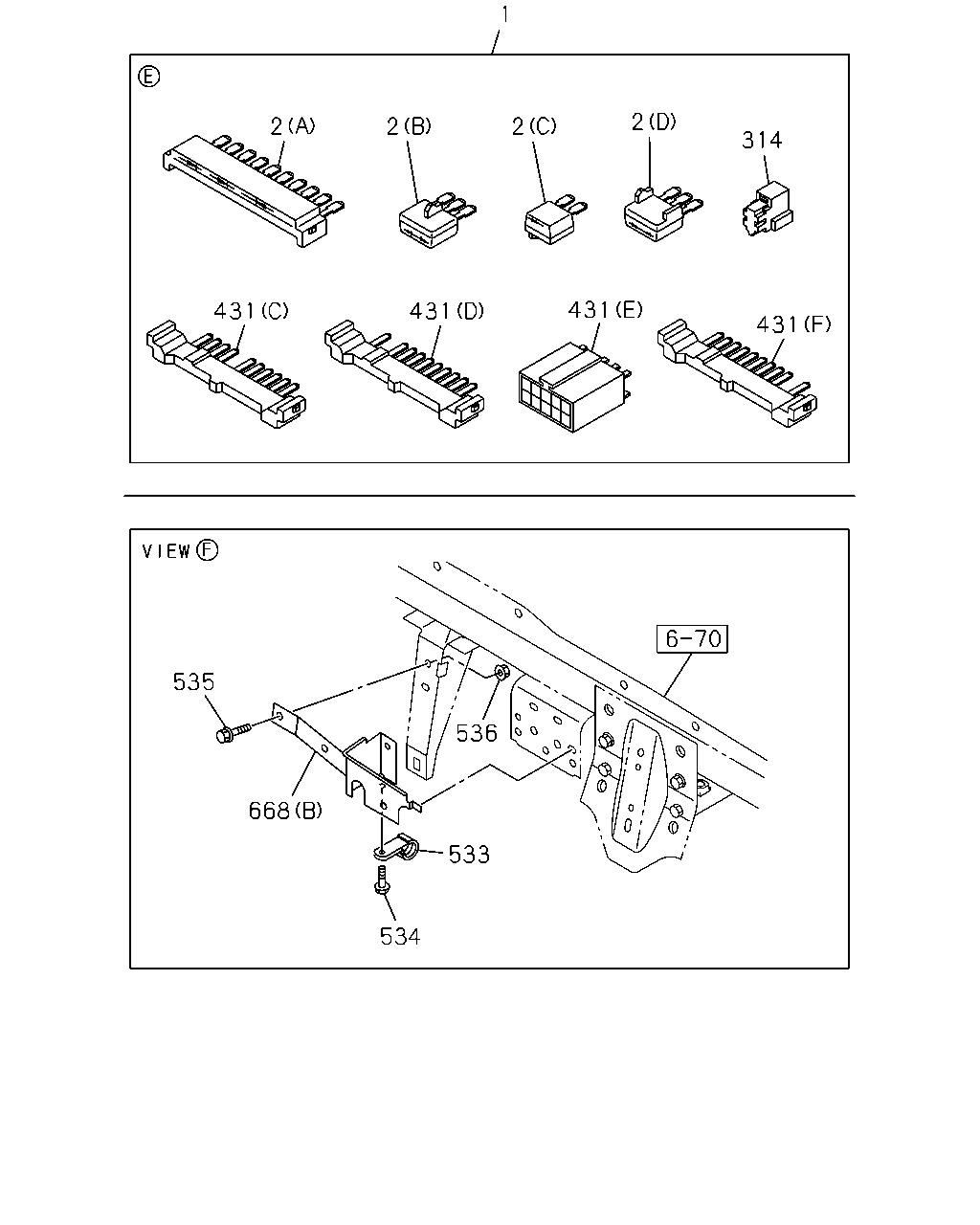

1
2
2
2
2
314
431
431
431
431
535
536
668
533
534
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>
8-98192-068-0
01
1
1105-1203
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98192-068-0
01
1
1204-1207
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98210-551-1
01
1
1208-
1
HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)
8-98192-067-0
01
1
1105-1203
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98192-067-0
01
1
1204-1207
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98210-550-1
01
1
1208-
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98155-295-3
01
1
1009-1104
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>
8-98155-295-3
01
1
1105-1203
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98155-294-3
01
1
1009-1104
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>
8-98155-294-3
01
1
1105-1203
2
DIODE; CABLE HARNESS
(A) BLACK 10P
1-82699-703-0
01
1
1009-
2
DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A
8-94416-438-1
01
1
1009-
2
DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A
8-94422-639-1
01
1
1009-
2
DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A
8-94422-640-1
01
1
1009-
314
RESISTOR; HARNESS
BLUE
1-82691-204-0
01
1
1009-1207
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82698-579-0
01
1
1009-1207
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
01
1
1009-1207
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
04
1
1009-
431
CONNECTOR; JOINT
(G) 10P GREEN
1-82699-599-0
07
1
1009-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1009-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
08
1
1009-1207
431
CONNECTOR; JOINT
(E) 10P
8-97077-943-0
02
1
1009-1207
431
CONNECTOR; JOINT
(H) 6P BLACK
8-97616-194-0
02
1
1009-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1009-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1009-
533
CLIP
ID=31 L=35
1-09700-329-1
01
1
1009-
534
BOLT
M8X20 FLANGE
0-28650-820-0
01
1
1009-
535
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
1009-1302
535
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
03
1
1303-1303
535
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
1304-
536
NUT; BRKT FIX
M8
8-98041-929-0
01
1
1009-
668
BRACKET; HARNESS
(A)
8-98095-653-2
01
1
1009-
668
BRACKET; HARNESS
(B)
8-98117-572-0
01
1
1009-

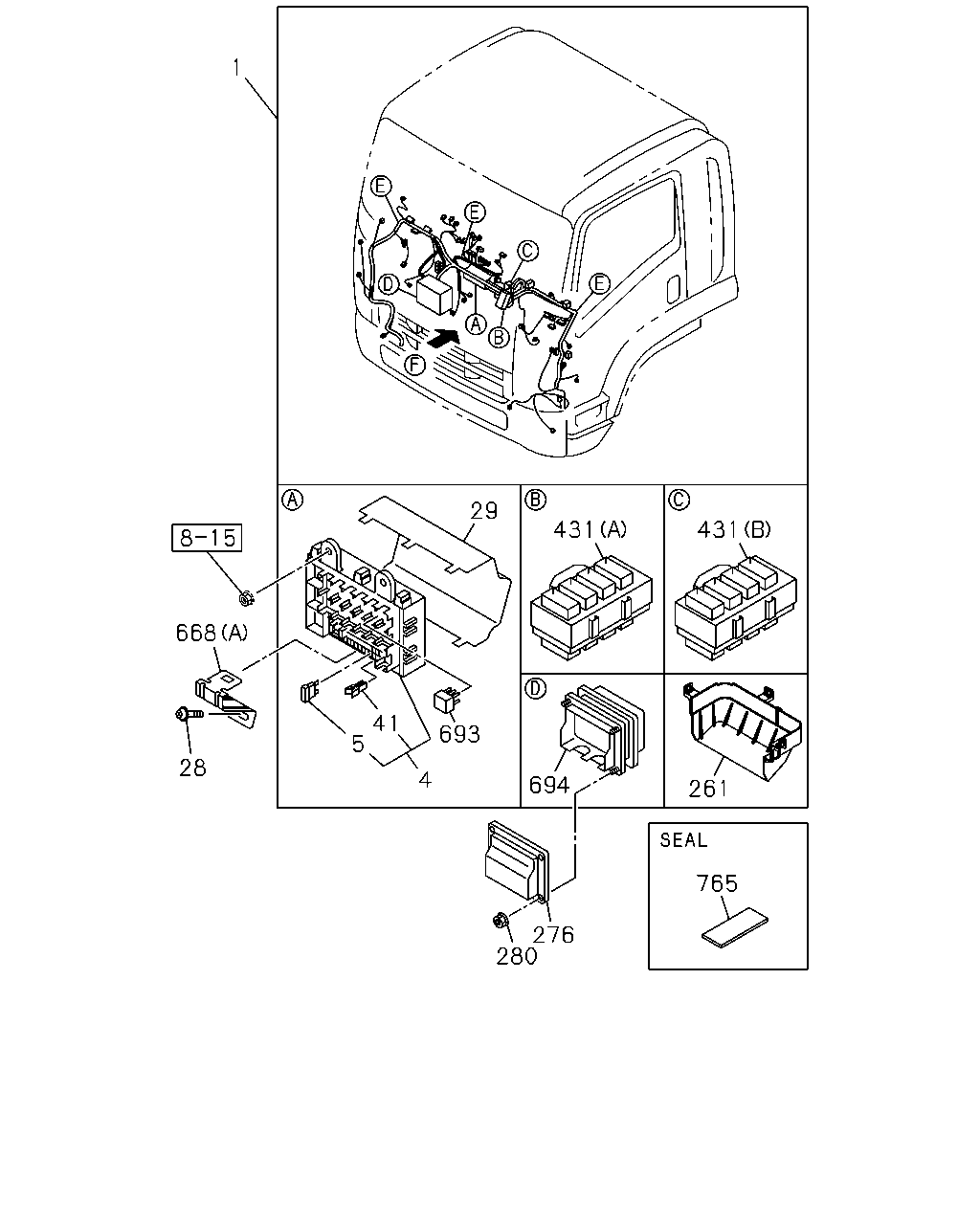

1
668
28
5
4
693
694
280
276
431
261
765
431
29
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>
8-98192-068-0
01
1
1105-1203
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98192-068-0
01
1
1204-1207
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98210-551-1
01
1
1208-
1
HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)
8-98192-067-0
01
1
1105-1203
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98192-067-0
01
1
1204-1207
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98210-550-1
01
1
1208-
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98155-295-3
01
1
1009-1104
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>
8-98155-295-3
01
1
1105-1203
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98155-294-3
01
1
1009-1104
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>
8-98155-294-3
01
1
1105-1203
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1009-
5
FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1009-
5
FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1009-
5
FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1009-
5
FUSE; FACIA HARNESS
25A WHITE
8-98062-982-0
02
1
1009-1207
5
FUSE; FACIA HARNESS
25A WHITE
8-98062-982-0
AR
1
1208-
28
SCREW; FUSE BOX
M6X16 FLANGE
0-28650-616-0
01
1
1009-
29
COVER; FUSE BOX
8-98056-968-0
01
1
1009-
41
PULLER; FUSE
8-98054-260-0
01
1
1009-
261
COVER; CONNECTOR BOX
8-98065-986-1
01
1
1009-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1009-
280
NUT; BOX ASM FIX
M6 FLANGE
0-91180-106-0
04
1
1009-
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82698-579-0
01
1
1009-1207
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
01
1
1009-1207
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
04
1
1009-
431
CONNECTOR; JOINT
(G) 10P GREEN
1-82699-599-0
07
1
1009-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1009-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
08
1
1009-1207
431
CONNECTOR; JOINT
(E) 10P
8-97077-943-0
02
1
1009-1207
431
CONNECTOR; JOINT
(H) 6P BLACK
8-97616-194-0
02
1
1009-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1009-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1009-
668
BRACKET; HARNESS
(A)
8-98095-653-2
01
1
1009-
668
BRACKET; HARNESS
(B)
8-98117-572-0
01
1
1009-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1009-
694
BOX ASM; CONNECTOR
8-98057-771-0
01
1
1009-
765
TAPE
100X40
1-72498-022-1
01
1
1409-1512

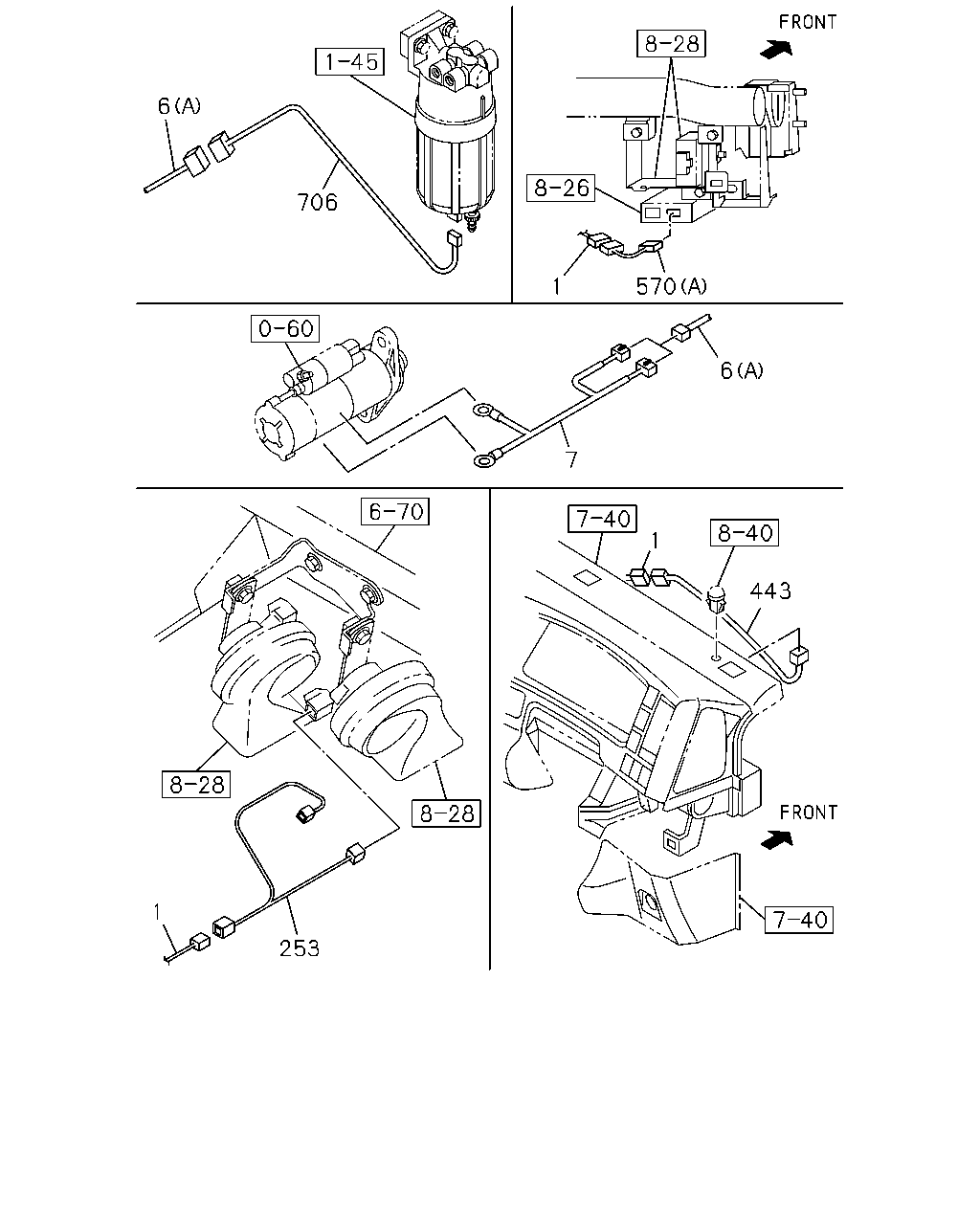

6
706
570
1
6
7
1
1
253
443
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>
8-98192-068-0
01
1
1105-1203
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98192-068-0
01
1
1204-1207
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98210-551-1
01
1
1208-
1
HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)
8-98192-067-0
01
1
1105-1203
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98192-067-0
01
1
1204-1207
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98210-550-1
01
1
1208-
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68)
8-98155-295-3
01
1
1009-1104
1
HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>
8-98155-295-3
01
1
1105-1203
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68)
8-98155-294-3
01
1
1009-1104
1
HARNESS; CAB
EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>
8-98155-294-3
01
1
1105-1203
6
HARNESS; FRAME
(B)
8-98156-190-1
01
1
1009-
6
HARNESS; FRAME
GENERATOR 24V90A(K44) (A)
8-98163-091-2
01
1
1009-
6
HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A)
8-98163-090-2
01
1
1009-
7
LINK ASM; FUSIBLE
GENERATOR 24V90A(K44)
8-98103-000-0
01
1
1009-
7
LINK ASM; FUSIBLE
EXC. GENERATOR 24V90A(K44)
8-98088-132-0
01
1
1009-
253
HARNESS; EXT,HORN
8-98074-081-2
01
1
1009-
443
HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68)
8-98096-565-0
01
1
1009-
570
HARNESS; SPEED SENSOR
(B)
8-98058-327-1
01
1
1009-
570
HARNESS; SPEED SENSOR
(A)
8-98148-602-0
01
1
1009-
706
HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0>
8-98187-173-1
01
1
1103-
706
HARNESS; EXT,SEDIMENTER
8-98087-610-1
01
1
1009-1102
706
HARNESS; EXT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>
8-98087-610-1
01
1
1103-
201
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(B)
8-98156-190-1
01
1
1009-
6
HARNESS; FRAME
GENERATOR 24V90A(K44) (A)
8-98163-091-2
01
1
1009-
6
HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A)
8-98163-090-2
01
1
1009-
201
HARNESS; AIR TANK
8-98079-765-5
01
1
1009-
689
462
463
95
570
6
231
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(B)
8-98156-190-1
01
1
1009-
6
HARNESS; FRAME
GENERATOR 24V90A(K44) (A)
8-98163-091-2
01
1
1009-
6
HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A)
8-98163-090-2
01
1
1009-
95
HARNESS; NEUTRAL SW
RED
8-98145-854-0
01
1
1009-
231
HARNESS; TRANS
8-98163-093-0
01
1
1009-
462
HARNESS; SW,RANGE
BLUE
8-98145-857-0
01
1
1009-
463
HARNESS; SW,BACK UP
BLACK
8-98145-856-0
01
1
1009-
570
HARNESS; SPEED SENSOR
(B)
8-98058-327-1
01
1
1009-
570
HARNESS; SPEED SENSOR
(A)
8-98148-602-0
01
1
1009-
689
HARNESS; PRESSURE & ECU SWITCH
1-82659-229-1
01
1
1009-1101
689
HARNESS; PRESSURE & ECU SWITCH
8-98148-603-0
01
1
1102-

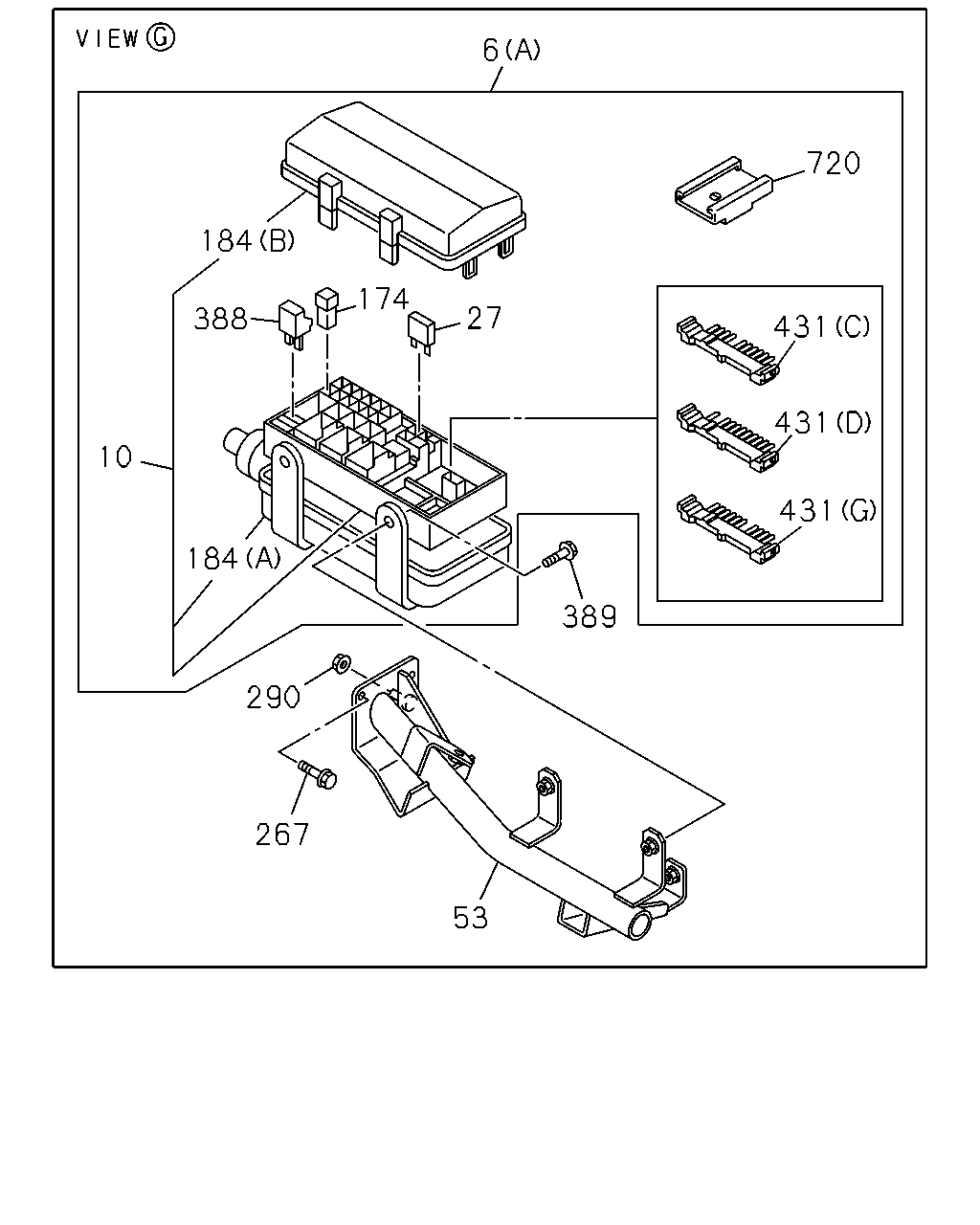

6
720
184
174
27
388
431
431
10
431
184
389
290
267
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(B)
8-98156-190-1
01
1
1009-
6
HARNESS; FRAME
GENERATOR 24V90A(K44) (A)
8-98163-091-2
01
1
1009-
6
HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A)
8-98163-090-2
01
1
1009-
10
BOX; FUSE,HARNESS
8-98030-762-0
01
1
1009-
27
FUSE UNIT
10A RED
8-98054-257-0
03
1
1009-
27
FUSE UNIT
15A BLUE
8-98054-258-0
01
1
1009-
53
BRACKET; FUSE BOX
8-98078-800-1
01
1
1009-
174
FUSE; SLOW BLOW
30A PINK
8-98079-191-0
02
1
1009-
174
FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
01
1
1009-
174
FUSE; SLOW BLOW
50A RED
8-98079-193-0
03
1
1009-
174
FUSE; SLOW BLOW
60A YELLOW 60A YELLOW
8-97219-407-0
02
1
1009-1106
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
01
1
1107-
184
COVER; RELAY & FUSE BOX
(A)
8-98030-766-0
01
1
1009-
184
COVER; RELAY & FUSE BOX
(B)
8-98030-767-1
01
1
1009-
267
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1009-
290
NUT; BRKT
M10 FLANGE
0-91180-110-0
01
1
1009-
388
DIODE; RELAY BOX
BLACK 4P-1.5A
8-94381-730-0
01
1
1009-
388
DIODE; RELAY BOX
BLACK 2P-1.5A
8-94422-639-1
01
1
1009-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1009-
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82698-579-0
01
1
1009-1207
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
01
1
1009-1207
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
04
1
1009-
431
CONNECTOR; JOINT
(G) 10P GREEN
1-82699-599-0
07
1
1009-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1009-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
08
1
1009-1207
431
CONNECTOR; JOINT
(E) 10P
8-97077-943-0
02
1
1009-1207
431
CONNECTOR; JOINT
(H) 6P BLACK
8-97616-194-0
02
1
1009-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1009-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1009-
720
ATTACHMENT; CONNECTOR
1-82699-688-0
03
1
1009-

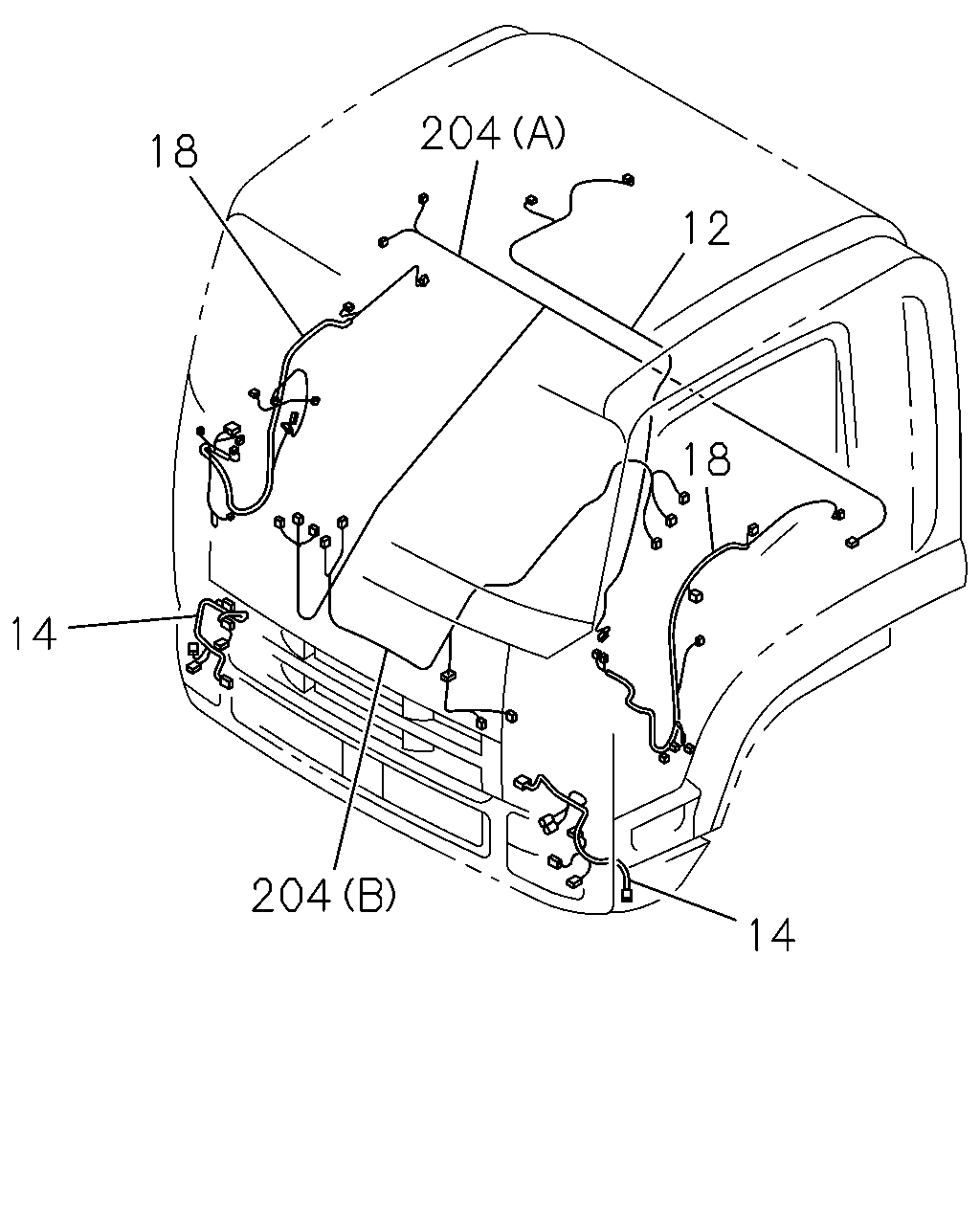

204
18
12
18
14
204
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
8-98079-072-1
01
1
1009-
14
HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98103-680-1
02
1
1009-
14
HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98075-629-3
02
1
1009-
18
HARNESS; DOOR
8-98084-288-3
01
1
1009-
18
HARNESS; DOOR
8-98084-283-3
01
1
1009-
204
HARNESS; CABLE,FLOOR
(A)
8-98117-546-0
01
1
1009-
204
HARNESS; CABLE,FLOOR
(B)
8-98155-317-2
01
1
1009-
700
13
13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
(B)
8-98156-190-1
01
1
1009-
6
HARNESS; FRAME
GENERATOR 24V90A(K44) (A)
8-98163-091-2
01
1
1009-
6
HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A)
8-98163-090-2
01
1
1009-
13
HARNESS; ENG
(B)
8-97628-333-4
01
1
1009-1204
13
HARNESS; ENG
(B)
8-98210-223-1
01
1
1205-
13
HARNESS; ENG
(A)
8-98152-373-1
01
1
1009-
700
TUBE; DISTANCE
L=51
1-11369-157-0
02
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
