7-20 — MIRROR AND MIRROR STAY (#70553) — 104 parça

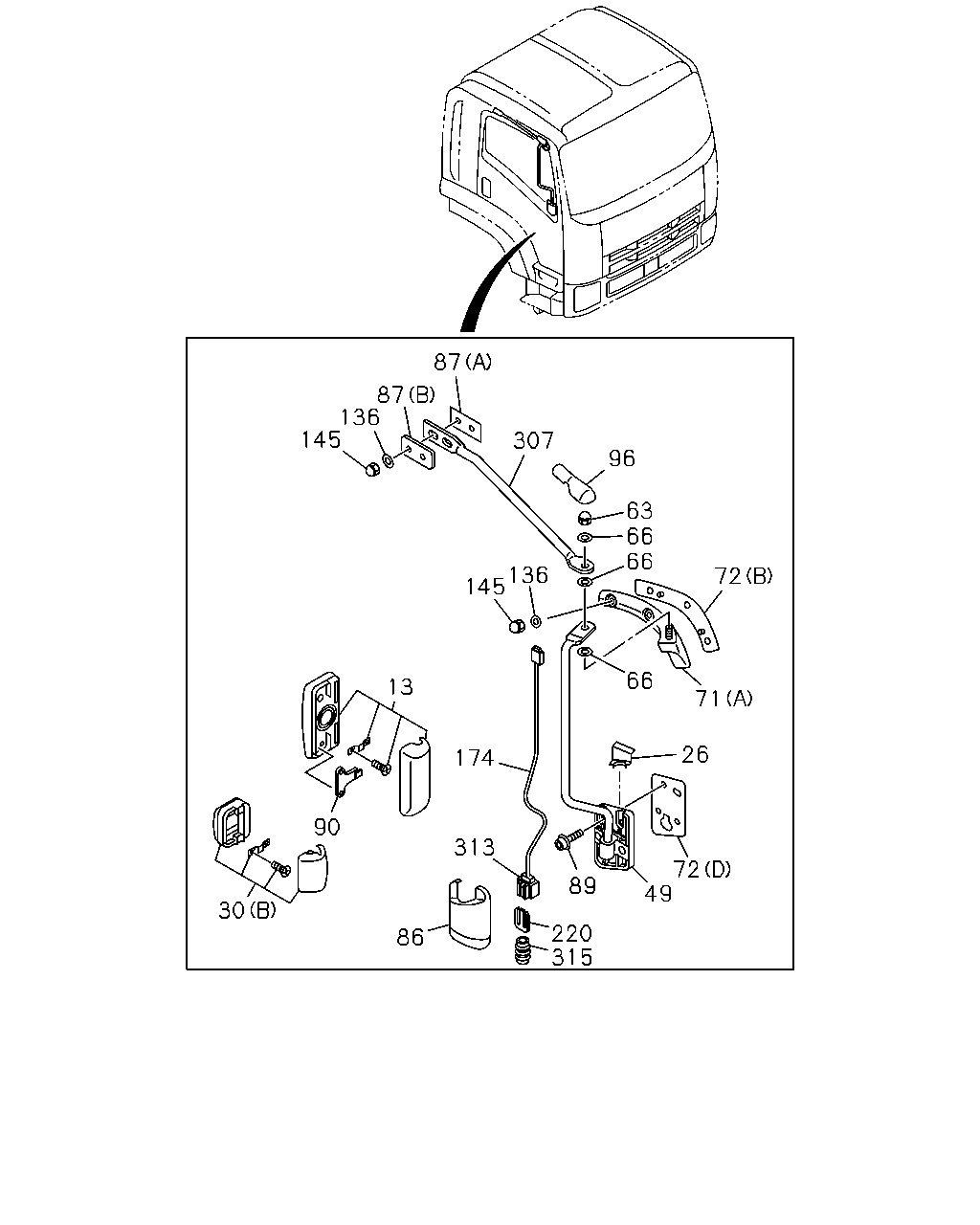

çizim 132693
87 87 136 145 307 96 63 66 66 136 145 72 66 13 71 26 174 90 313 72 49 89 30 220 315 86
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1009-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1009-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1009-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1009-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1009-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1009-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1009-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
49 STAY; MIRROR SIDE 8-98064-781-1 01 1 1009-1202
49 STAY; MIRROR SIDE 8-98166-199-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98064-780-1 01 1 1009-1202
49 STAY; MIRROR SIDE 8-98166-198-0 01 1 1203-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1009-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1009-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1009-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1009-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1009-
72 SHEET
(C) 		8-98031-797-0 01 1 1009-
72 SHEET
(E) 		8-98060-245-1 01 1 1009-
72 SHEET
(A) 		8-98064-776-0 01 1 1009-
72 SHEET
(D) 		8-98101-865-0 01 1 1009-
72 SHEET
(B) 		8-98031-796-0 01 1 1009-
72 SHEET
(D) 		8-98101-864-0 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1009-
87 SPACER
(A) 		8-98063-786-0 02 1 1009-
87 SPACER
(B) 		8-98063-789-0 01 1 1009-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1009-
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1009-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1009-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1009-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1009-
174 HARNESS; MIRROR 8-98125-653-0 02 1 1009-
220 HOLDER; CONNECTOR 8-94447-536-0 02 1 1009-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1009-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1009-
313 CONNECTOR; MIRROR 8-94447-532-0 02 1 1009-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 02 1 1009-

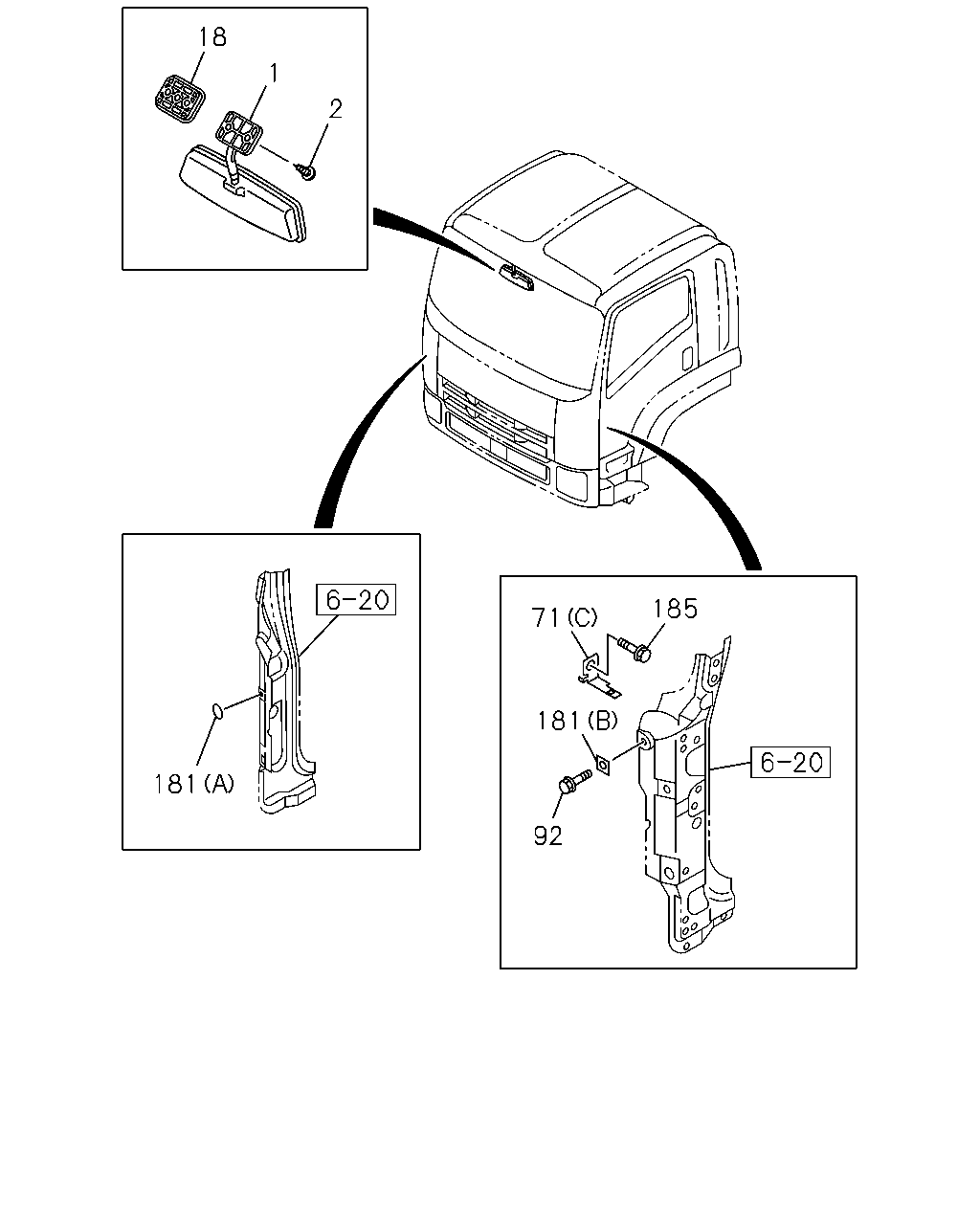

çizim 133021
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1009-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1009-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1009-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1009-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1009-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1009-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1009-
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1009-

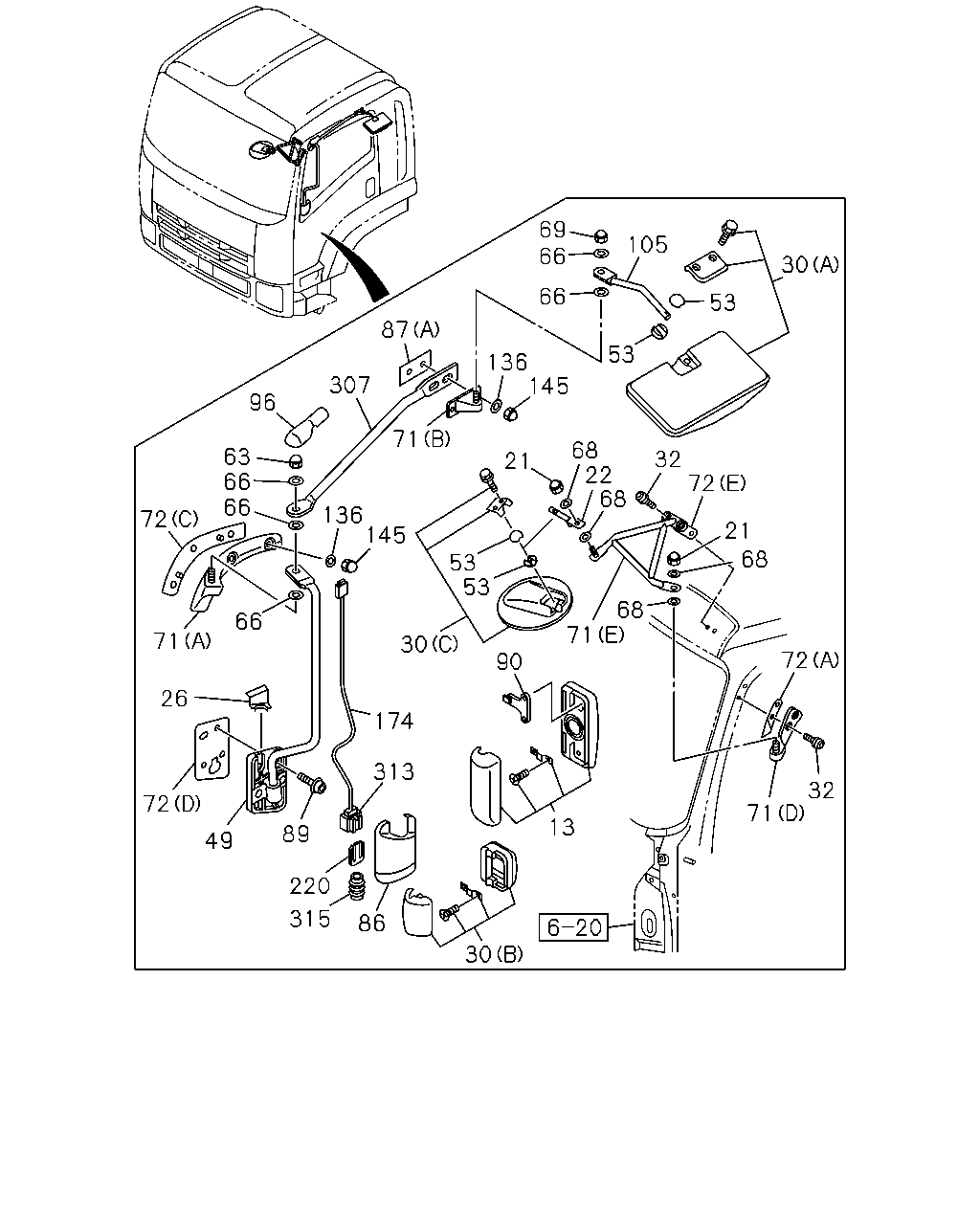

çizim 187522
69 66 105 30 66 53 87 53 136 145 307 96 71 68 22 68 63 66 66 32 72 21 136 145 72 21 68 53 53 68 71 66 71 30 72 90 26 174 313 32 71 72 13 89 49 220 315 86 30
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1009-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1009-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1009-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1009-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1009-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1009-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1009-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1009-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1009-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1009-
49 STAY; MIRROR SIDE 8-98064-781-1 01 1 1009-1202
49 STAY; MIRROR SIDE 8-98166-199-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98064-780-1 01 1 1009-1202
49 STAY; MIRROR SIDE 8-98166-198-0 01 1 1203-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 04 1 1009-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1009-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1009-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1009-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1009-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1009-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1009-
72 SHEET
(C) 		8-98031-797-0 01 1 1009-
72 SHEET
(E) 		8-98060-245-1 01 1 1009-
72 SHEET
(A) 		8-98064-776-0 01 1 1009-
72 SHEET
(D) 		8-98101-865-0 01 1 1009-
72 SHEET
(B) 		8-98031-796-0 01 1 1009-
72 SHEET
(D) 		8-98101-864-0 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1009-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1009-
87 SPACER
(A) 		8-98063-786-0 02 1 1009-
87 SPACER
(B) 		8-98063-789-0 01 1 1009-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1009-
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1009-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1009-
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1009-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1009-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1009-
174 HARNESS; MIRROR 8-98125-653-0 02 1 1009-
220 HOLDER; CONNECTOR 8-94447-536-0 02 1 1009-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1009-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1009-
313 CONNECTOR; MIRROR 8-94447-532-0 02 1 1009-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 02 1 1009-
