◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11313 - FXR(RHD)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#70552) — 12 parça
çizim 132777
4 4 181
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1009-
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1009-
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 1009-
çizim 133091
49 35 160
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB
CAUTIONS ENGLISH<RR8> 		8-98017-667-1 01 1 1009-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-98076-221-0 01 1 1009-
160 PLATE; CAUTION,TOWING
CAUTIONS ENGLISH<RR8> 		1-85888-737-1 01 1 1009-

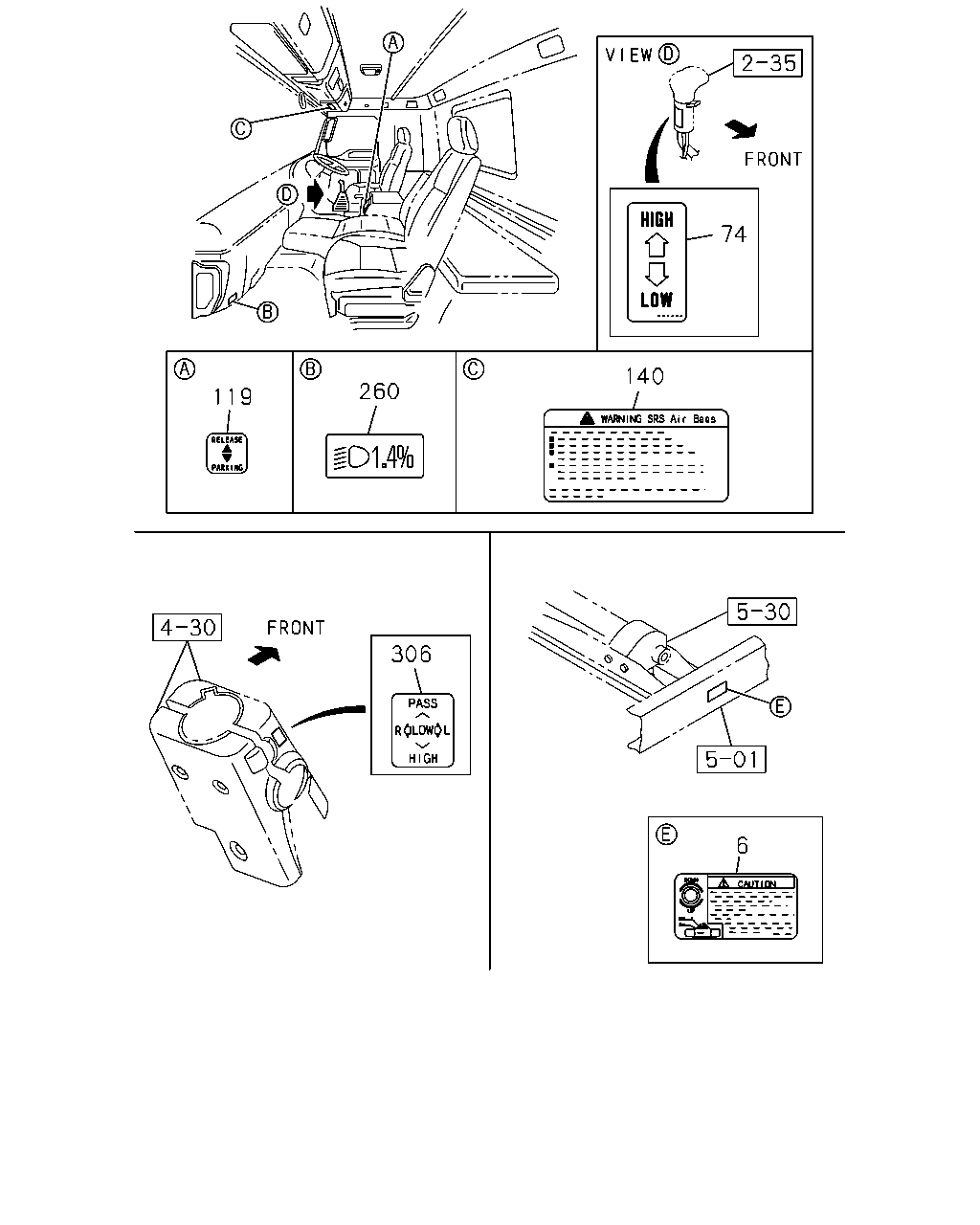

çizim 133234
74 140 260 119 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1009-
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 1009-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ENGLISH<RR8> 		1-85881-759-0 01 1 1009-
140 PLATE; CAUTION,SRS
CAUTIONS ENGLISH<RR8> 		8-98139-964-0 01 1 1009-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1009-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
