◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11313 - FXR(RHD)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#70549) — 9 parça

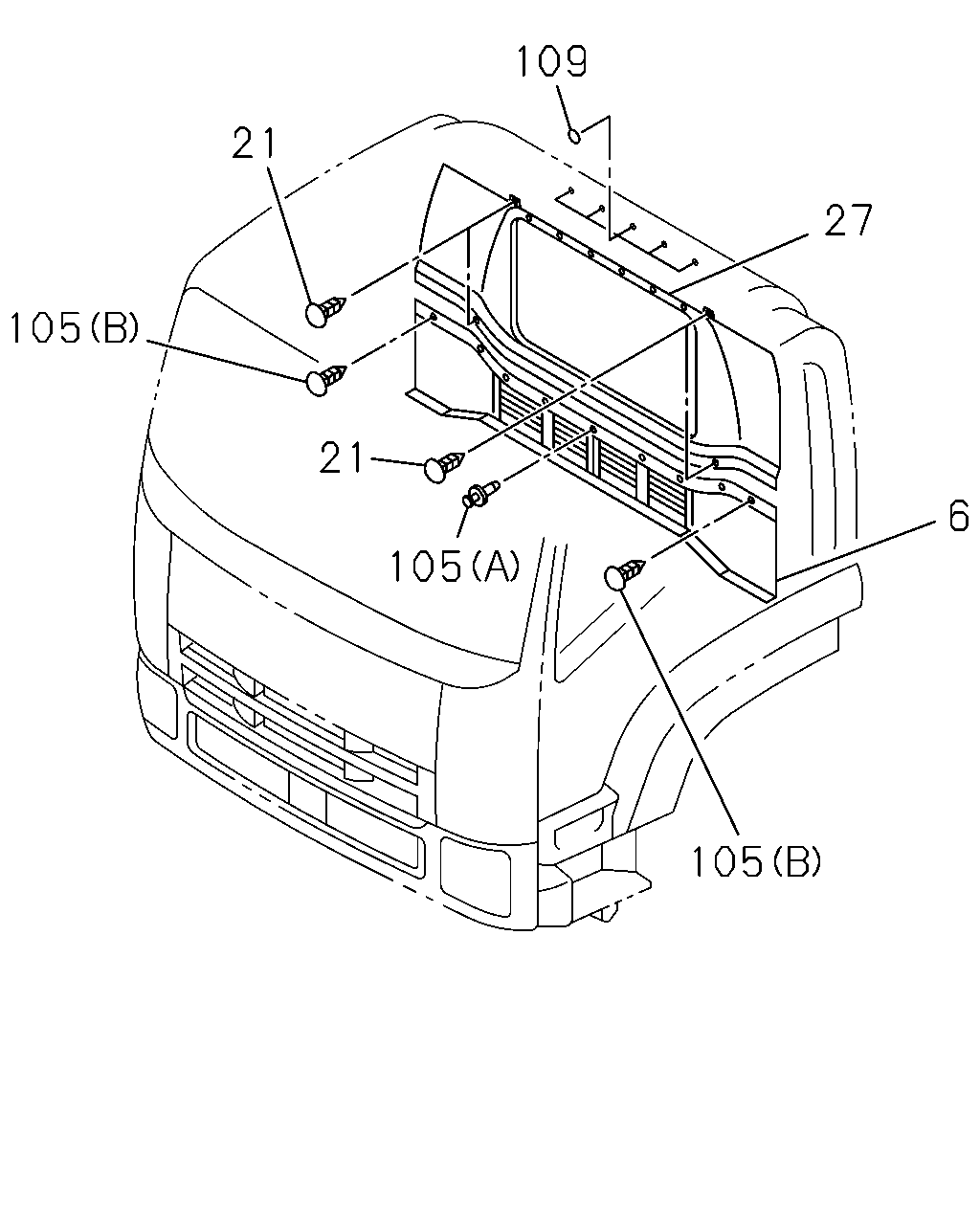

çizim 187514
109 21 27 105 21 6 105 105
BalonParca AdiParca NoAdetTipApplied Date
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-458-1 01 1 1009-
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1009-
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97407-464-2 01 1 1009-
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1009-
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1009-
109 SEAL; HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1009-
109 SEAL; HOLE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR OMAHA ORANGE(906),BODY COLOR FIRE RED(915) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1009-1011
109 SEAL; HOLE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1012-1202
109 SEAL; HOLE
BODY COLOR TOLL GREEN(543),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1203-
