Isuzu WW
▶
TRUCKS
▶
FXR
▶
11313 - FXR(RHD)EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶

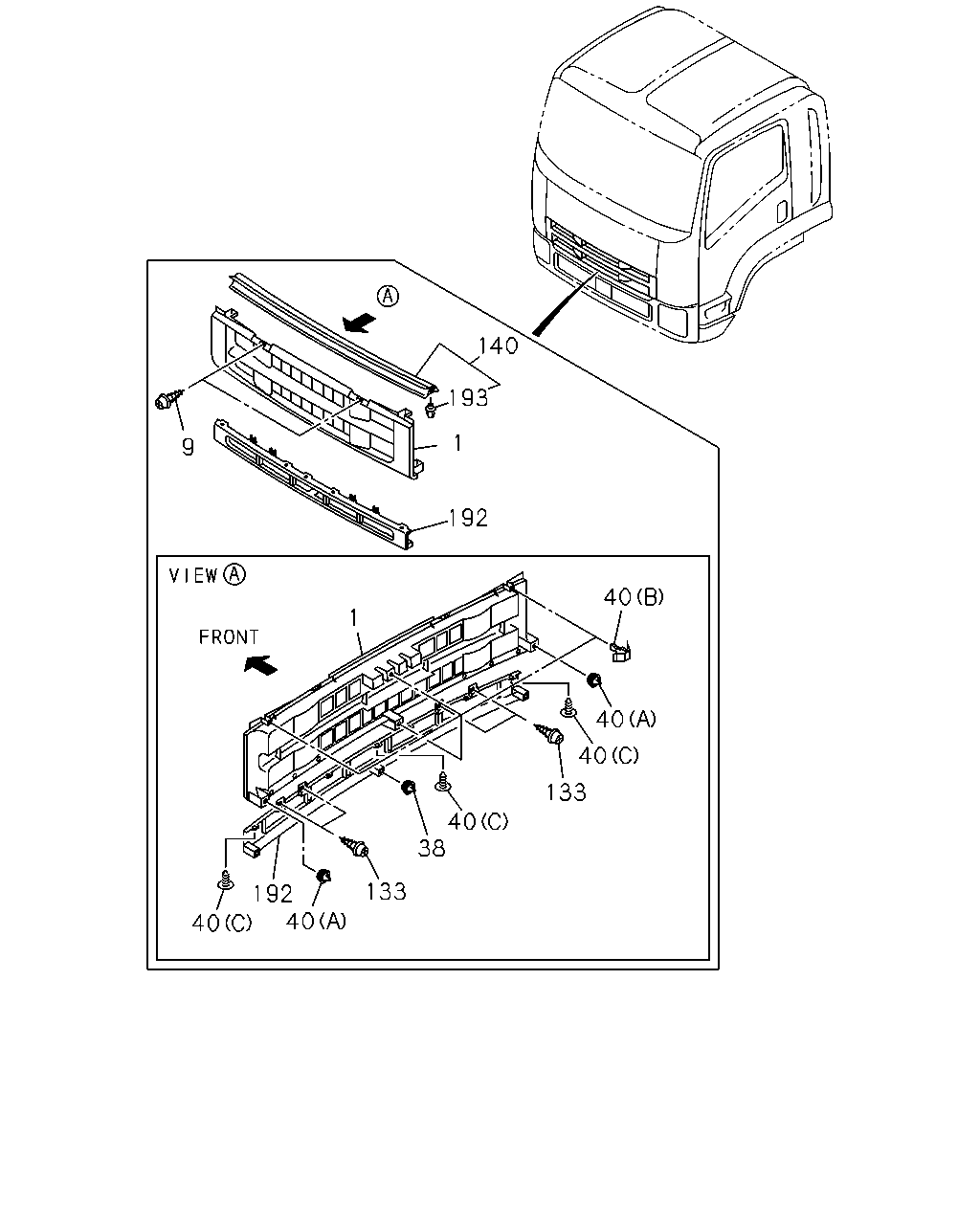

6-03 — RADIATOR GRILLE
(#70530) — 26 parça
140
193
1
9
192
40
1
40
40
133
40
38
133
192
40
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BODY COLOR TOLL GREEN(543) RADIATOR GRILLE PAINTED<TL4> GREEN
8-97423-772-6
01
1
1203-
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) RADIATOR GRILLE PAINTED<TL4> WHITE
8-97407-868-6
01
1
1009-
1
GRILLE; RAD
BODY COLOR CARDINAL RED(736) RADIATOR GRILLE PAINTED<TL4> RED
8-97411-746-6
01
1
1009-
1
GRILLE; RAD
BODY COLOR FIRE RED(915) RADIATOR GRILLE PAINTED<TL4> RED
8-97411-749-6
01
1
1009-
1
GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) RADIATOR GRILLE PAINTED<TL4> YELLOW
8-97411-748-6
01
1
1009-
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) RADIATOR GRILLE PAINTED<TL4> BLUE
8-97413-914-6
01
1
1009-
1
GRILLE; RAD
BODY COLOR OMAHA ORANGE(906) RADIATOR GRILLE PAINTED<TL4>
8-97418-372-6
01
1
1009-1011
1
GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) RADIATOR GRILLE PAINTED<TL4> BEIGE
8-97411-747-6
01
1
1009-
1
GRILLE; RAD
EXC. RADIATOR GRILLE PAINTED<TL4> DARK GRAY
8-98040-997-6
01
1
1009-
9
SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1009-
38
CLIP; GRILLE
H=15.3
8-97804-778-0
01
1
1009-
40
CLIP; RAD GRILLE
(C) D8X13.5
1-09987-248-1
07
1
1009-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
04
1
1009-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1009-
133
SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
04
1
1009-
140
SEAL; RAD GRILLE
8-98060-340-0
01
1
1009-
192
EXTENSION; RAD GRILLE
BODY COLOR TOLL GREEN(543) RADIATOR GRILLE PAINTED<TL4> GREEN GREEN
8-97423-773-0
01
1
1203-
192
EXTENSION; RAD GRILLE
BODY COLOR ARC WHITE(729) RADIATOR GRILLE PAINTED<TL4> WHITE
8-97413-103-0
01
1
1009-
192
EXTENSION; RAD GRILLE
BODY COLOR CARDINAL RED(736) RADIATOR GRILLE PAINTED<TL4> RED
8-97418-373-0
01
1
1009-
192
EXTENSION; RAD GRILLE
BODY COLOR FIRE RED(915) RADIATOR GRILLE PAINTED<TL4> RED
8-97418-378-0
01
1
1009-
192
EXTENSION; RAD GRILLE
BODY COLOR GOLDEN YELLOW(904) RADIATOR GRILLE PAINTED<TL4> YELLOW
8-97418-376-0
01
1
1009-
192
EXTENSION; RAD GRILLE
BODY COLOR MARINE BLUE(890) RADIATOR GRILLE PAINTED<TL4> BLUE
8-97418-375-0
01
1
1009-
192
EXTENSION; RAD GRILLE
BODY COLOR OMAHA ORANGE(906) RADIATOR GRILLE PAINTED<TL4>
8-97418-377-0
01
1
1009-1011
192
EXTENSION; RAD GRILLE
BODY COLOR SAHARA BEIGE(829) RADIATOR GRILLE PAINTED<TL4> BEIGE
8-97418-374-0
01
1
1009-
192
EXTENSION; RAD GRILLE
EXC. RADIATOR GRILLE PAINTED<TL4>
8-98165-182-0
01
1
1009-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
