Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶
7-10 — CAUTION PLATE AND LABEL
(#7053) — 18 parça
◀
[710A] EMISSION,ENG,FUEL FILTER,A/DRIER,S/TIR (8 parça)

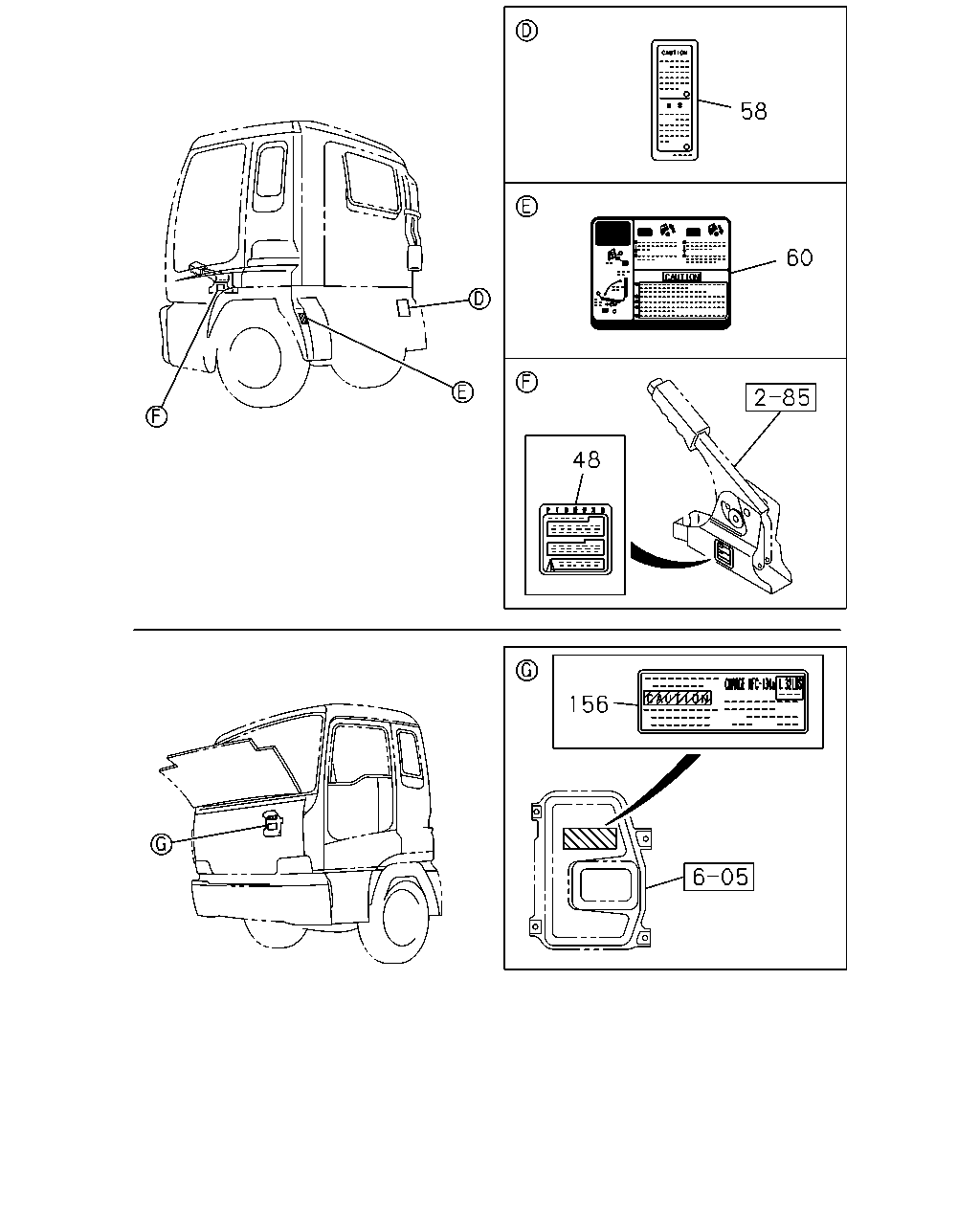

[710A] PTO,ENG START,CAB TILT,A/C (4 parça)

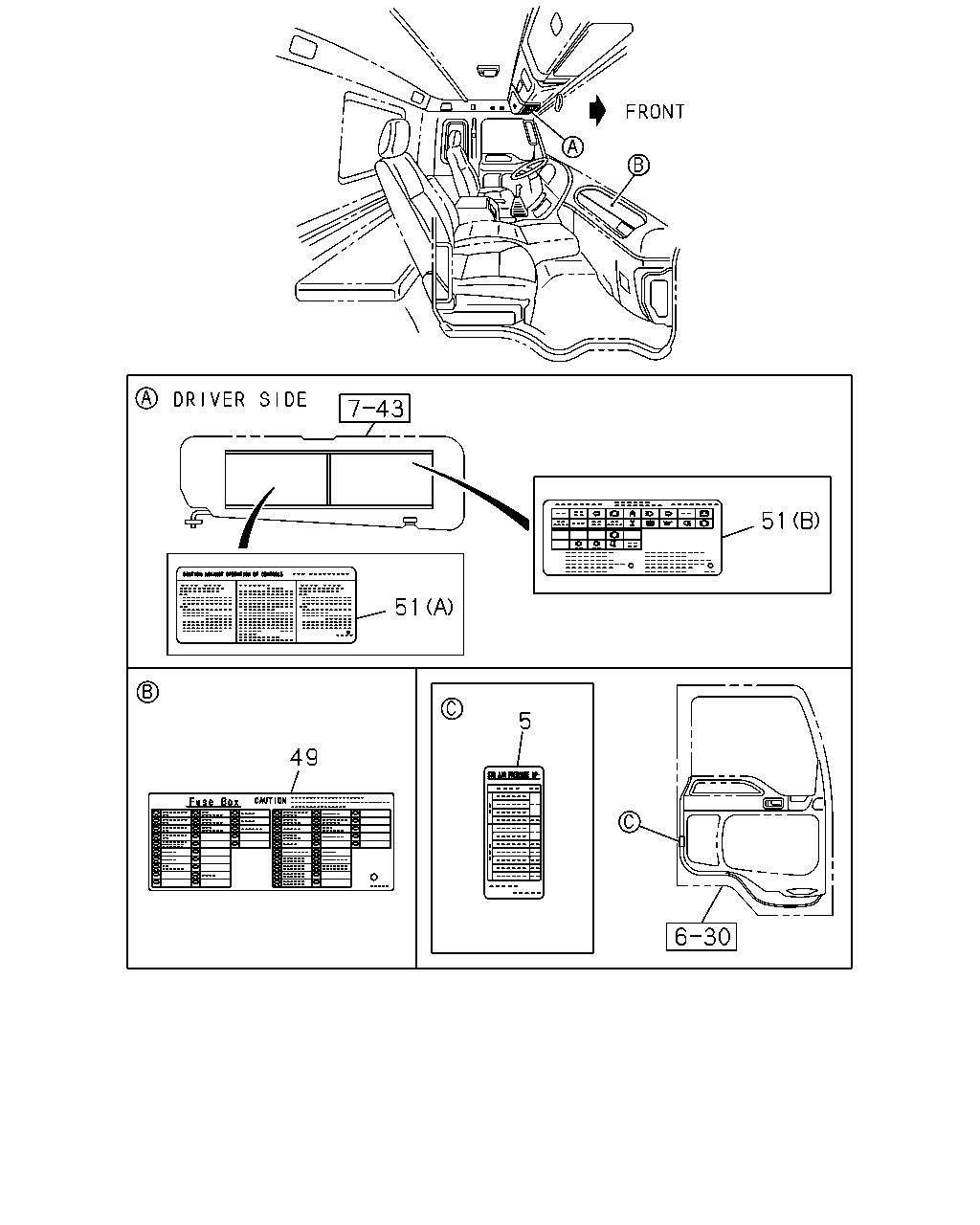

[710A] FUSE BOX,WARNING,TIRE AIR PRESSURE (6 parça)
▶
6
173
135
7
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PLATE; CAUTION,SPARE TIRE
1-85883-113-0
01
1
9908-
7
LABEL; EMISSION
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>
8-94391-418-0
01
1
9908-9910
7
LABEL; EMISSION
8-94391-418-0
01
1
9911-
135
PLATE; CAUTION,ENGINE
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>
1-85886-826-0
01
1
9908-9910
135
PLATE; CAUTION,ENGINE
1-85886-826-0
01
1
9911-
173
PLATE; CAUTION,FUEL FILTER
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>
1-85886-176-0
01
1
9908-9910
173
PLATE; CAUTION,FUEL FILTER
1-85886-176-0
01
1
9911-
228
PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7>
1-85887-934-0
01
1
9908-
58
60
48
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4>
1-85881-254-0
01
1
9908-
58
PLATE; CAUTION,ENG START
1-85887-536-0
01
1
9908-
60
PLATE; CAUTION,CAB TILT
1-85883-175-0
01
1
9908-
156
PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97105-399-0
01
1
9908-
51
51
5
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
LABEL; TIRE AIR PRESSURE
1-85880-724-2
01
1
9908-0009
5
LABEL; TIRE AIR PRESSURE
1-85880-763-0
01
1
0010-0104
5
LABEL; TIRE AIR PRESSURE
1-85880-764-0
01
1
0105-
49
PLATE; CAUTION,FUSE BOX
1-85878-069-2
01
1
9908-
51
PLATE; CAUTION,WARNING
(B)
1-85878-074-0
01
1
9908-
51
PLATE; CAUTION,WARNING
(A)
1-85880-727-0
01
1
9908-
