4-60 — REAR SUSPENSION
(#70519) — 31 parça
◀

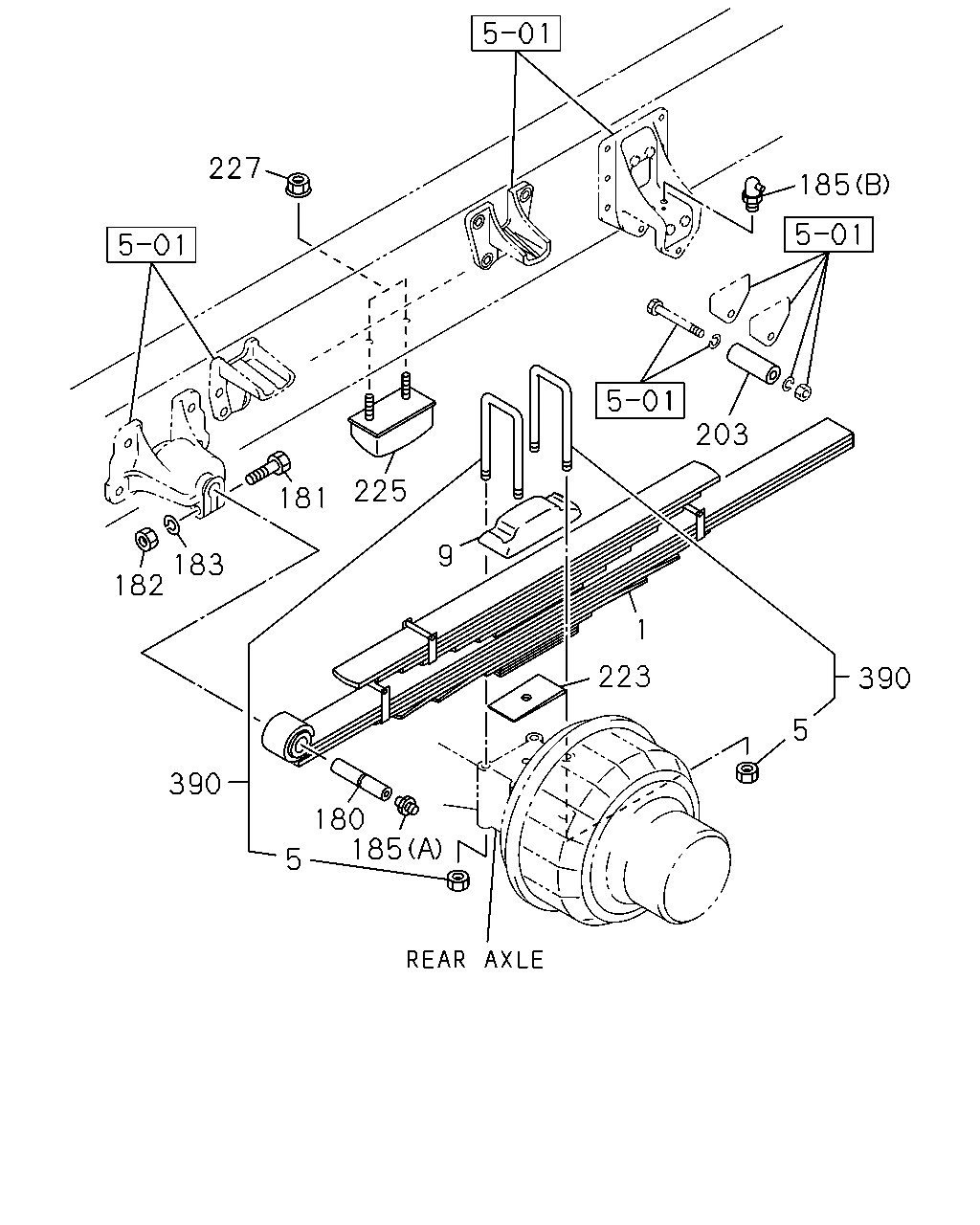

[460A] NO.1 (15 parça)

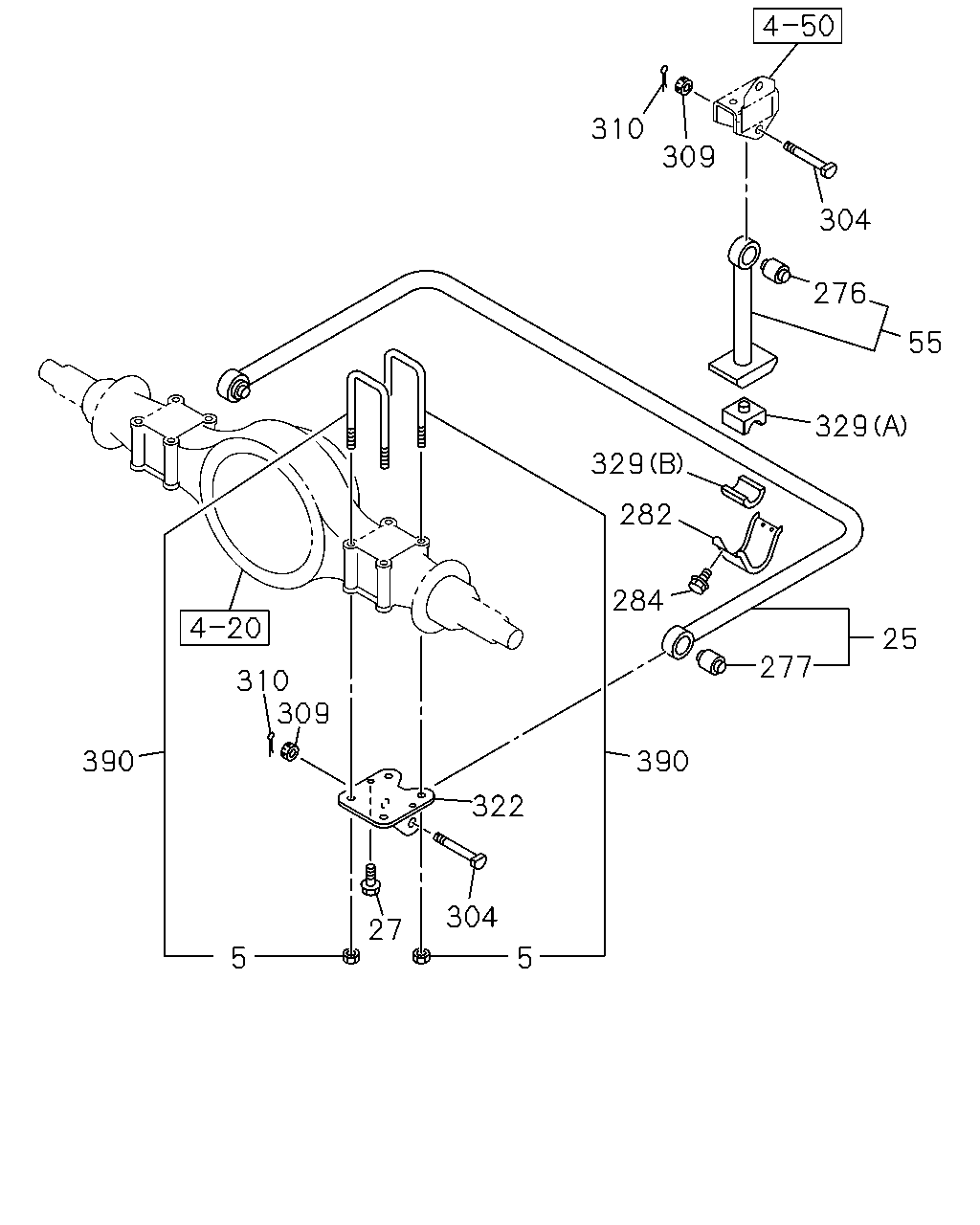

[460A] NO.2 (16 parça)
▶
227
185
203
225
181
9
183
182
1
223
390
5
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98017-565-0
02
1
1009-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1009-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
1009-
180
PIN; RR SPR
1-51361-020-0
02
1
1009-
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
1009-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1009-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1009-
185
NIPPLE; GREASE,PIN,RR SPR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1009-
185
NIPPLE; GREASE,PIN,RR SPR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1009-
203
COLLAR; LEAF SPR STOPPER
1-53359-004-0
02
1
1009-
223
SPACER; U BOLT,RR SPR
1-51377-367-1
02
1
1009-1407
223
SPACER; U BOLT,RR SPR
8-98220-148-0
02
1
1408-
225
RUBBER; CUSHION,RR SPR
1-53366-081-1
02
1
1009-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
1009-
390
U-BOLT SET; RR SPRING
L=490
1-87870-036-4
04
1
1009-
310
309
304
276
55
329
329
282
284
25
277
310
309
390
390
322
304
27
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1009-
25
BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61>
1-51770-030-2
01
1
1009-
27
BOLT; STAB
REAR STABILIZER SHAFT<F61> M10X16 FLANGE
0-28051-016-0
04
1
1009-
55
ROD; STAB
REAR STABILIZER SHAFT<F61>
1-51770-024-1
02
1
1009-
276
BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61>
1-51779-019-0
02
1
1009-
277
BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61>
1-51779-067-0
02
1
1009-
282
RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61>
1-51789-015-2
02
1
1009-
284
BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25
8-94463-351-0
08
1
1009-
304
PIN; STAB ROD
REAR STABILIZER SHAFT<F61>
1-51789-020-2
04
1
1009-
309
NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24
9-99116-424-0
04
1
1009-
310
PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45
0-81125-045-0
04
1
1009-
322
BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61>
1-51781-127-0
01
1
1009-
322
BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61>
1-51781-048-4
01
1
1009-
329
BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (A)
1-51789-051-1
02
1
1009-
329
BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B)
1-51789-052-0
02
1
1009-
390
U-BOLT SET; RR SPRING
L=490
1-87870-036-4
04
1
1009-
