◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11313 - FXR(RHD)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶

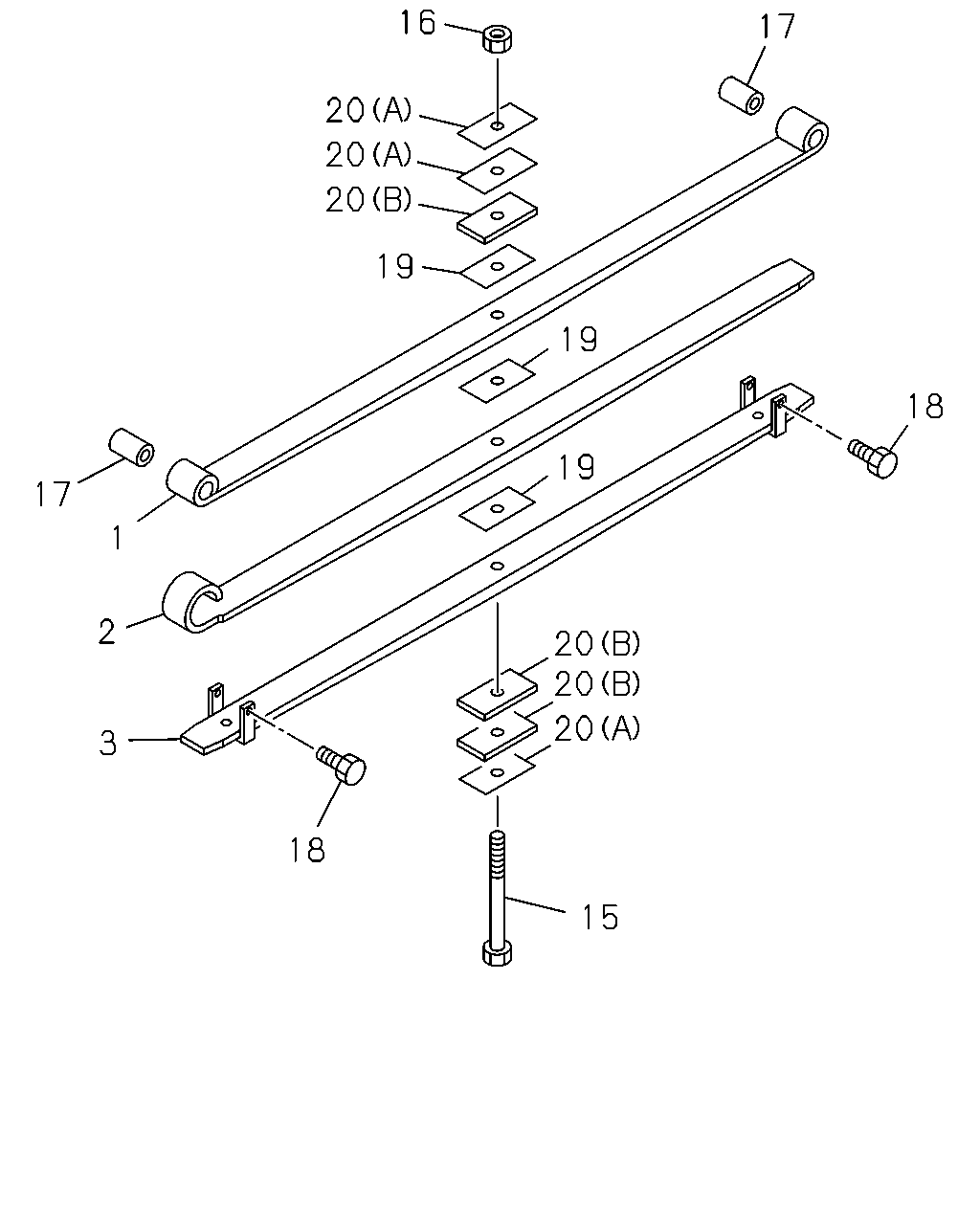

4-55 — FRONT LEAF SPRING (#70518) — 10 parça
çizim 124726
16 17 20 20 20 19 19 18 19 17 1 2 20 20 20 3 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98107-909-0 		8-98063-143-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98107-909-0 		8-98063-144-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98107-909-0 		8-98063-145-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=155 ASM PART: A = 8-98107-909-0 		1-51156-336-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98107-909-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98107-909-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-98107-909-0 		8-97615-331-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98107-909-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: A = 8-98107-909-0 		1-51177-074-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: A = 8-98107-909-0 		1-51177-352-0 03 1 -
