4-10 — FRONT AXLE (#70506) — 155 parça

274 267 272 265 295 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

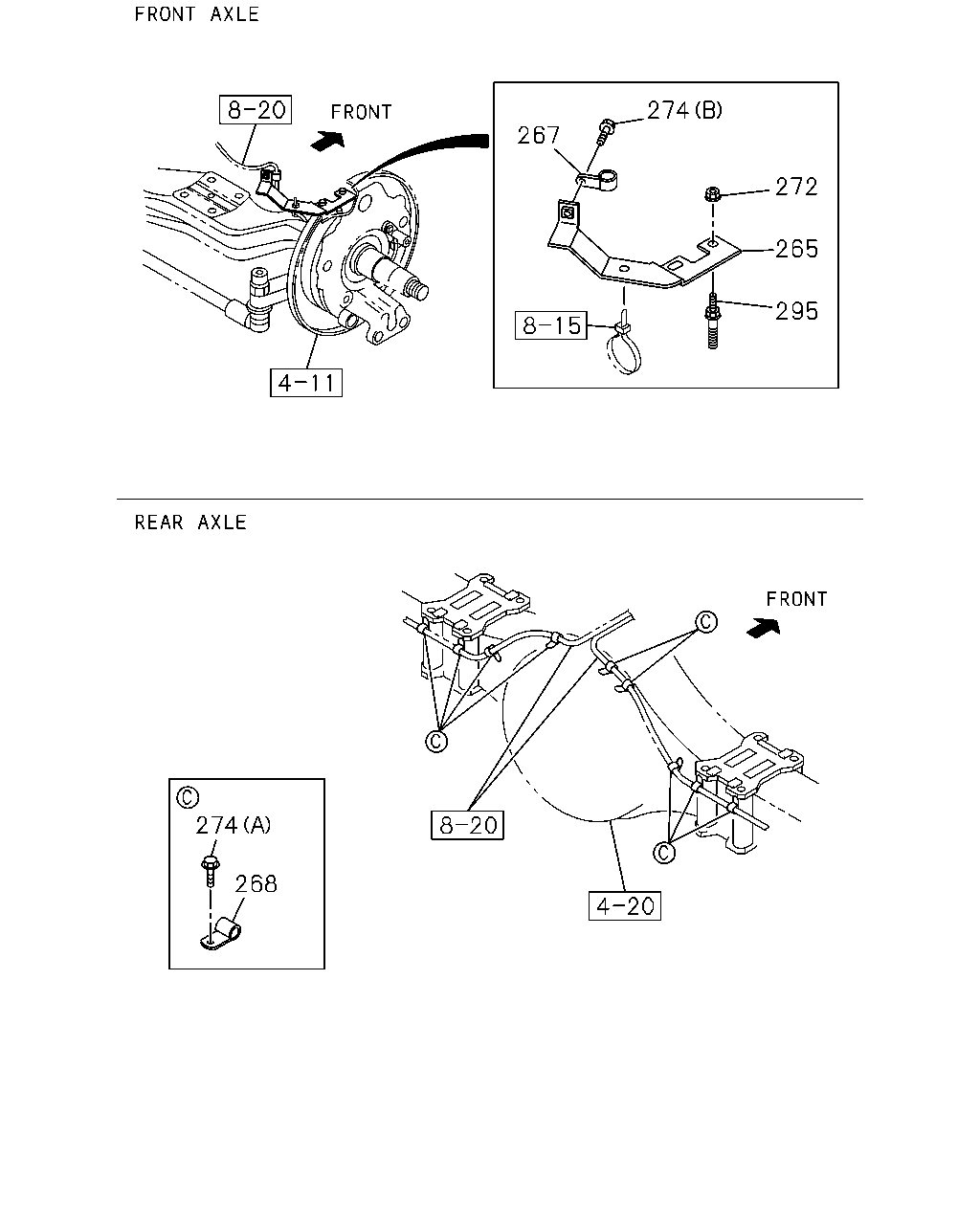

265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1009-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1009-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1009-
268	CLIP; HARNESS ID=11 L=20	0-95235-035-0	09	1	1009-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1009-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	1009-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 111 110 128 127 110 105 234 87 91 111 127 91 128 234 296 234 87 93 82 103 93 103 303 304 87 237 234 105 303 93 304 93 87 296 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

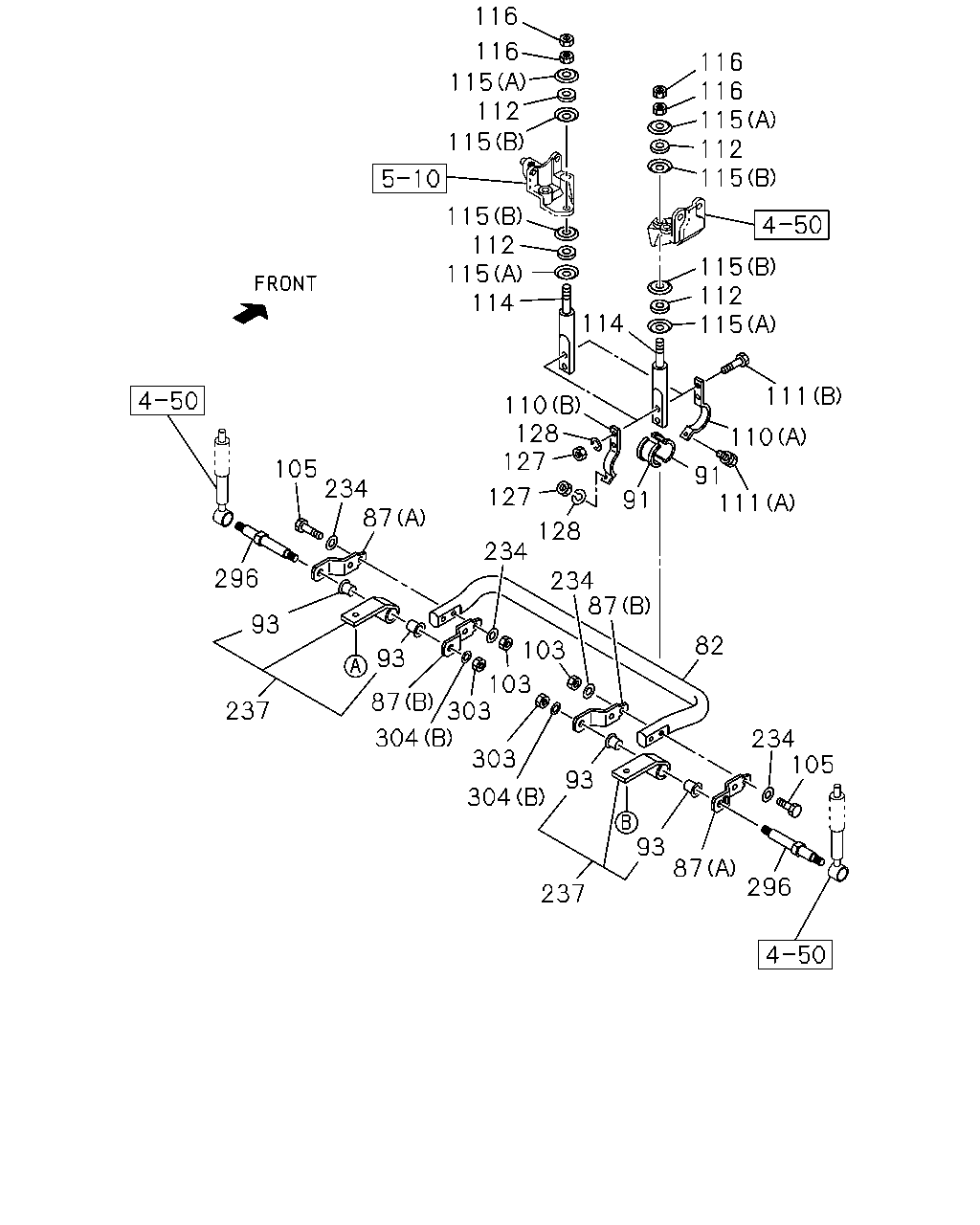

82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-1	01	1	1009-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1009-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1009-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1009-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1009-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1009-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1009-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1009-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1009-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1009-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1009-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1009-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1009-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1009-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1009-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1009-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1009-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1009-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1009-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1009-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1009-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1009-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1009-

2 1 33 34 30 313 18 17 21 48 30 80 295 66 25 32 44 48 40 220 36 58 275 45 59 59 80 61 66 313 8 73 18 17 58 68 6 81 68 304 74 2 275 74 3 17 18 61 73 8 6 8 304 21 45 48 295 44 48 44 45 48 8 6 33 21 32 25 34 6 8 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

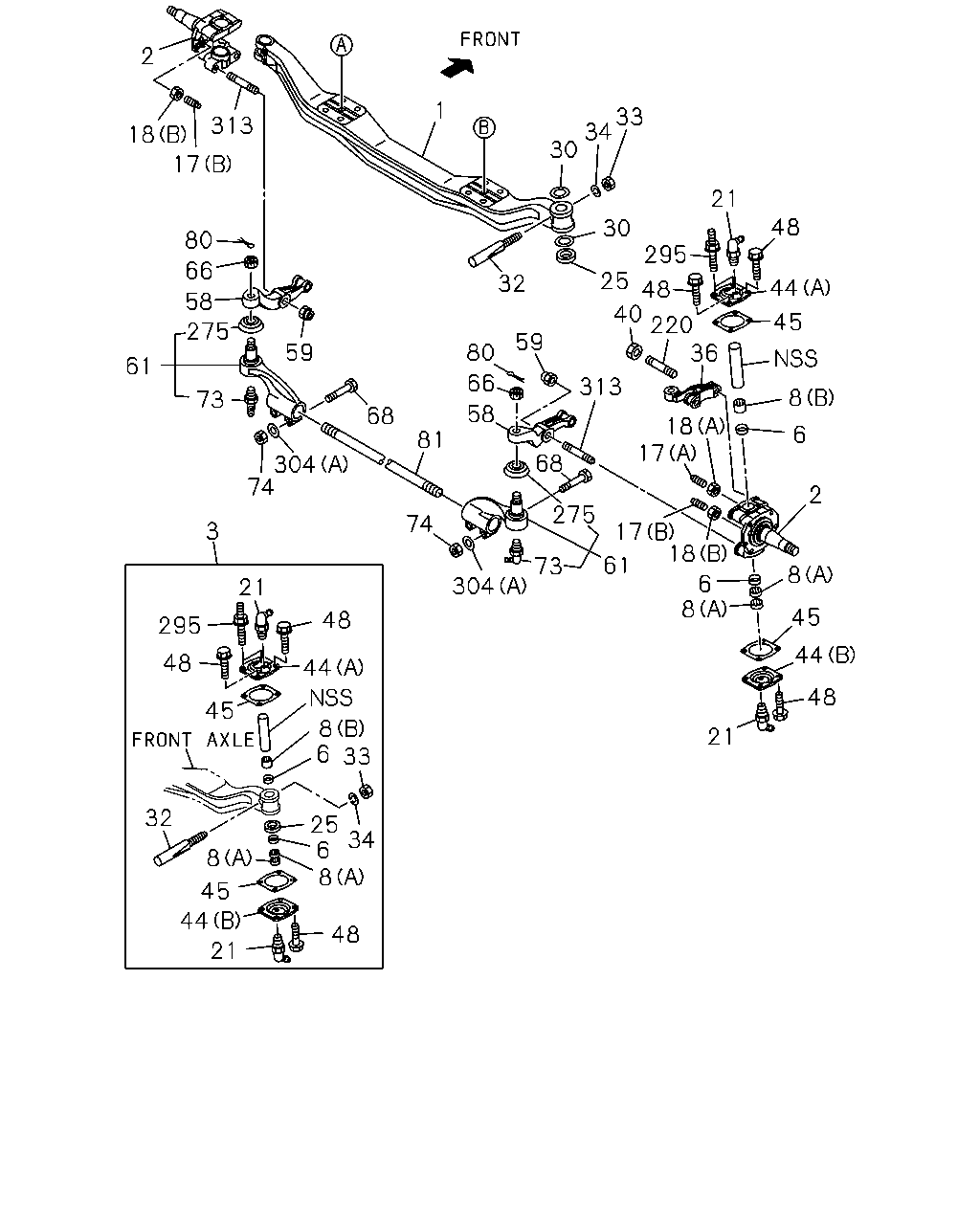

1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-
3	KING PIN SET	1-87831-349-3	02	1	1009-
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1009-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1009-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-
36	ARM; KNUCKLE	8-98061-893-0	01	1	1009-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1009-
58	ARM; TIE ROD	1-43134-049-4	01	1	1009-
58	ARM; TIE ROD	1-43135-049-4	01	1	1009-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1009-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1009-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1009-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1009-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-
81	ROD; TIE	1-43151-154-0	01	1	1009-1009
81	ROD; TIE	8-98105-064-0	01	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1009-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1009-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-

1 33 34 18 30 21 17 48 313 295 30 44 80 48 25 66 45 59 32 40 58 220 36 59 80 275 58 66 68 18 17 61 8 6 81 2 313 68 17 18 6 304 304 74 74 61 8 3 8 21 48 295 45 48 44 44 8 6 45 21 48 33 32 25 6 8 34 8 45 44 48 21 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

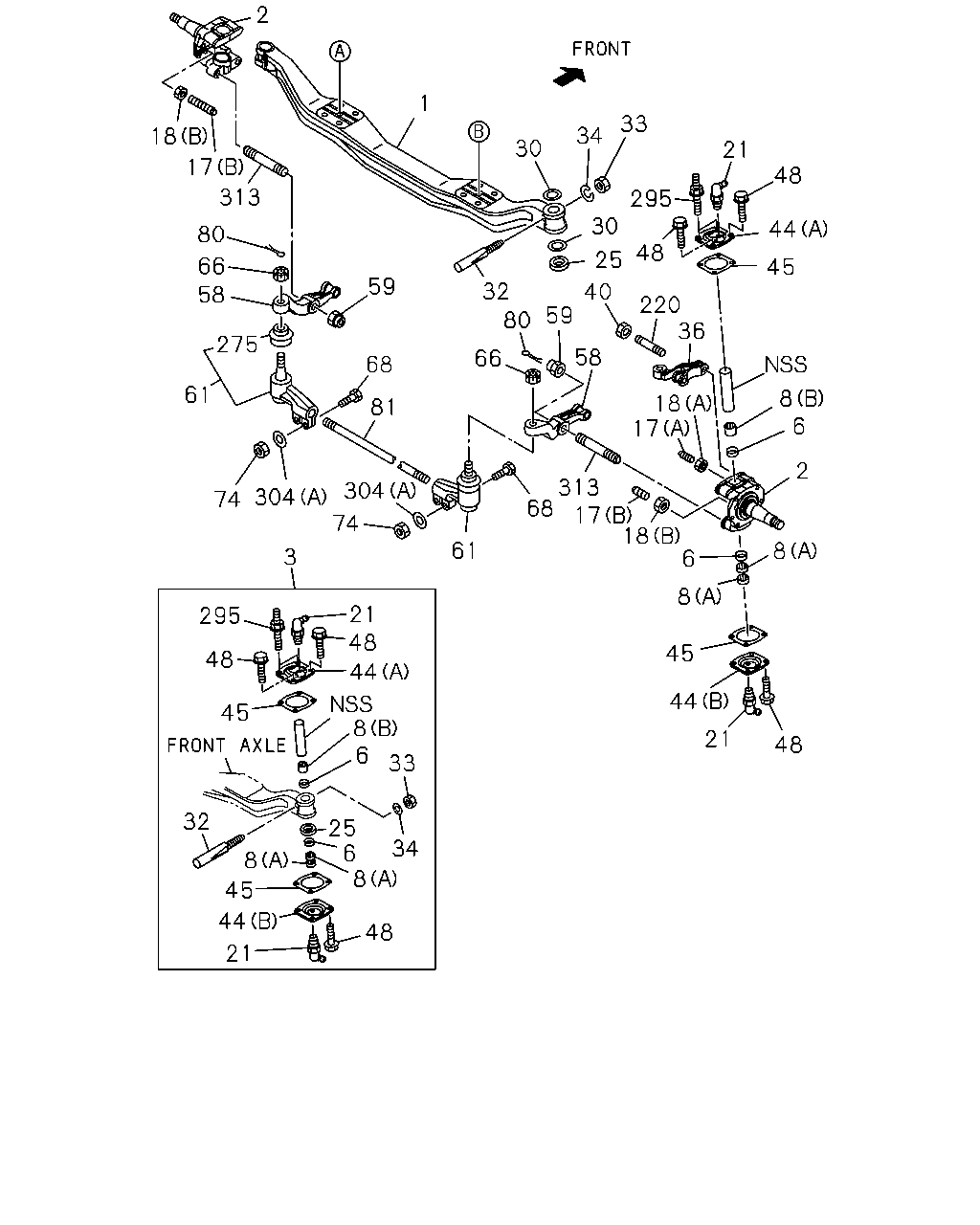

1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-
3	KING PIN SET	1-87831-349-3	02	1	1009-
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1009-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1009-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-
36	ARM; KNUCKLE	8-98061-893-0	01	1	1009-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1009-
58	ARM; TIE ROD	1-43134-049-4	01	1	1009-
58	ARM; TIE ROD	1-43135-049-4	01	1	1009-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1009-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1009-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1009-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1009-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-
81	ROD; TIE	1-43151-154-0	01	1	1009-1009
81	ROD; TIE	8-98105-064-0	01	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1009-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1009-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-
