3-78 — FIXING PARTS; AIR PIPING (#70504) — 62 parça

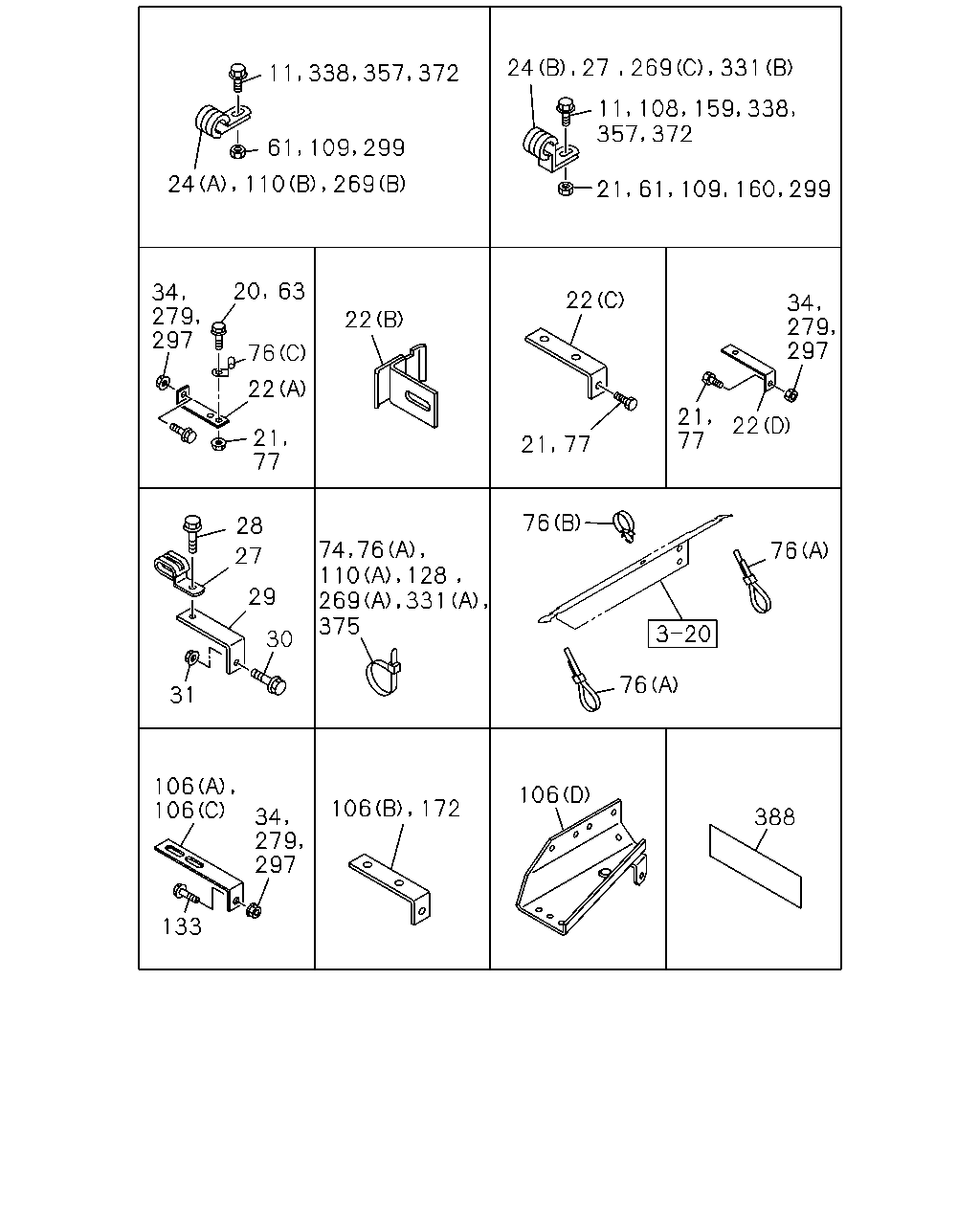

çizim 187493
11 357 61 109 24 21 20 63 34 279 297 22 34 279 297 22 76 22 21 77 22 21 77 21 76 28 76 110 128 375 76 27 29 30 76 31 106 106 106 106 172 34 279 297 388 133 269 331 74 77 299 160 109 61 372 108 159 338 331 269 27 24 372 357 338 11 299 110 269
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-
22 BRACKET; CLIP
(D) L=145 		1-47475-655-0 01 1 1009-
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1009-
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1009-
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1009-
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1009-
22 BRACKET; CLIP
(A) L=95 		1-82698-557-0 01 1 1009-
24 CLIP; PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-
24 CLIP; PIPE
(A) ID=25 L=50 		1-09701-019-0 03 1 1009-
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1009-
28 BOLT; CLIP,FLEX HOSE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X20 FLANGE 		0-28650-820-0 01 1 1009-
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		1-47475-927-0 01 1 1009-1010
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=68 		1-47475-525-0 01 1 1011-
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X30 FLANGE 		0-28650-830-0 01 1 1009-
31 NUT; CLIP BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 01 1 1009-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1009-
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 06 1 1009-
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 1009-
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1009-
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1009-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1009-
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 1009-
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1009-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 02 1 1009-
106 BRACKET; TUBE CLIP
(D) 		8-98100-335-0 01 1 1009-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1009-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1009-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 10 1 1009-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 11 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1009-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1009-
159 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1009-
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-
172 BRACKET; TUBE CLIP 1-47479-693-0 01 1 1009-
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 1009-
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 1009-
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 1009-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1009-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 1009-
331 CLIP; NYLON TUBE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 01 1 1009-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1009-
388 SEAL
100X40 		1-72498-022-1 03 1 1009-
